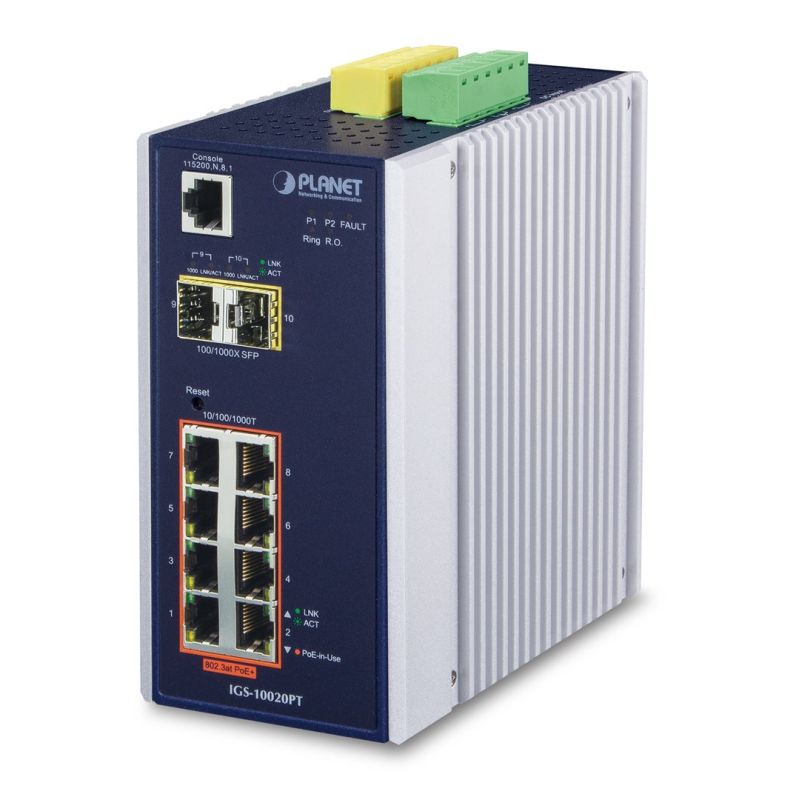

Planet IGS-10020PT Switch (8x 10/100/1000Mbps)
Planet IGS-10020PT Switch (8x 10/100/1000Mbps)
Planet IGS-10020PT Switch (8x 10/100/1000Mbps)
PRICE:
1009,99
€
IN A WAREHOUSE
3 pcs
Goods available on request - delivery time to 5 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product colour
- Blue
- White
- DIN rail mounting: Yes
- Wall mountable: Yes
- Rack mounting: No
- LED indicators: Yes
- IP protection rating: IP30
- Housing material: Aluminium
- Product colour
- Power
- Power consumption (max.): 255 W
- Weight and dimensions
- Product width: 76.8 mm
- Product height: 152 mm
- Product weight: 1.03 kg
- Product depth: 107.3 mm
- Security
- Access Control List (ACL): Yes
- Encryption / security
- SSH
- 802.1x RADIUS
- SSL/TLS
- Management features
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Switch type: Managed
- Web-based management: Yes
- MIB support: RFC 1213 MIB-II, IF-MIB, MAU-MIB
- Operating conditions
- Operating temperature range: -40 - 75 °C
- Storage temperature range: -40 - 85 °C
- Relative humidity range: 5 - 95%
- Network
- Automatic MDI/MDI-X: Yes
- Communication standards
- IEEE 802.3ad
- IEEE 802.1x
- IEEE 802.3
- IEEE 802.3bz
- IEEE 802.1ad
- IEEE 802.3af
- IEEE 802.3z
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.3ah
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3ab
- IEEE 802.1p
- IEEE 802.3at
- IEEE 802.1s
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-TX
- 1000BASE-T
- Link aggregation: Yes
- Flow control support: Yes
- Number of VLANs: 255
- 10G support: No
- Full duplex: Yes
- Port mirroring: Yes
- VLAN support: Yes
- Protocols
- Management protocols: SSH, SSL, SNMP, Telnet
- Ports and interfaces
- Console port: RJ-45
- Number of SFP module slots: 2
- Number of Gigabit Ethernet ports: 8
- Number of RJ-45 Ethernet ports for basic switching: 8
- Fibre optic connector: MiniGBIC
- RJ-45 Ethernet port type for basic switching: Gigabit Ethernet (10/100/1000)
- Other features
- Power supply: 48VDC
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transmission
- Address table size: 8000 entries
- Throughput: 14.8 Mpps
- Jumbo Frames support: Yes
- Store-and-forward: Yes
- Number of queues: 8
- Routing/switching capacity: 26 Gbit/s
- Power over Ethernet (PoE)
- Total Power over Ethernet (PoE) budget: 240 W
- Number of Fast Ethernet (PoE) ports: 8
- PoE support: Yes
- Multicast features
- Multicast support: No
- Safety warning
- Warnings
- Do not open the housing or attempt to repair the device yourself.
- The product must not be disposed of with regular household waste. Dispose of used electronic equipment at a designated disposal point in accordance with local regulations.
- Make sure that the device is adequately ventilated during operation.
