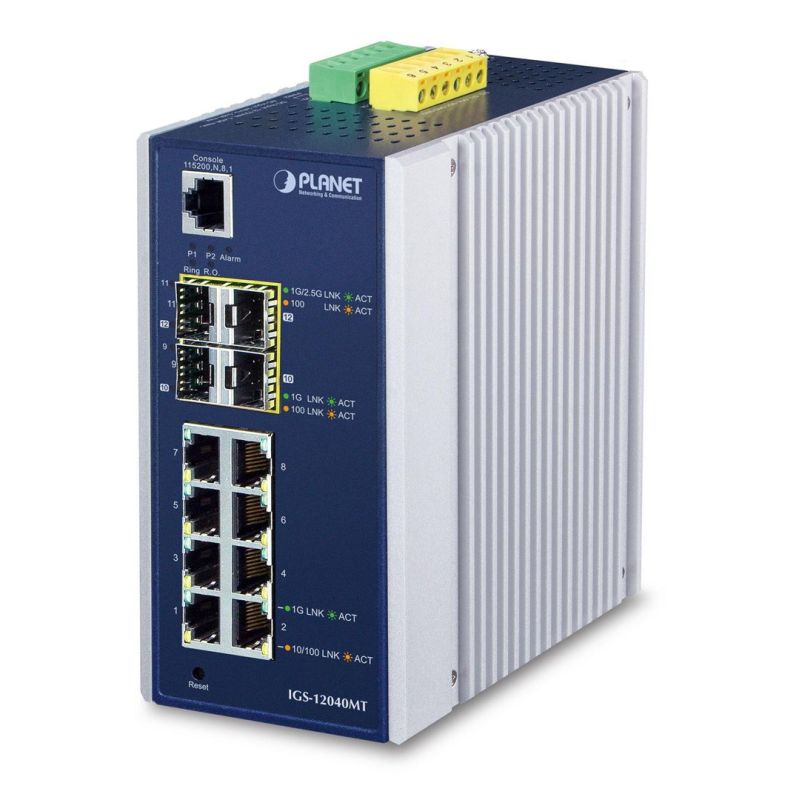

PLANET IGS-12040MT Network Links Managed L2+ Gigabit Ethernet (10/100/1000) Blue, White
PLANET IGS-12040MT Network Links Managed L2+ Gigabit Ethernet (10/100/1000) Blue, White
PLANET IGS-12040MT Network Links Managed L2+ Gigabit Ethernet (10/100/1000) Blue, White
PRICE:
681,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color
- White
- Blue
- Wall mountable: Yes
- Reset button: Yes
- IP protection class: IP30
- DIN rail mounting: Yes
- LEDs: Yes
- Rack mounting options: No
- Housing material: Aluminum
- Product color
- Power
- Backup Power Supply (RPS) Support: Yes
- Power consumption: 6.5 W
- Power consumption (max): 12 W
- Weight and dimensions
- Product depth: 107 mm
- Product height: 152 mm
- Product width: 76 mm
- Product weight: 1.01 kg
- Security
- BPDU Filtering/Protection: Yes
- IGMP snooping: Yes
- Loop protection: Yes
- Supports SSH/SSL: Yes
- Access Control List (ACL): Yes
- Management features
- System Event Report: Yes
- Quality of Service (QoS) Support: Yes
- Switch type: Managed
- Website management: Yes
- ARP Inspection: Yes
- Traffic Classification: Yes
- Switch Layer: L2+
- Working conditions
- Heat emission: 22.18 BTU/h
- Temperature range (storage): -40 - 85 °C
- Temperature range (operation): -40 - 75 °C
- Relative humidity range: 5 - 95%
- Permissible relative humidity: 5 - 95%
- Network
- Flow Control Support: Yes
- Traffic Growth Control: Yes
- Communication standards
- IEEE 802.3
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1s
- IEEE 1588v2
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1Q
- IEEE 802.3ah
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.1x
- IEEE 802.1ad
- IEEE 802.3ab
- IEEE 802.1ag
- IEEE 802.1D
- IEEE 802.1ab
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- Port Mirroring: Yes
- Frequency Limit: Yes
- Copper Ethernet cabling technology
- 10BASE-T
- 1000BASE-T
- 100BASE-T
- Connection Aggregator: Yes
- Spanning Tree Protocol: Yes
- Number of VLANs: 4095
- Auto-Negotiation: Yes
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- 10G Support: No
- Half-duplex: Yes
- VLAN support: Yes
- Virtual LAN Features
- Protocol-based VLAN
- Stacked VLAN
- Tagged VLAN
- Private VLAN
- Protocols
- Management protocols: telnet, SNMP
- Supported network protocols: IPv4 / IPv6
- Ports and interfaces
- Console port: RJ-45
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of SFP Module slots: 4
- Other functions
- Terminal Port Blocking: Yes
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Address table size: 8000 entries
- Jumbo Frame Compatible: Yes
- Number of rounds: 8
- Number of IP interfaces: 8
- Throughput: 17.85 Mpps
- Jumbo Frames Expansion: 9000
- Routing/Switching Throughput: 24 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Number of multicast groups filtered: 255
- Fiber optic
- Fiber Ethernet cabling technology
- 100BASE-FX
- 1000BASE‑LX
- 1000BASE‑BX
- 1000BASE‑SX
- Fiber Ethernet cabling technology
| Name | Details |
|---|---|
| Producer | Planet |
