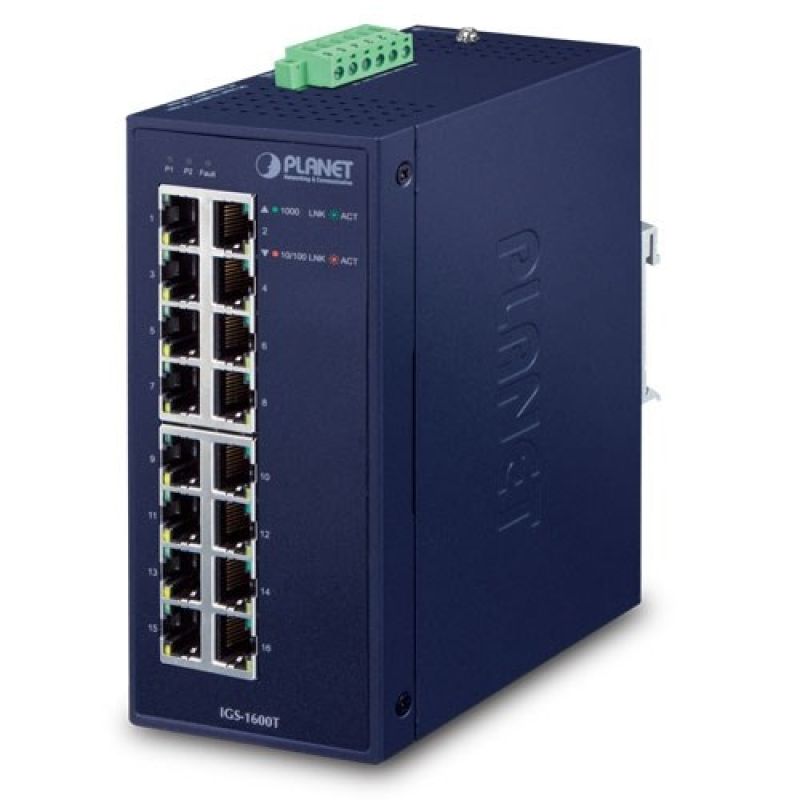

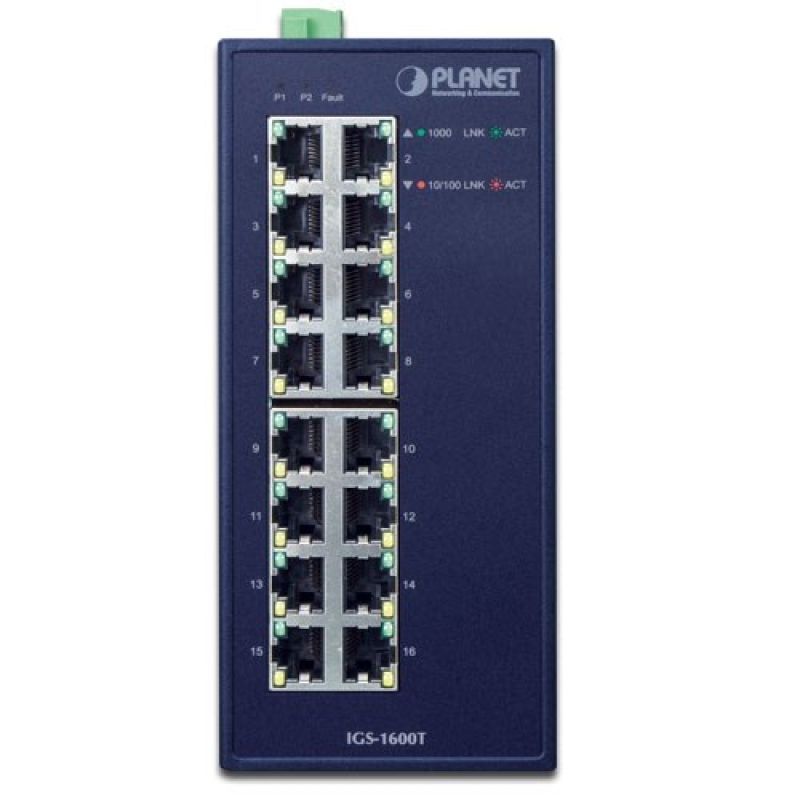

PLANET IGS-1600T Network Link Unmanaged L2 Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-1600T Network Link Unmanaged L2 Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-1600T Network Link Unmanaged L2 Gigabit Ethernet (10/100/1000) Blue
PRICE:
451,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- IP protection class: IP30
- Wall mountable: Yes
- Housing material: Metal
- Product color: Blue
- DIN rail mounting: Yes
- Power
- Power consumption (max): 8.7 W
- DC input voltage: 12 - 48 V
- Weight and dimensions
- Product width: 66 mm
- Product depth: 107 mm
- Product weight: 743 g
- Product height: 152 mm
- Management features
- Switch Layer: L2
- Switch Type: Unmanaged
- Working conditions
- Temperature range (operation): -40 - 75 °C
- Temperature range (storage): -40 - 85 °C
- Relative humidity range: 5 - 95%
- Network
- Communication standards
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.1p
- IEEE 802.3
- IEEE 802.3az
- IEEE 802.3ab
- Copper Ethernet cabling technology
- 100BASE-TX
- 10BASE-T
- 1000BASE-T
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- Flow Control Support: Yes
- 10G Support: No
- Auto-Negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- Communication standards
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 16
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Jumbo Frame Compatible: Yes
- Throughput: 23.81 Mpps
- Packet buffer memory: 4.1 MB
- Store-and-forward: Yes
- Address table size: 8000 entries
- Routing/Switching Throughput: 32 Gbit/s
- Jumbo Frames Expansion: 10000
- Power over Ethernet (PoE)
- PoE Support: No
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Planet |
| Colour | Blue |
