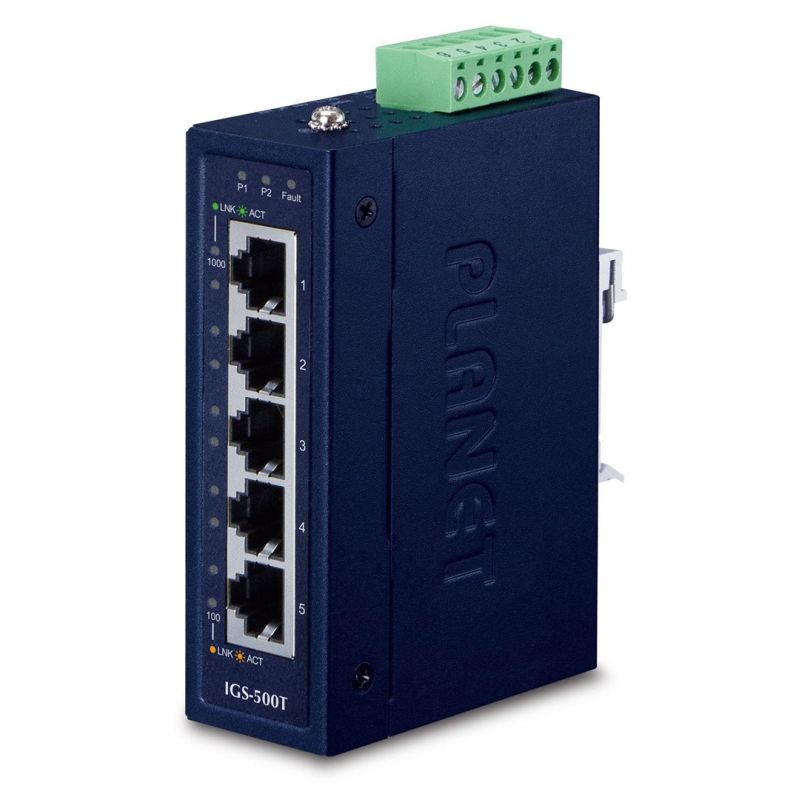

PLANET IGS-500T Network Links Unmanaged Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-500T Network Links Unmanaged Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-500T Network Links Unmanaged Gigabit Ethernet (10/100/1000) Blue
PRICE:
219,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Housing material: Metal
- Wall mountable: Yes
- DIN rail mounting: Yes
- IP protection class: IP30
- LEDs: Yes
- Product color: Blue
- Power
- Power consumption: 3.6 W
- DC input voltage: 24V
- Backup Power Supply (RPS) Support: Yes
- Weight and dimensions
- Product depth: 70 mm
- Product height: 104 mm
- Product width: 30 mm
- Product weight: 252 g
- Management features
- Switch Type: Unmanaged
- Working conditions
- Permissible relative humidity: 5 - 90%
- Relative humidity range: 5 - 90%
- Temperature range (operation): -40 - 75 °C
- Temperature range (storage): -40 - 75 °C
- Heat emission: 12.35 BTU/h
- Network
- Auto-Negotiation: Yes
- Flow Control Support: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- 10G Support: No
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- Supported cable types
- Cat5
- Cat6
- Cat3
- Cat5e
- Cat4
- Communication standards
- IEEE 802.3u
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.1p
- IEEE 802.3x
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 5
- Number of Gigabit Ethernet ports: 5
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Store-and-forward: Yes
- Jumbo Frames Expansion: 9000
- Jumbo Frame Compatible: Yes
- Address table size: 4000 entries
- Routing/switching capacity: 10 Gbit/s
- Packet buffer memory: 1 MB
- Throughput: 7.4 Mpps
- Power over Ethernet (PoE)
- PoE Support: No
| Name | Details |
|---|---|
| Department | Electronics |
| Category | Networking & Communication, Computers and accessories |
| Product Type | Network switches |
| Producer | Planet |
| Colour | Blue |
