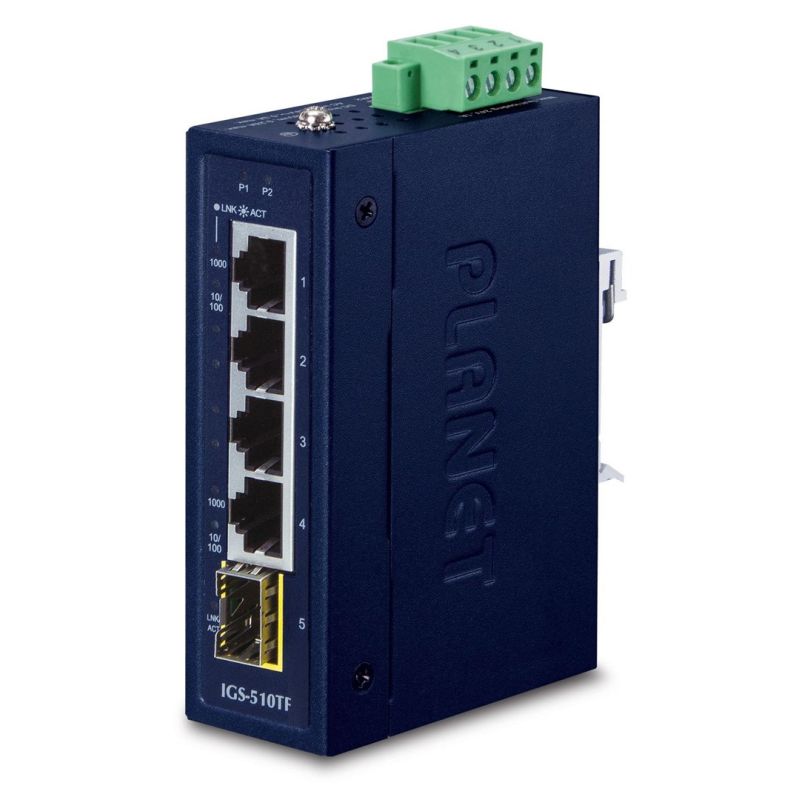

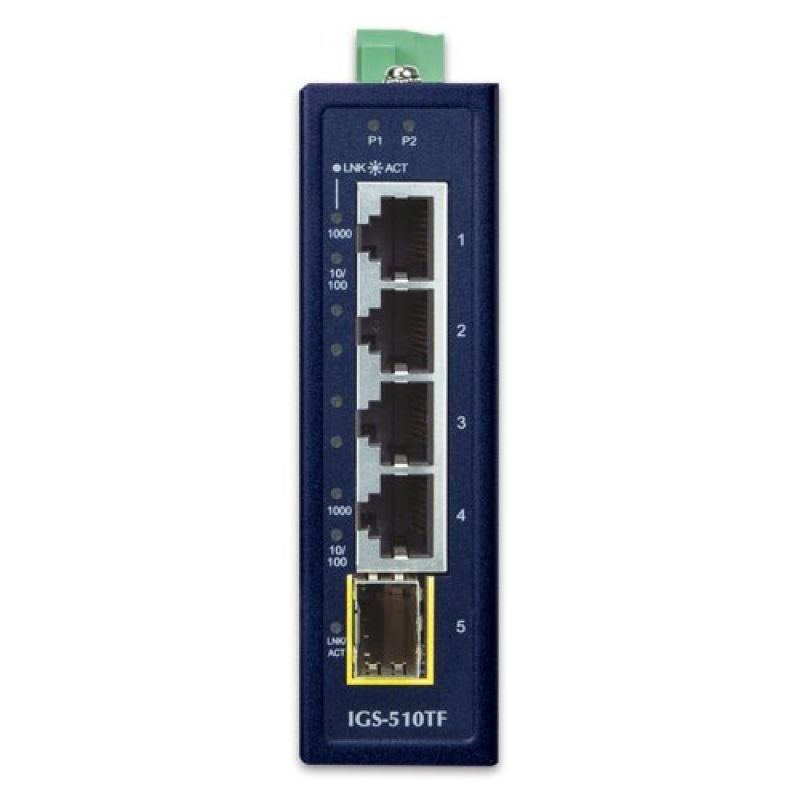

PLANET IGS-510TF Network Link Unmanaged Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-510TF Network Link Unmanaged Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-510TF Network Link Unmanaged Gigabit Ethernet (10/100/1000) Blue
PRICE:
209,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- IP protection class: IP30
- Wall mountable: Yes
- Housing material: Metal
- DIN rail mounting: Yes
- LEDs: Power
- Product color: Blue

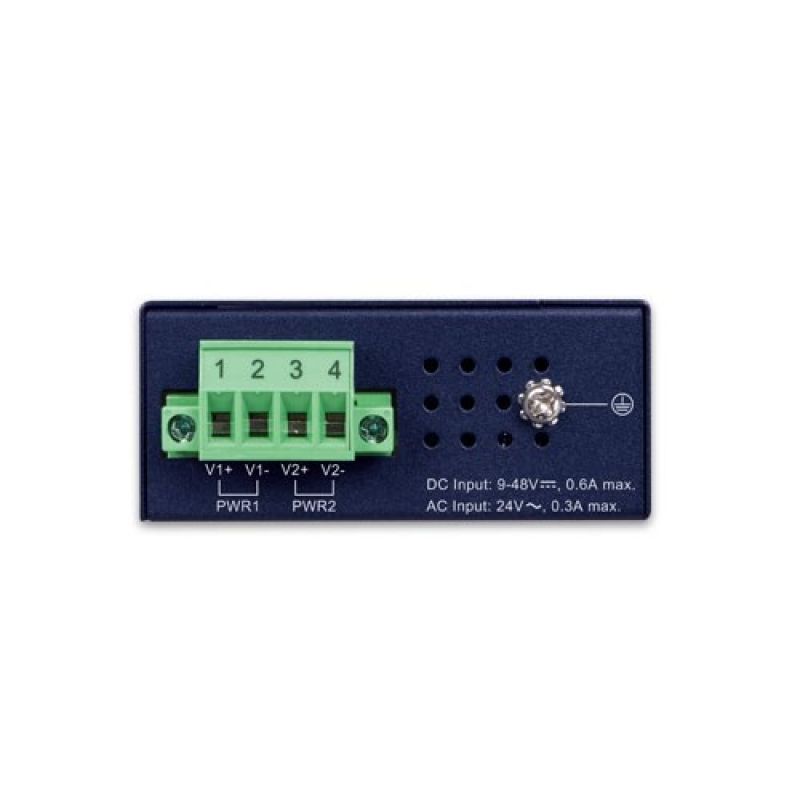

- Power
- Input current: 24 A
- DC input voltage: 9 - 48 V
- Power consumption (max): 2.8 W
- Voltage: 9 - 48 V
- Weight and dimensions
- Product weight: 252 g
- Product width: 30 mm
- Product depth: 70 mm
- Product height: 104 mm
- Management features
- Switch Type: Unmanaged
- Working conditions
- Heat emission: 9.5 BTU/h
- Relative humidity range: 5 - 90%
- Temperature range (storage): -40 - 75 °C
- Permissible relative humidity: 5 - 90%
- Temperature range (operation): -40 - 75 °C
- Network
- Communication standards
- IEEE 802.1p
- IEEE 802.3
- IEEE 802.3az
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.3ad
- Auto-Negotiation: Yes
- Auto MDI/MDI-X: Yes
- Half-duplex: Yes
- Full duplex: Yes
- 10G Support: No
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Flow Control Support: Yes
- Supported cable types
- Cat5e
- Cat5
- Cat6
- Cat3
- Cat4
- Communication standards
- Efficiency
- Maximum data transfer speed: 1000 Mbit/s
- Ports and interfaces
- Fiber optic connector: SFP
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of SFP Module slots: 1
- Basic RJ-45 Switching Number of Ethernet Ports: 4
- Number of ports: 1
- Other functions
- Number of Ethernet LAN ports (RJ-45): 4
- Ethernet interface type: Gigabit Ethernet
- Connection method: Wired
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Routing/switching capacity: 10 Gbit/s
- Jumbo Frame Compatible: Yes
- Store-and-forward: Yes
- Address table size: 4000 entries
- Throughput: 7.4 Mpps
- Jumbo Frames Expansion: 9000
- Power over Ethernet (PoE)
- PoE Support: No
