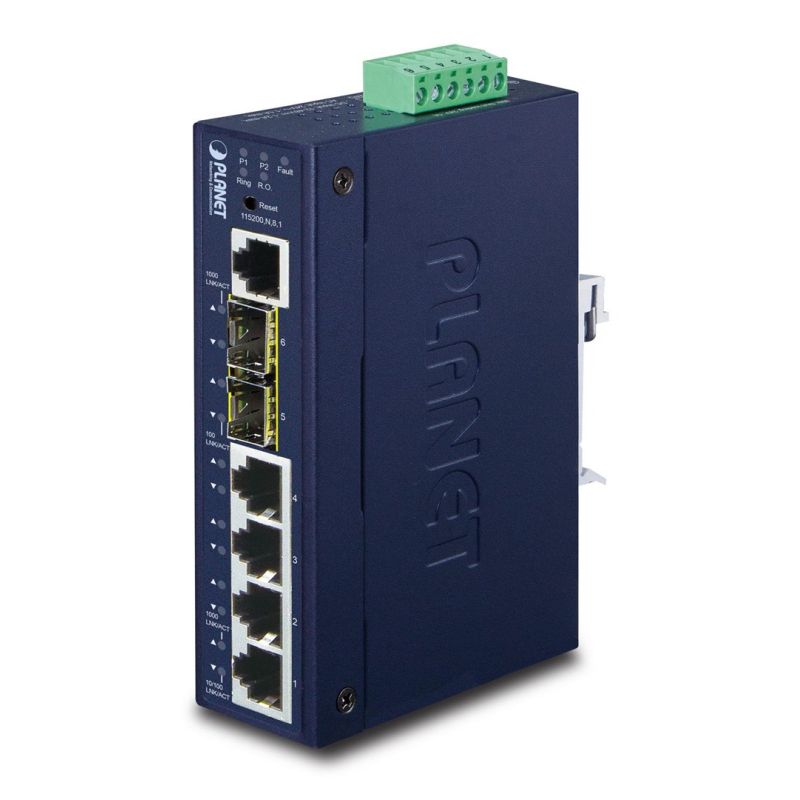

PLANET IGS-5225-4T2S Network Links Managed L2+ Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-5225-4T2S Network Links Managed L2+ Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-5225-4T2S Network Links Managed L2+ Gigabit Ethernet (10/100/1000) Blue
PRICE:
466,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- DIN rail mounting: Yes
- Wall mountable: Yes
- Product color: Blue
- Reset button: Yes
- Housing material: Metal
- IP protection class: IP30
- LEDs: Yes
- Power
- Power consumption (max): 8.5 W
- DC input voltage: 24V
- Backup Power Supply (RPS) Support: Yes
- Weight and dimensions
- Product height: 135 mm
- Product weight: 456 g
- Product width: 32 mm
- Product depth: 87 mm
- Security
- IGMP snooping: Yes
- Encryption/Security
- SSL/TLS
- SNMPv3
- SSH
- Access Control List (ACL): Yes
- Authentication: MAC-based authentication, Port-based authentication
- BPDU Filtering/Protection: Yes
- Supports SSH/SSL: Yes
- IP-MAC-Port Binding: Yes
- Management features
- Switch Layer: L2+
- Traffic Classification: Yes
- Switch type: Managed
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Working conditions
- Heat emission: 29.2 BTU/h
- Temperature range (operation): -40 - 75 °C
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 5 - 95%
- Temperature range (storage): -40 - 85 °C
- Network
- MAC address auto-learning supported: Yes
- Auto MDI/MDI-X: Yes
- Spanning Tree Protocol: Yes
- Frequency Limit: Yes
- MAC address auto-aging supported: Yes
- Traffic Growth Control: Yes
- Communication standards
- IEEE 802.3
- IEEE 802.1ad
- IEEE 802.3ab
- IEEE 802.1ag
- IEEE 802.3ad
- IEEE 802.1s
- IEEE 1588v2
- IEEE 802.3z
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1Q
- IEEE 802.3ah
- IEEE 802.1x
- Copper Ethernet cabling technology
- 1000BASE-T
- 100BASE-T
- 10BASE-T
- Connection Aggregator: Yes
- VLAN support: Yes
- Full duplex: Yes
- Port Mirroring: Yes
- Virtual LAN Features
- Private VLAN
- Tagged VLAN
- Protocol-based VLAN
- 10G Support: No
- Number of VLANs: 4094
- Flow Control Support: Yes
- Ports and interfaces
- Console port: RJ-45
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Basic RJ-45 Switching Number of Ethernet Ports: 4
- Number of SFP Module slots: 2
- Number of Gigabit Ethernet ports: 4
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Jumbo Frames Expansion: 9000
- Jumbo Frame Compatible: Yes
- Routing/switching capacity: 12 Gbit/s
- Address table size: 8000 entries
- Store-and-forward: Yes
- Number of rounds: 8
- Throughput: 8.9 Mpps
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
