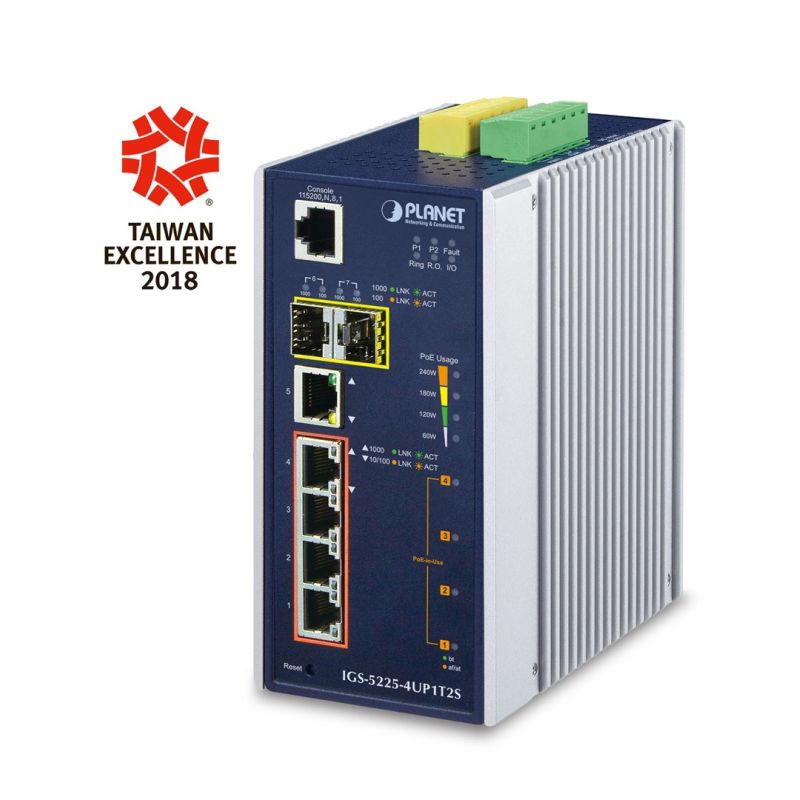

PLANET IGS-5225-4UP1T2S Network Links Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support Blue, Silver
PLANET IGS-5225-4UP1T2S Network Links Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support Blue, Silver
PLANET IGS-5225-4UP1T2S Network Links Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support Blue, Silver
PRICE:
837,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color
- Silver
- Blue
- Housing material: Aluminum
- IP protection class: IP30
- LED diodes
- LAN
- PoE
- System
- Reset button: Yes
- DIN rail mounting: Yes
- Wall mountable: Yes
- Product color
- Power
- Protection against sudden voltage increases
- Yes
- 6 kV
- DC input voltage: 48 - 56 V
- Protection against sudden voltage increases
- Weight and dimensions
- Product depth: 107.3 mm
- Product weight: 1.05 kg
- Product width: 76.8 mm
- Product height: 152 mm
- Security
- Encryption/Security
- SSH
- 802.1x RADIUS
- SSL/TLS
- SNMPv3
- SNMP
- IGMP snooping: Yes
- Authentication type: IEEE 802.1x, RADIUS
- Authentication: Port-based authentication
- Access Control List (ACL) Rules: 123
- DHCP functions
- DHCP relay
- DHCP snooping
- Access Control List (ACL): Yes
- Loop protection: Yes
- Encryption/Security
- Management features
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Switch type: Managed
- Switch Layer: L2+
- Working conditions
- Permissible relative humidity: 5 - 95%
- Temperature range (operation): -40 - 75 °C
- Relative humidity range: 5 - 95%
- Temperature range (storage): -40 - 85 °C
- Heat emission: 962.22 BTU/h
- Network
- Copper Ethernet cabling technology
- 10BASE-T
- 1000BASE-T
- 100BASE-TX
- Communication standards
- IEEE 802.1x
- IEEE 802.3ab
- IEEE 802.1ag
- IEEE 802.3
- IEEE 802.3bt
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.1s
- IEEE 802.1Q
- IEEE 802.3ah
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3u
- IEEE 802.1w
- Full duplex: Yes
- VLAN support: Yes
- Routing position: 32
- Virtual LAN Features
- Private VLAN
- Tagged VLAN
- Protocol-based VLAN
- Port Mirroring: Yes
- Auto-Negotiation: Yes
- Connection Aggregator: Yes
- Number of VLANs: 4095
- IP forwarding: Yes
- Spanning Tree Protocol: Yes
- Flow Control Support: Yes
- 10G Support: No
- Copper Ethernet cabling technology
- Efficiency
- Device software updates: Yes
- Ports and interfaces
- Fiber optic connector: SFP
- Basic RJ-45 Switching Number of Ethernet Ports: 5
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Console port: RJ-45
- Number of SFP Module slots: 2
- Other functions
- Terminal Port Blocking: Yes
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Routing/switching capacity: 14 Gbit/s
- Jumbo Frames Expansion: 9000
- Address table size: 8000 entries
- Number of static routes: 32
- Jumbo Frame Compatible: Yes
- Number of rounds: 8
- Store-and-forward: Yes
- Static Route: Yes
- Throughput: 10.42 Mpps
- Packet buffer memory: 4 MB
- Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port: 72 W
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 240 W
- Power over Ethernet Plus (PoE +) ports: 4
- Multicast functions
- Multicast Support: Yes
- Fiber optic
- Fiber Ethernet cabling technology
- 1000BASE-FX
- 1000BASE‑BX
- 1000BASE‑LX
- Fiber Ethernet cabling technology
