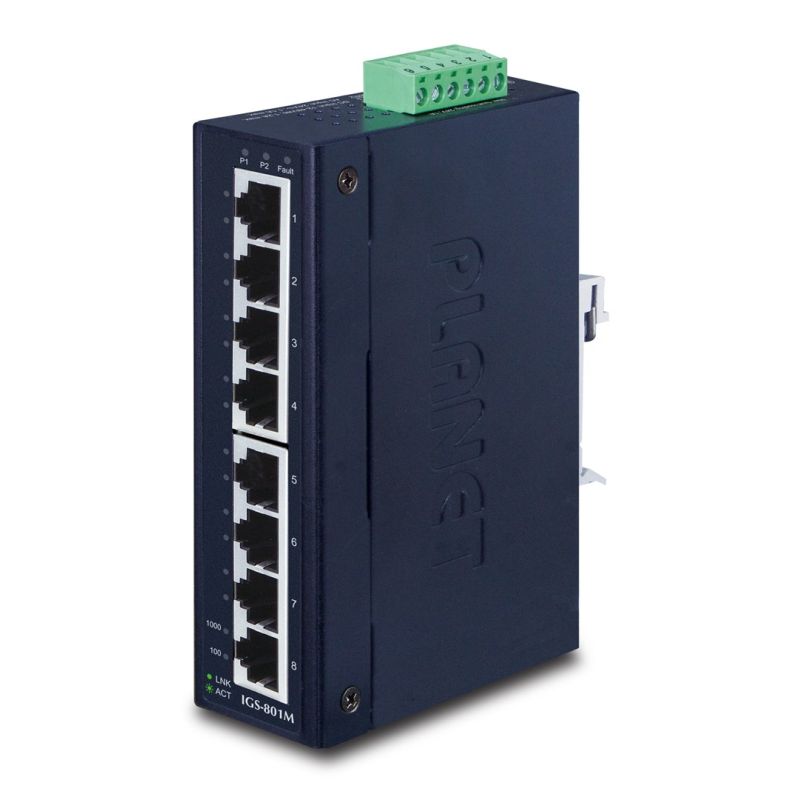

PLANET IGS-801M Network Links Managed L2/L4 Gigabit Ethernet (10/100/1000) 1U Blue
PLANET IGS-801M Network Links Managed L2/L4 Gigabit Ethernet (10/100/1000) 1U Blue
PLANET IGS-801M Network Links Managed L2/L4 Gigabit Ethernet (10/100/1000) 1U Blue
PRICE:
355,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Blue
- Layout: 1U
- Rack mounting options: Yes
- Wall mountable: Yes
- LEDs: Yes
- IP protection class: IP30
- Reset button: Yes
- Housing material: Metal
- DIN rail mounting: Yes
- Power
- Power consumption: 4.5 W
- Power consumption (max): 10 W
- Weight and dimensions
- Product weight: 472 g
- Product width: 32 mm
- Product depth: 87 mm
- Product height: 135 mm
- Security
- Supports SSH/SSL: Yes
- IGMP snooping: Yes
- MAC address filtering: Yes
- Encryption/Security
- SSH
- SSL/TLS
- Access Control List (ACL): Yes
- Loop protection: Yes
- BPDU Filtering/Protection: Yes
- Authentication: Port-based authentication
- Management features
- Switch type: Managed
- Quality of Service (QoS) Support: Yes
- Switch Layer: L2/L4
- Website management: Yes
- System Event Report: Yes
- Traffic Classification: Yes
- ARP Inspection: Yes
- Working conditions
- Temperature range (operation): -40 - 75 °C
- Heat emission: 15 BTU/h
- Temperature range (storage): -40 - 75 °C
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 5 - 95%
- Network
- Full duplex: Yes
- 10G Support: No
- Auto MDI/MDI-X: Yes
- Flow Control Support: Yes
- Traffic Growth Control: Yes
- Communication standards
- IEEE 802.1x
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1ab
- IEEE 802.1p
- IEEE 802.3
- IEEE 802.3ad
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.1s
- Copper Ethernet cabling technology
- 1000BASE-T
- 10BASE-T
- 100BASE-TX
- Port Mirroring: Yes
- Number of VLANs: 4094
- VLAN support: Yes
- Half-duplex: Yes
- Frequency Limit: Yes
- Virtual LAN Features
- Stacked VLAN
- Protocol-based VLAN
- Tagged VLAN
- Private VLAN
- Connection Aggregator: Yes
- Spanning Tree Protocol: Yes
- Efficiency
- Device software updates: Yes
- Protocols
- Supported network protocols: IPv4 / IPv6
- Management protocols: Telnet/SNMP
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of Gigabit Ethernet ports: 8
- Other functions
- Terminal Port Blocking: Yes
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Jumbo Frame Compatible: Yes
- Address table size: 8000 entries
- Throughput: 11.9 Mpps
- Routing/switching capacity: 16 Gbit/s
- Store-and-forward: Yes
- Jumbo Frames Expansion: 10000
- Number of rounds: 8
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Number of multicast groups filtered: 256
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Planet |
| Colour | Blue |
