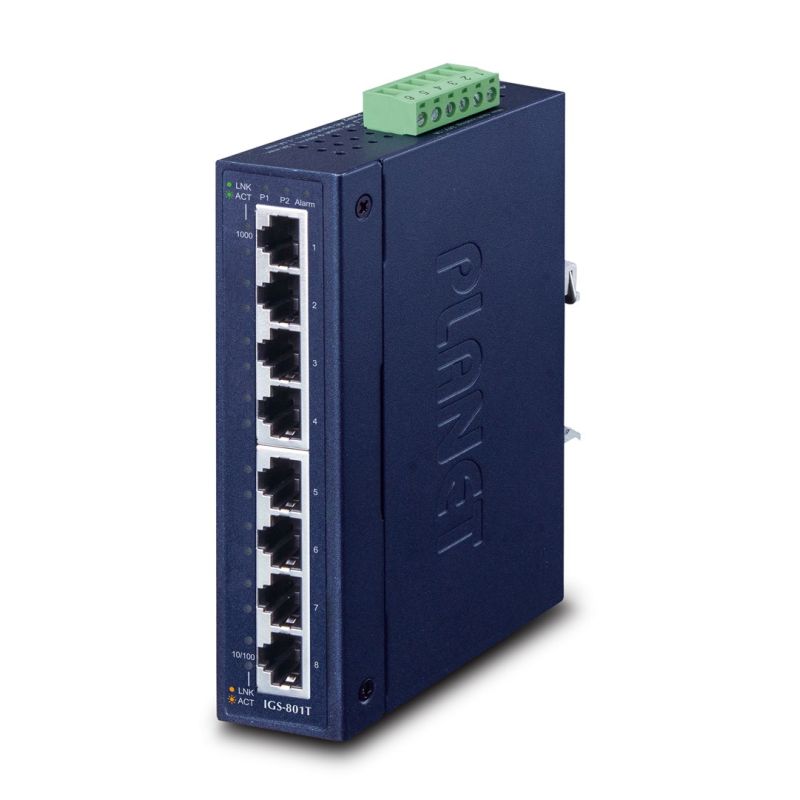

PLANET IGS-801T Network Link Unmanaged L2 Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-801T Network Link Unmanaged L2 Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-801T Network Link Unmanaged L2 Gigabit Ethernet (10/100/1000) Blue
PRICE:
254,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- DIN rail mounting: Yes
- Housing material: Metal
- Product color: Blue
- Wall mountable: Yes
- Rack mounting options: No
- IP protection class: IP30
- Power
- Power consumption: 6.72 W
- Backup Power Supply (RPS) Support: Yes
- Weight and dimensions
- Product weight: 476 g
- Product width: 32 mm
- Product height: 135 mm
- Product depth: 87 mm
- Management features
- Switch Type: Unmanaged
- Quality of Service (QoS) Support: Yes
- Switch Layer: L2
- Working conditions
- Temperature range (operation): -40 - 75 °C
- Relative humidity range: 5 - 95%
- Permissible relative humidity: 5 - 95%
- Heat emission: 23 BTU/h
- Temperature range (storage): -40 - 75 °C
- Network
- Communication standards
- IEEE 802.3az
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.3
- IEEE 802.3ab
- Full duplex: Yes
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-TX
- 1000BASE-T
- 10G Support: No
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- Supported cable types
- Cat4
- Cat5
- Cat6
- Cat3
- Cat5e
- Flow Control Support: Yes
- Auto-Negotiation: Yes
- Auto MDI/MDI-X: Yes
- Traffic Growth Control: Yes
- Communication standards
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of Gigabit Ethernet ports: 8
- Other functions
- Terminal Port Blocking: Yes
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Jumbo Frames Expansion: 9000
- Routing/switching capacity: 16 Gbit/s
- Store-and-forward: Yes
- Jumbo Frame Compatible: Yes
- Address table size: 4000 entries
- Throughput: 11.9 Mpps
- Power over Ethernet (PoE)
- PoE Support: No
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Planet |
| Colour | Blue |
