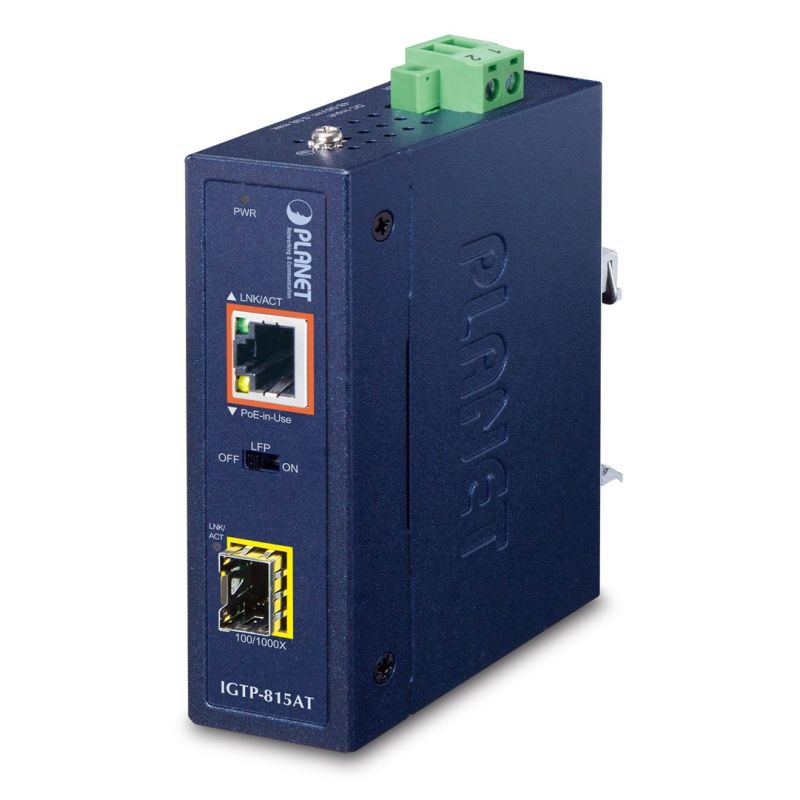

PLANET IGTP-815AT converter
PLANET IGTP-815AT converter
PLANET IGTP-815AT converter
PRICE:
204,99
€
IN A WAREHOUSE
above 10 pcs
Goods available on request - delivery time to 5 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- IP protection class: IP30
- Internal: No
- LED diodes
- PoE
- System
- Power supply
- DIN rail mounting: Yes
- Product color: Blue
- Housing material: Metal
- Power
- Power consumption (max): 1.12 W
- Voltage: 48 - 56 V
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 36 W
- External Power Adapter: Yes
- Weight and dimensions
- Product height: 104 mm
- Product width: 30 mm
- Product depth: 70 mm
- Product weight: 231 g
- Working conditions
- Permissible relative humidity: 5 - 90%
- Temperature range (operation): -40 - 75 °C
- Relative humidity range: 5 - 90%
- Temperature range (storage): -40 - 85 °C
- Network
- Maximum data transfer speed: 1000 Mbit/s
- Input Interface Converter
- 1000Base-SX
- 1000Base-LX
- 1000Base-BX
- Ethernet interface type: Gigabit Ethernet
- Communication standards
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3u
- Output interface converter
- 100Base-T
- 1000Base-SX
- 10Base-T
- 1000Base-T
- Two-way duplex transmission
- Half-duplex
- Full
- Auto MDI/MDI-X: Yes
- Flow Control Support: Yes
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Auto-Negotiation: Yes
- Supported cable types
- Cat4
- Cat5e
- Cat5
- Cat6
- Cat3
- Efficiency
- Maximum transfer distance: 100 m
- Ports and interfaces
- Number of ports: 1
- Fiber optic connector: SFP
- Number of Fast Ethernet (PoE) ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Connection method: Wired
- Logistics data
- Harmonized System (HS) code: 85176990
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Planet |
