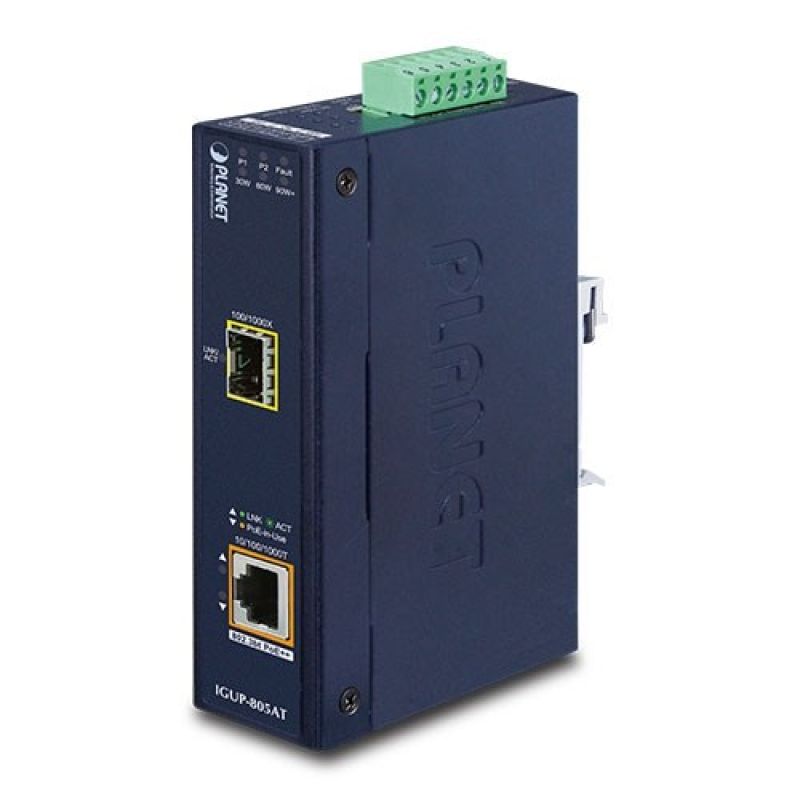

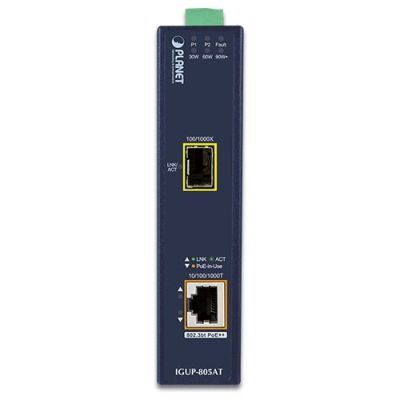

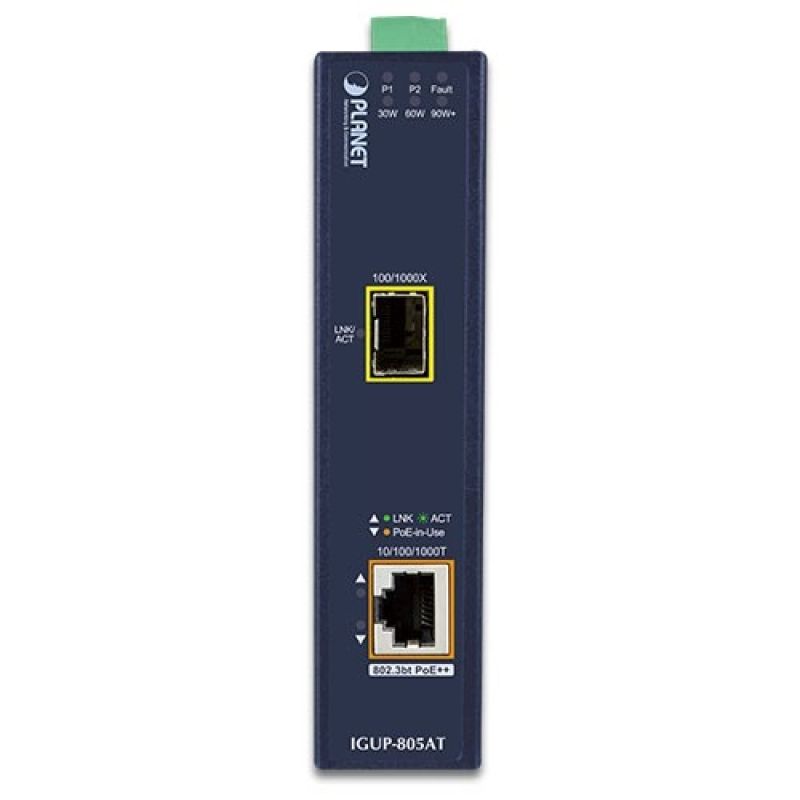

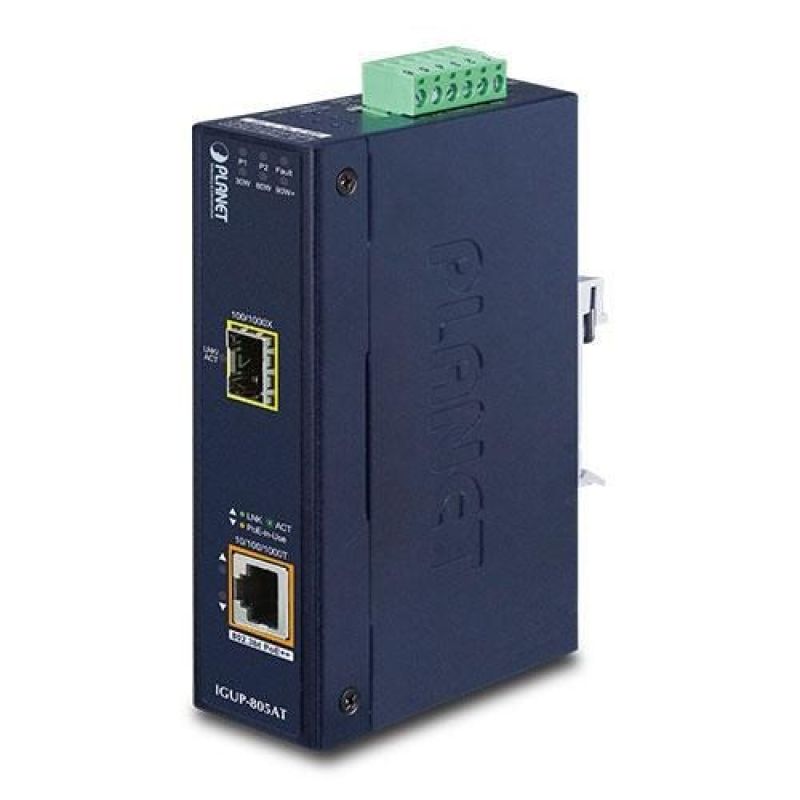

PLANET IGUP-805AT Converter
PLANET IGUP-805AT Converter
PLANET IGUP-805AT Converter
PRICE:
385,99
€
IN A WAREHOUSE
above 10 pcs
Goods available on request - delivery time to 5 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- IP rating: IP30
- LED indicators
- Operation
- PoE
- Link
- Power
- Fault
- Internal: No
- Product colour: Blue
- DIN rail mounting: Yes
- Power
- Power consumption (max): 98 W
- Voltage: 12–56 V
- Total Power over Ethernet (PoE) budget: 95 W
- Power consumption: 4.44 W
- PoE support: Yes
- Weight and dimensions
- Product width: 32 mm
- Product depth: 87 mm
- Product height: 135 mm
- Product weight: 484 g
- Management features
- Plug & Play support: Yes
- Operating conditions
- Relative humidity range: 5–90%
- Temperature range (storage): -40–85 °C
- Permitted relative humidity: 5–90%
- Temperature range (operation): -40–75 °C
- Network
- Converter output interface
- 1000Base-T
- 100Base-T
- 10Base-T
- Jumbo Frames compliant: Yes
- Converter input interface
- 1000Base-SX
- 1000Base-LX
- 1000Base-BX
- Duplex transmission: Half-duplex
- Communication standards
- IEEE 802.3
- IEEE 802.3bt
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3u
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.3x
- Flow control support: Yes
- Maximum data transfer rate: 1000 Mbit/s
- Jumbo Frames extension: 9000
- Converter output interface
- Ports and interfaces
- Connectivity technology: Wired
- Fibre optic connector: SFP
- Number of ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Logistics data
- Harmonized System (HS) code: 85176990
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Planet |
| Department | Electronics |
