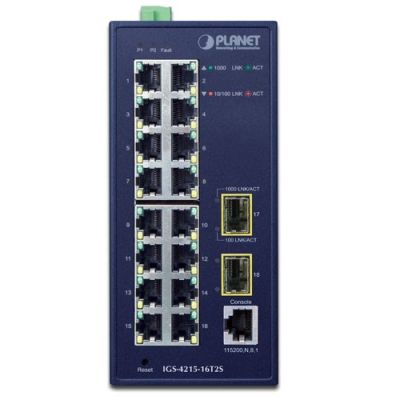

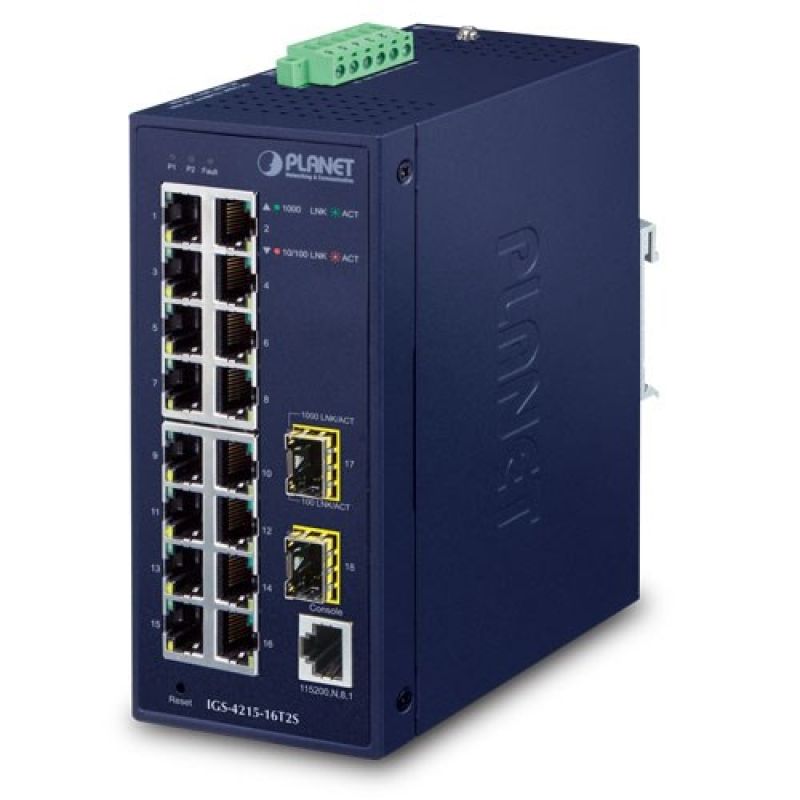

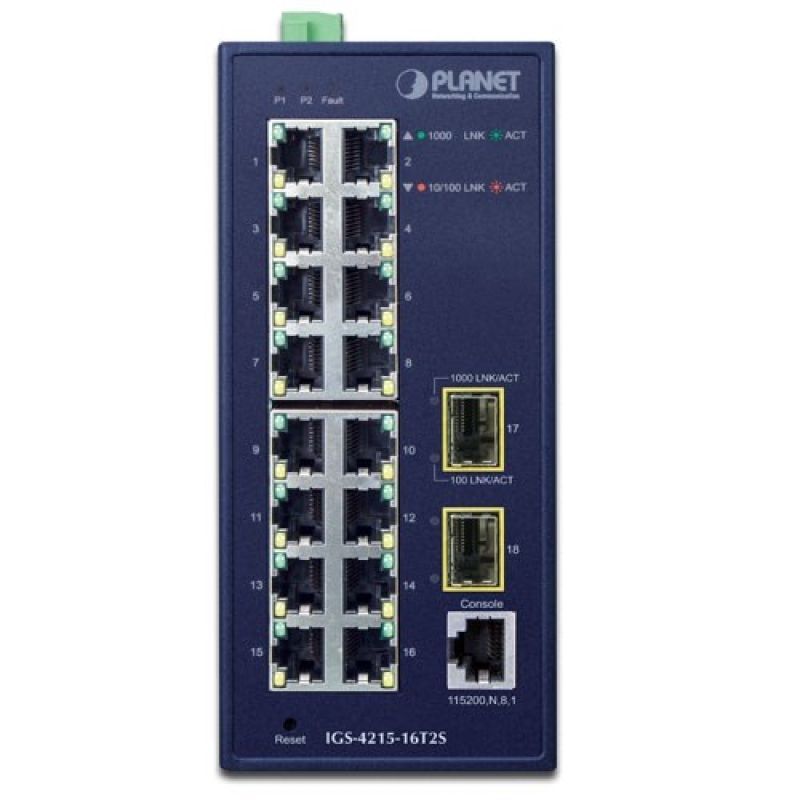

Planet IP30 Industrial L2/L4 16-Port
Planet IP30 Industrial L2/L4 16-Port
Planet IP30 Industrial L2/L4 16-Port
PRICE:
649,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Wall mountable: Yes
- DIN rail mounting: Yes
- Reset button: Yes
- LEDs: Yes
- Product color: Blue
- IP protection class: IP30
- Housing material: Metal

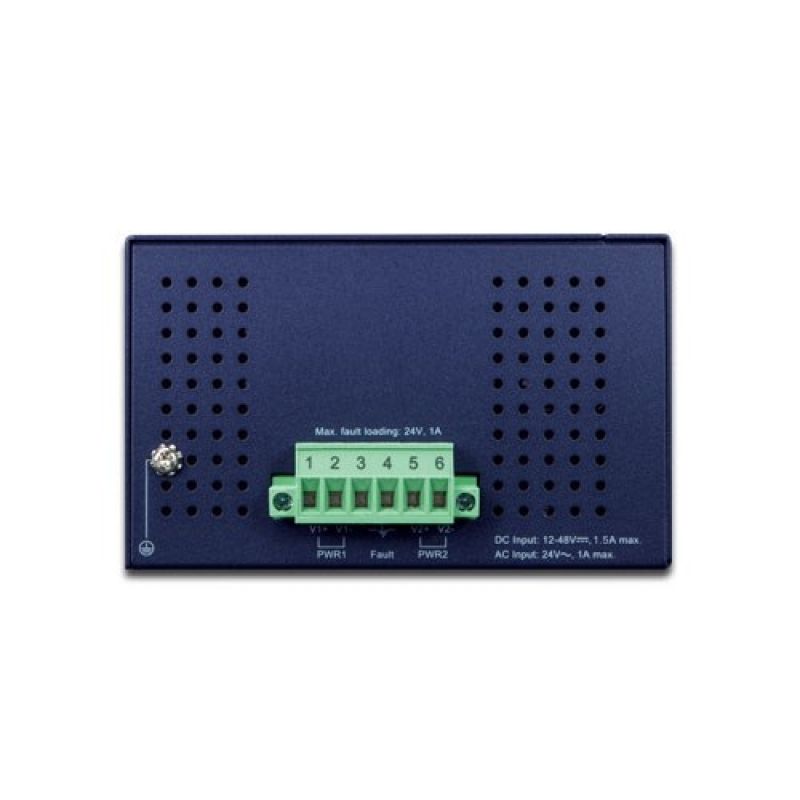

- Power
- DC input voltage: 12 - 48 V
- Power consumption (max): 15 W
- Weight and dimensions
- Product depth: 107 mm
- Product width: 66 mm
- Product height: 152 mm
- Product weight: 813 g
- Security
- BPDU Filtering/Protection: Yes
- Authentication: Port-based authentication
- Encryption/Security
- SSH-2
- SSL/TLS
- SNMPv3
- SSH
- IGMP snooping: Yes
- IP-MAC-Port Binding: Yes
- DHCP functions: DHCP relay
- Access Control List (ACL): Yes
- MAC address filtering: Yes
- Static Port Protection: Yes
- Management features
- Switch Layer: L2/L4
- ARP Inspection: Yes
- Website management: Yes
- Switch type: Managed
- Quality of Service (QoS) Support: Yes
- Working conditions
- Temperature range (operation): -40 - 75 °C
- Temperature range (storage): -40 - 85 °C
- Heat emission: 51.2 BTU/h
- Relative humidity range: 5 - 95%
- Network
- Connection Aggregator: Yes
- Half-duplex: Yes
- Communication standards
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3x
- IEEE 802.3az
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.1Q
- IEEE 802.3
- IEEE 802.1s
- IEEE 802.3ad
- IEEE 802.1p
- IEEE 802.1x
- Number of VLANs: 4094
- Auto MDI/MDI-X: Yes
- Spanning Tree Protocol: Yes
- Port Mirroring: Yes
- Virtual LAN Features
- Voice VLAN
- Tagged VLAN
- Stacked VLAN
- Private VLAN
- 10G Support: No
- Full duplex: Yes
- VLAN support: Yes
- Efficiency
- Device software updates: Yes
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- Ports and interfaces
- Number of SFP Module slots: 2
- Basic RJ-45 Switching Number of Ethernet Ports: 16
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Console port: RJ-45
- Data transfer
- Address table size: 8000 entries
- Store-and-forward: Yes
- Jumbo Frame Compatible: Yes
- Jumbo Frames Expansion: 10000
- Packet buffer memory: 4.1 MB
- Throughput: 26.79 Mpps
- Routing/switching capacity: 36 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Planet |
