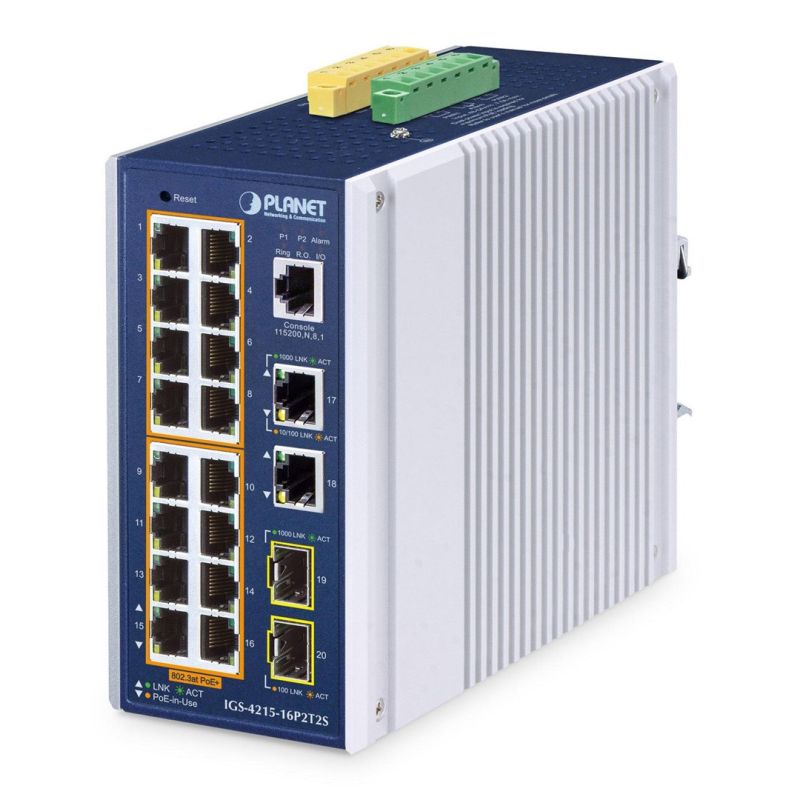

PLANET IP30 Industrial L2/L4 16-Port Managed L2/L4 Gigabit Ethernet (10/100/1000) PoE Support Aluminum, Blue
PLANET IP30 Industrial L2/L4 16-Port Managed L2/L4 Gigabit Ethernet (10/100/1000) PoE Support Aluminum, Blue
PLANET IP30 Industrial L2/L4 16-Port Managed L2/L4 Gigabit Ethernet (10/100/1000) PoE Support Aluminum, Blue
PRICE:
938,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color
- Blue
- Aluminum
- IP protection class: IP30
- Reset button: Yes
- LEDs: Yes
- DIN rail mounting: Yes
- Wall mountable: Yes
- Housing material: Aluminum
- Product color
- Power
- Power source: DC/PoE
- Weight and dimensions
- Product width: 76 mm
- Product weight: 1.4 kg
- Product depth: 135 mm
- Product height: 152 mm
- Security
- Supports SSH/SSL: Yes
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Management features
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- System Event Report: Yes
- ARP Inspection: Yes
- Cloud-managed: Yes
- Traffic Classification: Yes
- Switch Layer: L2/L4
- Switch type: Managed
- Working conditions
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 5 - 95%
- Temperature range (operation): -40 - 75 °C
- Temperature range (storage): -40 - 85 °C
- Network
- Communication standards
- IEEE 802.1s
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3z
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3ab
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.1Q
- Half-duplex: Yes
- Spanning Tree Protocol: Yes
- Connection Aggregator: Yes
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- Communication standards
- Ports and interfaces
- Number of SFP modules installed: 2
- Basic RJ-45 Switching Number of Ethernet Ports: 18
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Data transfer
- Jumbo Frames Expansion: 10000
- Store-and-forward: Yes
- Routing/switching capacity: 40 Gbit/s
- Throughput: 29.7 Mpps
- Address table size: 8000 entries
- Jumbo Frame Compatible: Yes
- Power over Ethernet (PoE)
- PoE Support: Yes
| Name | Details |
|---|---|
| Producer | No name |
