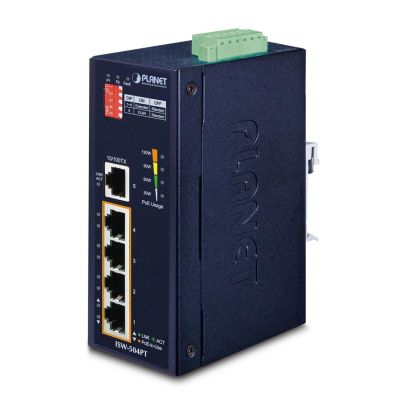

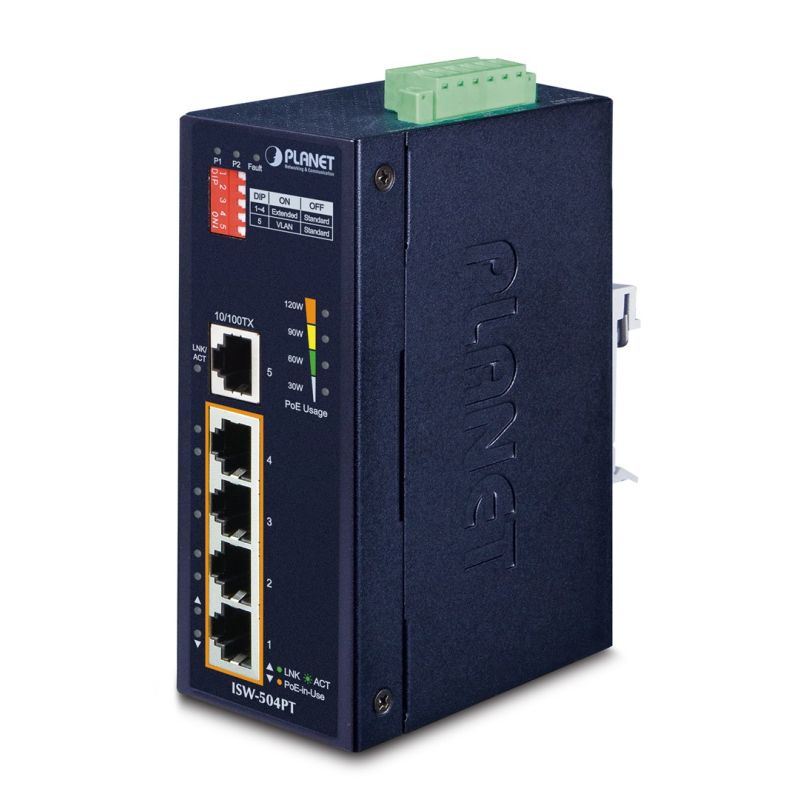

PLANET ISW-504PT Network Switch Unmanaged L2 Fast Ethernet (10/100) PoE Support Black
PLANET ISW-504PT Network Switch Unmanaged L2 Fast Ethernet (10/100) PoE Support Black
PLANET ISW-504PT Network Switch Unmanaged L2 Fast Ethernet (10/100) PoE Support Black
PRICE:
360,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product colour: Black
- LED indicators: Yes
- Housing material: Metal
- IP protection rating: IP30
- DIN rail mounting: Yes
- Wall mounting: Yes
- Rack mounting: No
- Stackable: Yes
- Power
- Power supply included: No
- Power protection features: Short circuit
- Redundant power supply (RPS) support: Yes
- Weight and dimensions
- Product weight: 596 g
- Product width: 50 mm
- Product height: 135 mm
- Product depth: 85.1 mm
- Management features
- Switch layer: L2
- Switch type: Unmanaged
- Operating conditions
- Relative humidity range: 5 - 95%
- Operating temperature range: -40 - 75 °C
- Storage temperature range: -40 - 85 °C
- Permissible relative humidity: 5 - 95%
- Network
- Communication standards
- IEEE 802.3u
- IEEE 802.3af
- IEEE 802.3x
- Supported cable types
- Cat5
- Cat6
- Cat5e
- MAC address auto-aging supported: Yes
- Automatic MDI/MDI-X: Yes
- MAC address auto-learning supported: Yes
- Auto-negotiation: Yes
- Flow control support: Yes
- 10G support: No
- Full duplex: Yes
- Communication standards
- Ports and interfaces
- Number of RJ-45 Ethernet switching ports: 5
- RJ-45 Ethernet switching port type: Fast Ethernet (10/100)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transmission
- Routing/switching capacity: 1 Gbit/s
- Throughput: 0.74 Mpps
- Address table size: 1024 entries
- Store-and-forward: Yes
- Power over Ethernet (PoE)
- PoE support: Yes
- Power over Ethernet (PoE) power per port: 15.4 W
- Number of Fast Ethernet (PoE) ports: 4
