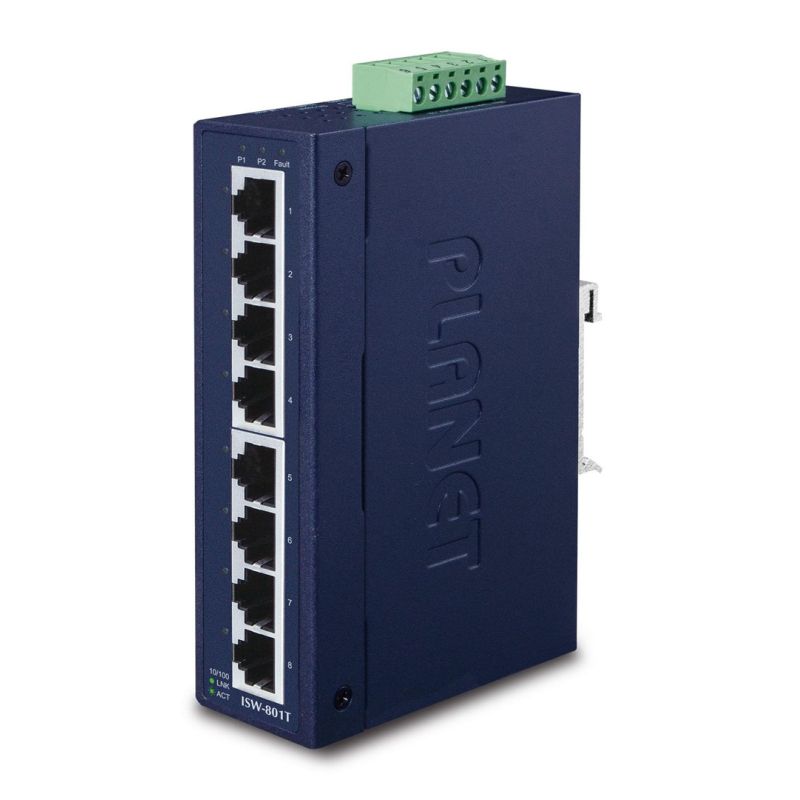

PLANET ISW-801T Network Links Unmanaged L2 Fast Ethernet (10/100) Blue
PLANET ISW-801T Network Links Unmanaged L2 Fast Ethernet (10/100) Blue
PLANET ISW-801T Network Links Unmanaged L2 Fast Ethernet (10/100) Blue
PRICE:
148,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- DIN rail mounting: Yes
- Wall mountable: Yes
- IP protection class: IP30
- Housing material: Metal
- Rack mounting options: No
- Stackable: No
- LEDs: Yes
- Product color: Blue
- Power
- Power Supply Included: No
- Backup Power Supply (RPS) Support: Yes
- Power consumption: 2.1 W
- Weight and dimensions
- Product depth: 87 mm
- Product width: 135 mm
- Product weight: 428 g
- Product height: 32 mm
- Management features
- Switch Layer: L2
- Switch Type: Unmanaged
- Working conditions
- Relative humidity range: 5 - 95%
- Temperature range (storage): -40 - 75 °C
- Temperature range (operation): -40 - 75 °C
- Heat emission: 7.1 BTU/h
- Permissible relative humidity: 5 - 95%
- Network
- Communication standards
- IEEE 802.3
- IEEE 802.3x
- IEEE 802.3u
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-TX
- 10G Support: No
- MAC address auto-aging supported: Yes
- Auto-Negotiation: Yes
- Full duplex: Yes
- Flow Control Support: Yes
- MAC address auto-learning supported: Yes
- Communication standards
- Ports and interfaces
- Basic Ethernet switching RJ-45 ports type: Fast Ethernet (10/100)
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Number of Fast Ethernet ports (copper): 8
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Store-and-forward: Yes
- Address table size: 1024 entries
- Routing/Switching Throughput: 1.6 Gbps
- Throughput: 1.19 Mpps
- Power over Ethernet (PoE)
- PoE Support: No
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Planet |
| Colour | Blue |
