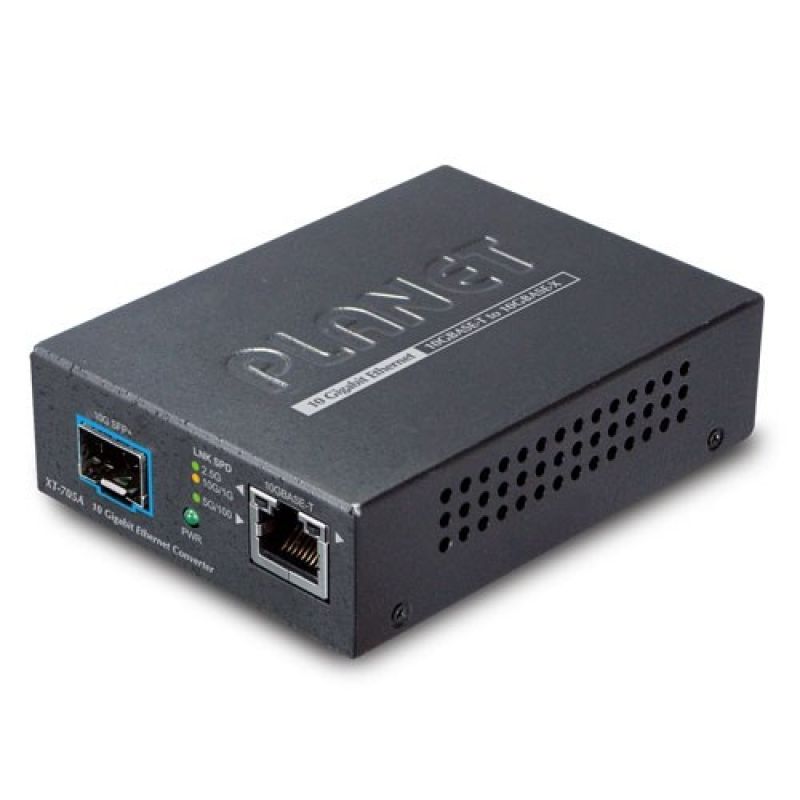

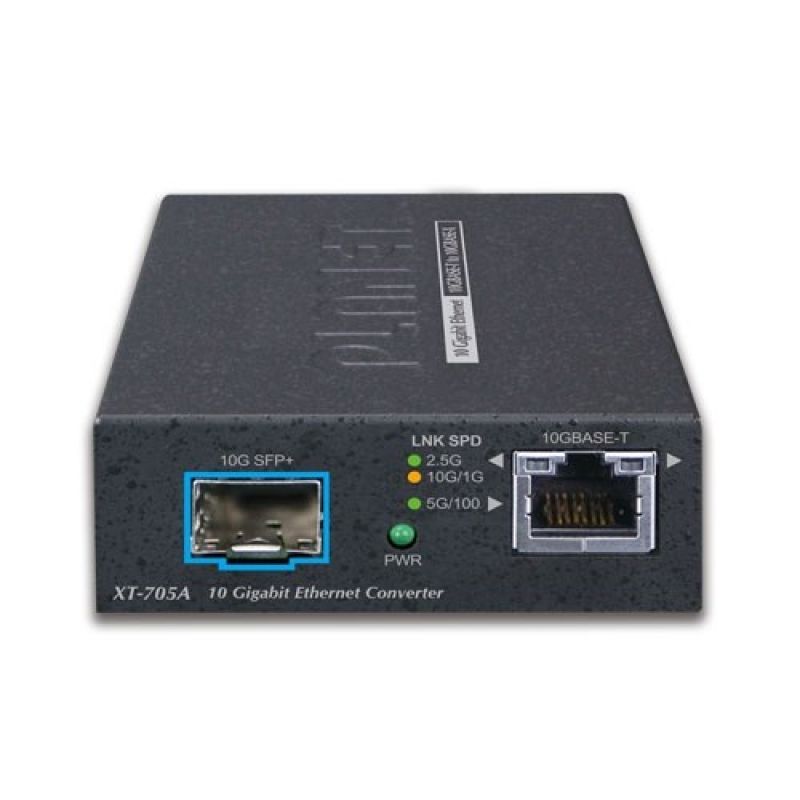

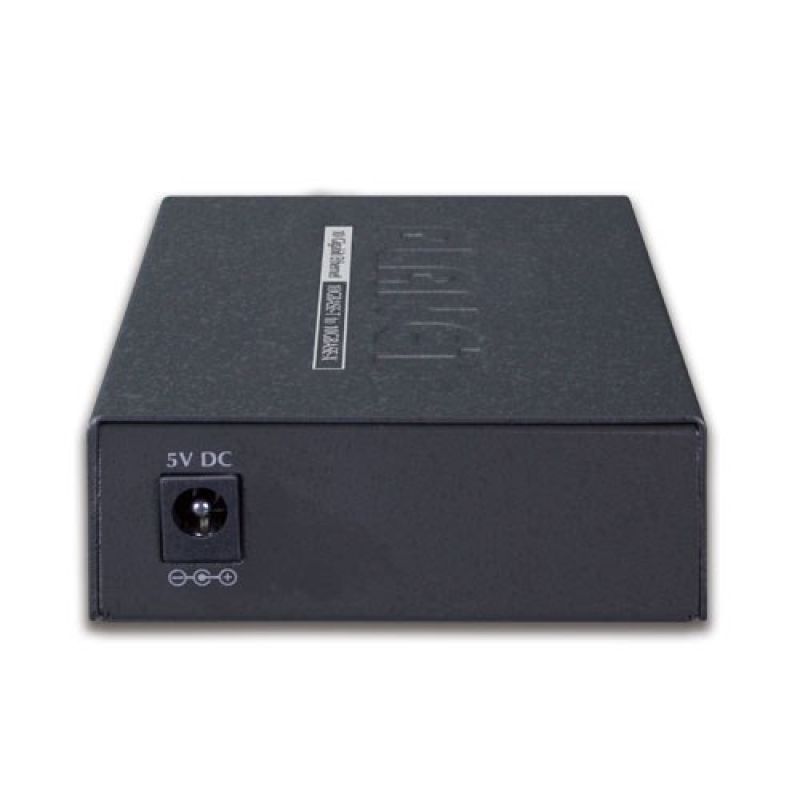

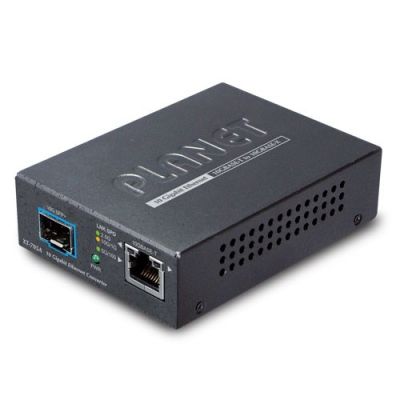

Planet XT-705A Network Converter 10000 Mbit/s Multifunctional Single
Planet XT-705A Network Converter 10000 Mbit/s Multifunctional Single
Planet XT-705A Network Converter 10000 Mbit/s Multifunctional Single
PRICE:
296,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Housing material: Metal
- DIN rail mounting: Yes
- LED diodes
- Power supply
- Link
- Internal: No
- Power
- Voltage: 5V
- Input current: 2 A
- Power consumption: 26 W
- Weight and dimensions
- Product height: 26 mm
- Product width: 94 mm
- Product weight: 180 g
- Product depth: 70 mm
- Working conditions
- Permissible relative humidity: 5 - 95%
- Temperature range (operation): 0 - 50 °C
- Relative humidity range: 5 - 95%
- Temperature range (storage): -10 - 70 °C
- Network
- Maximum data transfer rate: 10000 Mbit/s
- Jumbo Frames Expansion: 16000
- Auto-Negotiation: Yes
- Communication standards
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3an
- IEEE 802.3bz
- IEEE 802.3ae
- IEEE 802.3u
- Supported cable types
- Cat7
- Cat5
- Cat6
- Cat6a
- Cat5e
- Ethernet network interface type
- Gigabit Ethernet
- Fast Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- Flow Control Support: Yes
- Store-and-forward: Yes
- Two-way duplex transmission
- Half-duplex
- Full
- Fiber Ethernet cabling technology: 10GBASE-X
- Auto MDI/MDI-X: Yes
- Jumbo Frame Compatible: Yes
- Efficiency
- Maximum transfer distance: 60000 m
- Supported fiber optic cable diameters
- 9/125
- 62.5/125 µm
- 50/125
- Structure of single-mode optical fiber
- Multifunctional
- Single
- Ports and interfaces
- Connection method: Wired
- Fiber optic connector: SFP+
- Number of Ethernet LAN ports (RJ-45): 1
- Number of ports: 1
- Logistics data
- Harmonized System (HS) code: 85176990
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Planet |
