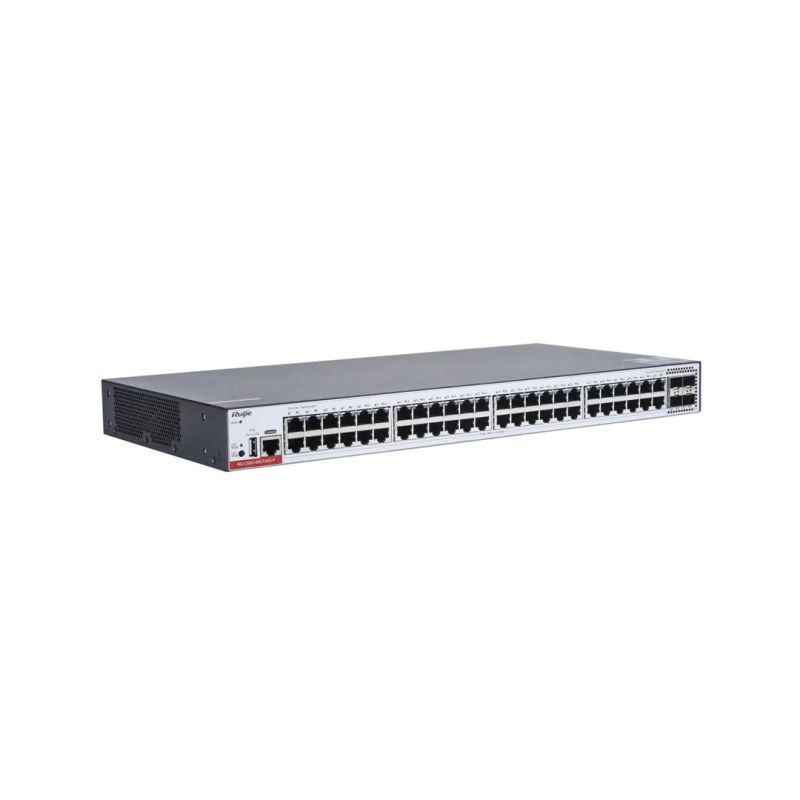

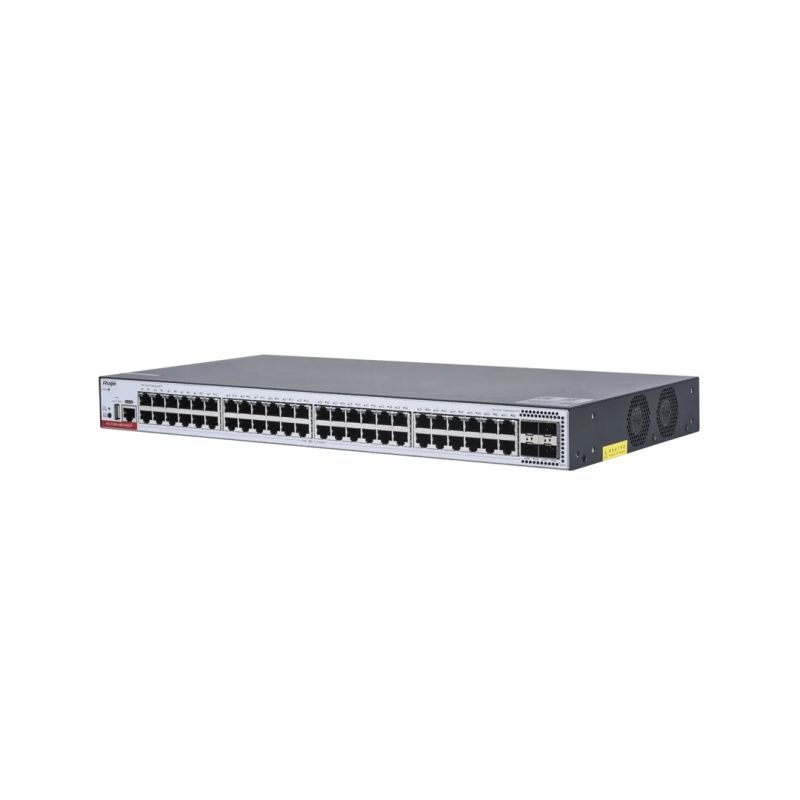

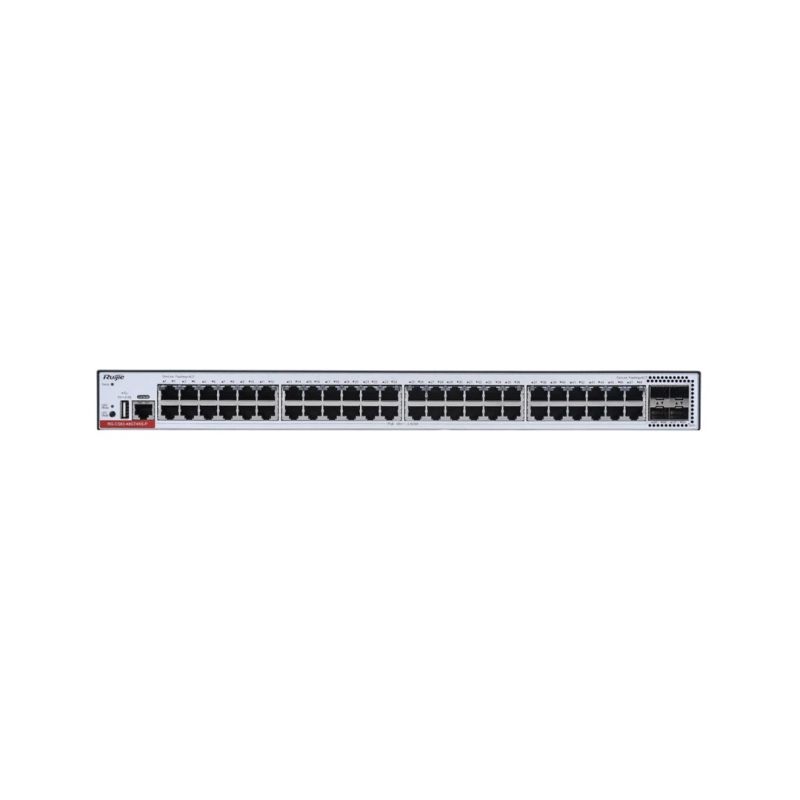

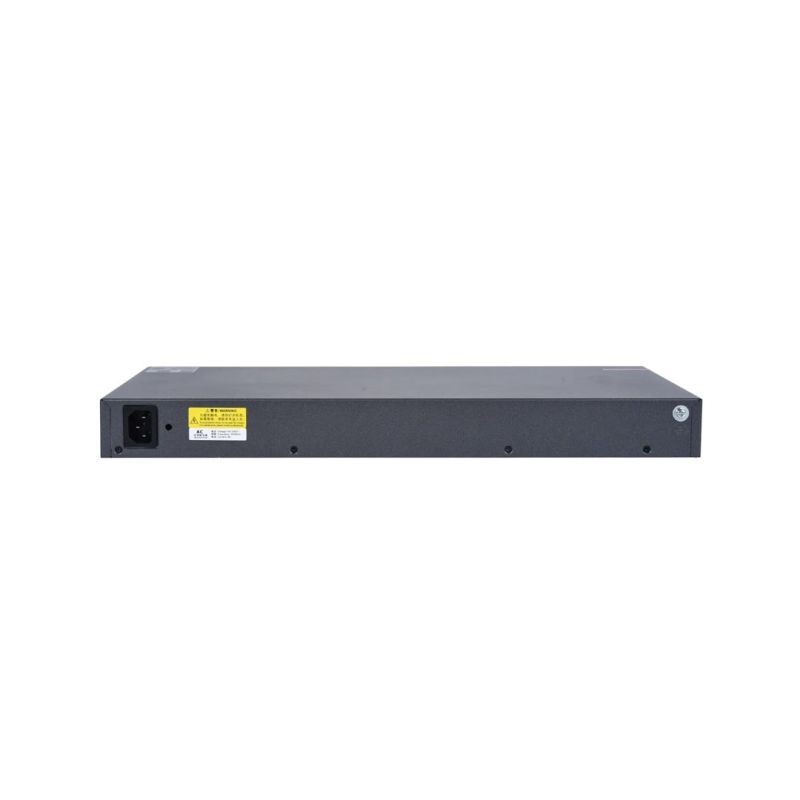

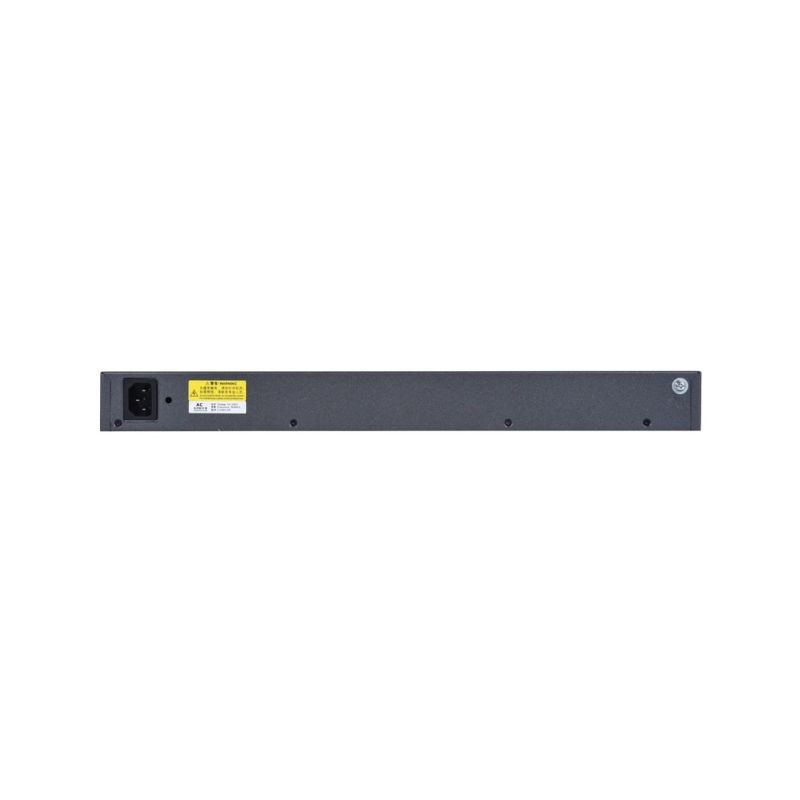

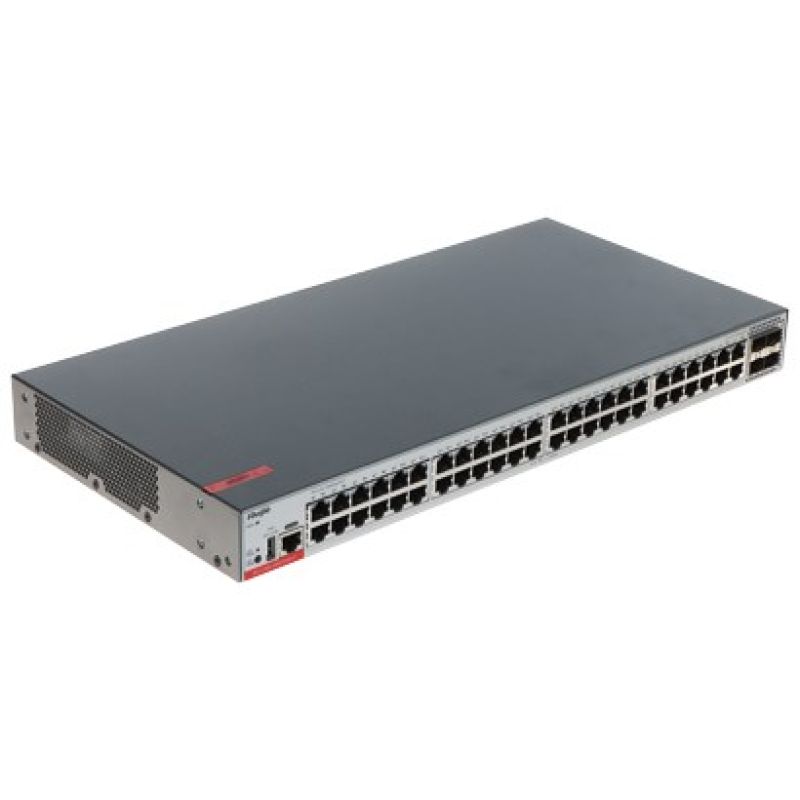

POE switch RG-CS83-48GT4XS-P 48-port SFP+ Ruijie
POE switch RG-CS83-48GT4XS-P 48-port SFP+ Ruijie
POE switch RG-CS83-48GT4XS-P 48-port SFP+ Ruijie
PRICE:
3661,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Stackable: Yes
- Layout: 1U
- Number of fans: 1 fan
- Product color: Gray
- Power
- AC input voltage: 90 - 264 V
- Power consumption (max): 460 W
- Input current: 6 A
- Power source: AC
- AC input frequency: 47/63 Hz
- Power supply included: Yes
- Power Protection Features: Surge Protection
- Weight and dimensions
- Product weight: 4 kg
- Product height: 43.6 mm
- Product depth: 220 mm
- Product width: 442 mm
- Security
- DHCP functions
- DHCP relay
- DHCPv6 relay
- DHCP snooping
- DHCPv6 server
- DHCPv6 client
- DHCPv6 snooping
- DHCP client
- DHCP server
- Authentication type: AAA, IEEE 802.1x, RADIUS, TACACS+
- Encryption/Security
- HTTPS
- SSH
- SSH-2
- IP-MAC-Port Binding: Yes
- IGMP snooping: Yes
- IGMP Proxy: Yes
- Queue planning algorithms
- WFQ
- WRR+SP
- Deficit Round Robin (DRR)
- WFQ+SP
- Weighted Round Robin (WRR)
- SP
- DRR+SP
- Authentication: MAC-based authentication, Web-based authentication
- Entry Access Control List (ACL): 1750
- Access Control List (ACL): Yes
- Access Control List (ACL) Output: 800
- DHCP functions
- Management features
- Cloud-managed: Yes
- Switch Layer: L3
- Switch type: Managed
- ARP Inspection: Yes
- Traffic Classification: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Temperature range (operation): 0 - 45 °C
- Permissible operating altitude (above sea level): 0 - 5000 m
- Permissible altitude (above sea level): 0 - 5000 m
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 10 - 90%
- Permissible relative humidity: 5 - 95%
- Network
- Number of VLANs: 4000
- Communication standards
- IEEE 802.3ah
- IEEE 802.3az
- IEEE 802.1p
- 10G Support: Yes
- Auto-Negotiation: Yes
- IPv6 routes: 2000
- Virtual LAN Features
- Protocol-based VLAN
- Voice VLAN
- IP subnet–based VLAN
- Interface-based VLAN
- MAC address-based VLAN
- Private VLAN
- IPv4 routes: 6000
- Copper Ethernet cabling technology: 1000BASE-T
- VLAN support: Yes
- Efficiency
- Flash memory size: 512 MB
- Processor clock speed: 1000 MHz
- Internal memory capacity: 1 GB
- Memory type: SDRAM / Flash
- MTBF (Mean Time Between Failures): 200253 h
- Noise level: 35 dB
- Built-in processor: Yes
- Packaging data
- Weight with packaging: 4.9 kg
- Package height: 154 mm
- Package width: 540 mm
- Package depth: 338 mm
- Package contents
- User Manual: Yes
- Quick Start Guide: Yes
- Certificates
- Certificates of conformity: RoHS
- Protocols
- Route Selection Protocol
- OSPFv3
- RIPng
- OSPFv2
- RIP
- IPv4 and IPv6 features: IPv6 source address validation improvement (SAVI)
- GARP VLAN Registration Protocol (GVRP): Yes
- Route Selection Protocol
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 48
- Number of management ports: 1 pc.
- Number of USB 2.0 ports: 1
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of SFP+ Module slots: 4
- Data transfer
- Address table size: 16000 entries
- Packet buffer memory: 4 MB
- Jumbo Frame Compatible: Yes
- Static Route: Yes
- Jumbo Frames Expansion: 9216
- Transfer speed: 132 Mpps
- Routing/switching capacity: 176 Gbps
- Power over Ethernet (PoE)
- PoE Support: Yes
- Power over Ethernet (PoE) type supported: PoE+
- Multicast functions
- IPv4 multicast entries: 1000
- IPv6 multicast entries: 750
- Multicast Listener Discovery (MLD) snooping: MLD snooping v1/v2
- Multicast Support: Yes
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Ruijie |
