POWER WALKER UP:S ON-LINE VFI 1000 TGB (4X IEC, USB/RS232, LCD, EPO, TOWER)
POWER WALKER UP:S ON-LINE VFI 1000 TGB (4X IEC, USB/RS232, LCD, EPO, TOWER)
POWER WALKER UP:S ON-LINE VFI 1000 TGB (4X IEC, USB/RS232, LCD, EPO, TOWER)
PRICE:
360,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Output operating voltage (maximum): 220 V
- Crest Factor: 3:1
- Input operating voltage (minimum): 176 V
- Output voltage regulation: 2%
- Input frequency: 40 - 70 Hz
- Power factor: 0.9
- Input operating voltage (maximum): 300 V
- Emergency Power Off: Yes
- Actual power: 900 W
- UPS Topology: Double Conversion (Online)
- Maximum configurable power: 1 kVA
- Output operating voltage (minimum): 240 V
- Noise level: 45 dB
- Efficiency: 89%
- Output current THD level: 5%
- Waveform: Sine
- Input current THD level: 5%
- Design
- Product color: Black
- Weight and dimensions
- Product width: 144 mm
- Product weight: 9.3 kg
- Product height: 229 mm
- Product depth: 356 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 0 - 95%
- Packaging data
- User Manual: Yes
- Cables: Power input cable, USB cable
- Package height: 330 mm
- Package width: 240 mm

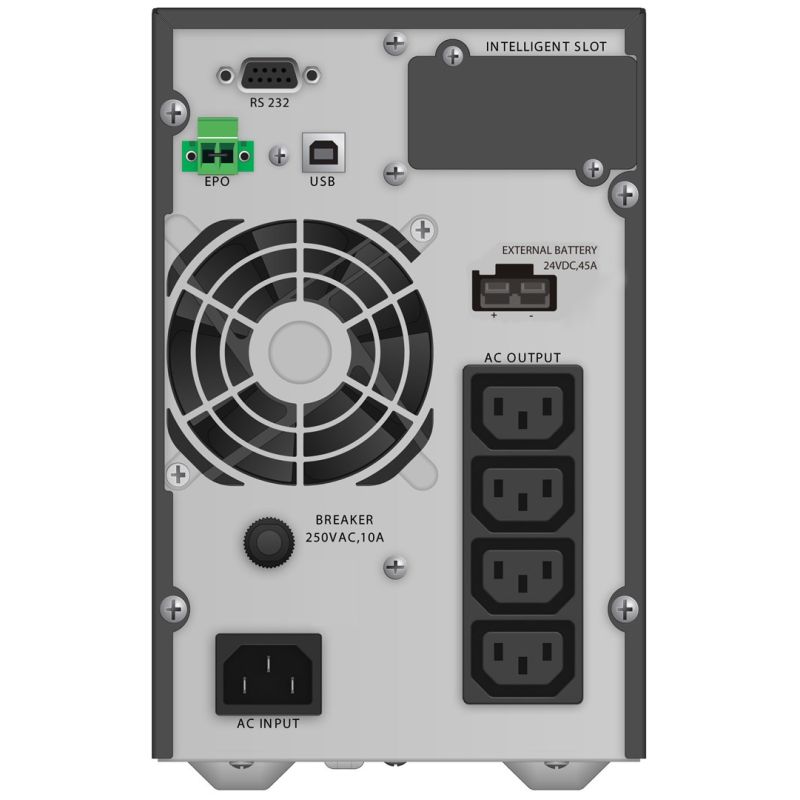

- Ports and interfaces
- Emergency Power Off (EPO) Connector: Yes
- RS-232 port: 1
- Plug: C14 panel
- USB port: Yes
- AC output types: C13 panel
- Number of network sockets: 4 x network socket
- Battery
- Typical backup time at half load: 10.5 min
- Battery voltage: 12 V
- Number of batteries supported: 2
- Typical backup time at full load: 3.7 min
- Charging time: 4 hours
- Battery capacity: 9 Ah
- Safety warning
- Warnings
- Keep away from sources of fire and water.
- The device should be used in well-ventilated areas to avoid overheating.
- Do not disassemble the device housing, as this may result in electric shock.
- Warnings
| Name | Details |
|---|---|
| Producer | POWER WALKER |
