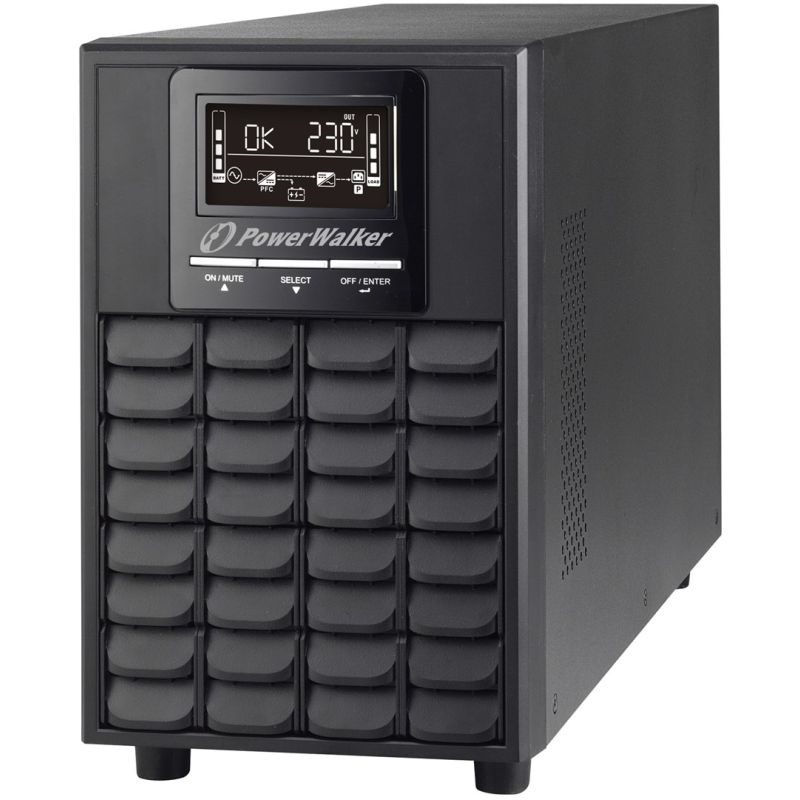

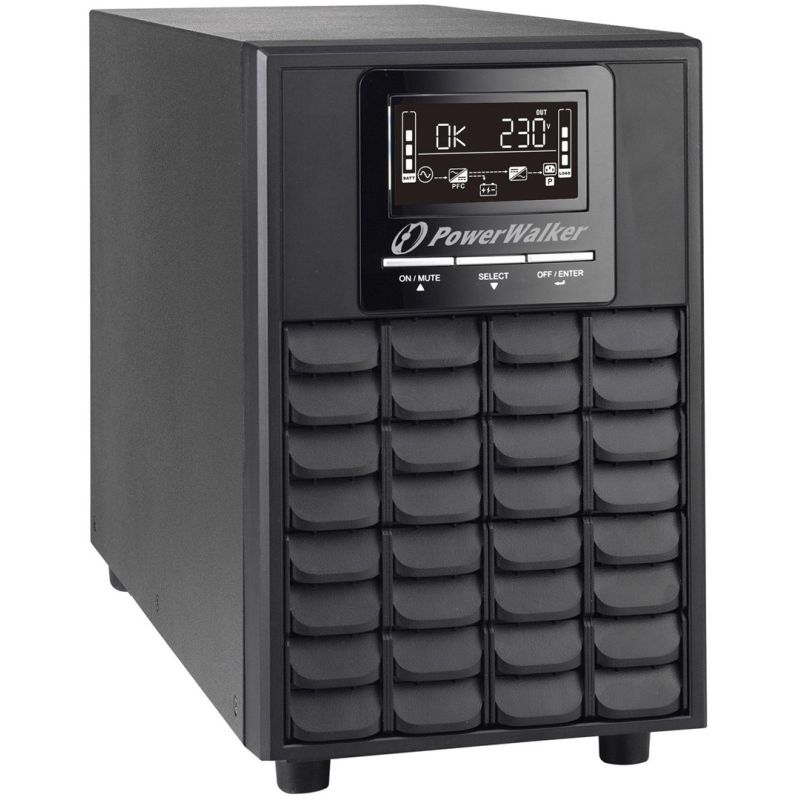

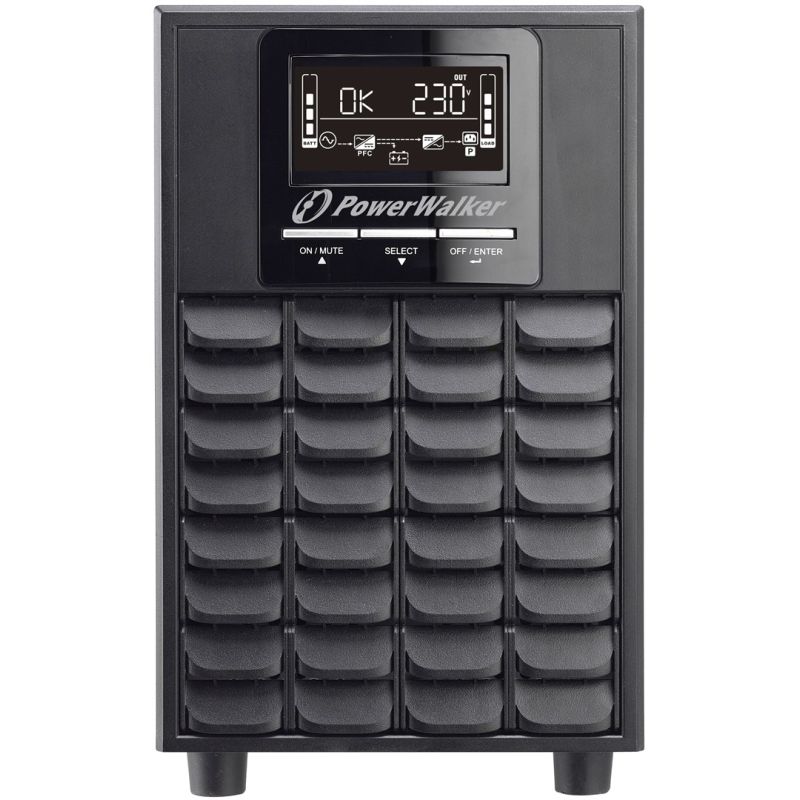

PowerWalker VFI 1500 CG PF1 Double Conversion (Online) 1.5 kVA 1500 W 4 x Mains Sockets
PowerWalker VFI 1500 CG PF1 Double Conversion (Online) 1.5 kVA 1500 W 4 x Mains Sockets
Sign up and unlock up to 10% off!
- Characteristics
- Emergency Power Off: Yes
- Maximum configurable power: 1.5 kVA
- Input frequency: 40/70 Hz
- Actual power: 1500 W
- Overvoltage protection: Yes
- Crest Factor: 3:1
- UPS Topology: Double Conversion (Online)
- Output operating voltage (maximum): 200 V
- Output voltage regulation: 1%
- Input operating voltage (minimum): 110 V
- Input operating voltage (maximum): 300 V
- Power factor: 0.99
- Noise level: 50 dB
- Surge protection features
- Network
- Fax
- Modem
- Efficiency: 89%
- Output operating voltage (minimum): 240 V
- Output current THD level: 2%
- Input current THD level: 1.6%
- Design
- Cooling type: Active
- Display type: LCD
- Layout: Tower
- Product color: Black
- Weight and dimensions
- Product width: 145 mm
- Product height: 221 mm
- Product weight: 14.6 kg
- Product depth: 397 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 20 - 95%
- Packaging data
- Package depth: 472 mm
- Driver CD: Yes
- Packaging type: Box
- Package height: 325 mm
- Package width: 230 mm
- Weight with packaging: 16 kg
- Warranty card: Yes
- Package contents
- Cables: Power input cable, Power output cable, USB cable
- User Manual: Yes

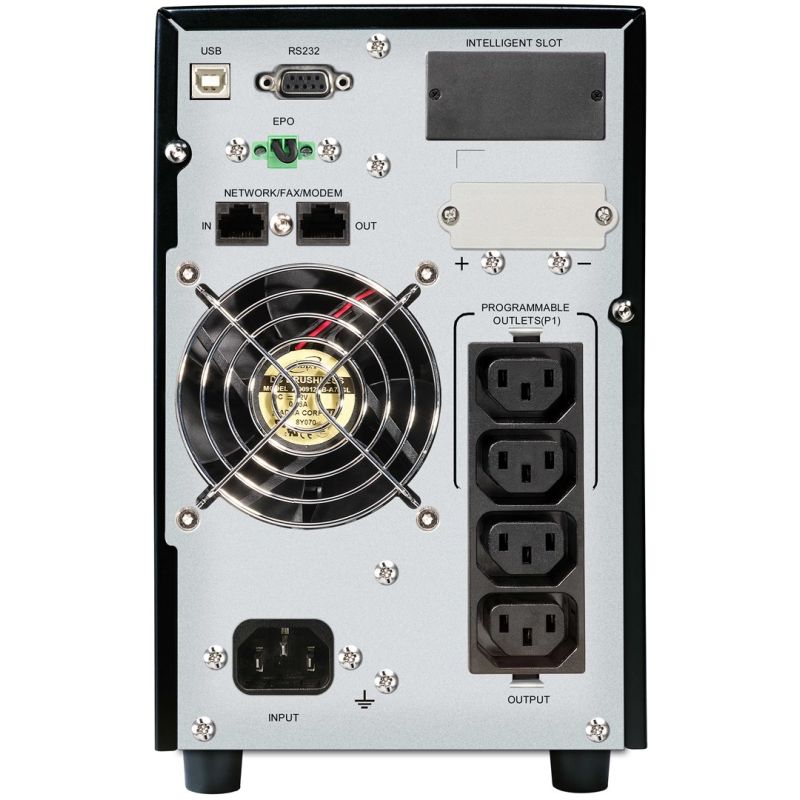

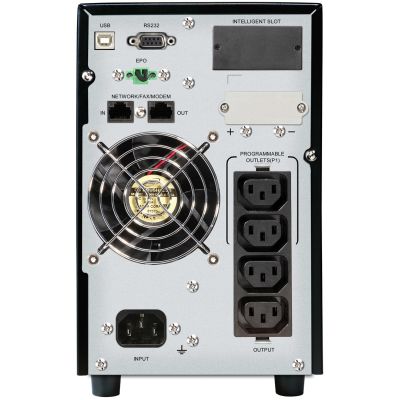

- Ports and interfaces
- SCSI interface: RS-232
- Emergency Power Off (EPO) Connector: Yes
- Number of network sockets: 4 x network socket
- AC output types: C13 panel
- Serial interface: Yes
- Plug: C14 panel
- USB port: Yes
- Battery
- Number of batteries supported: 3
- Battery capacity: 9 Ah
- Typical backup time at full load: 3 min
- Charging time: 3 hours
- Typical backup time at half load: 10.3 min
- Battery voltage: 12 V
- Logistics data
- Harmonized System (HS) code: 85078000
- Safety warning
- Hazard pictogram(s)
- GHS07: Irritating substances
- GHS09: Environmentally Harmful Substances
- GHS06: Toxic substances
- Warnings
- Ensure adequate ventilation during installation and use.
- Avoid direct contact with the chemicals in the battery.
- Do not throw away in regular trash - the product requires special disposal.
- Hazard pictogram(s)
| Name | Details |
|---|---|
| Producer | Hikvision |
