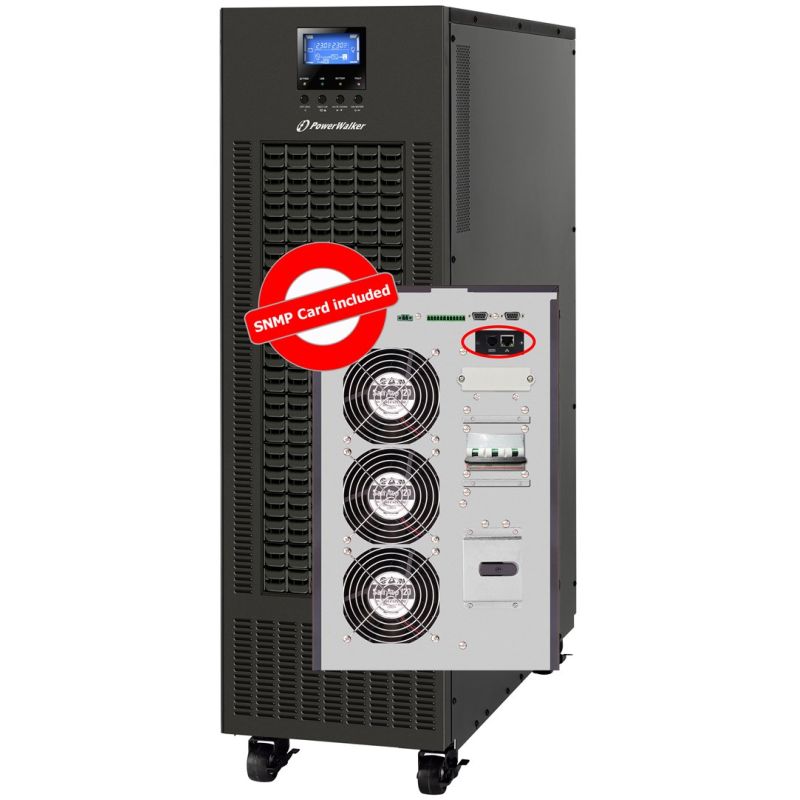

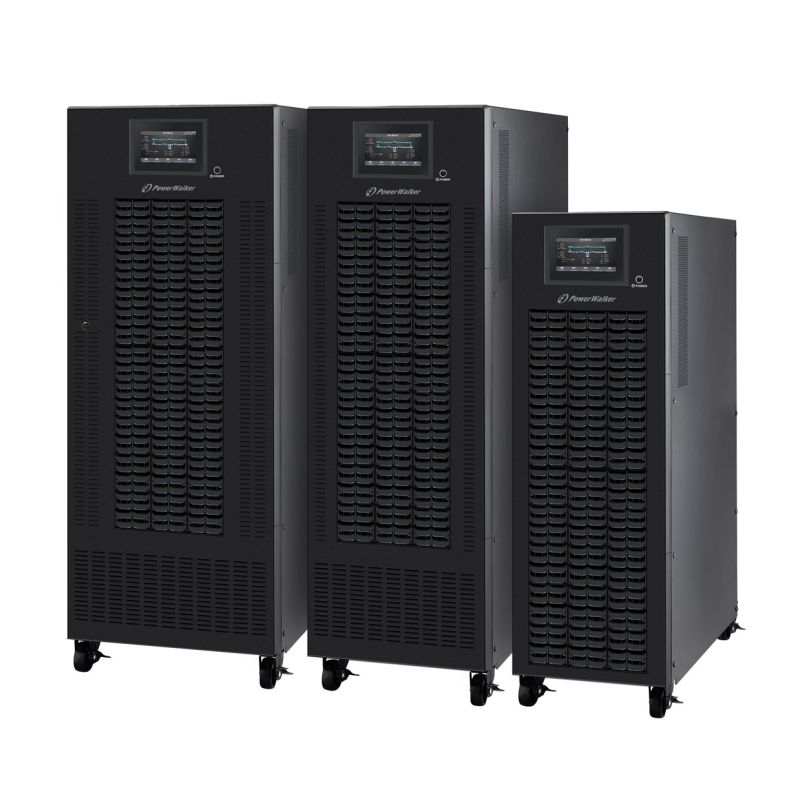

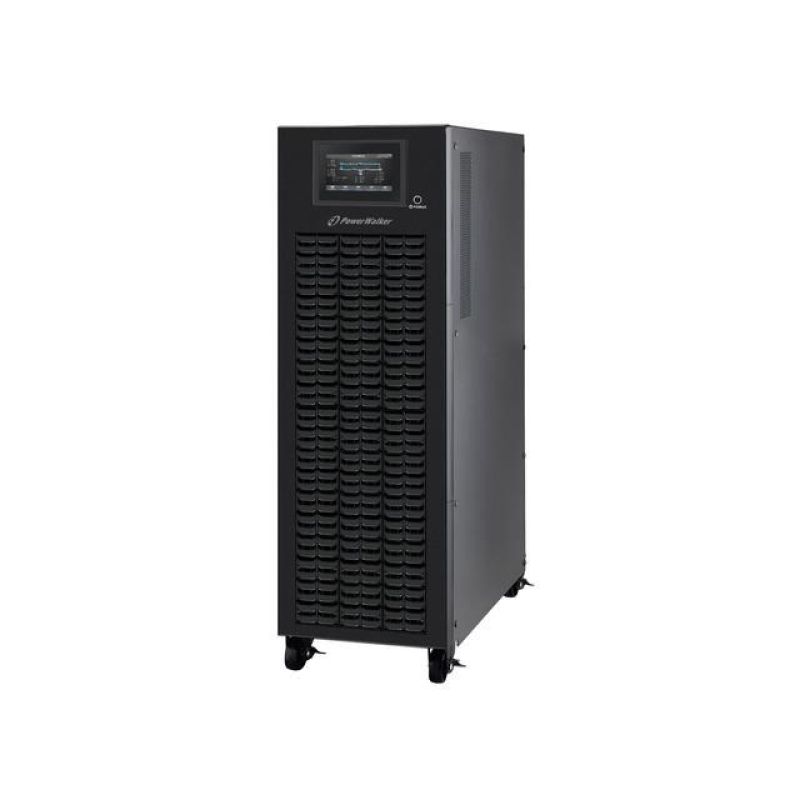

PowerWalker VFI 20K CPG PF1 3/3 BI Double Conversion (Online) UPS 20 kVA 20000 W 1 x Mains Socket
PowerWalker VFI 20K CPG PF1 3/3 BI Double Conversion (Online) UPS 20 kVA 20000 W 1 x Mains Socket
PowerWalker VFI 20K CPG PF1 3/3 BI Double Conversion (Online) UPS 20 kVA 20000 W 1 x Mains Socket
PRICE:
6898,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Response time (typical): 4 ms
- Actual power: 20000 W
- Output voltage regulation: ±1%
- EMI/RFI noise filters: 65 dB
- Efficiency: 95.5%
- Waveform: Sine
- Efficiency (online): 94.5%
- Input current THD level: 6%
- Input operating voltage (minimum): 190 V
- Output operating voltage (maximum): 208 V
- Input operating voltage (maximum): 520 V
- Power factor: 1
- Output frequency adjustment: ±0.1 Hz
- Crest Factor: 3:1
- Input frequency: 46/64 Hz
- Maximum configurable power: 20 kVA
- Output operating voltage (minimum): 400 V
- Output current THD level: 4%
- UPS Topology: Double Conversion (Online)
- Design
- Product color: Black
- Layout: Large Tower
- Display type: LCD
- Weight and dimensions
- Product depth: 627 mm
- Product weight: 139 kg
- Product width: 250 mm
- Product height: 827 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 0 - 95%
- Package contents
- Cables: USB cable
- User Manual: Yes
- Quick Installation Guide: Yes
- Hook mounting kit: Yes
- Ports and interfaces
- Plugin: Terminal
- Number of network sockets: 1 x network socket
- USB port: Yes
- RS-232 port: 1
- AC Output Types: Terminal
- Emergency Power Off (EPO) Connector: Yes
- Battery
- Battery capacity: 9 Ah
- Battery voltage: 12 V
- Charging time: 9 hours
- Number of battery cells: 32
- Charging current: 12 A
- Logistics data
- Products per pallet: 1 pc.
- Harmonized System (HS) code: 85078000
| Name | Details |
|---|---|
| Producer | POWER WALKER |
