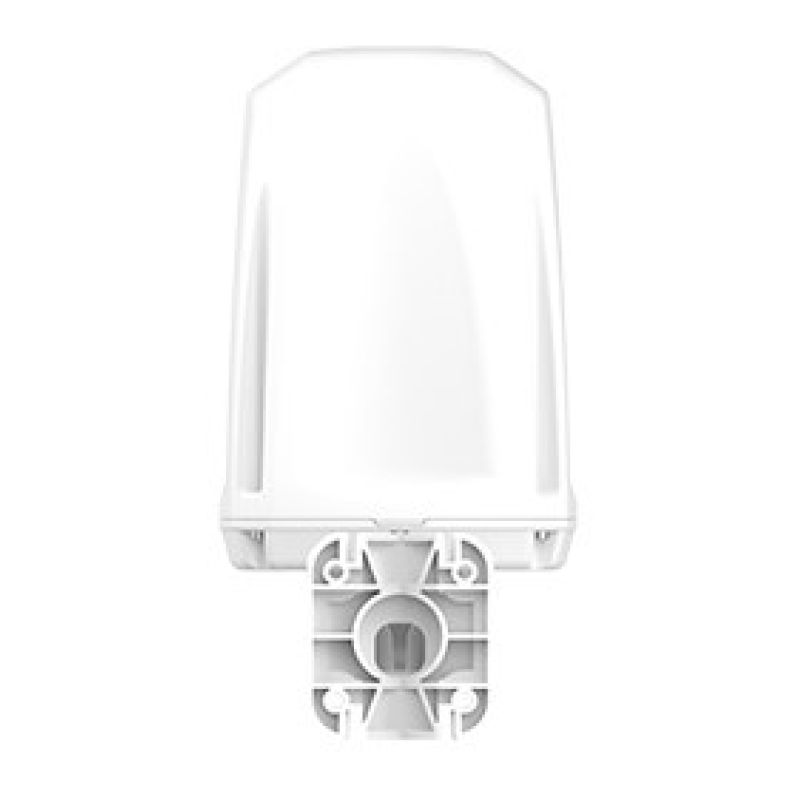

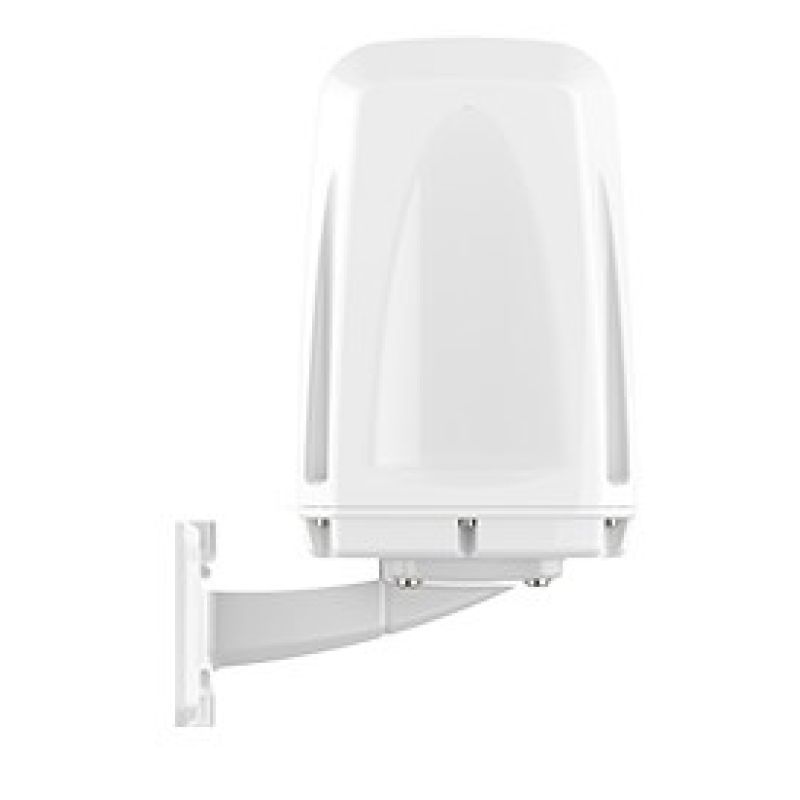

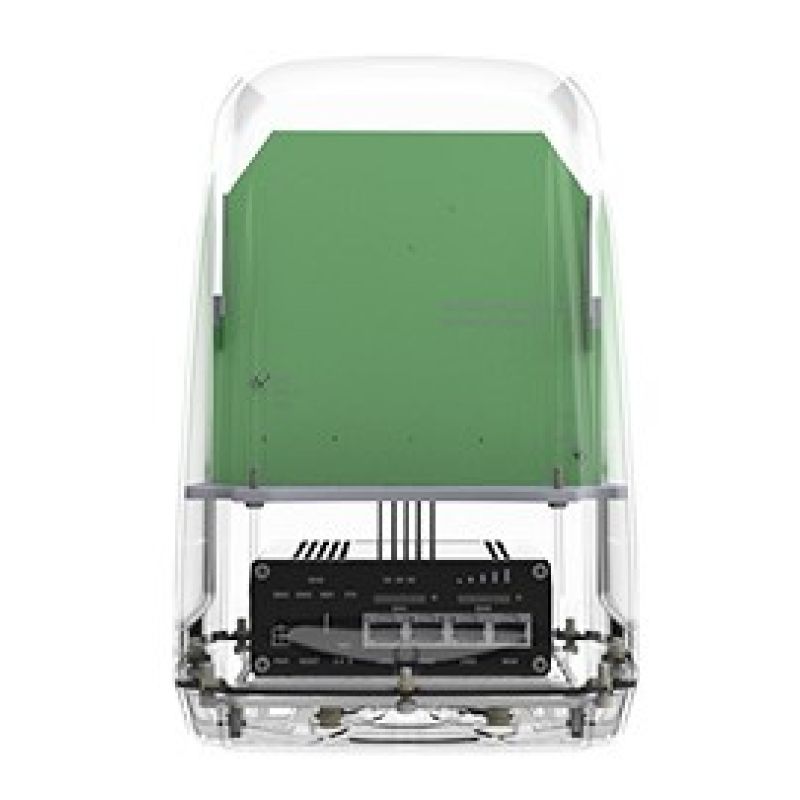

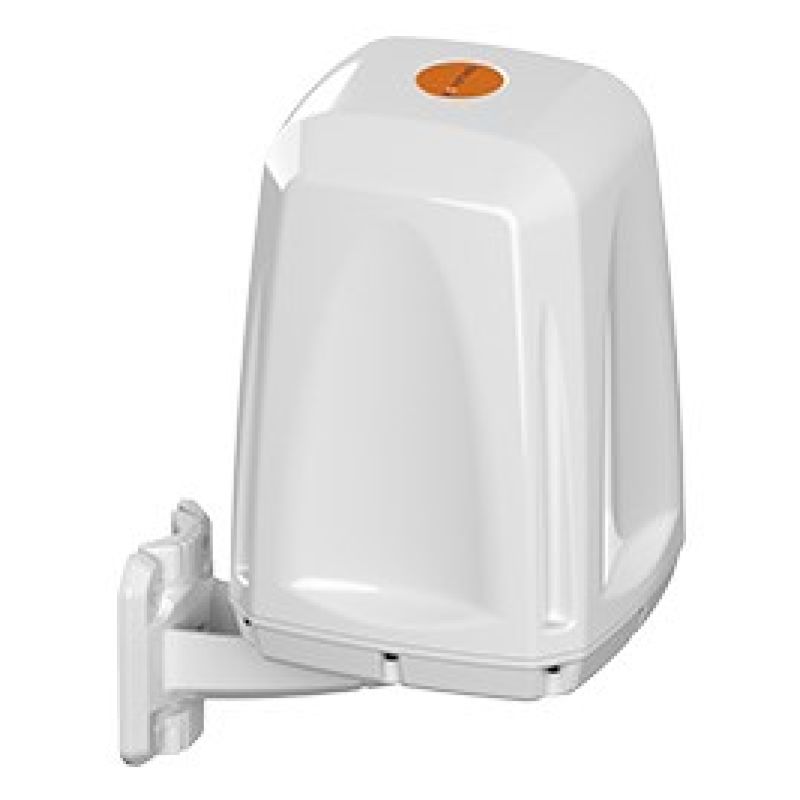

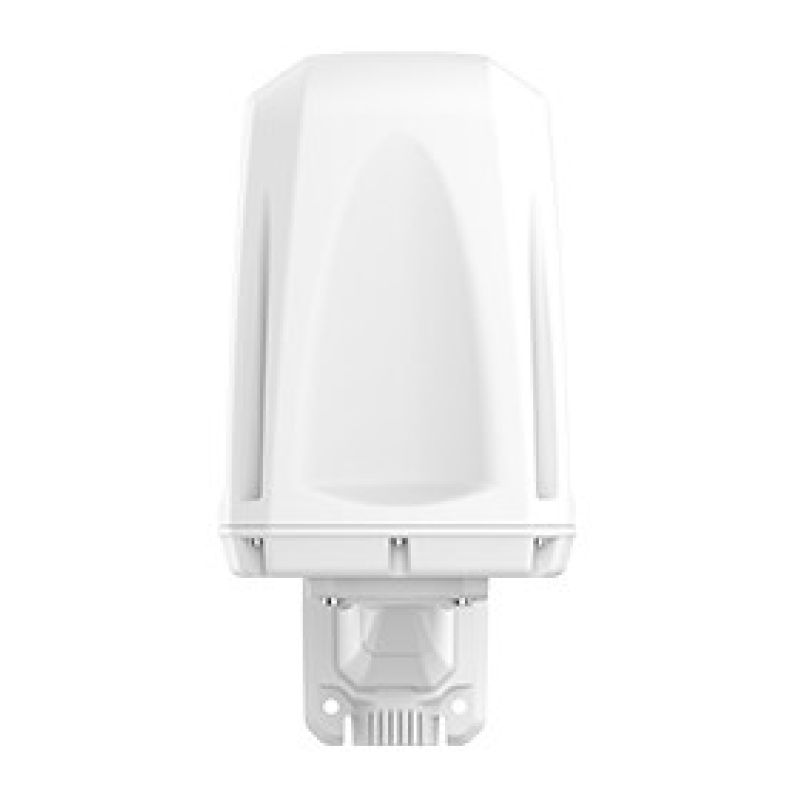

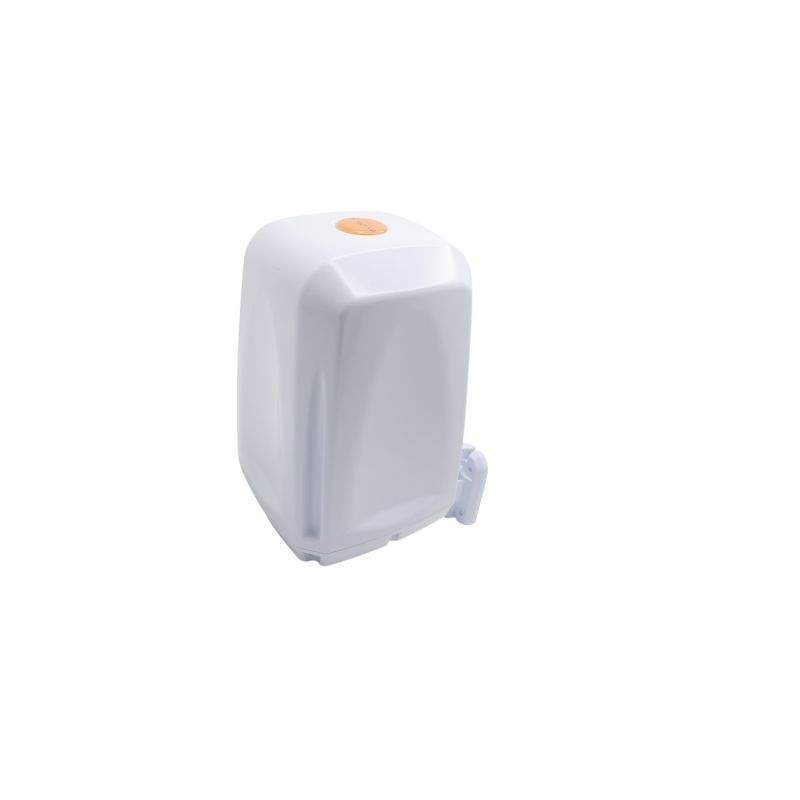

Poynting omnidirectional antenna · Antennas · 5G/LTE · Mast/Wall · A-EPNT-0004-V1-17 · white · SMA (F)
Poynting omnidirectional antenna · Antennas · 5G/LTE · Mast/Wall · A-EPNT-0004-V1-17 · white · SMA (F)
Poynting omnidirectional antenna · Antennas · 5G/LTE · Mast/Wall · A-EPNT-0004-V1-17 · white · SMA (F)
PRICE:
392,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Security features
- Dust resistant
- Waterproof
- Maximum wind speed: 220 km/h
- Cable type: RTK-031
- Intended use: Indoor/outdoor
- IP protection class: IP67
- Cable length: 0.15 m
- Product color: White
- Voltage Standing Wave Ratio (VSRW): 3:1
- Connector type: Male
- Maintaining power: 10 W
- Maximum cable loss with connections: 0.71 dB
- Antenna type: Omnidirectional antenna
- Antenna plug type: SMA
- Mounting type: Wall/Post
- UV resistance: Yes
- Security features
- Power
- Voltage: 2.7 - 3.3 V
- Power supply type: DC
- Weight and dimensions
- Product depth: 182 mm
- Product width: 238 mm
- Product weight: 1.19 kg
- Product height: 351 mm
- Working conditions
- Temperature range (storage): -40 - 80 °C
- Temperature range (operation): -40 - 80 °C
- Permissible relative humidity: 5 - 95%
- Efficiency
- Antenna gain level (max): 21 dBi
- Frequency band: 0.617 - 4.2 GHz
- Impedance: 50 Ω
- Packaging data
- Package height: 405 mm
- Weight with packaging: 2.21 kg
- Package width: 280 mm
- Packaging depth: 200 mm
- Package contents
- Number of pieces: 1
- Certificates
- Sustainability: Yes
- Certificates of conformity
- CE
- RoHS
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | No name |
| Colour | White |
