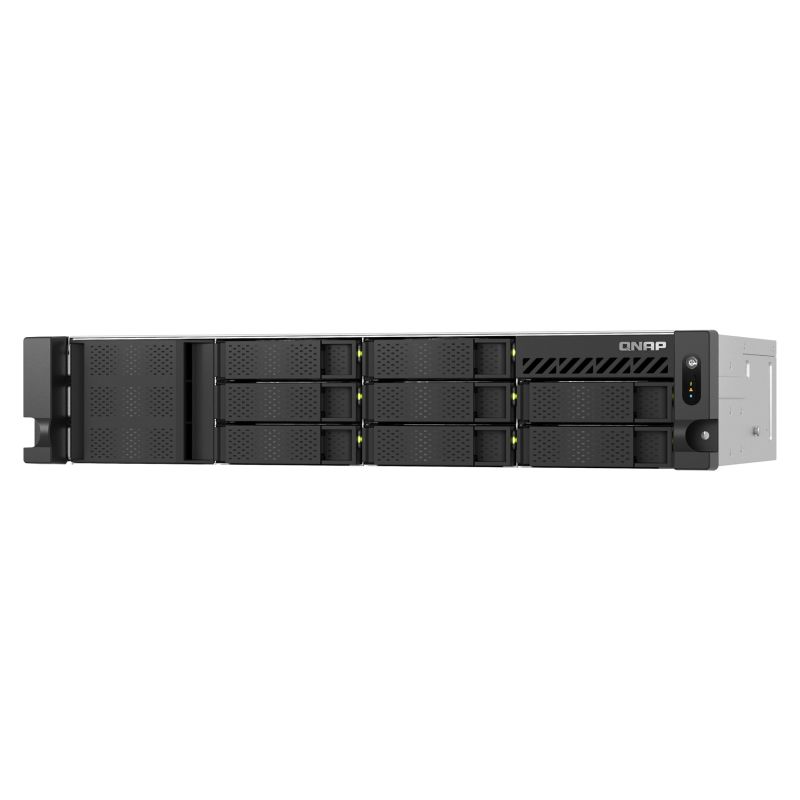

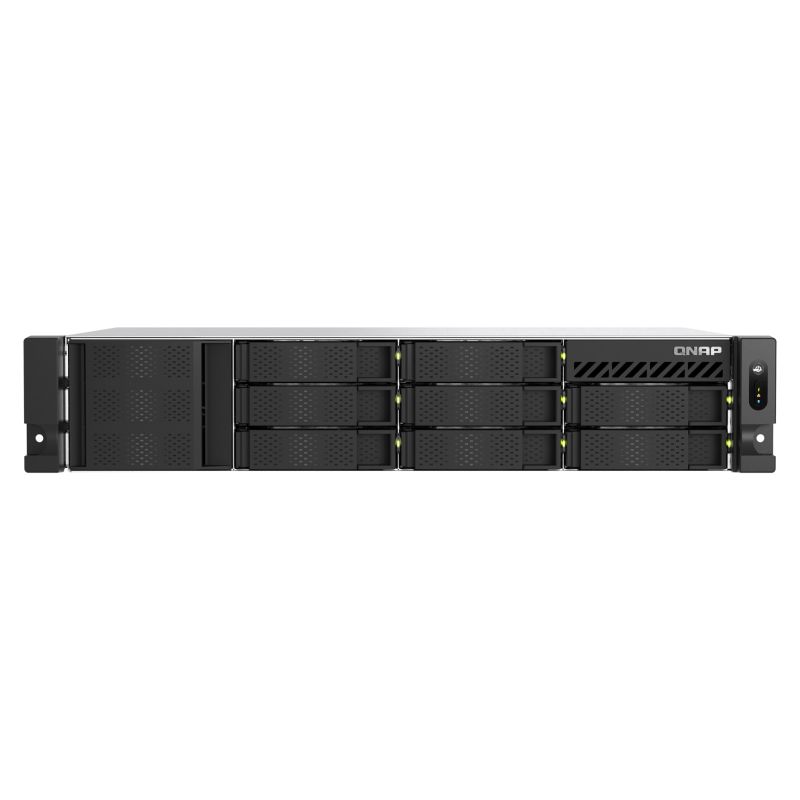

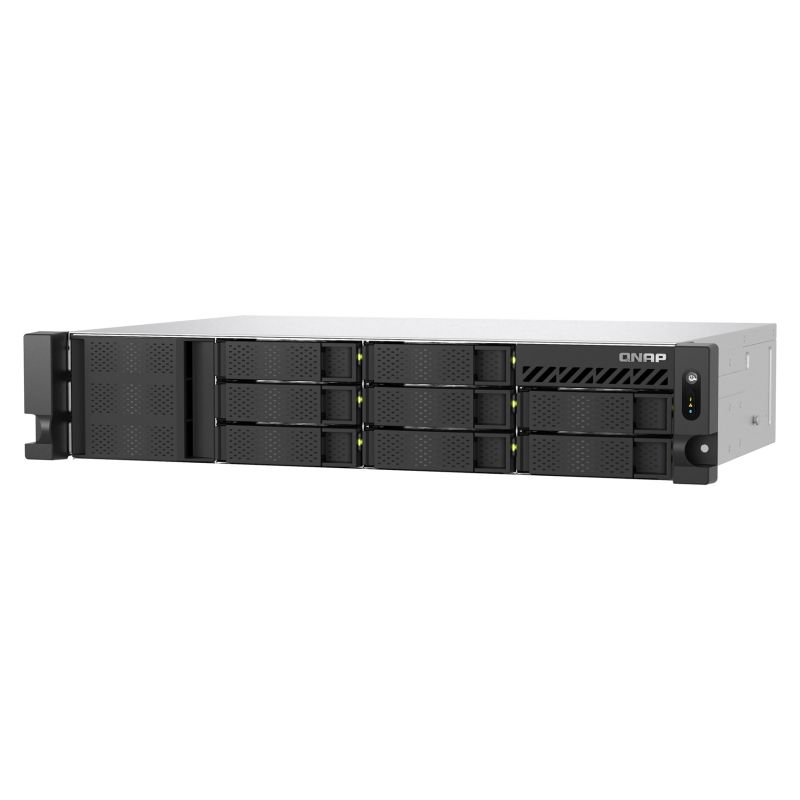

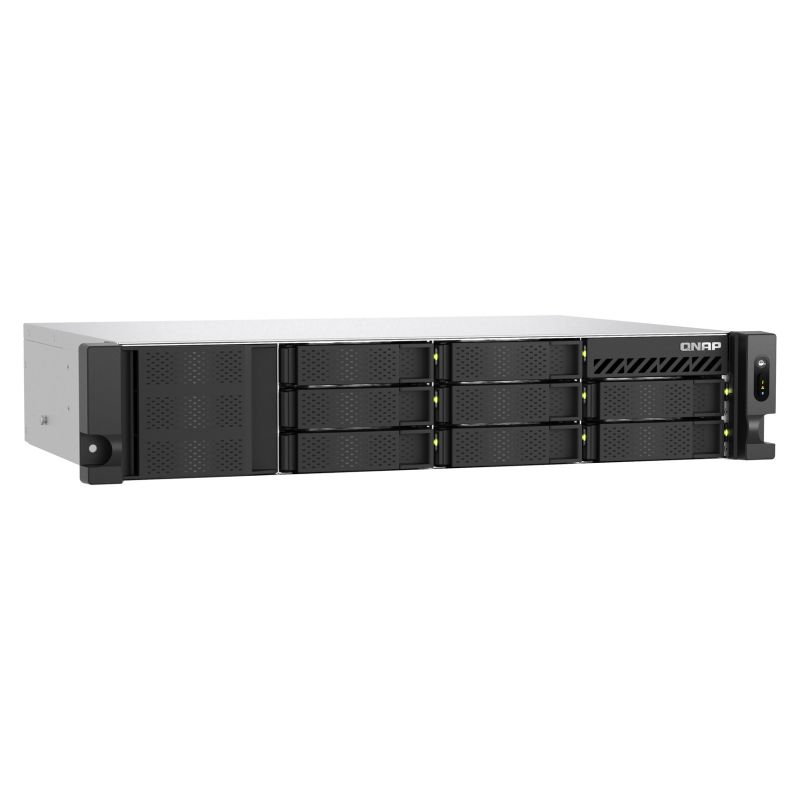

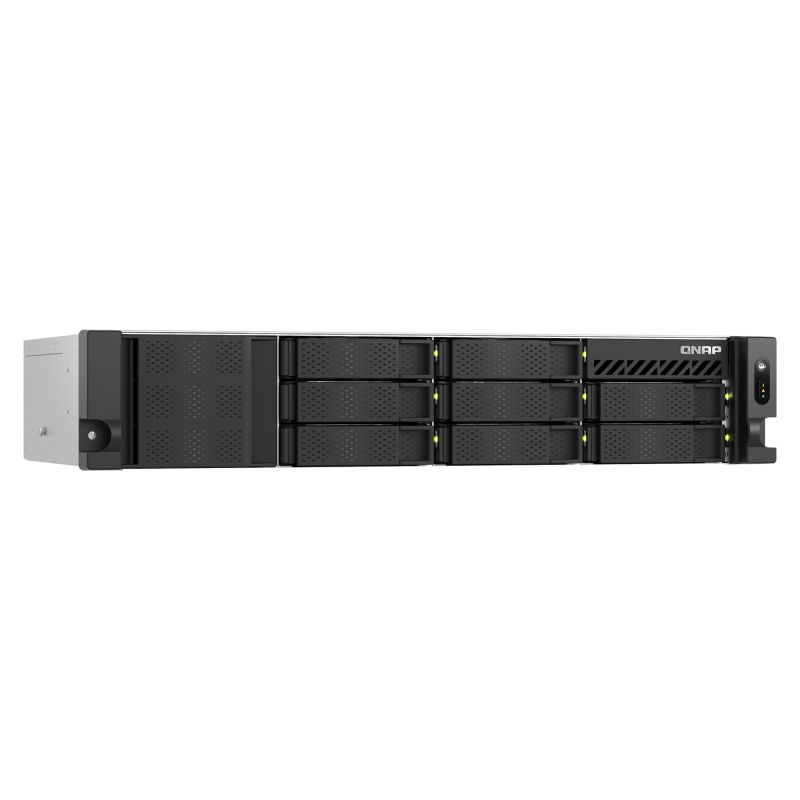

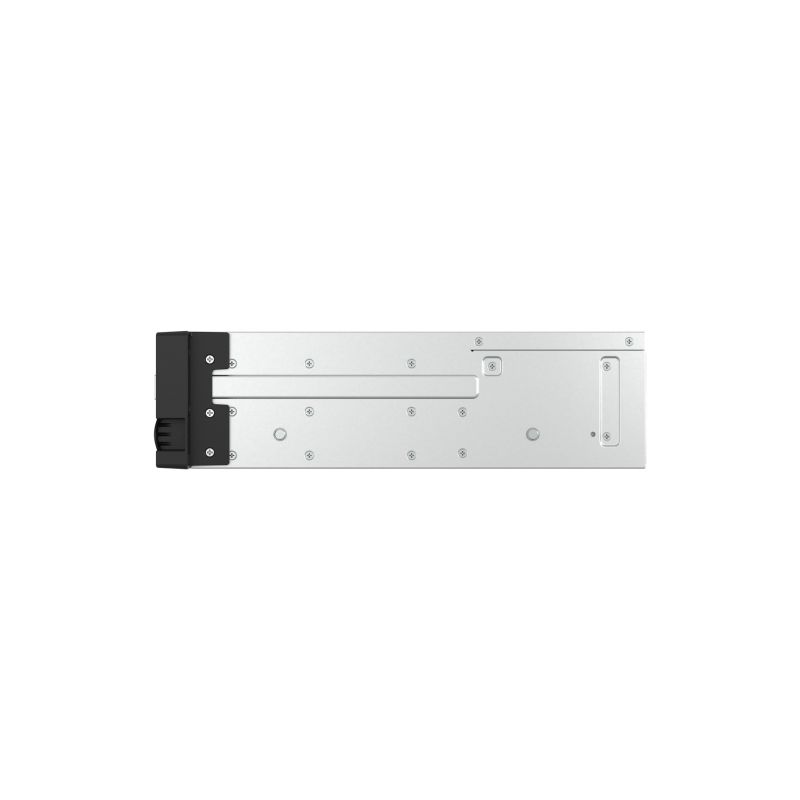

Qnap TS-855eU-8G, 2U, 8 x 2.5"/3.5" SATA, Intel Atom C5125 8C/8T, 8 GB SODIMM DDR4 (max. 64GB ), 2 x 2.5GbE, Single PSU
Qnap TS-855eU-8G, 2U, 8 x 2.5"/3.5" SATA, Intel Atom C5125 8C/8T, 8 GB SODIMM DDR4 (max. 64GB ), 2 x 2.5GbE, Single PSU
Sign up and unlock up to 10% off!
- Processor
- Thermal Design Power (TDP): 50 W
- Processor Cache: 9 MB
- Number of processors: 1
- Processor type: Intel Atom®
- Processor clock speed: 2.8 GHz
- Processor manufacturer: Intel
- Number of processor cores: 8
- Number of threads: 8
- Processor model: C5125
- ECC memory supported by processor: Yes
- Memory
- RAM: 8 GB
- RAM type: DDR4
- Memory type: SO-DIMM
- Maximum RAM: 64 GB
- Flash memory size: 5000 MB
- Memory slots: 2
- Design
- Cooling type: Active
- Fan bowl diameter: 6 cm
- Number of fans: 3 fans
- Product color: Black
- Housing: Rack (2U)
- LEDs: Yes
- Power
- Power consumption (sleep mode): 49,799 W
- Fan current: 12V
- Power Location: Built-in
- Power consumption: 79.113 W
- Number of power units: 1
- AC input voltage: 100 - 240 V
- Power supply power: 250 W
- Weight and dimensions
- Product height: 88.6 mm
- Package width: 530 mm
- Weight with packaging: 10.9 kg
- Package height: 592 mm
- Package depth: 210 mm
- Product width: 432 mm
- Product depth: 297.4 mm
- Product weight: 7.61 kg
- Working conditions
- Temperature range (storage): -20 - 70 °C
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 5 - 95%
- Network
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- 1000 Mbps
- 2500 Mbps
- iSCSI Support: Yes
- Jumbo Frame Compatible: Yes
- DHCP server: Yes
- Dynamic DNS (DDNS): Yes
- Wired LAN: Yes
- Wake-On-LAN: Yes
- Supported network protocols: IPv4, IPv6
- Data transfer speed via Ethernet LAN
- Efficiency
- Encryption/Security
- FIPS 140
- AES
- SSH
- HTTPS
- Access Control List (ACL): Yes
- Built-in FTP server: Yes
- Reset button: Yes
- Built-in switch: Yes
- System log: Yes
- SMART Support: Yes
- Management protocols: SNMP V2, V3
- Device class: Small and Medium Business
- USB Copy Function: Yes
- Sharing Folder: CIFS/SMB
- Backup function: Yes
- Buzzer: Yes
- Model: US
- Supported browsers: Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version)
- Photo: Yes
- Backup Features
- iSCSI LUN
- USB drive
- Hot Reserve Elements: Yes
- Encryption/Security
- Package contents
- Wires
- LAN (RJ-45)
- Alternating current
- Number of screws: 56
- Quick Installation Guide: Yes
- Packaging type: Box
- Number of power cables: 1
- Wires
- Software
- Supported server operating systems
- Windows Server 2012 R2
- Windows Server 2008 R2
- Windows Server 2016
- Windows Server 2012
- Windows Server 2019
- Supported Mac operating systems
- Mac OS X 10.10 Yosemite
- Yes
- Supported Windows operating systems
- Windows 8
- Windows 10
- Windows 7
- Windows 11
- Supported Linux operating systems
- CentOS 7.0
- Ubuntu 14.04
- Yes
- Operating system version: h5.0.1
- Installed operating system: QuTS hero
- Other supported operating systems
- Solaris 10
- IBM AIX 7.1
- Supported server operating systems
- Data carrier
- RAID levels
- JBOD
- 1
- 0
- 50
- 60
- 5
- 10
- Types of installed drives: No
- RAID Rebuild: Yes
- Supported file systems
- ext3
- ext4
- ZFS
- FAT32
- HFS+
- exFAT
- NTFS
- RAID Service: Yes
- Number of supported storage drive sizes: 8
- Disk capacity: 0 GB
- Supported storage drive sizes
- 2.5
- 3.5
- Hot-swap bay: Yes
- Online RAID migration: Yes
- Installed storage device: No
- Total installed memory capacity: 0 TB
- Online RAID expansion: Yes
- Disk roaming: Yes
- Supported hard drive interfaces: Serial ATA III, the second generation of the serial computer bus (serial ATA II)
- Supported drive types: HDD & SSD
- Number of M.2 slots (M & B): 2
- RAID levels

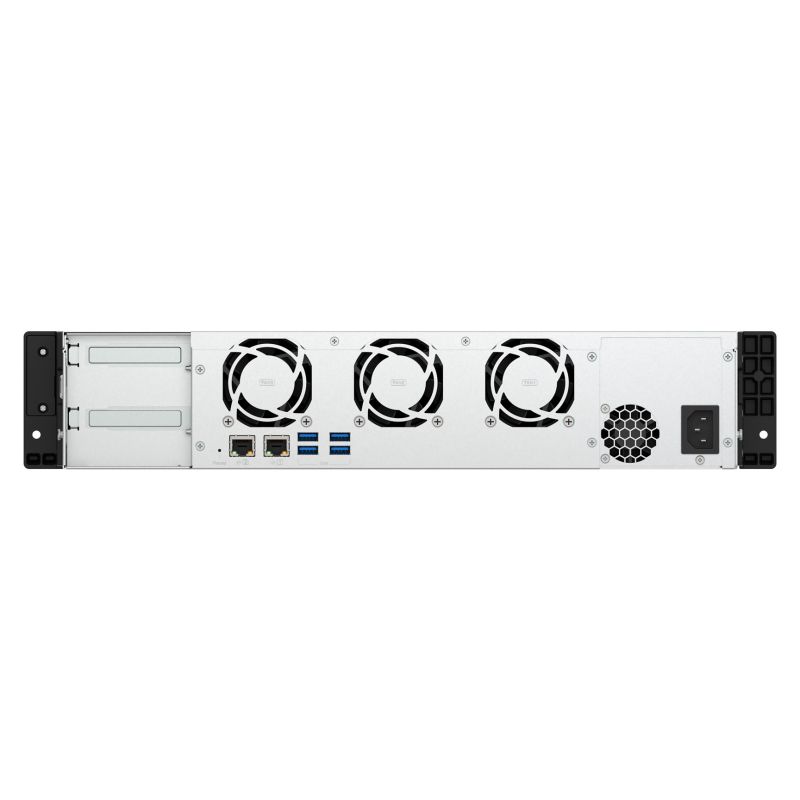

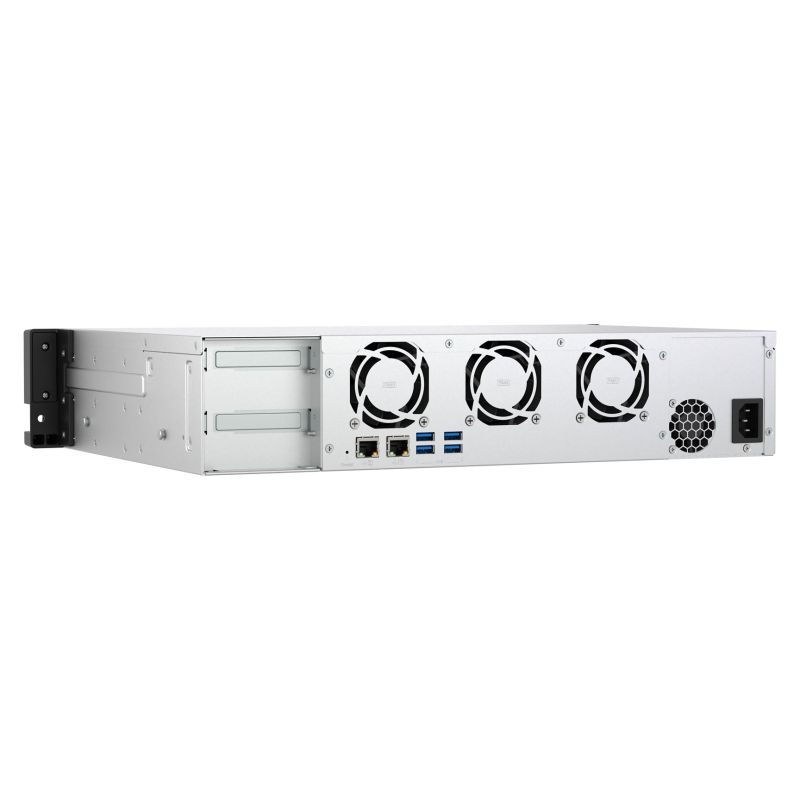

- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 2
- PCI Express x4 slots (Gen 3.x): 2
- USB port: Yes
- Fiber optic connector: MTP
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Other functions
- Fiber channel features: Yes
- Warranty period: 3 years
- Safety warning
- Warnings
- Avoid contact with liquids.
- Do not throw this device into regular trash. This product requires special disposal.
- Do not disassemble the device yourself.
