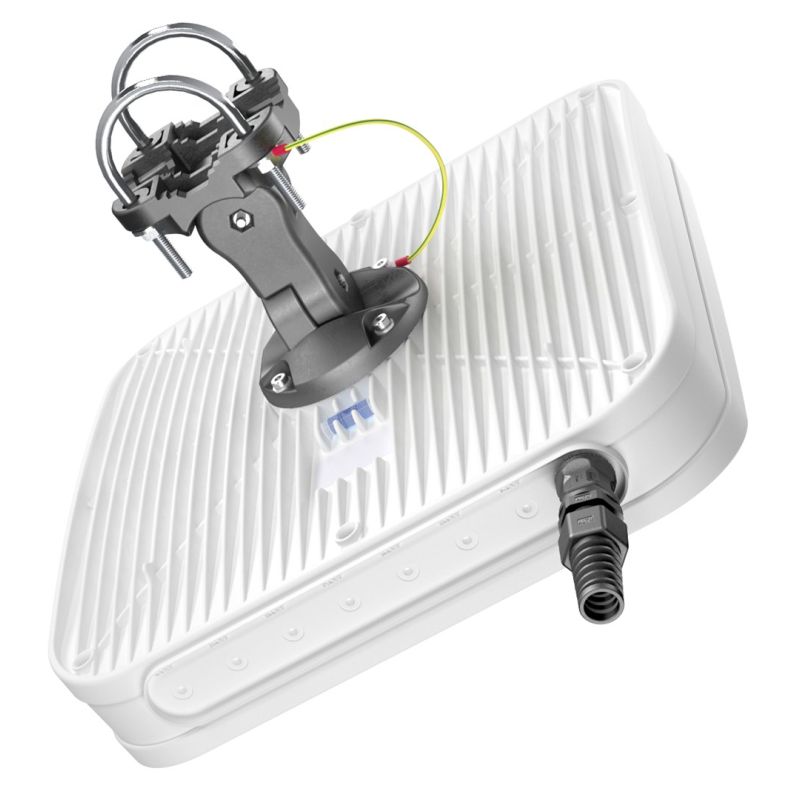

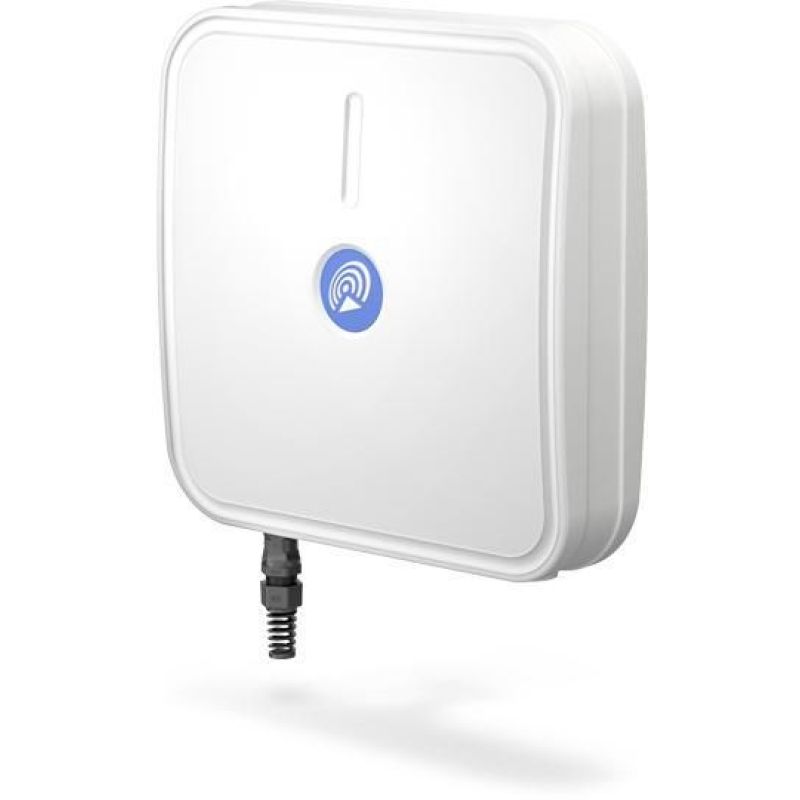

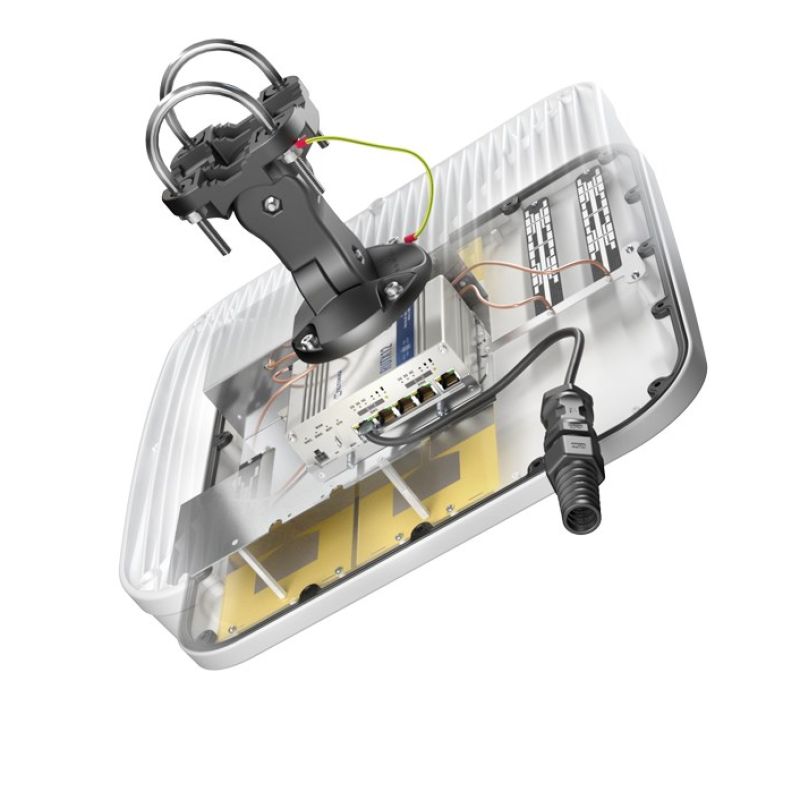

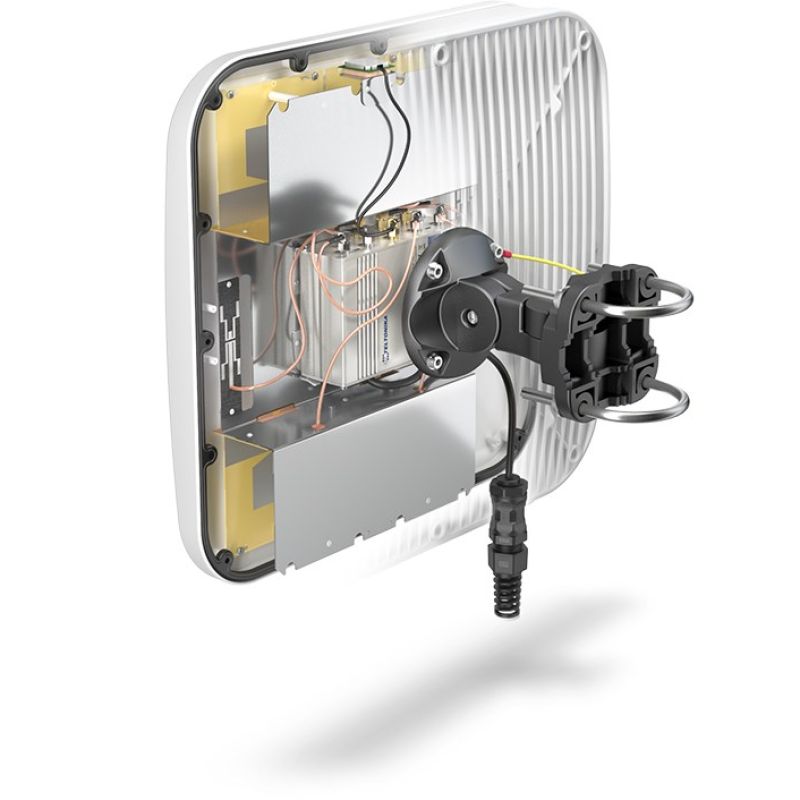

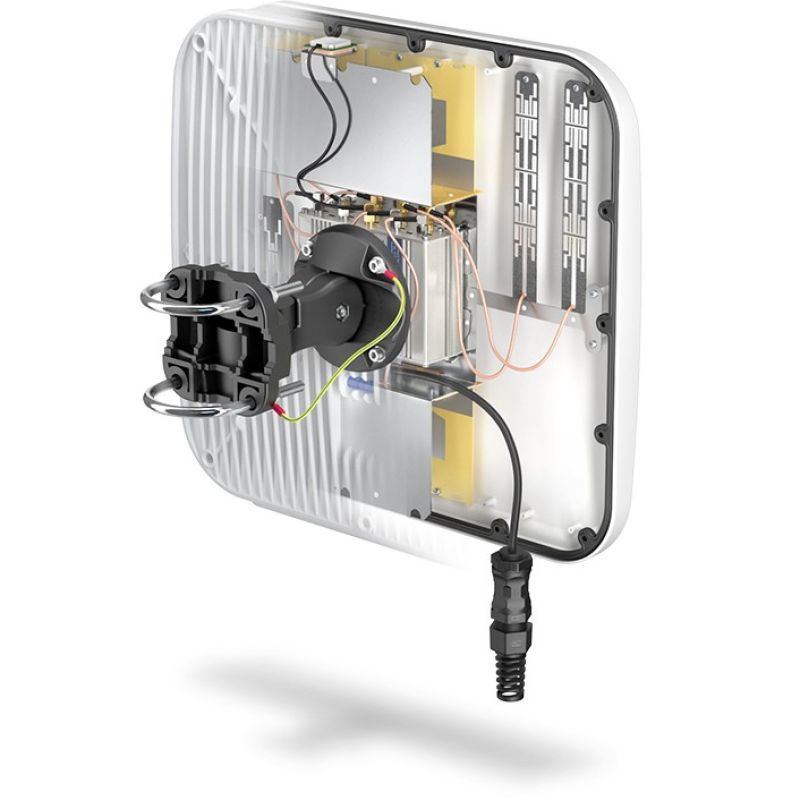

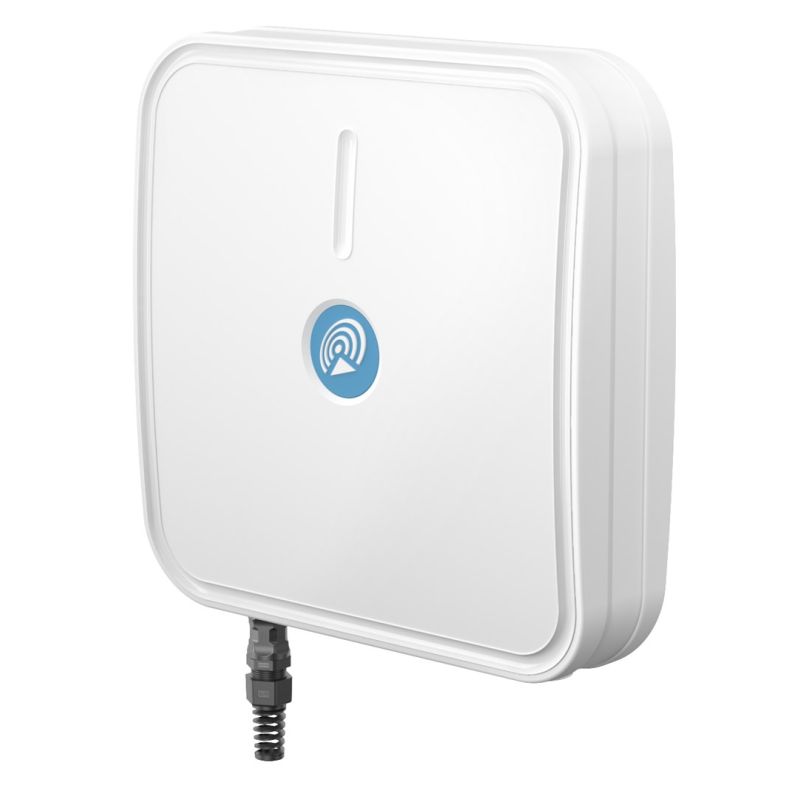

QuWireless AX12M Antenna, Directional Antenna, PoE/LAN, 6 dBi
QuWireless AX12M Antenna, Directional Antenna, PoE/LAN, 6 dBi
QuWireless AX12M Antenna, Directional Antenna, PoE/LAN, 6 dBi
PRICE:
316,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Features
- Antenna type: Directional antenna
- IP protection rating: IP67
- Antenna plug type: PoE/LAN
- Product colour: White
- Housing material
- Acrylonitrile butadiene styrene copolymer (ABS)
- Aluminium
- Mounting type: Wall/Pole
- Intended use: Indoor / outdoor
- Polarisation: Vertical polarisation
- Voltage standing wave ratio (VSWR): 1.3–1.8
- Weight and dimensions
- Product width: 392 mm
- Product weight: 3.7 kg
- Product depth: 392 mm
- Product height: 99 mm
- Operating conditions
- Operating temperature range: -40–75 °C
- Performance
- Antenna gain level (max.): 6 dBi
- Frequency band: 0.694–0.96/1.7–2.2/2.2–2.7; 2.4–2.5/4.7–6 GHz
- Horizontal beamwidth (5 GHz): 360°
- Antenna range (5 GHz): 7 dBi
- Horizontal beamwidth: 90°
- Vertical beamwidth (5 GHz): 25°
- Horizontal beamwidth (2.4 GHz): 360°
- Vertical beamwidth (2.4 GHz): 25°
- Gain factor: 4 / 6 dBi
- Antenna range (2.4 GHz): 6 dBi
- Vertical beamwidth: 90°
- Impedance: 50 Ω
- Package contents
- Quantity: 1
- Logistics data
- Country of origin: Poland
