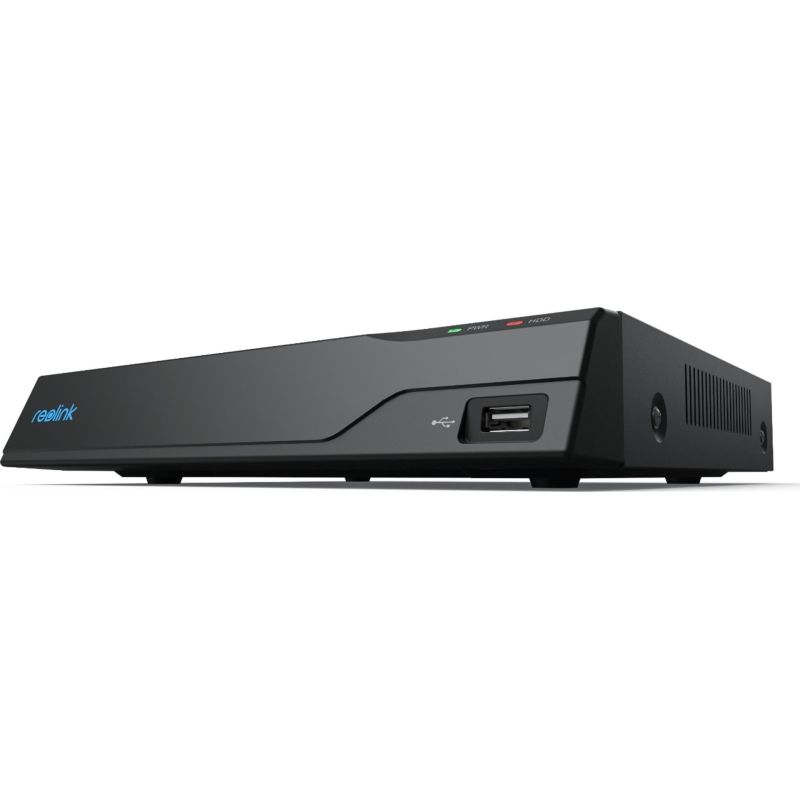

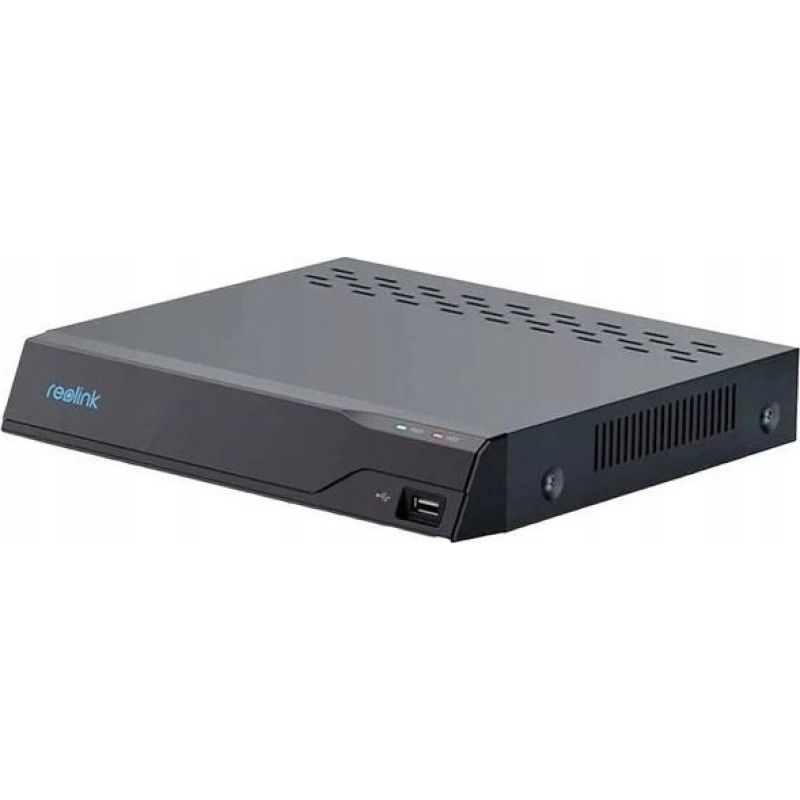

Reolink NVS8 recorder (NHD)
Reolink NVS8 recorder (NHD)
Sign up and unlock up to 10% off!
- Characteristics
- Product color: Black
- Power
- Operating voltage: 48 - 53 V
- Power consumption: 10 W
- Power over Ethernet (PoE) power per port: 25 W
- Weight and dimensions
- Product weight: 1.4 kg
- Product width: 260 mm
- Product depth: 230 mm
- Product height: 41 mm
- Working conditions
- Temperature range (operation): -10 - 45 °C
- Relative humidity range: 10 - 90%
- System requirements
- Mac compatible: Yes
- Windows operating systems supported: Yes
- Supported browsers: Edge, Firefox, Chrome, Safari
- Support for mobile operating systems
- iOS
- Android
- Efficiency
- Video motion detection: Yes
- Video channel inputs: 8 channels
- Video recording modes
- 1080p
- 720p
- Number of users: 20 users
- Supported video file formats
- H.265
- H.264
- Maximum resolution: 3840 x 2160 px
- Number of simultaneous playback channels: 4 channels
- Wireless LAN Features
- Wi-Fi: No
- Ports and interfaces
- Number of USB 2.0 ports: 2
- Communication standards
- IEEE 802.3at
- IEEE 802.3af
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- Number of Ethernet LAN ports (RJ-45): 9
- RCA audio outputs: 1
- PoE Support: Yes
- Supported network protocols: HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
- Number of Fast Ethernet (PoE) ports: 8
- HDMI output: Yes
- Ethernet WAN: Yes
- Number of HDMI ports: 1
- eSATA: Yes
- VGA (D-Sub) Outputs: 1
- Hard drive
- Maximum storage capacity: 12 TB
- HDD interface
- SATA
- eSATA
- Number of supported HDDs: 2
- Safety warning
- Warnings
- The device should be installed by a qualified specialist.
- Do not expose the device to moisture or extreme temperatures.
- The product must be disposed of properly in accordance with local regulations for electronics disposal.
- Warnings
| Name | Details |
|---|---|
| Category | Industry |
| Producer | reolink |
