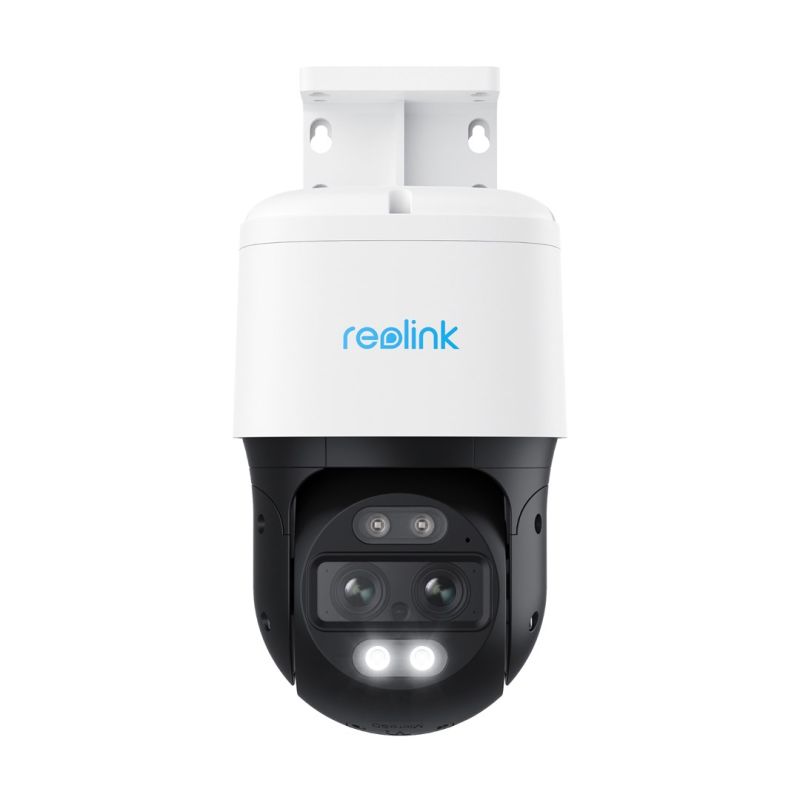

Reolink P760 8MP PoE IP surveillance camera
Reolink P760 8MP PoE IP surveillance camera
Sign up and unlock up to 10% off!
- Design
- Security features: Weather resistant
- Product color
- White
- Black
- Layout: Dome
- Mounting type: Ceiling / Wall
- Power
- Power supply type: DC, PoE
- DC Output (Volts): 12.48
- DC Output (Amperes): 2 A
- Power consumption (max): 12 W
- Weight and dimensions
- Product depth: 147 mm
- Product height: 129 mm
- Product weight: 1.21 kg
- Product width: 228.2 mm
- Management features
- Reset button: Yes
- Working conditions
- Temperature range (operation): -10 - 55 °C
- Relative humidity range: 10 - 90%
- Network
- Wi-Fi: No
- User access level: Administrator, User
- Wired LAN: Yes
- Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- Communication standards: IEEE 802.1af
- Bluetooth: No
- Number of users: 20 users
- System requirements
- Windows operating systems supported: Yes
- Support for mobile operating systems
- Android
- iOS
- Mac operating systems supported: Yes
- Efficiency
- Model: IP Security Camera
- Intended use: Indoor and outdoor
- Color temperature: 6500 K
- Luminous flux: 450 lm
- Connection method: Wired
- Built-in light: Yes
- Day/Night Mode: Yes
- Packaging data
- Package depth: 270 mm
- Weight with packaging: 1.76 kg
- Package height: 190 mm
- Package width: 205 mm

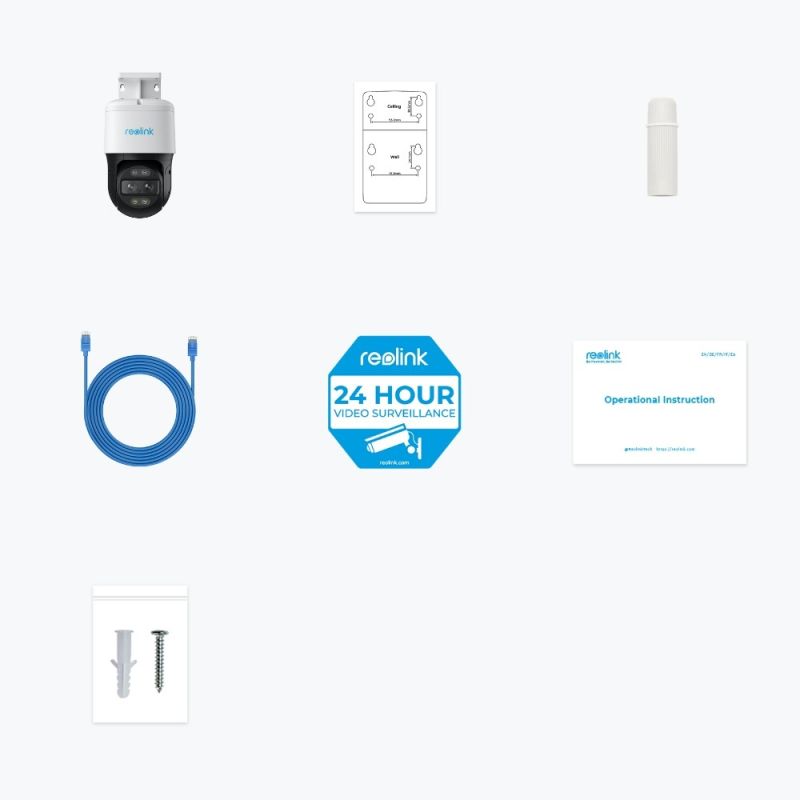

- Package contents
- Number of cameras: 1
- Cables: LAN (RJ-45)
- Mounting kit: Yes
- Screws Included: Yes
- Audio
- Built-in microphone: Yes
- Sound system: 2-way
- Built-in speakers: Yes
- Data carrier
- Integrated card reader: Yes
- Maximum memory card size: 256 GB
- Supported memory cards: MicroSD
- Built-in HDD: No
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Tilt angle range: 0 - 90°
- Swivel range: 0 - 355°
- Camera Pan Control: Yes
- Tilt speed: 60°/s
- Camera Tilt Control: Yes
- Sliding speed: 90 °/s
- Photosensitive matrix
- Image sensor type: CMOS
- CCD sensor size: 25.4/3 mm (1/3")
- Number of sensors: 2
- Night mode
- LED type: Infrared
- Night Vision Distance: 30 m
- Night mode: Yes
- Infrared wavelength: 850 nm
- Number of lighting diodes: 2
- Video
- Video recording: Yes
- Compression formats
- H.265
- H.264
- Frame rate: 25 fps
- Supported video modes: 2160p
- Maximum resolution: 3840 x 2160 px
- Total megapixels: 8 MP
- Supported graphics resolutions: 3840 x 2160
- Lens system
- Maximum aperture: 1.6
- Safety warning
- Warnings
- The product contains electronic components and should not be disposed of in regular waste.
- Make sure the product is properly installed and secured to prevent mechanical damage.
- Avoid direct contact with water to prevent electrical damage.
