- Design
- Layout: Tube
- IP protection class: IP67
- Weather-resistant product: Yes
- Mounting type: Wall
- Product color: White
- Power
- DC Output (Amperes): 1 A
- Power supply type: DC
- Power consumption (max): 12 W
- DC Output (Volts): 12
- Weight and dimensions
- Diameter: 6.7 cm
- Product height: 186 mm
- Product weight: 415 g
- Security
- Intelligent Video Surveillance (IVS) Features
- Pet detection
- People detection
- Vehicle detection
- Encryption/Security
- WPA-PSK
- WPA2-PSK
- Intelligent Video Surveillance (IVS) Features
- Management features
- Reset button: Yes
- Working conditions
- Temperature range (operation): -10 - 55 °C
- Relative humidity range: 10 - 90%
- Network
- Wi-Fi standards
- 802.11b
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- Wi-Fi: Yes
- Ethernet interface type: Fast Ethernet
- Number of users: 20 users
- Wired LAN: Yes
- Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- Communication standards
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.11a
- Bluetooth: No
- User access level: Administrator, User
- Wi-Fi standards
- System requirements
- Mac operating systems supported: Yes
- Windows operating systems supported: Yes
- Support for mobile operating systems
- Android
- iOS
- Efficiency
- Number of antennas: 2
- Infrared (IR) Cut-off Filter: Yes
- Connectivity: Wired and wireless
- Intended use: Outdoor
- Model: IP Security Camera
- Day/Night Mode: Yes
- Antenna type: External
- Virtual assistant: Google Assistant

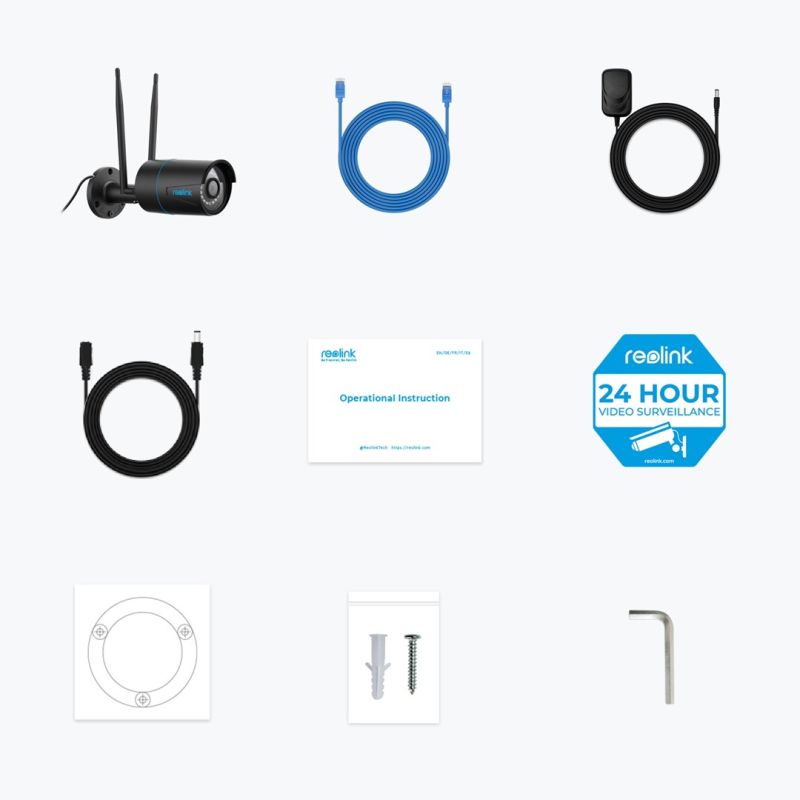

- Package contents
- Mounting kit: Yes
- User Manual: Yes
- Number of cameras: 1
- Screws Included: Yes
- Audio
- Sound system: 2-way
- Built-in microphone: Yes
- Built-in speakers: Yes
- Bit rate range: 64 - 8192 Kbit/s
- Data carrier
- Supported memory cards: MicroSD
- Maximum memory card size: 256 GB
- Built-in HDD: No
- Integrated card reader: Yes
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- DC output socket: Yes
- Camera
- Lens viewing angle, horizontal: 80°
- Vertical lens viewing angle: 48°
- Photosensitive matrix
- Image sensor type: CMOS
- CCD sensor size: 25.4 / 2.7 mm (1 / 2.7")
- Number of sensors: 1
- Night mode
- Night Vision Distance: 30 m
- Number of lighting diodes: 18
- Night mode: Yes
- LED type: Infrared
- Infrared wavelength: 850 nm
- Video
- Supported graphics resolutions: 2560 x 1920
- Noise reduction: Yes
- Frame rate: 20 fps
- Total megapixels: 5 MP
- Maximum resolution: 2560 x 1920 px
- Data flow speed: 64 Kbps - 8192 Kbps
- Supported video file formats: H.264
- Compression formats: H.264
- Video recording: Yes
- Lens system
- Fixed focal length: 4 mm
- Maximum aperture: 2
- Number of lenses: 1
| Name | Details |
|---|---|
| Producer | reolink |
