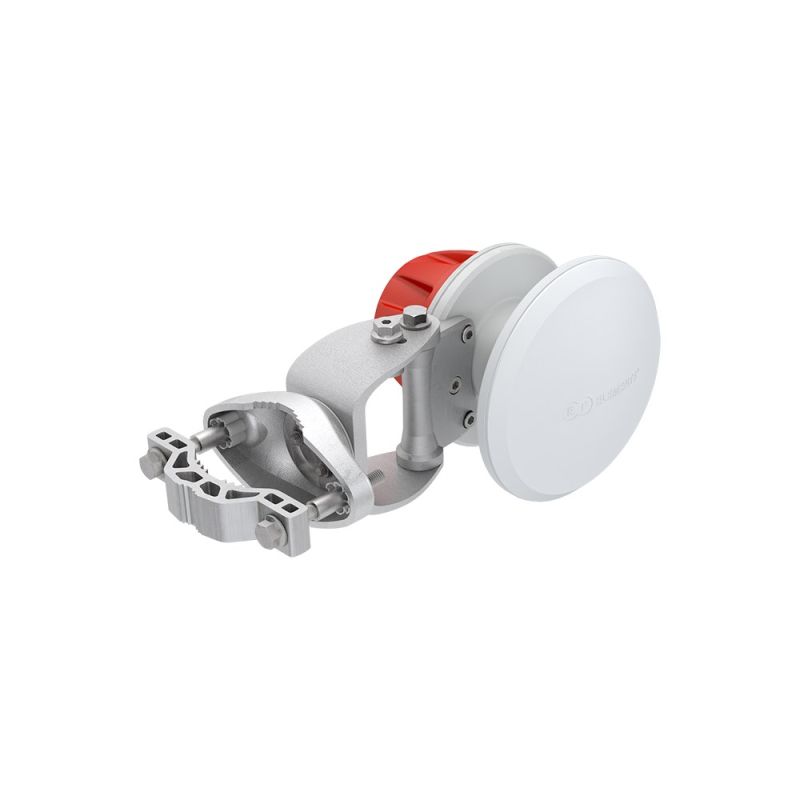

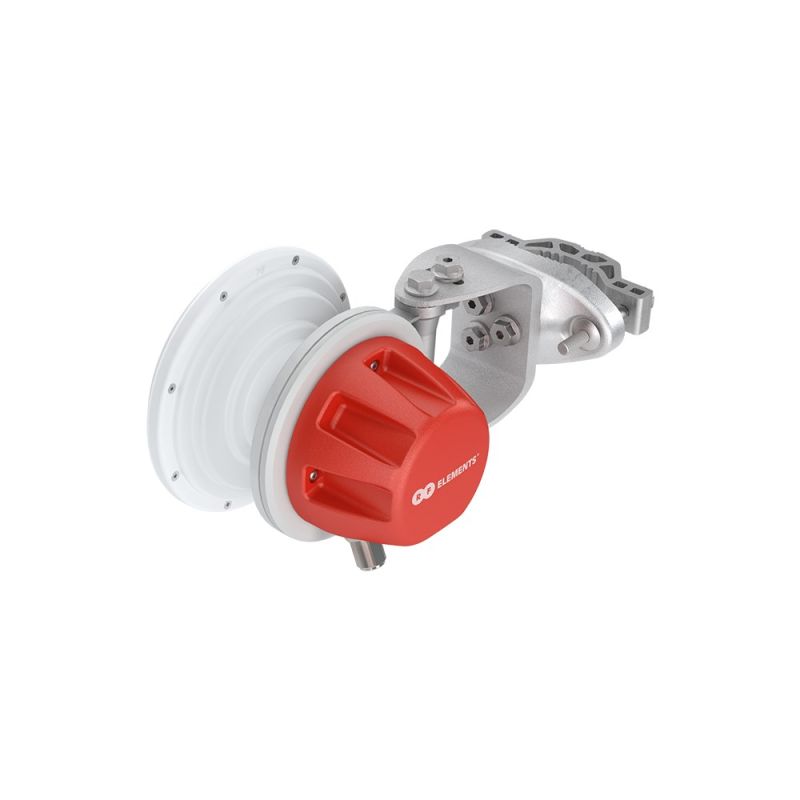

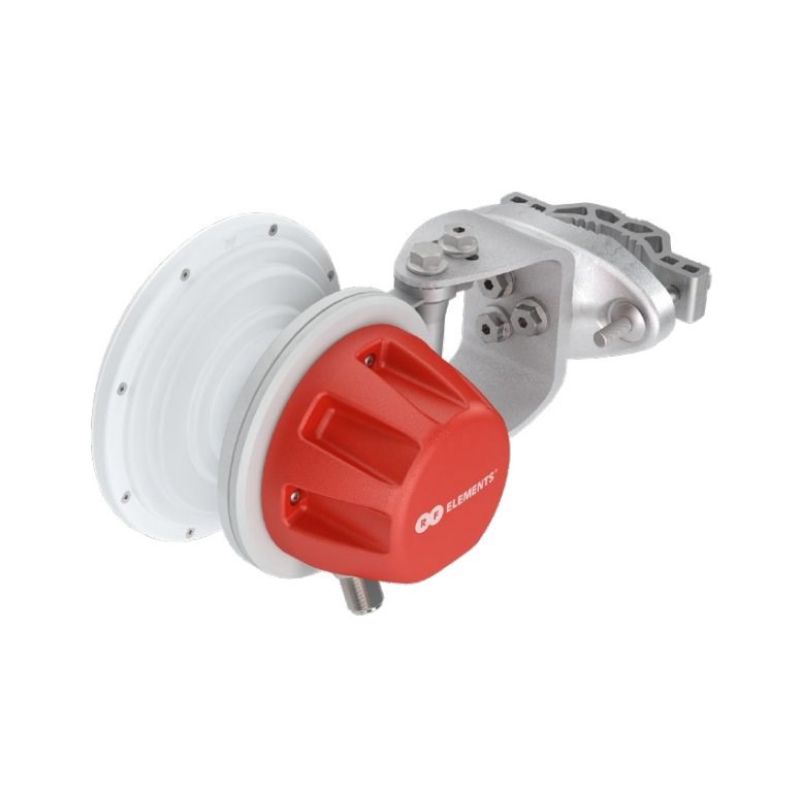

RF Elements HG3-CC-S70 N-Typ 11.5 dBi horn antenna
RF Elements HG3-CC-S70 N-Typ 11.5 dBi horn antenna
RF Elements HG3-CC-S70 N-Typ 11.5 dBi horn antenna
PRICE:
49,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Housing material
- Polypropylene (PP)
- Stainless steel
- Aluminum
- Zinc
- Wind load: 22
- UV resistance: Yes
- Voltage Standing Wave Ratio (VSRW): 1.6/1.9
- Maximum wind speed: 160 km/h
- Mounting type: Rod
- Downward tilt: 25°
- Polarization: Dual Polarization
- Front to back ratio: 30 dB
- Intended use: Outdoor
- Antenna plug type: N-Type
- Connector type: Female
- Pipe assembly: 30 - 90 mm
- Antenna type: Horn antenna
- IP protection class: IP55
- Product color
- White
- Red
- Housing material
- Weight and dimensions
- Product depth: 162 mm
- Product weight: 1.8 kg
- Product height: 152 mm
- Product width: 312 mm
- Working conditions
- Temperature range (operation): -30 - 55 °C
- Efficiency
- Antenna gain level (max): 11.5 dBi
- Impedance: 50 Ω
- Vertical beam width: 70°
- Horizontal beamwidth: 70°
- Frequency band: 5.18 - 6.4 GHz
- Packaging data
- Package depth: 239 mm
- Package height: 183 mm
- Package width: 305 mm
- Weight with packaging: 2.6 kg
- Package contents
- Number of pieces: 1
- Logistics data
- Products in the main (outer) box: 10 pcs.
- Height of the standard (outer) box: 335 mm
- Width of the collection box (external): 940 mm
- Main (outer) housing gross weight: 27.4 kg
- Main (outer) case length: 510 mm
| Name | Details |
|---|---|
| Producer | RF Elements |
