Router (Gateway), UniFi Controller, NVR, Switch Ubiquiti UniFi (UCG-Fiber-EU)
Router (Gateway), UniFi Controller, NVR, Switch Ubiquiti UniFi (UCG-Fiber-EU)
Sign up and unlock up to 10% off!
- Design
- Housing material: Polycarbonate (PC)
- Product color: White
- LEDs: Status
- Power
- PoE Support: Yes
- Power over Ethernet (PoE) type supported: PoE+
- Power consumption (max): 29.4 W
- Electromagnetic Protection (EMP): Yes
- Voltage: 100 - 240 V
- Electromagnetic protection (EMP) (contact): 4 kV
- Input current: 1.1 A
- Electromagnetic Protection (EMP) (air): 8 kV
- DC input voltage: 54 V
- Weight and dimensions
- Product width: 212.8 mm
- Product height: 30 mm
- Product depth: 127.6 mm
- Product weight: 675 g
- Security
- VLAN support: Yes
- Firewall protection: Yes
- Encryption/Security
- 802.1x RADIUS
- TLS
- IPSec
- Management features
- Multicast Support: Yes
- Reset button: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Relative humidity range: 5 - 95%
- Temperature range (operation): 0 - 40 °C
- Network
- Bluetooth: Yes
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 2500 Mbps
- 10000 Mbps
- 10 Mbps
- Load balancing: Yes
- Efficiency
- Internal memory capacity: 3 GB
- Built-in processor: Yes
- Processor manufacturer: ARM
- Display type: LCM
- Number of processors: 1
- Processor type: ARM Cortex
- Control panel: Yes
- Processor clock speed: 2200 MHz

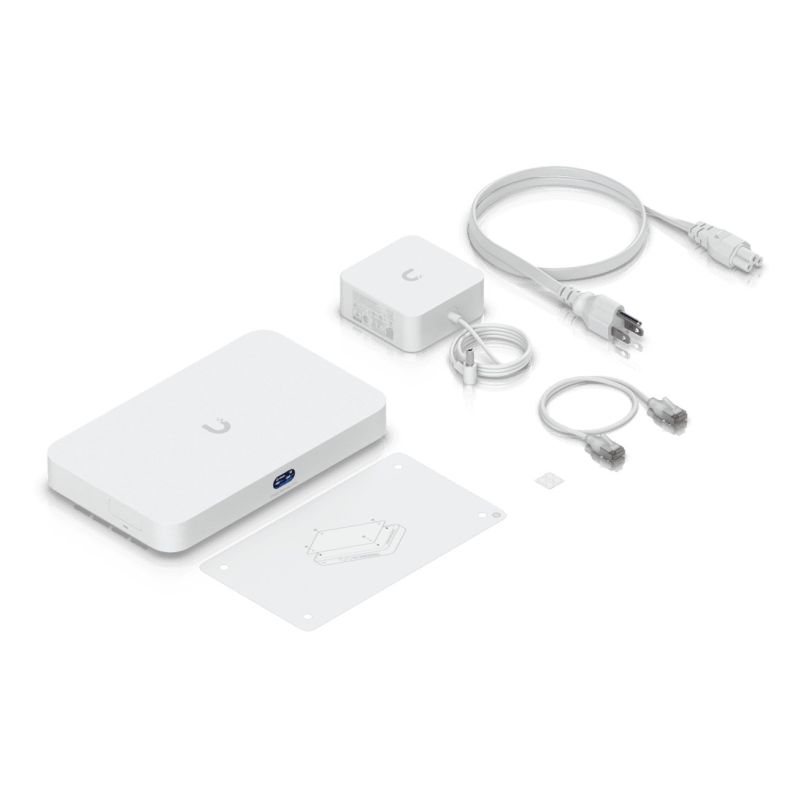

- Package contents
- Wires
- Power supply
- LAN (RJ-45)
- AC adapter: Yes
- Wires
- Display
- Screen diagonal: 0.96"
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- Industry Canada (IC)
- CE
- Certificates of conformity
- Protocols
- Path Selection Protocol: OSPF

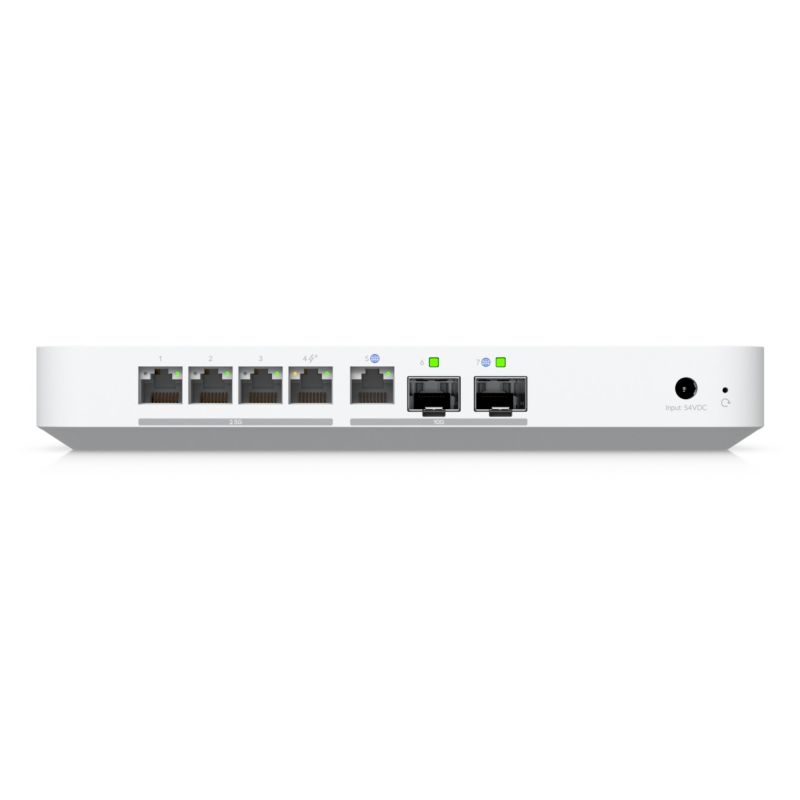

- Ports and interfaces
- DC output socket: Yes
- Number of Ethernet LAN ports (RJ-45): 4
- Number of SFP+ ports: 2
- Wan port: Ethernet (RJ-45), SFP, SFP+
- Logistics data
- Export Control Classification Number (ECCN): EAR99
| Name | Details |
|---|---|
| Producer | UBIQUITI |
