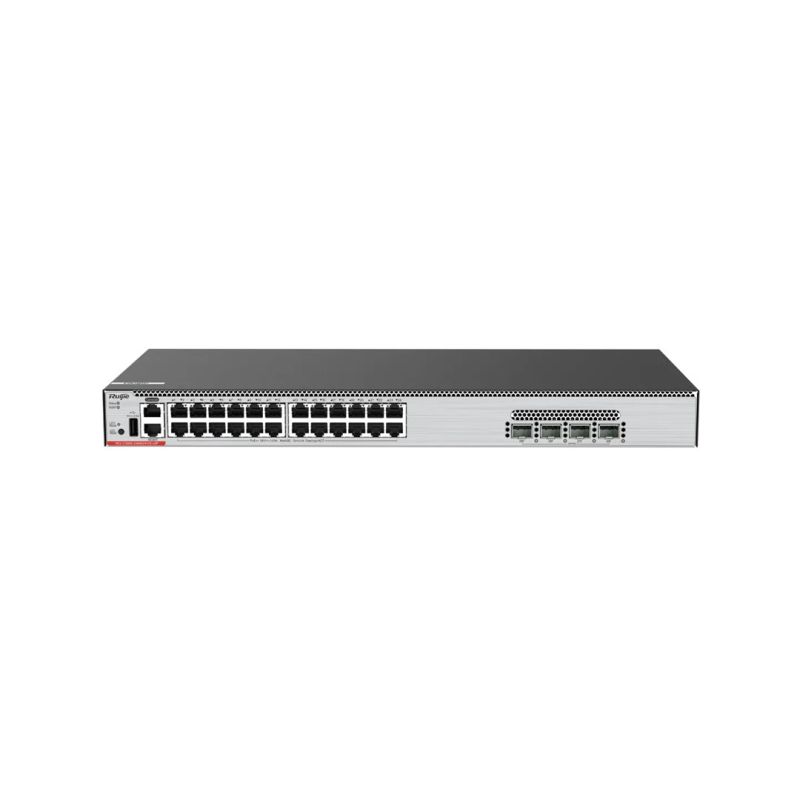

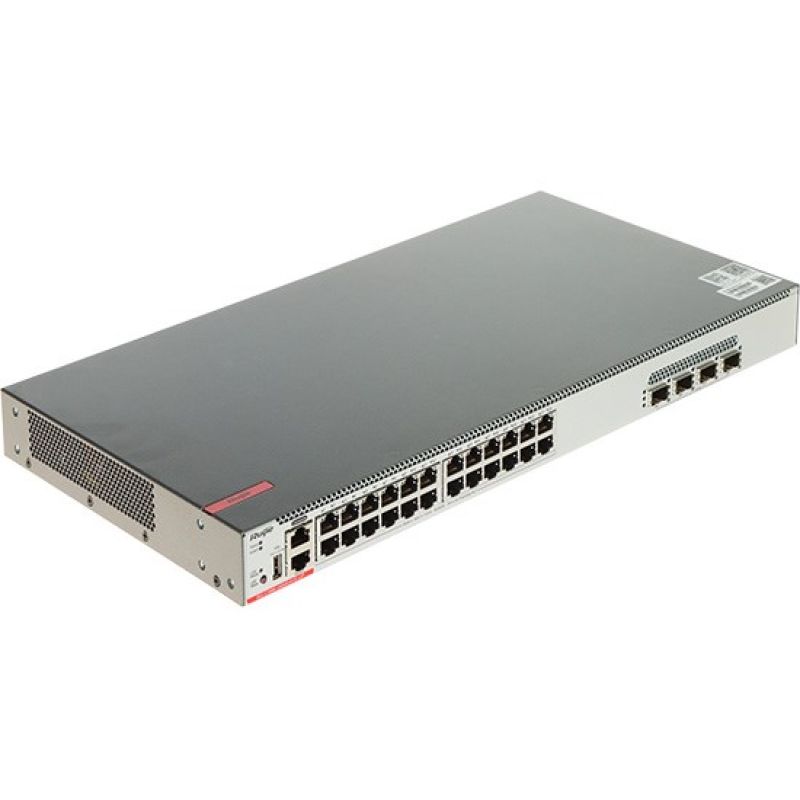

Ruijie Networks RG-CS86-24MG4VS-UP Network Switch Managed 5G Ethernet (100/1000/5000) Support PoE Gray
Ruijie Networks RG-CS86-24MG4VS-UP Network Switch Managed 5G Ethernet (100/1000/5000) Support PoE Gray
Ruijie Networks RG-CS86-24MG4VS-UP Network Switch Managed 5G Ethernet (100/1000/5000) Support PoE Gray
PRICE:
8688,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting options: Yes
- Number of fans: 2 fans
- Product color: Gray
- Airflow Direction: Front to Back Airflow
- Power
- Power consumption (max): 120 W
- Power source: AC/DC/PoE
- Power Protection Features: Surge Protection
- AC input voltage: 90 - 264 V
- Weight and dimensions
- Product height: 43.6 mm
- Product depth: 220 mm
- Product width: 442 mm
- Product weight: 3.65 kg
- Security
- IGMP snooping: Yes
- DHCP functions
- DHCPv6 snooping
- DHCP snooping
- DHCP server
- DHCP client
- DHCP relay
- DHCPv6 relay
- DHCPv6 client
- Access Control List (ACL): Yes
- Authentication: MAC-based authentication, Web-based authentication, Port-based authentication
- Encryption/Security
- HTTPS
- SNMPv2
- SSH
- SSH-2
- SNMP
- SNMPv3
- IGMP Proxy: Yes
- IP-MAC-Port Binding: Yes
- Authentication type: AAA, RADIUS, IEEE 802.1x, TACACS+
- Queue planning algorithms
- WFQ
- WRR+SP
- Deficit Round Robin (DRR)
- Weighted Round Robin (WRR)
- WFQ+SP
- DRR+SP
- SP
- Access Control List (ACL) Output: 1000
- Entry Access Control List (ACL): 2500
- Management features
- Switch type: Managed
- System Event Report: Yes
- Website management: Yes
- Cloud-managed: Yes
- Traffic Classification: Yes
- ARP Inspection: Yes
- Working conditions
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 10 - 90%
- Temperature range (operation): 0 - 45 °C
- Temperature range (storage): -40 - 70 °C
- Network
- Auto-Negotiation: Yes
- 10G Support: Yes
- Connection Aggregator: Yes
- Virtual LAN Features
- Port-based VLAN
- MAC address-based VLAN
- Voice VLAN
- IP subnet–based VLAN
- Private VLAN
- Protocol-based VLAN
- Flow Control Support: Yes
- Full duplex: Yes
- VLAN support: Yes
- Communication standards
- IEEE 802.3ad
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.1Q
- IEEE 802.3af
- Data transfer speed via Ethernet LAN: 100,1000,2500,5000 Mbit/s
- Efficiency
- Flash memory size: 1000 MB
- Internal memory capacity: 1 GB
- MTBF (Mean Time Between Failures): 194296 h
- Memory type: SDRAM
- Built-in processor: Yes
- Processor clock speed: 1250 MHz
- Packaging data
- Package width: 568 mm
- Package height: 226 mm
- Package depth: 366 mm
- Weight with packaging: 5.37 kg
- Package contents
- Wires: Power
- User Manual: Yes
- Hook mounting kit: Yes
- Protocols
- Route Selection Protocol
- BGP4
- BGP4+
- OSPFv3
- OSPFv2
- RIP
- IS-IS
- RIPng
- GARP VLAN Registration Protocol (GVRP): Yes
- Route Selection Protocol
- Ports and interfaces
- Number of management ports: 1 pc.
- Basic Ethernet Switching RJ-45 Ports Type: 5G Ethernet (100/1000/5000)
- Number of USB Type-A ports: 1
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Number of SFP28 ports: 4
- Data transfer
- Transfer speed: 327 Mpps
- Address table size: 32768 entries
- Jumbo Frame Compatible: Yes
- Packet buffer memory: 4 MB
- Routing/switching capacity: 440 Gbit/s
- Static Route: Yes
- Jumbo Frames Expansion: 9216
- Power over Ethernet (PoE)
- Number of Fast Ethernet (PoE) ports: 24
- Total Power over Ethernet (PoE) budget: 370 W
- PoE Support: Yes
- Multicast functions
- Multicast Support: Yes
- IPv6 multicast entries: 2000
- Multicast Listener Discovery (MLD) snooping: MLD snooping v1/v2
- IPv4 multicast entries: 4000
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Ruijie |
| Colour | Gray/Silver |
