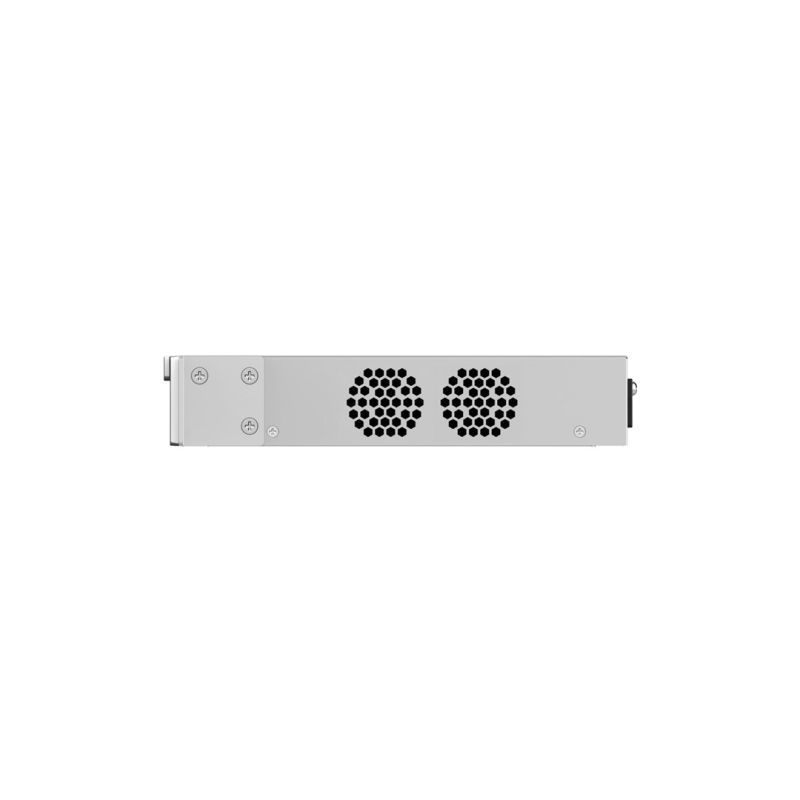

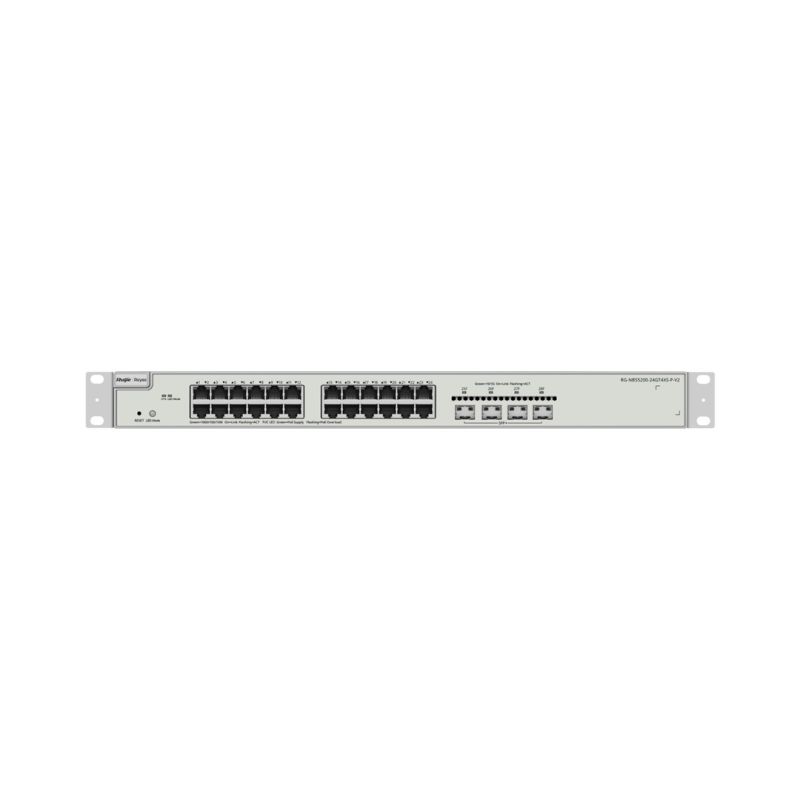

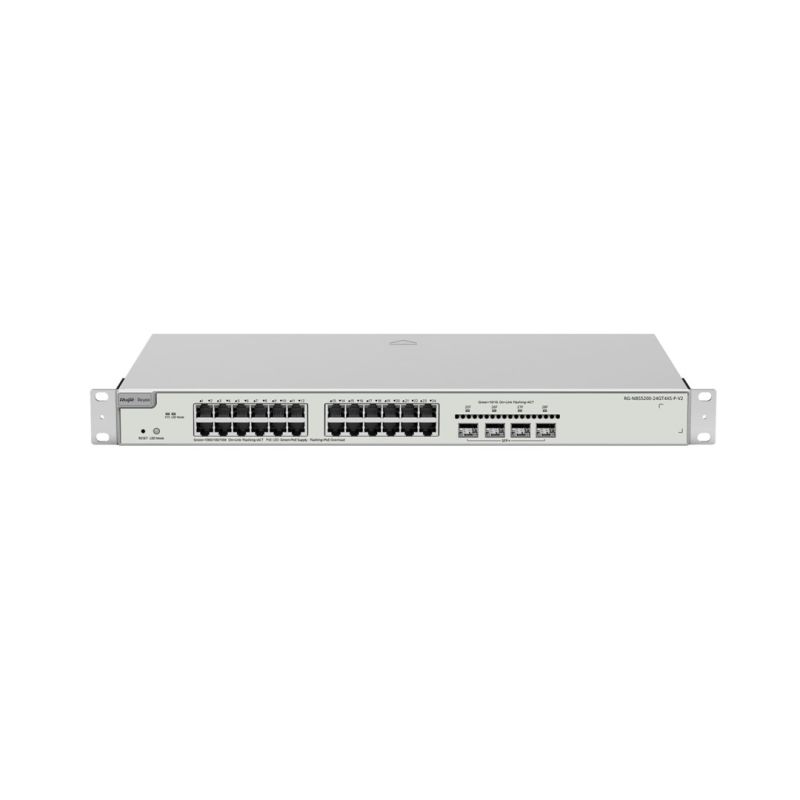

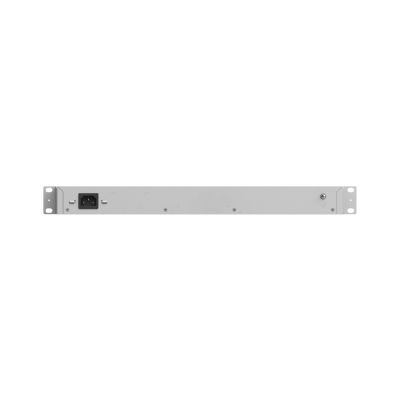

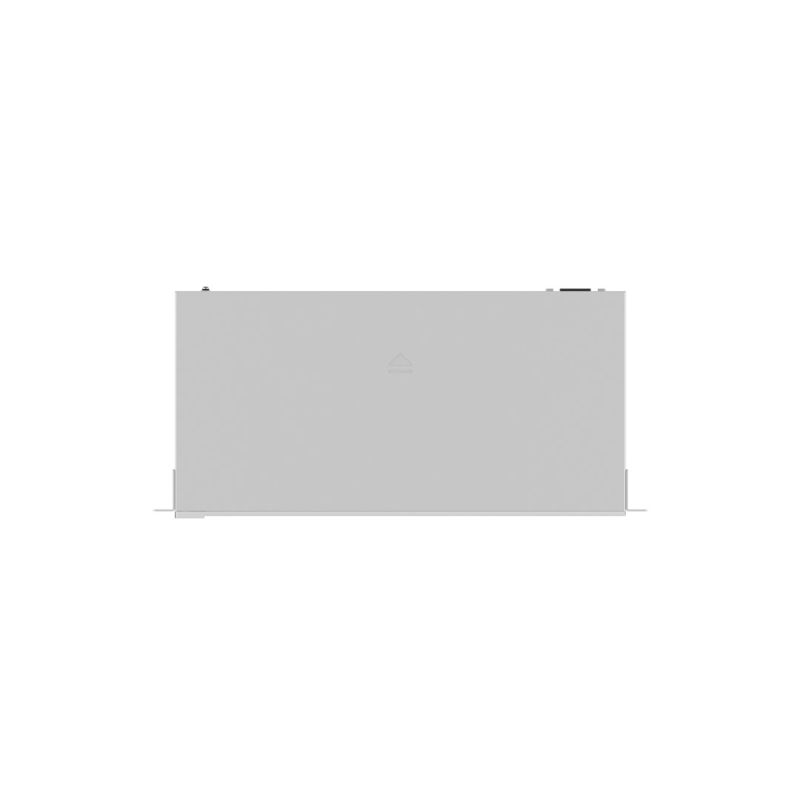

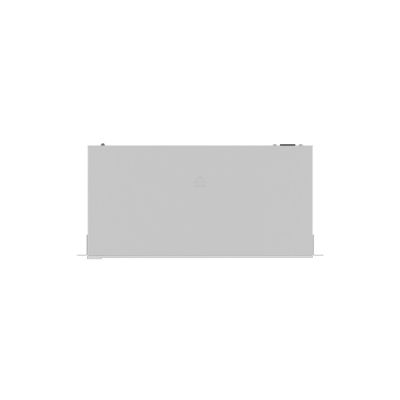

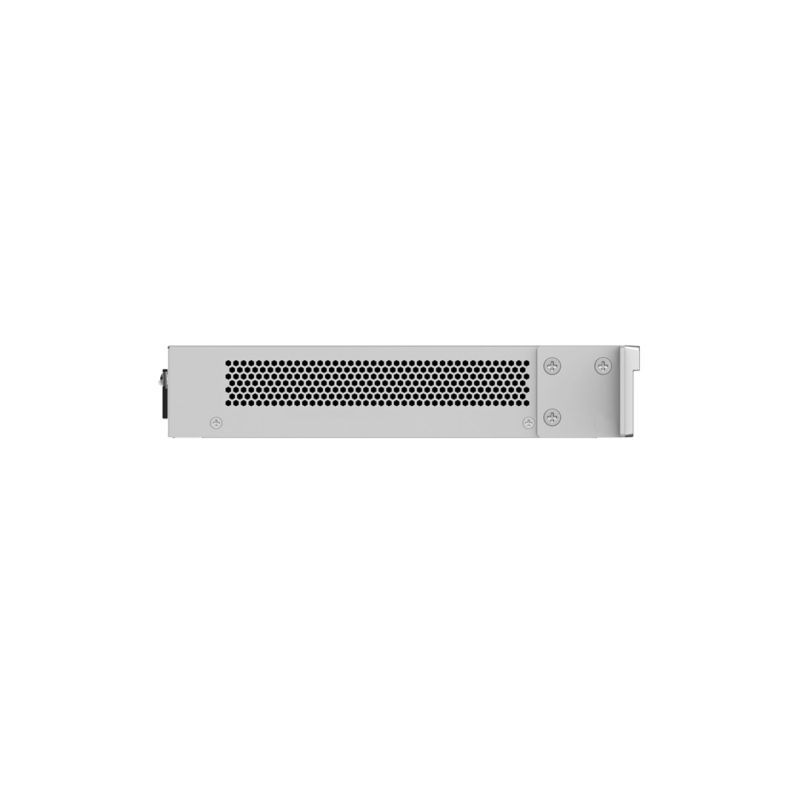

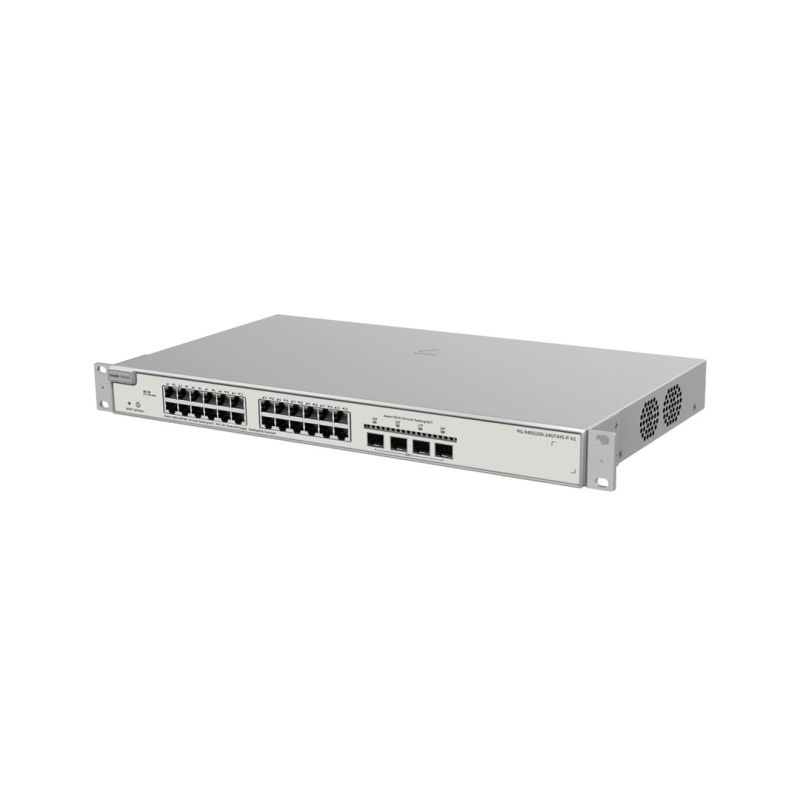

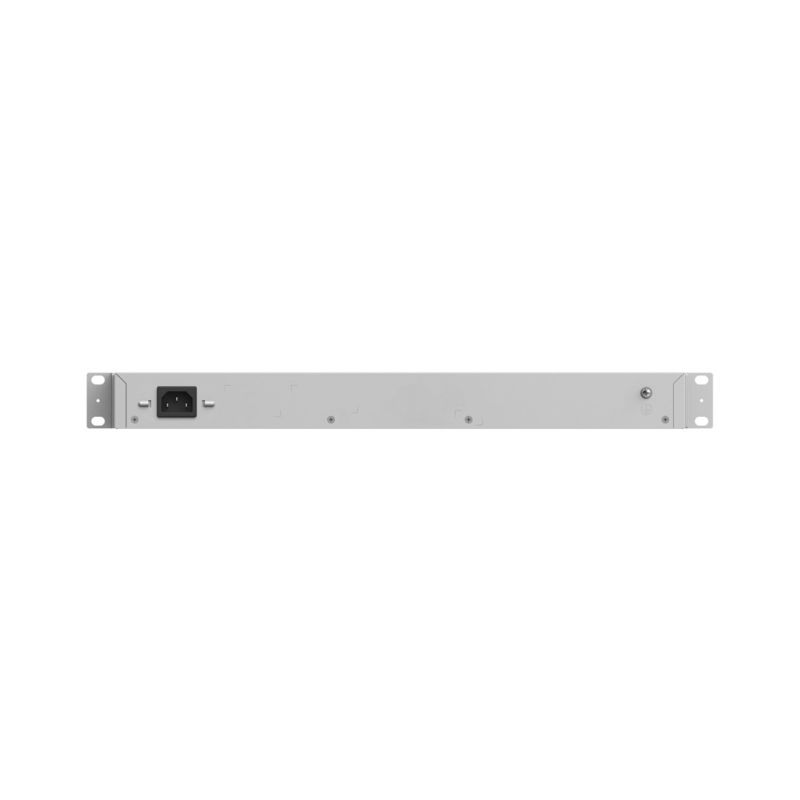

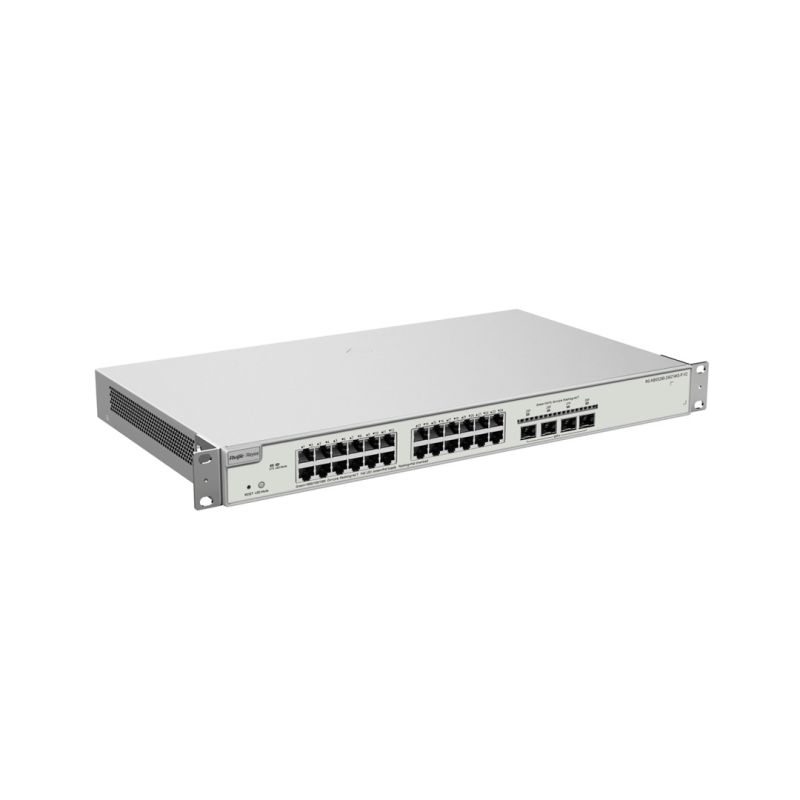

Ruijie Networks RG-NBS5200-24GT4XS-P-V2 Network Switch Managed L3 Gigabit Ethernet (10/100/1000) Support PoE 1U Gray
Ruijie Networks RG-NBS5200-24GT4XS-P-V2 Network Switch Managed L3 Gigabit Ethernet (10/100/1000) Support PoE 1U Gray
Ruijie Networks RG-NBS5200-24GT4XS-P-V2 Network Switch Managed L3 Gigabit Ethernet (10/100/1000) Support PoE 1U Gray
PRICE:
1372,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Gray
- Number of fans: 2 fans
- Layout: 1U
- Housing material: Metal
- Rack mounting options: Yes
- Power
- AC input voltage: 100 - 240 V
- Power supply included: Yes
- Power source: AC
- Protection against sudden voltage increases
- Yes
- 6 kV
- Power consumption (max): 430 W
- Weight and dimensions
- Product width: 440 mm
- Product height: 44 mm
- Product depth: 222.6 mm
- Product weight: 2.88 kg
- Security
- Encryption/Security
- SNMP
- SNMPv2
- HTTPS
- SSH
- SNMPv3
- DHCP functions
- DHCP relay
- DHCP client
- DHCPv6 client
- DHCP server
- Authentication: MAC-based authentication, Guest VLAN, Port-based authentication
- Loop protection: Yes
- Queue planning algorithms
- Weighted Round Robin (WRR)
- SP
- WRR+SP
- IGMP snooping: Yes
- Encryption/Security
- Management features
- Switch type: Managed
- Cloud-managed: Yes
- ARP Inspection: Yes
- Switch Layer: L3
- Quality of Service (QoS) Support: Yes
- Working conditions
- Permissible altitude (above sea level): 0 - 5000 m
- Temperature range (operation): 0 - 50 °C
- Permissible relative humidity: 5 - 95%
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 10 - 90%
- Permissible operating altitude (above sea level): 0 - 5000 m
- Network
- Communication standards
- IEEE 802.1Q
- IEEE 802.1w
- IEEE 802.3af
- IEEE 802.1D
- IEEE 802.3at
- IEEE 802.1s
- Virtual LAN Features
- IP subnet–based VLAN
- Voice VLAN
- MAC address-based VLAN
- VLAN support: Yes
- Flow Control Support: Yes
- Ethernet Ring Protection Switching (ERPS): Yes
- Port Mirroring: Yes
- Number of VLANs: 4094
- Connection Aggregator: Yes
- Traffic Growth Control: Yes
- 10G Support: Yes
- IPv4 routes: 500
- IPv6 routes: 128
- Communication standards
- Efficiency
- MTBF (Mean Time Between Failures): 400000 h
- Internal memory capacity: 512 MB
- Noise level: 49 dB
- Flash memory size: 256 MB
- Packaging data
- Weight with packaging: 4 kg
- Protocols
- IPv4 and IPv6 features
- IPv6 tracert
- IPv6 ping
- IPv4 ping
- ICMPv6
- Route Selection Protocol
- OSPFv3
- OSPFv2
- IPv4 and IPv6 features
- Ports and interfaces
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Number of SFP+ Module slots: 4
- Data transfer
- Routing/switching capacity: 128 Gbit/s
- Transfer speed: 96 Mpps
- Jumbo Frames Expansion: 9216
- Address table size: 16000 entries
- Jumbo Frame Compatible: Yes
- Power over Ethernet (PoE)
- Number of Fast Ethernet (PoE) ports: 24
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 370 W
- Power over Ethernet Plus (PoE +) ports: 24
