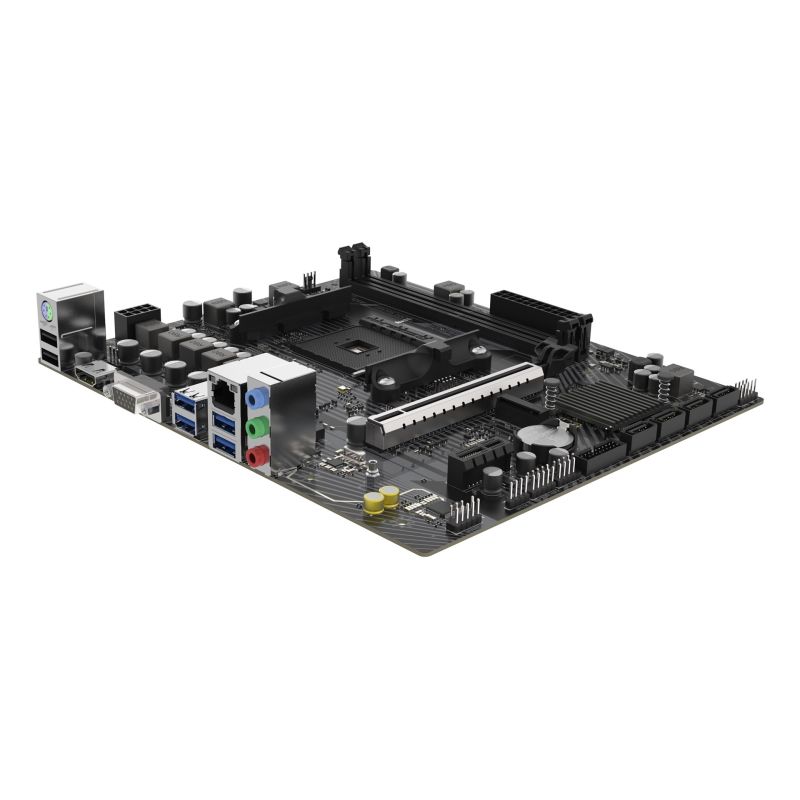

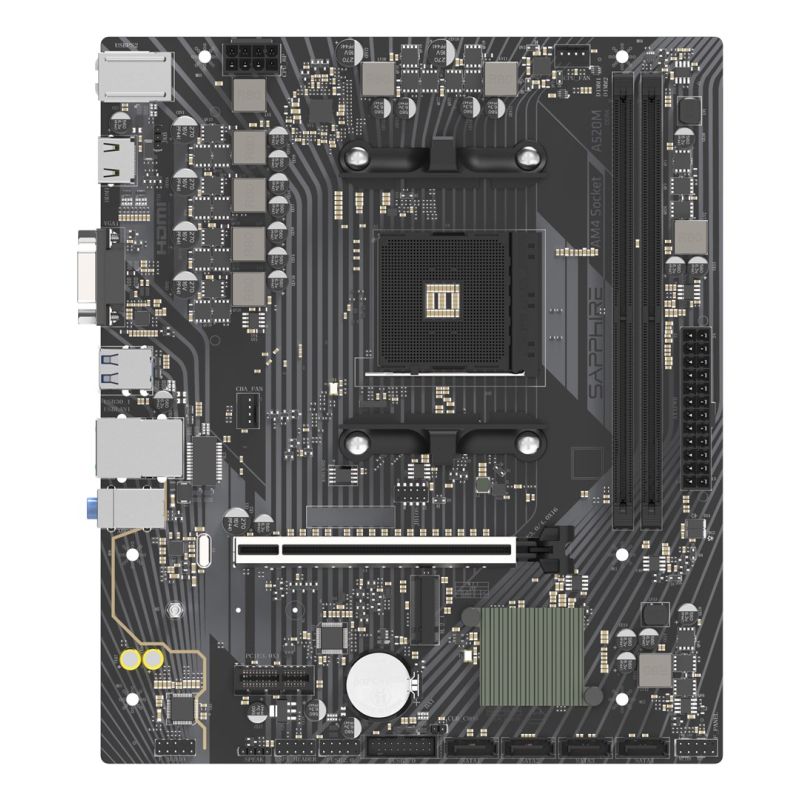

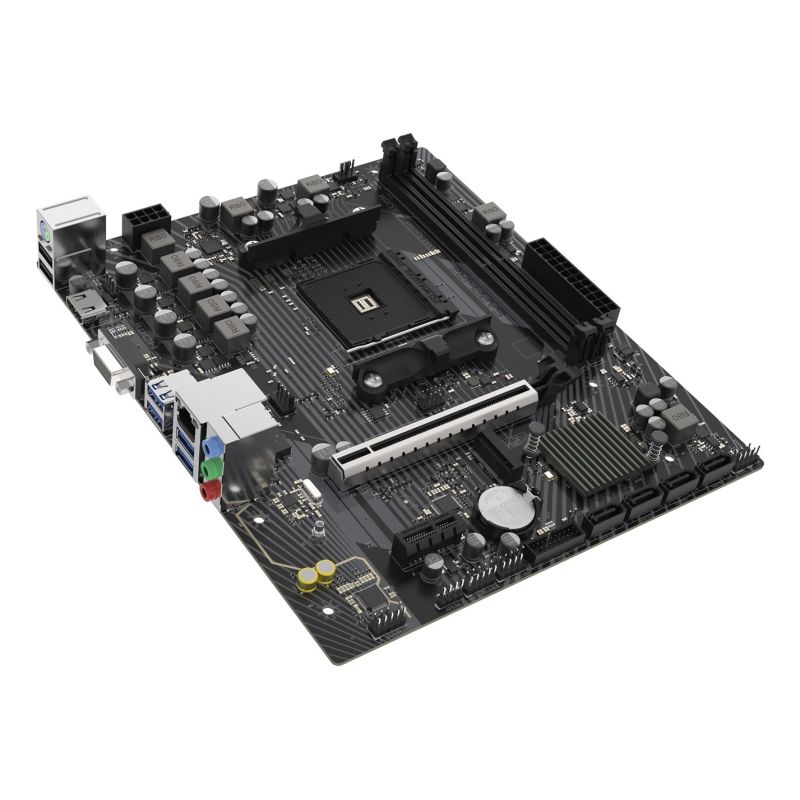

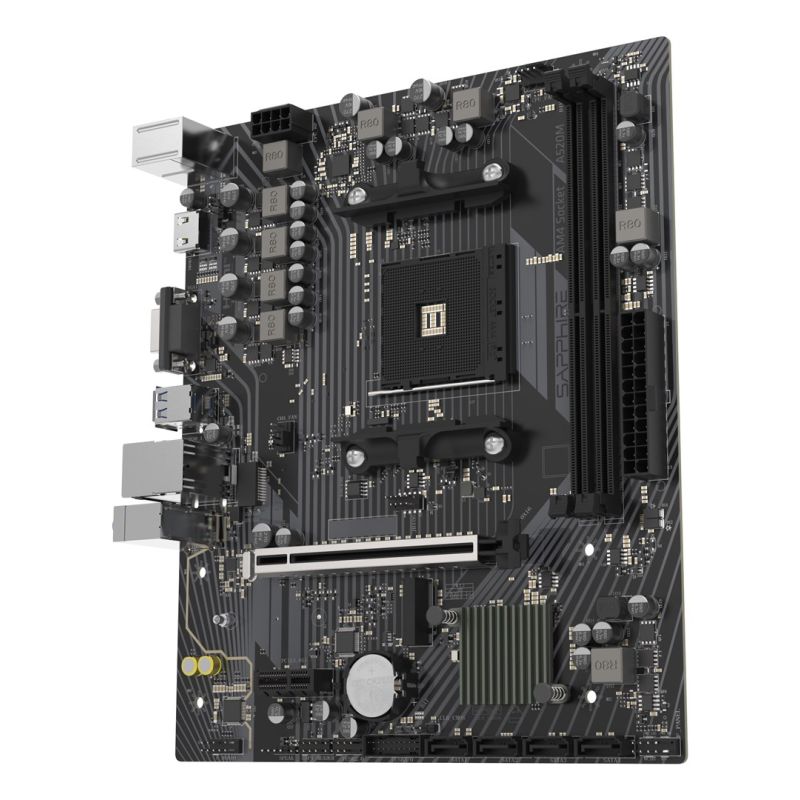

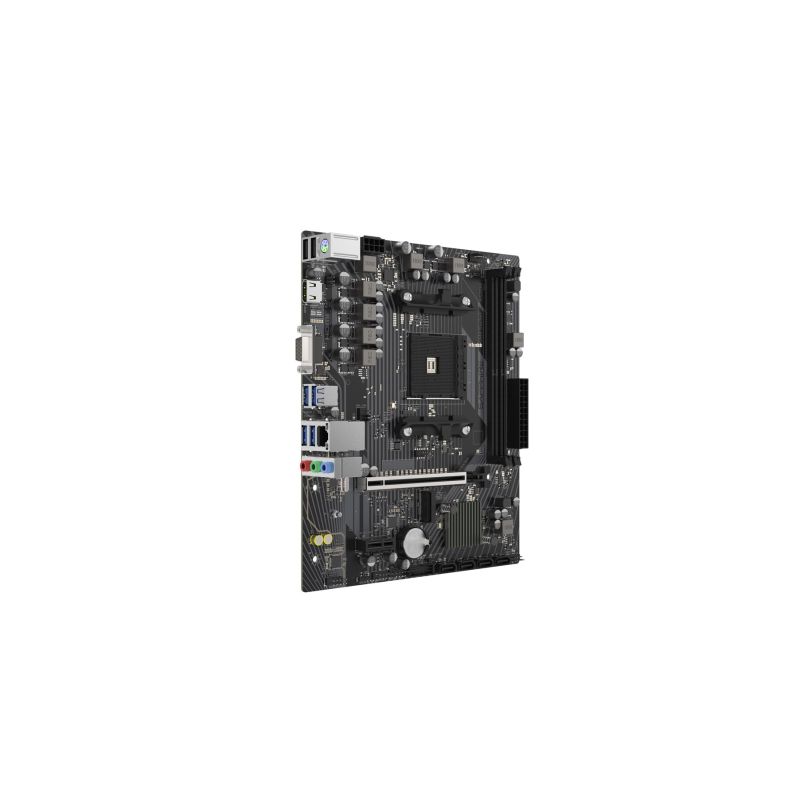

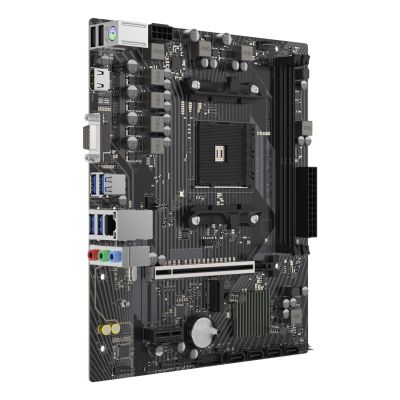

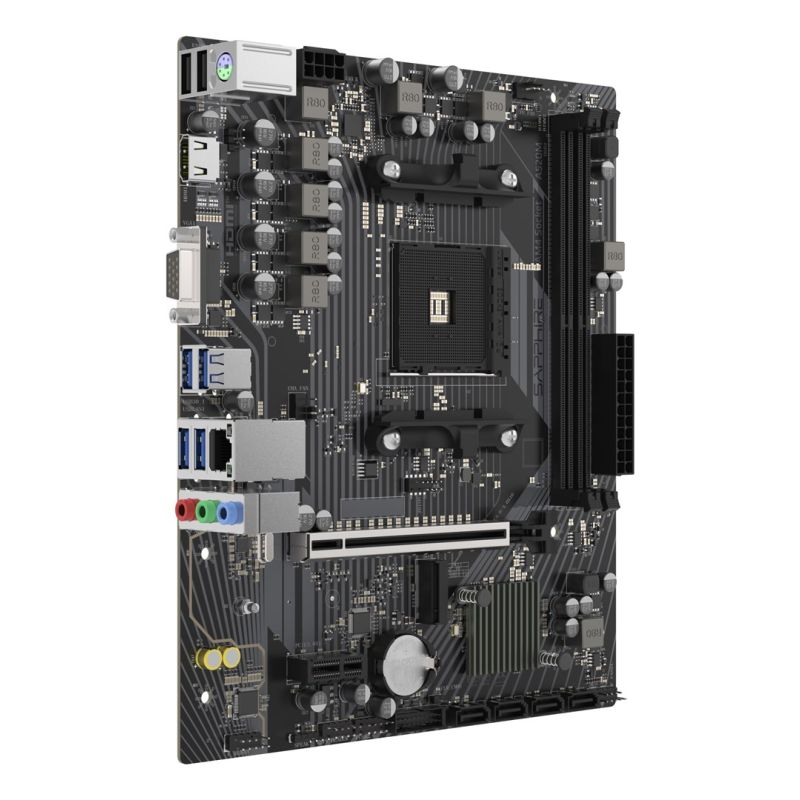

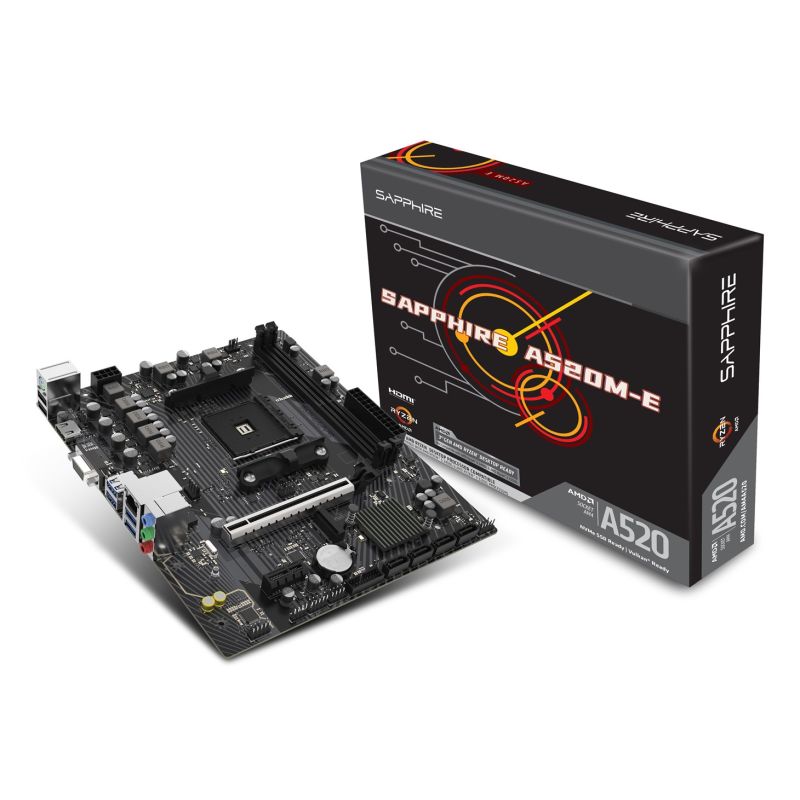

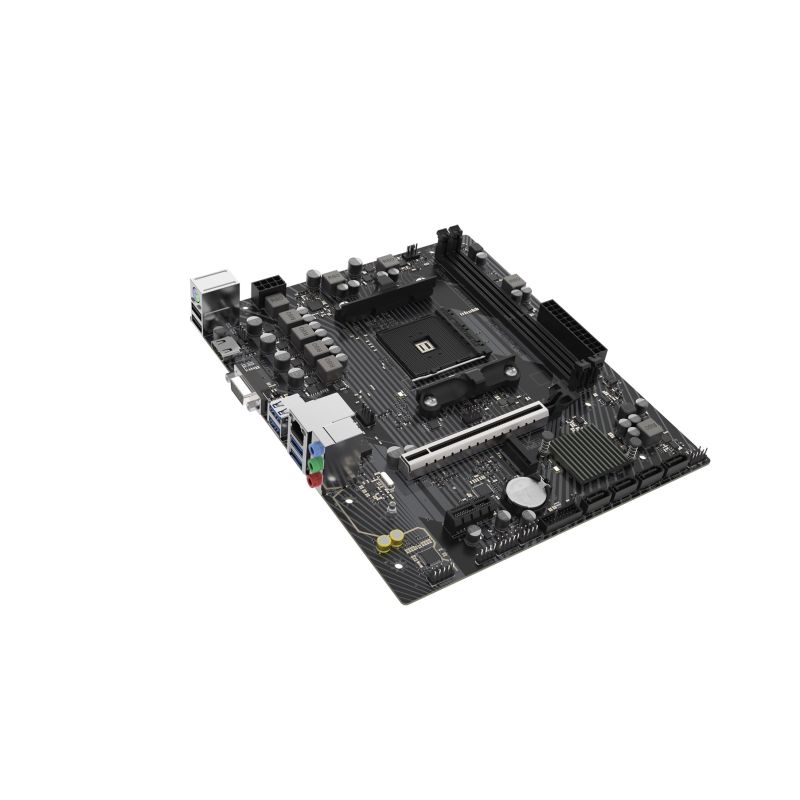

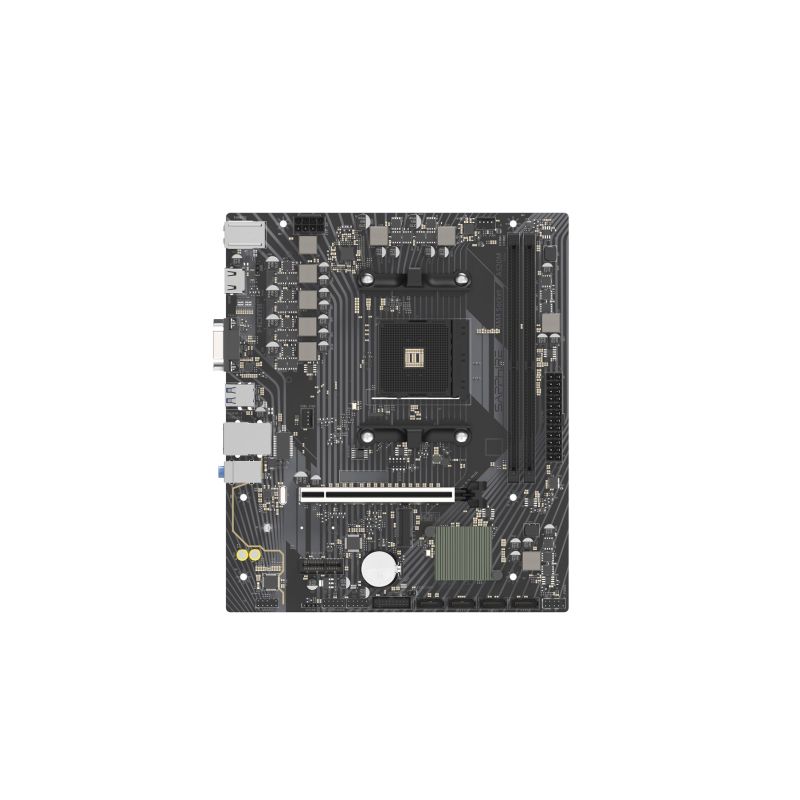

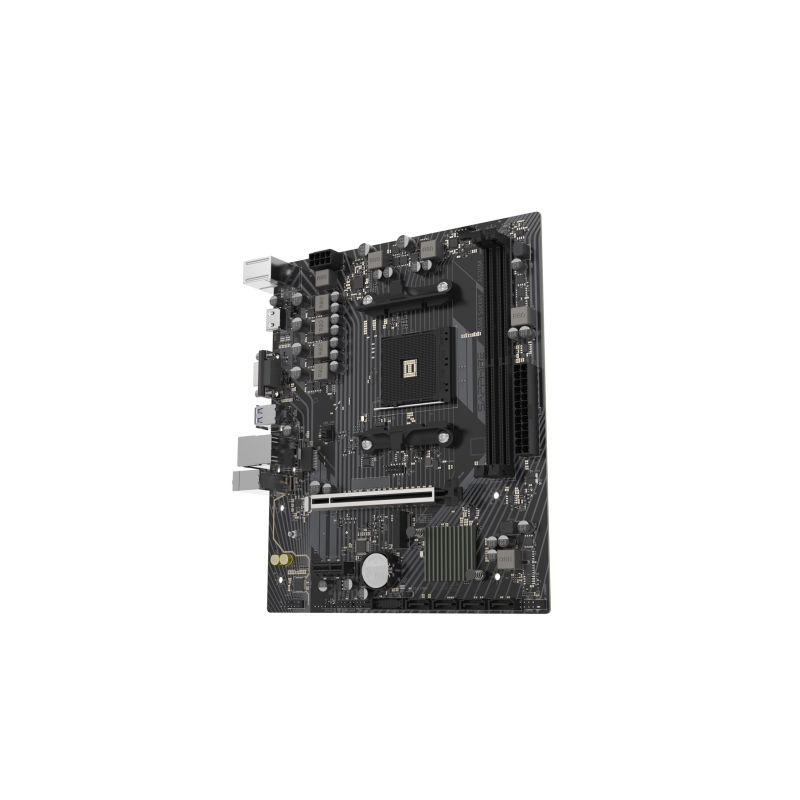

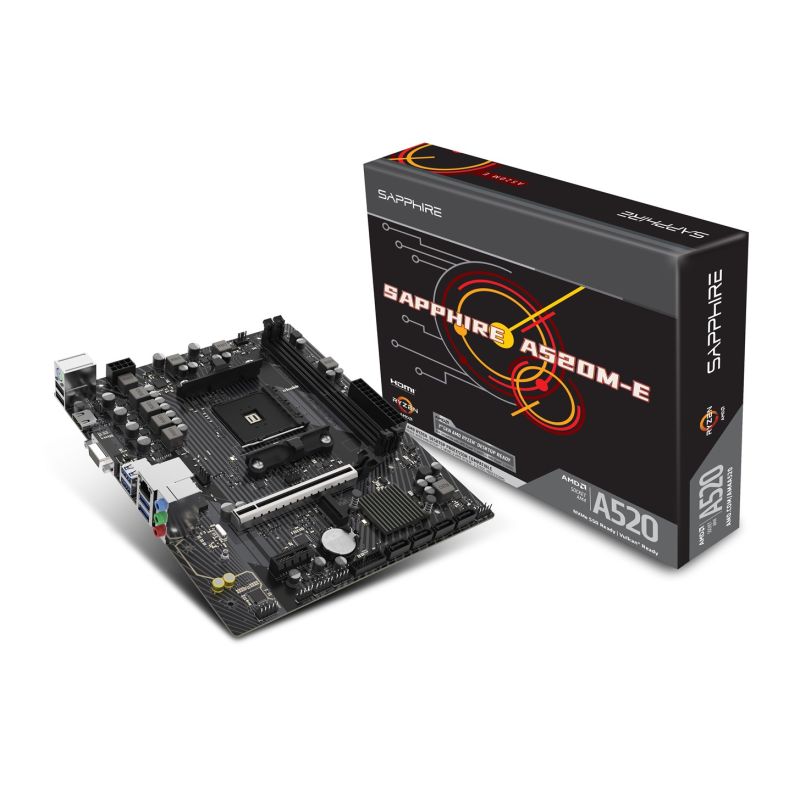

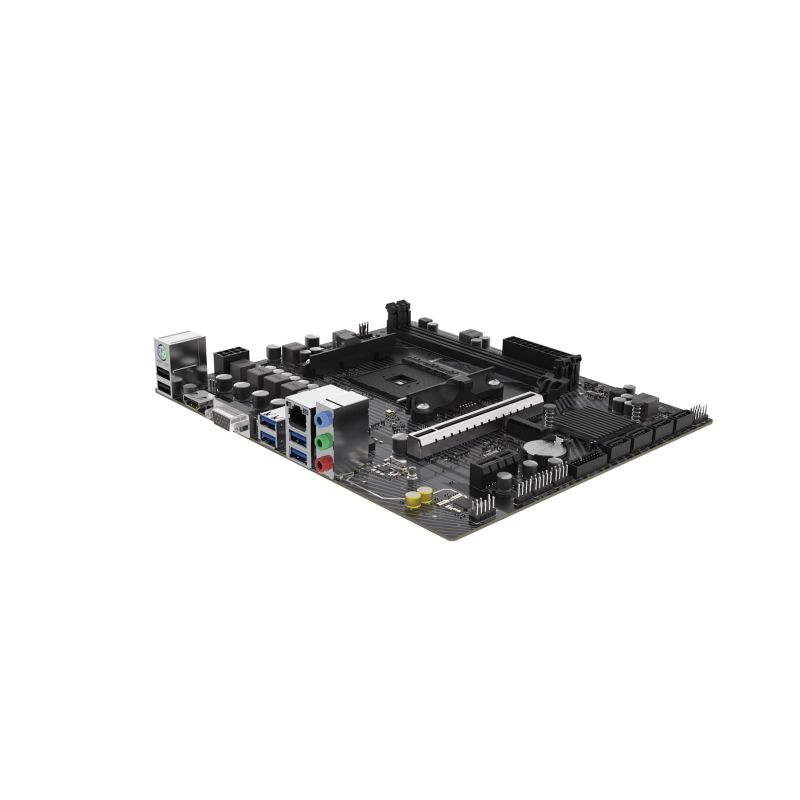

SAPPHIRE A520M-E motherboard
SAPPHIRE A520M-E motherboard
SAPPHIRE A520M-E motherboard
PRICE:
81,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported processor sockets: Socket AM4
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 3000 Series
- AMD Ryzen 4000 Series
- AMD Ryzen 5000 Series
- Processor socket: Socket AM4
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Maximum internal memory per slot: 32 GB
- Maximum memory capacity: 64 GB
- Supported memory clock speed (max): 3200 MHz
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Characteristics
- Motherboard Layout: AMD A520
- Product color: Black
- Audio chip: Realtek ALC897
- Motherboard format: Micro ATX
- Chipset Board Family: AMD
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Audio output channels: 5.1 ch.
- Weight and dimensions
- Product depth: 197 mm
- Product width: 230 mm
- Internal I/O
- Number of CPU fan connectors: 1
- Number of case fan connectors: 1
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Front panel connector: Yes
- CPU fan connector: Yes
- Number of USB 2.0 ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Audio connector: Yes
- Network
- LAN Controller: Realtek RTL8111M
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- Clear CMOS Jumper: Yes
- Memory drivers
- Supported hard drive interfaces: PCI Express 3.0, SATA III
- Supported drive types: HDD & SSD
- Number of supported storage drive sizes: 5
- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Supported USB type: USB Type-A
- Number of USB 2.0 ports: 2
- Number of VGA (D-Sub) ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Microphone: Yes
- Number of HDMI ports: 1
- Headphone outputs: 3
- Number of PS/2 ports: 1
- Expansion slots
- 1. M.2 highest generation PCI Express: 3.0
- 1. largest M.2 key size: 2280
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
| Name | Details |
|---|---|
| Producer | Sapphire |
