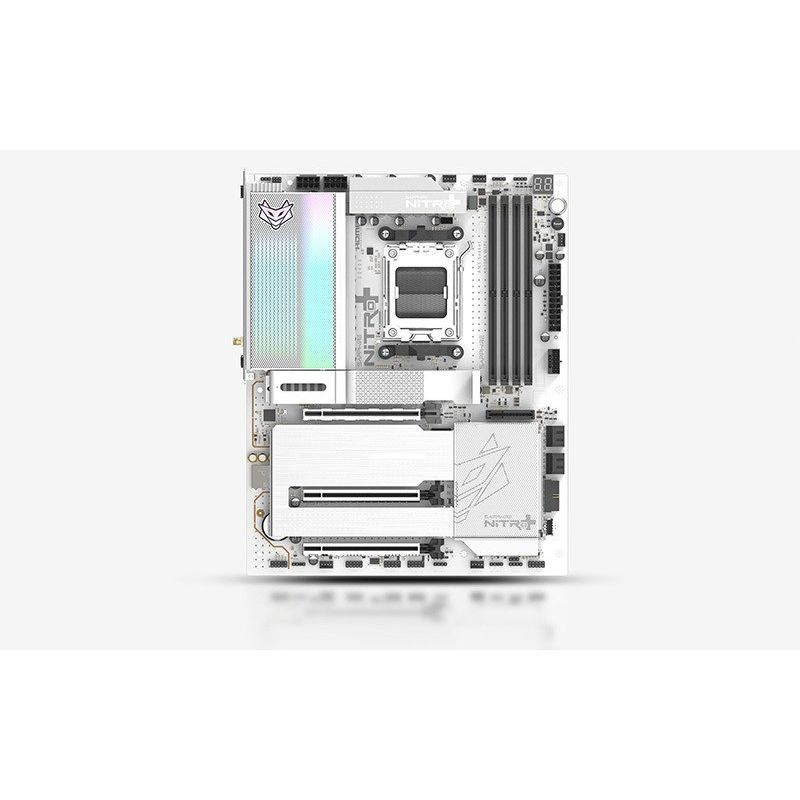

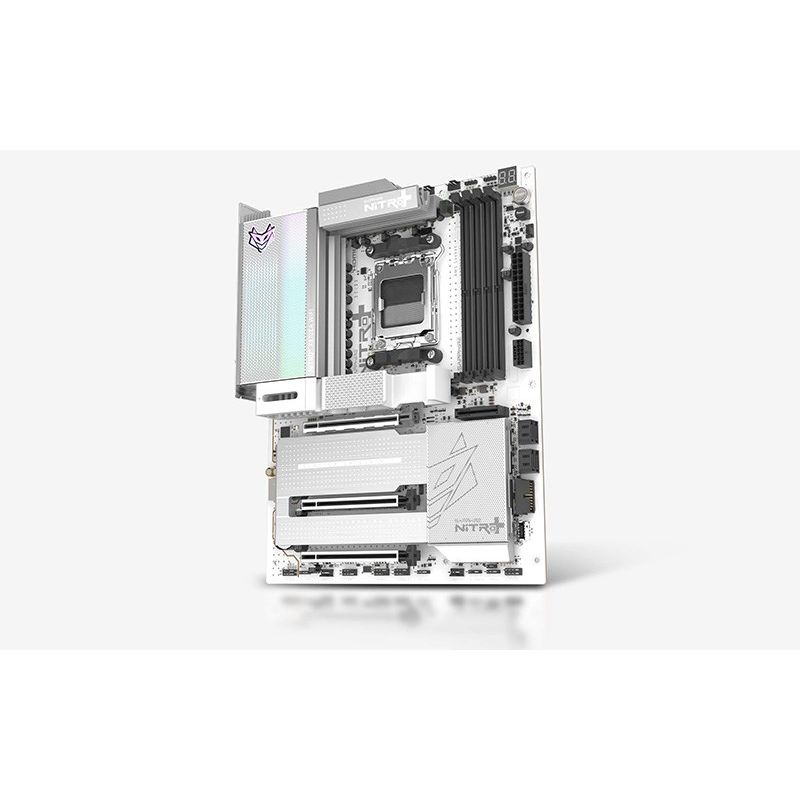

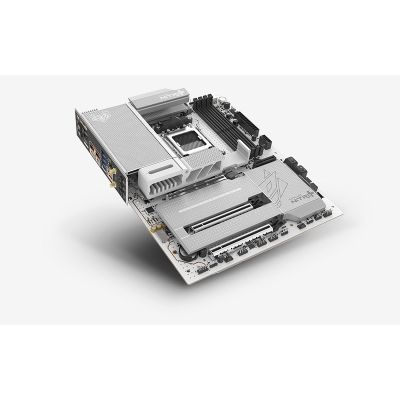

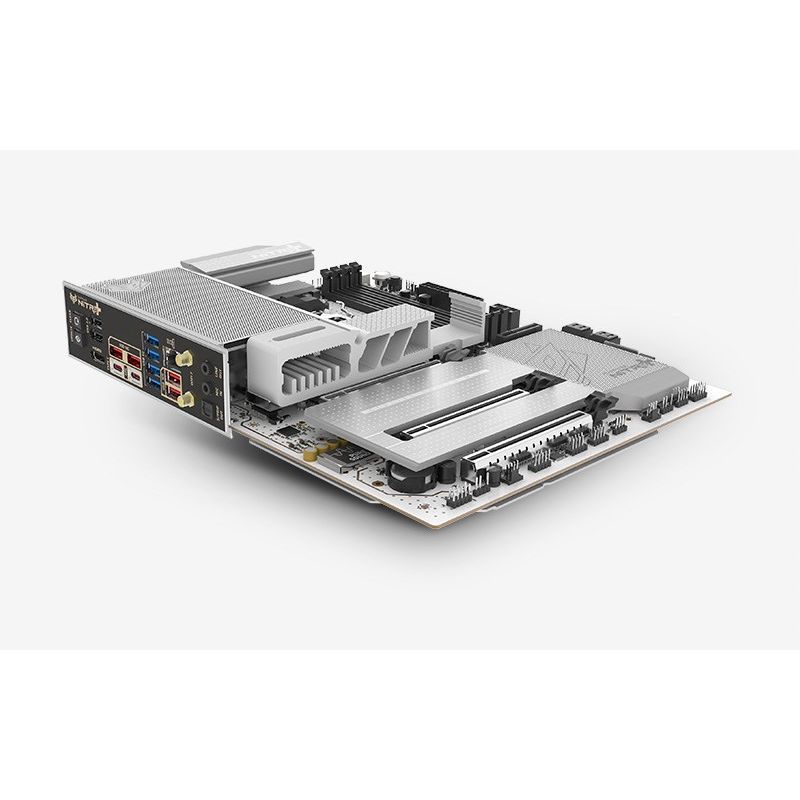

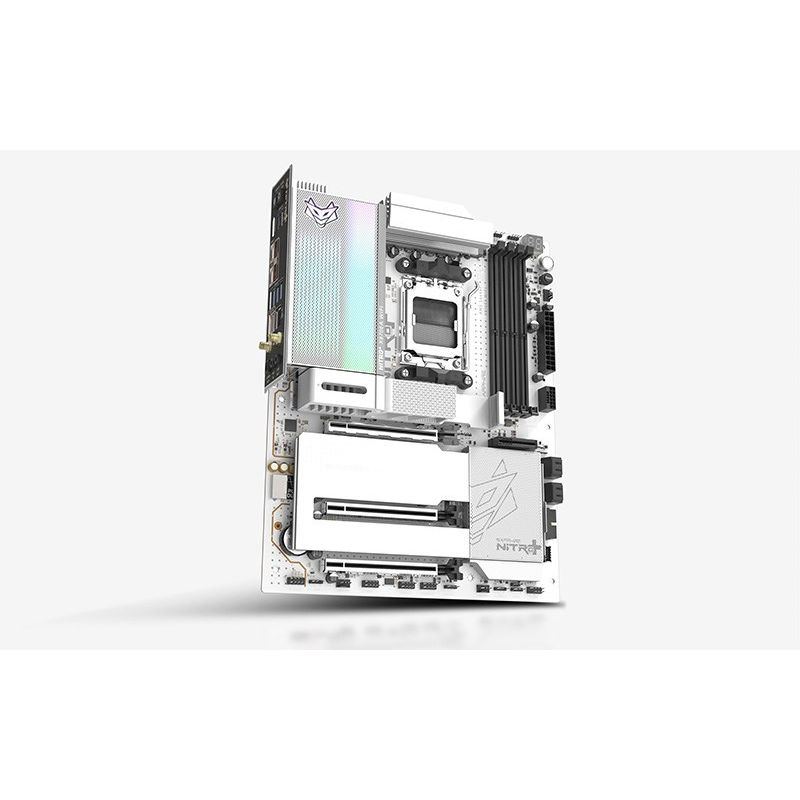

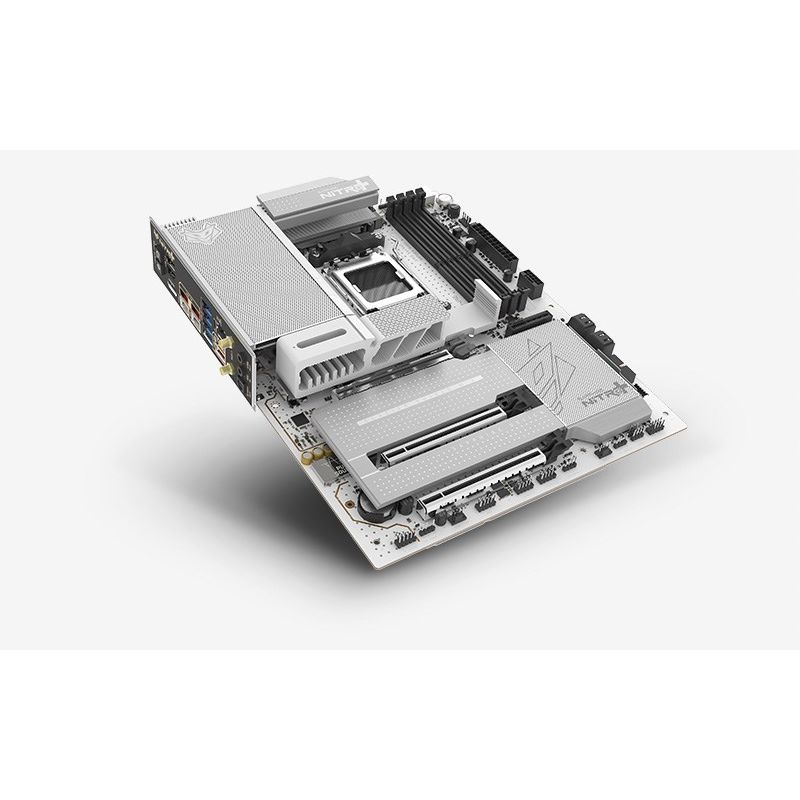

SAPPHIRE NITRO+ X870EA PHANTOMLINK PE Motherboard
SAPPHIRE NITRO+ X870EA PHANTOMLINK PE Motherboard
SAPPHIRE NITRO+ X870EA PHANTOMLINK PE Motherboard
PRICE:
609,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor socket: Socket AM5
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- Processor manufacturer: AMD
- Supported CPU sockets: Socket AM5
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Maximum memory capacity: 256 GB
- Supported memory clock speed (max): 8400 MHz
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Maximum internal memory per slot: 64 GB
- Characteristics
- Motherboard Layout: AMD X870E
- Motherboard format: ATX
- Audio chip: Realtek ALC897
- Audio output channels: 5.1 ch.
- Product color
- Silver
- Black
- Chipset Board Family: AMD
- Supported Windows operating systems: Windows 11
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of USB 2.0 ports: 2
- Serial port connector: 1
- CPU fan connector: Yes
- Front panel audio connector: Yes
- Front panel connector: Yes
- 12V power connector: Yes
- RGB LED: Yes
- Number of case fan connectors: 3
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Number of CPU fan connectors: 1
- Number of RGB LED connectors: 5
- Number of water pump connections: 1
- Network
- Bluetooth: Yes
- Wi-Fi Standards: 802.11 be
- Bluetooth version: 5.4
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- BIOS
- Clear CMOS Jumper: No
- Memory drivers
- Supported hard drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
- Supported drive types: HDD & SSD
- Number of supported storage drive sizes: 3
- Rear Panel I/O Ports
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 4
- Microphone: Yes
- Headphone outputs: 1
- Supported USB type
- USB Type-A
- USB Type-C
- WiFi-AP Antenna Jack Plug: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 2
- Line Input: No
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x4 slots (Gen 4.x): 2
- Number of M.2 (M) slots: 4
- 2nd largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 5.0
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 2280
| Name | Details |
|---|---|
| Producer | Nitro |
