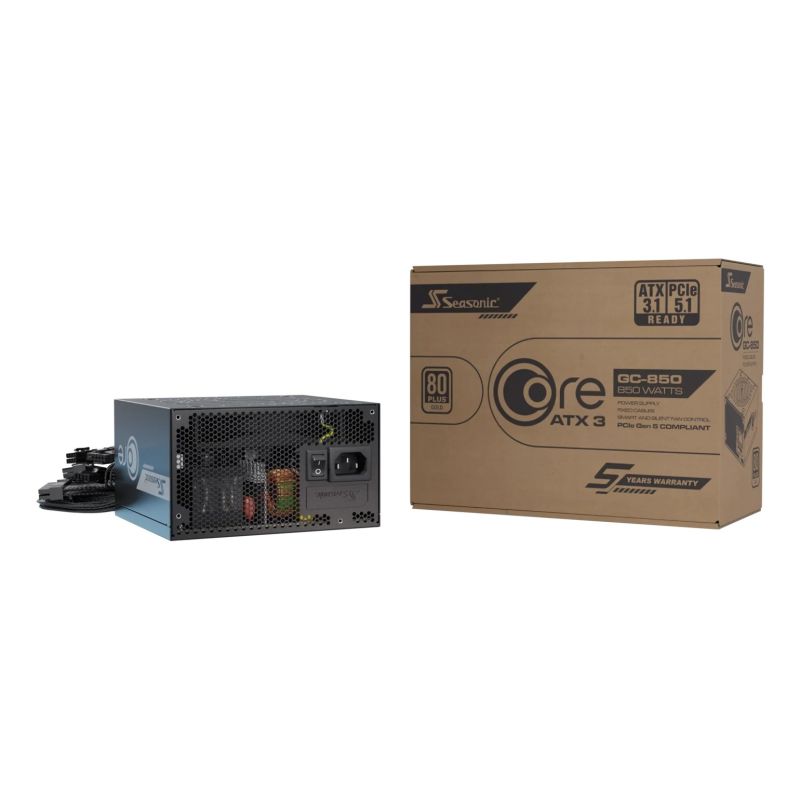

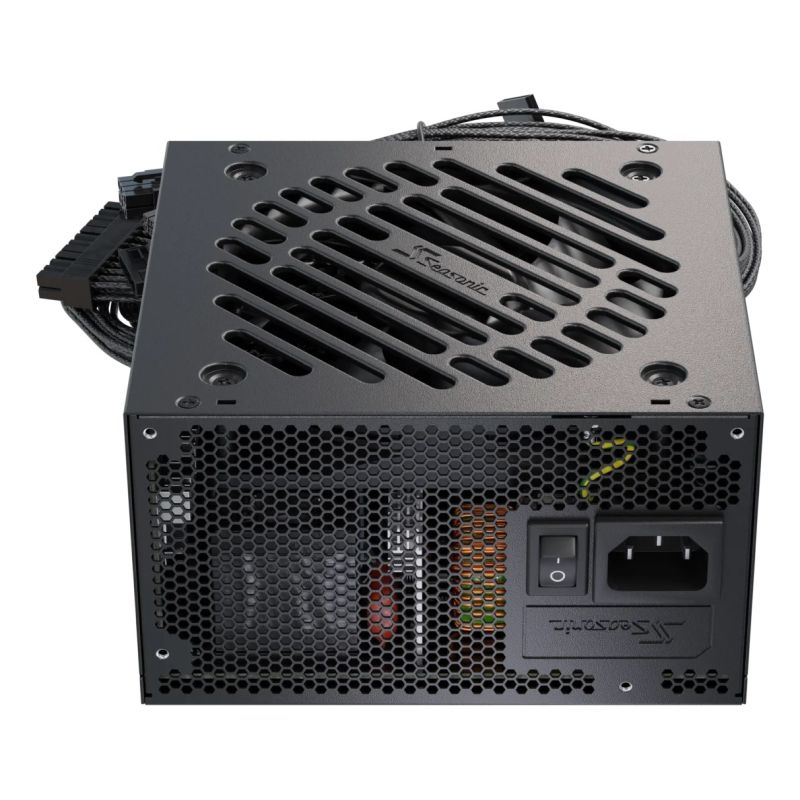

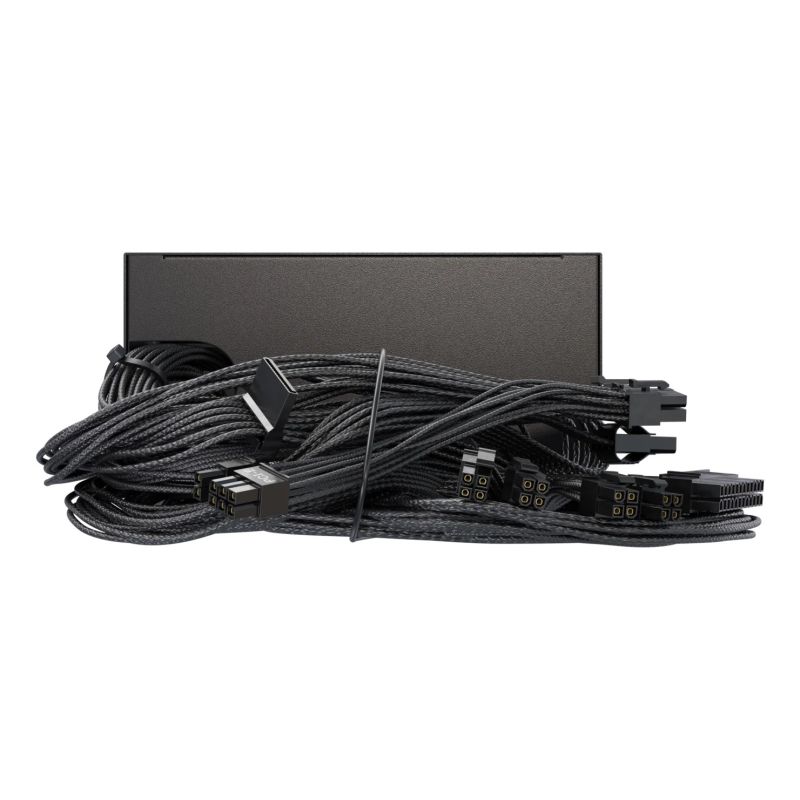

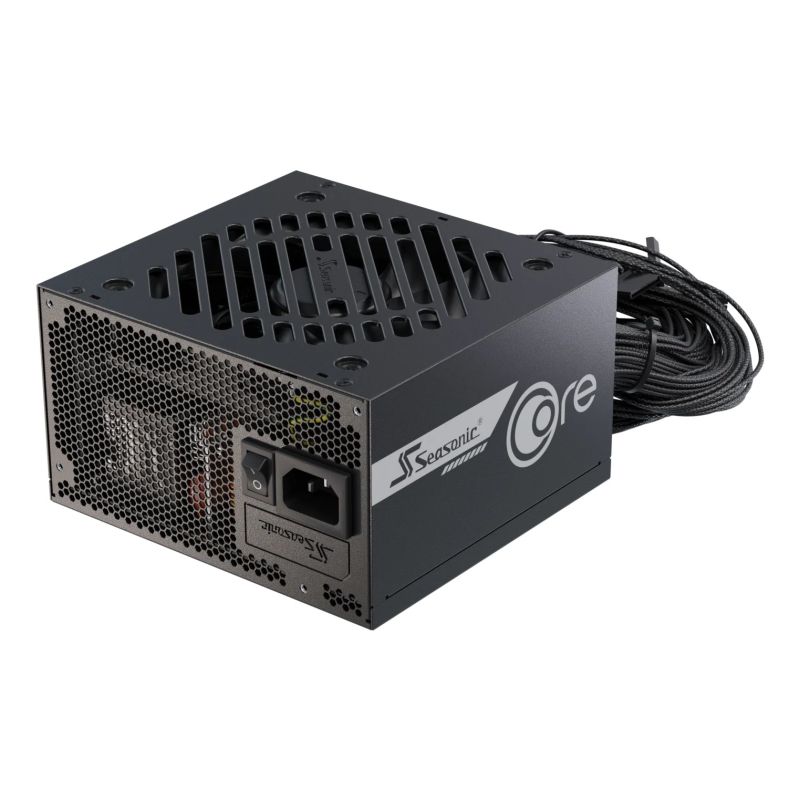

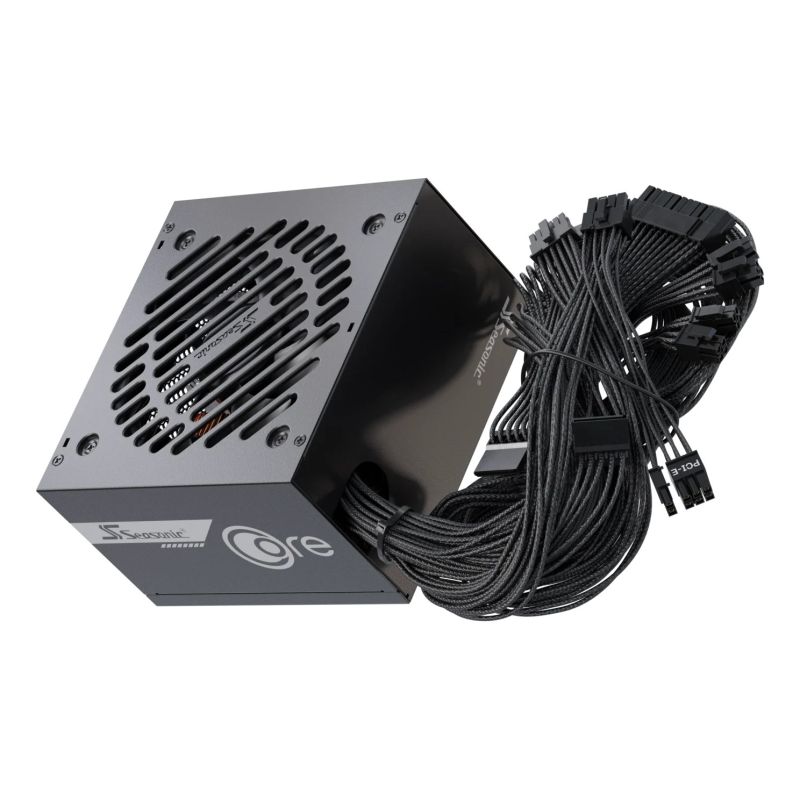

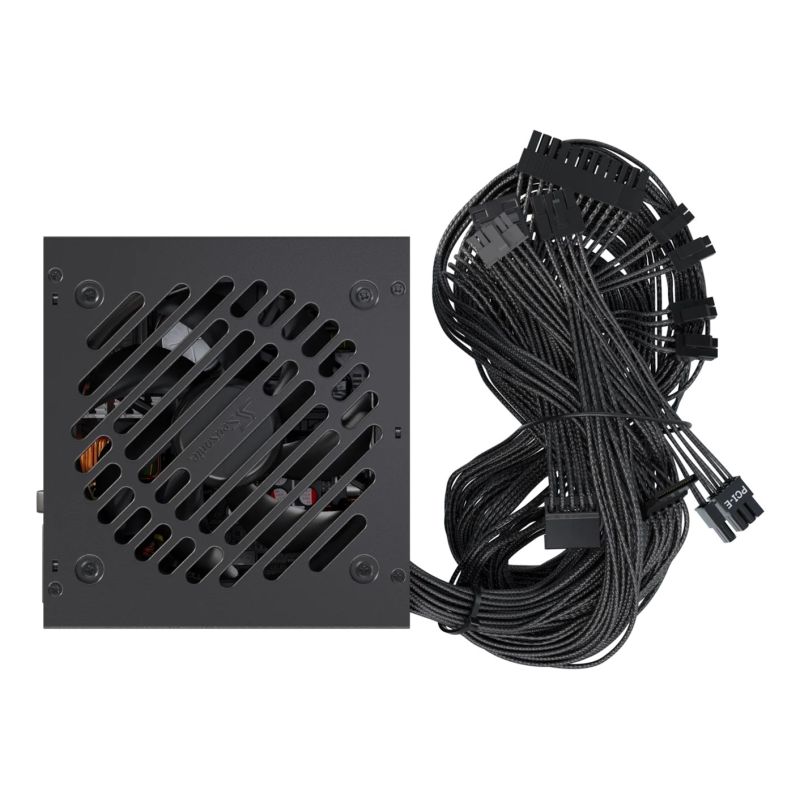

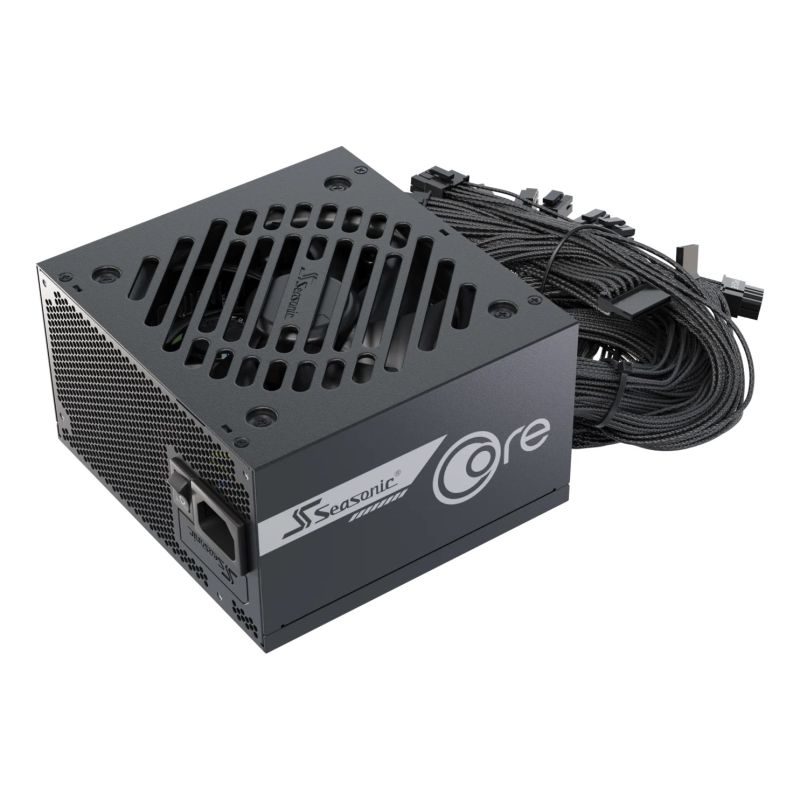

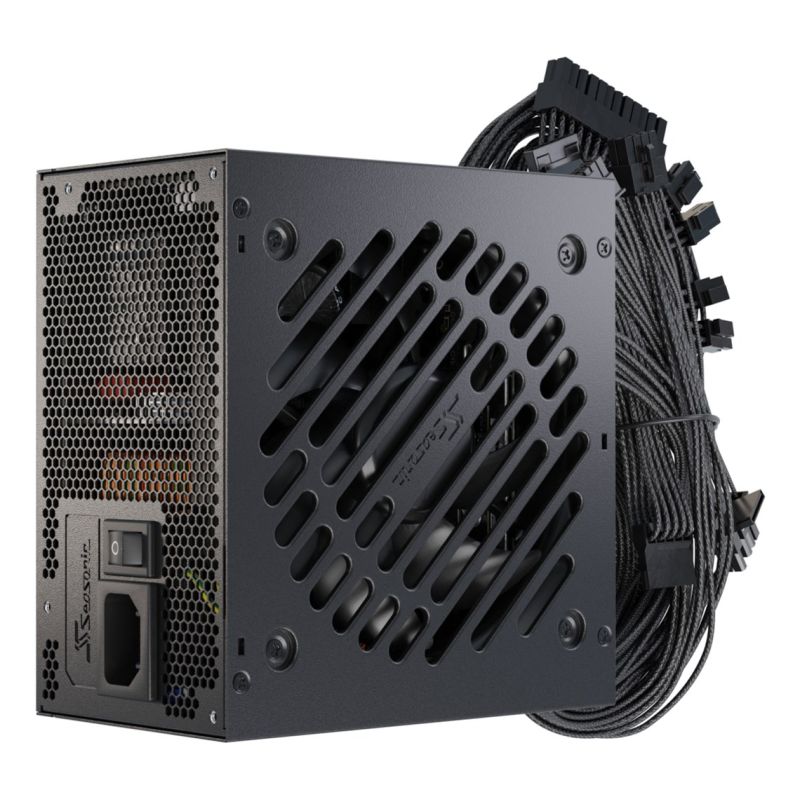

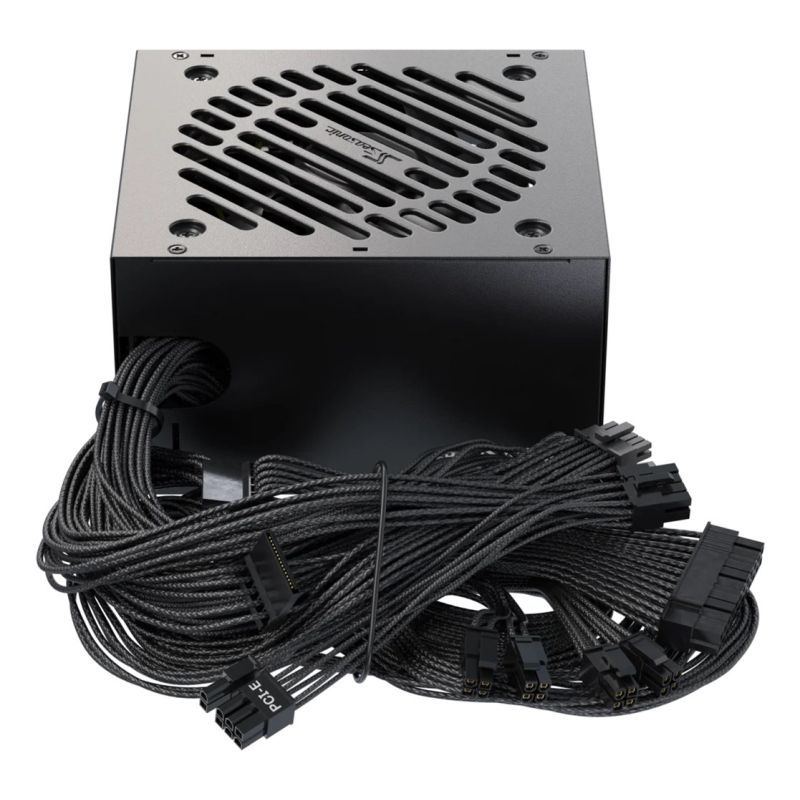

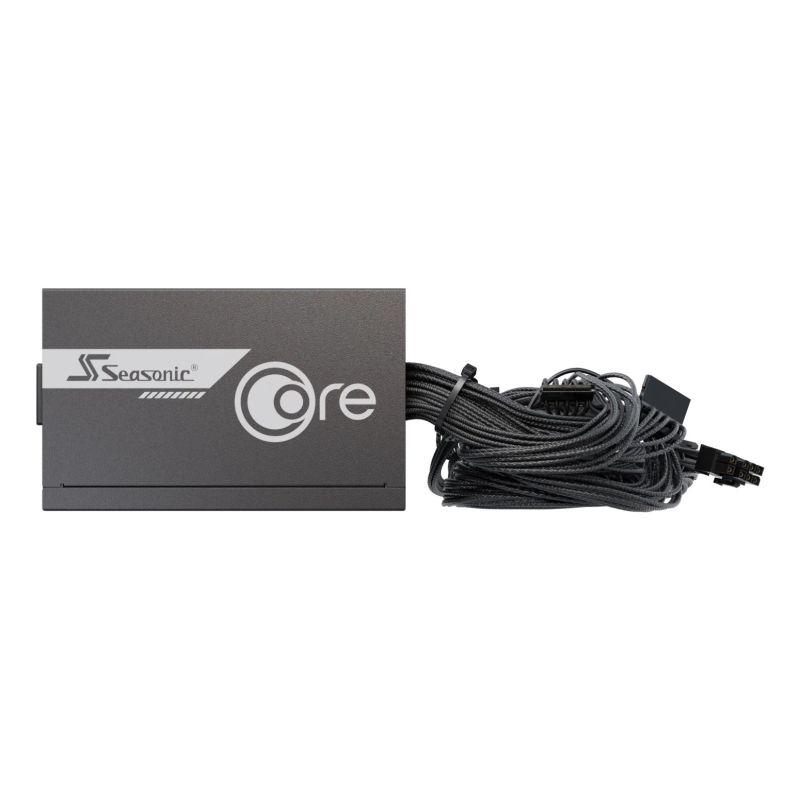

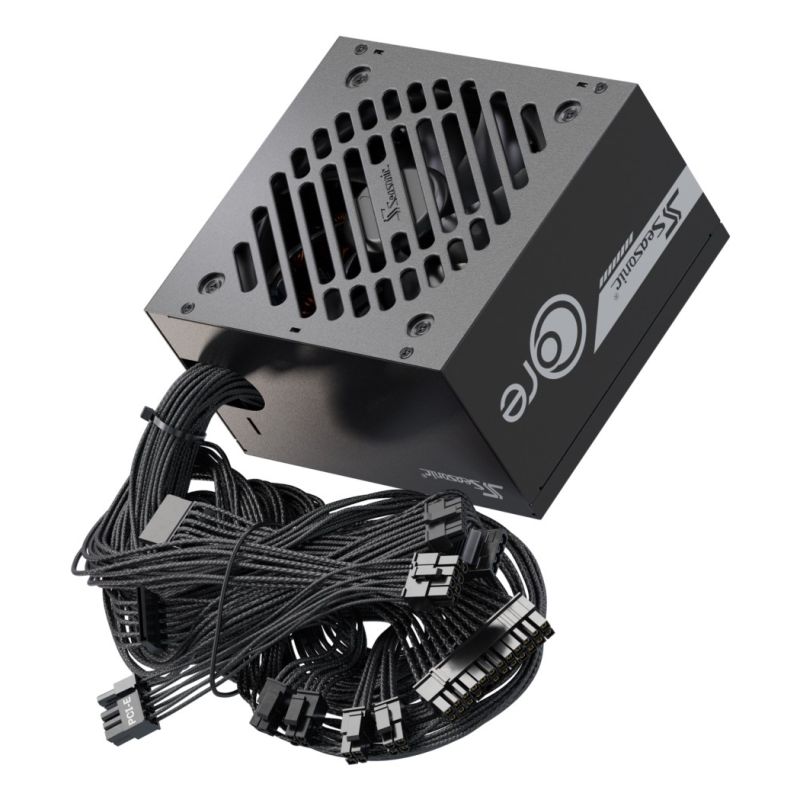

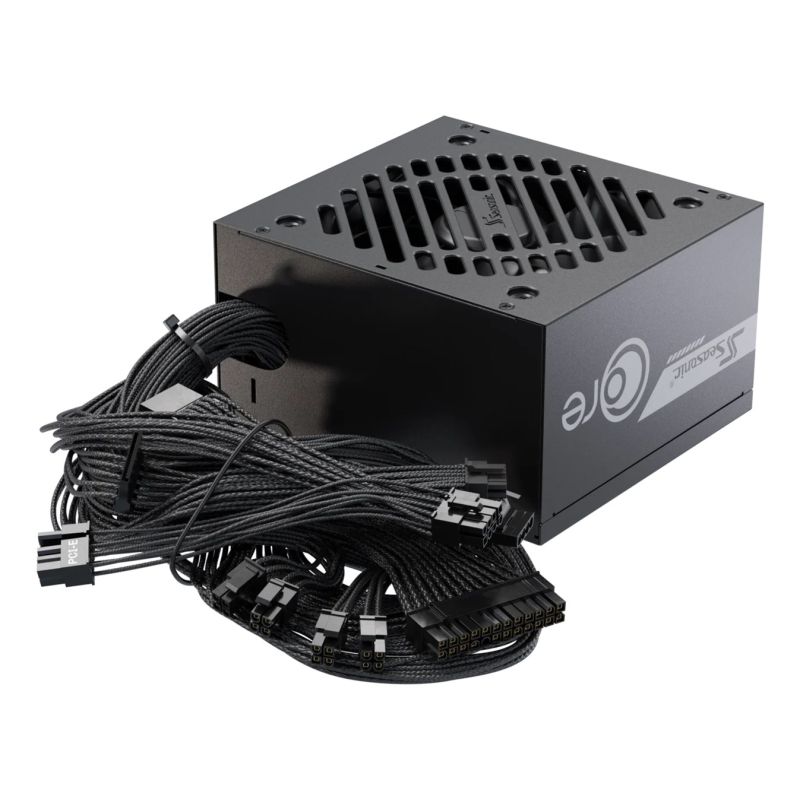

Seasonic CORE GC-850 ATX 3.1 Power Supply Module 850 W 20+4 pin ATX Black
Seasonic CORE GC-850 ATX 3.1 Power Supply Module 850 W 20+4 pin ATX Black
Seasonic CORE GC-850 ATX 3.1 Power Supply Module 850 W 20+4 pin ATX Black
PRICE:
148,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental certificate (sustainable development)
- ENERGY STAR
- ErP
- Environmental certificate (sustainable development)
- Design
- Number of fans: 1 fan
- Fan bowl diameter: 12 cm
- Cooling type: Active
- Built-in switch: Yes
- Product color: Black
- Power
- AC input frequency: 50/60 Hz
- Power protection features
- Protection against overvoltage
- Overcurrent
- Overload protection
- Short circuit
- Overheating protection
- Low voltage protection
- Total power (+3.3V): 100 W
- Total power: 850 W
- AC input voltage: 100 - 240 V
- Input current: 11 - 5.5 A
- Total power (+5V): 100 W
- Maximum output current (-12V): 0.3A
- Total power (-12V): 3.6 W
- Total power (+12V): 840 W
- Maximum output current (+5 Vsb): 2.5 A
- Total power (+5 Vsb): 12.5 W
- Maximum output current (+3.3V): 20 A
- Maximum output current (+5V): 20A
- Maximum output current (+12V): 70A
- Weight and dimensions
- Product height: 86 mm
- Product depth: 140 mm
- Product width: 150 mm
- Working conditions
- Relative humidity range: 15 - 65%
- Temperature range (operation): 0 - 40 °C
- Efficiency
- Power supply type (PSU): ATX
- Bearing technology: Ball bearing
- ATX version: 3.1
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS Gold
- MTBF (Mean Time Between Failures): 100000 h
- Packaging data
- Packaging type: Box
- Package contents
- Wires: Alternating Current
- Certificates
- Certificates of conformity
- REACH
- BSMI
- CE
- cTUVus
- CB
- WEEE
- RoHS
- UKCA
- EAC
- China Compulsory Certification (CCC)
- Certificates of conformity
- Ports and interfaces
- Wiring Type: Non-Modular
- PCI Express power connectors (6+2 pin): 3
- Peripheral (Molex) Power Connectors (4-pin): 1
- EPS power supply connector (8-pin): Yes
- CPU power cable length: 60 cm
- PCI Express power cable length: 55 cm
- Number of SATA power connectors: 2
- CPU power supply connector (4+4 pin): Yes
- Peripheral (Molex) Power cable length: 600 mm
- Motherboard cable length: 55 cm
- SATA power cable length: 600 mm
- ATX power supply connector (20+4 pin): Yes
- PCI Express slot: Yes
- Motherboard power connector: 20+4 pin ATX
| Name | Details |
|---|---|
| Producer | Seasonic |
