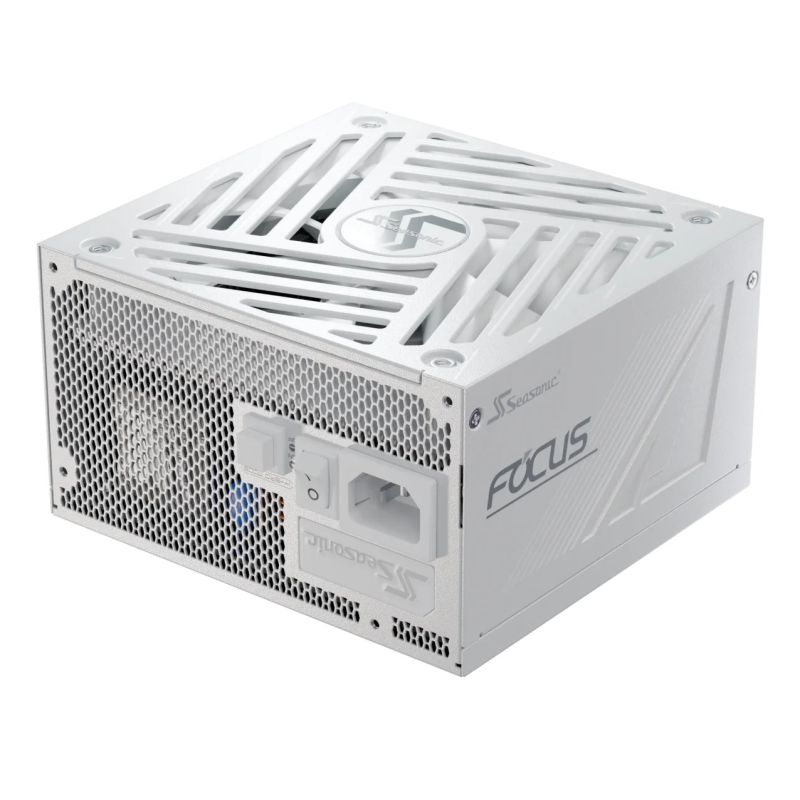

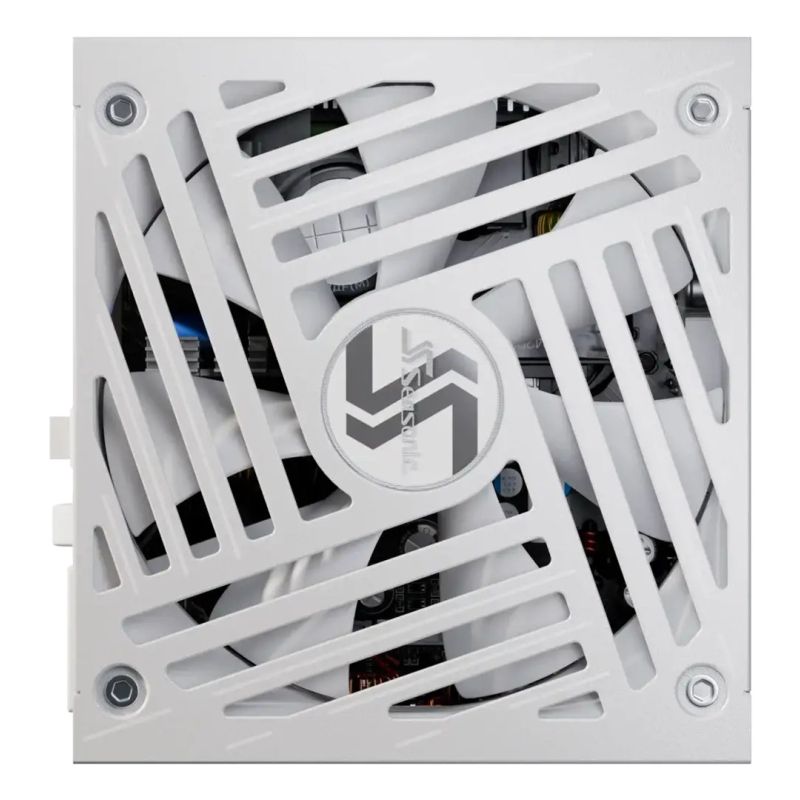

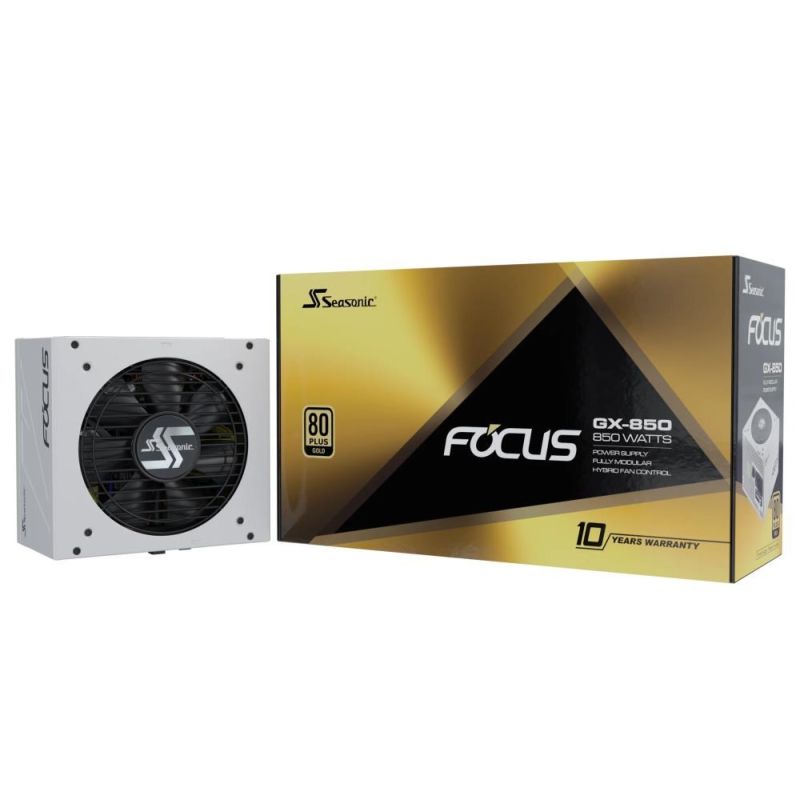

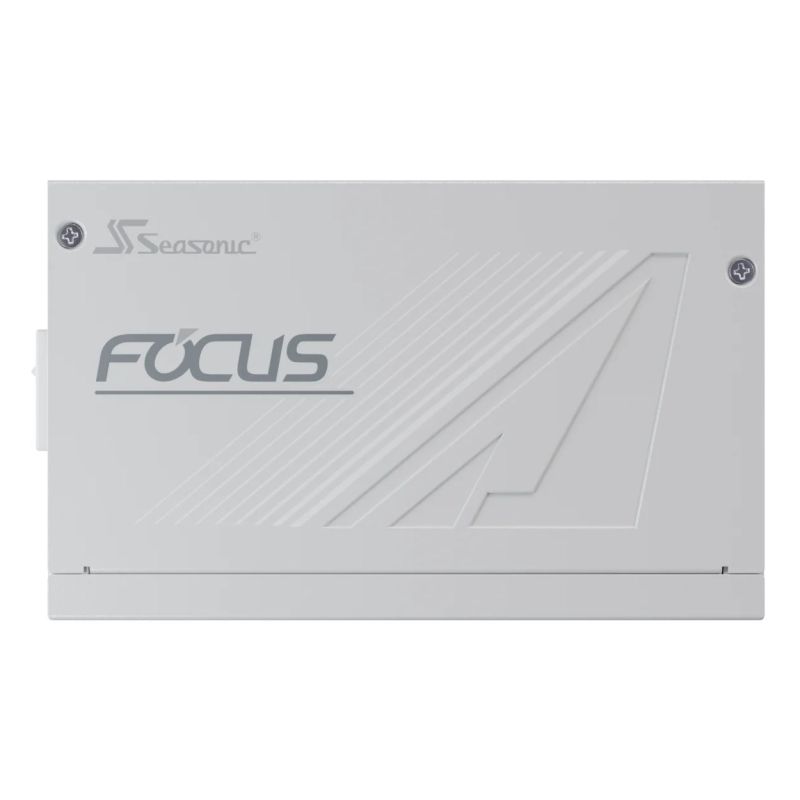

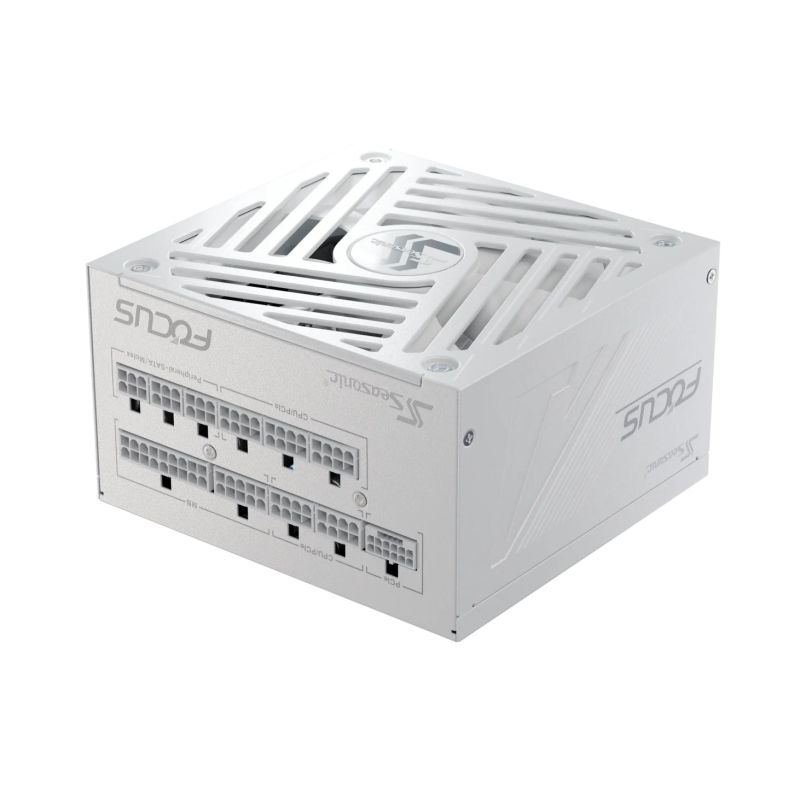

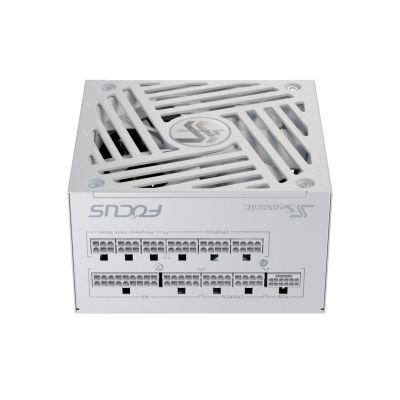

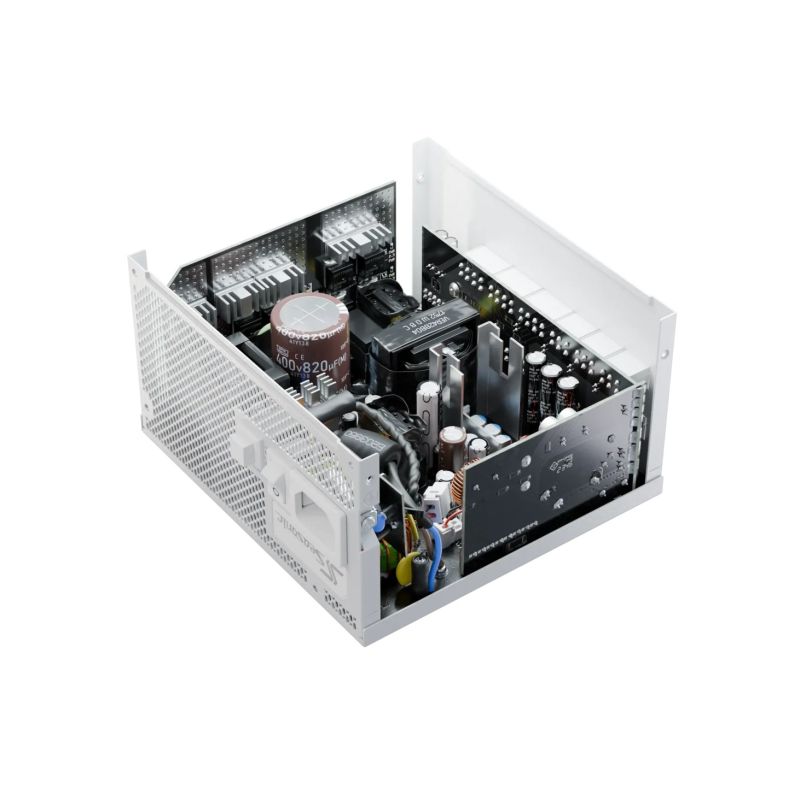

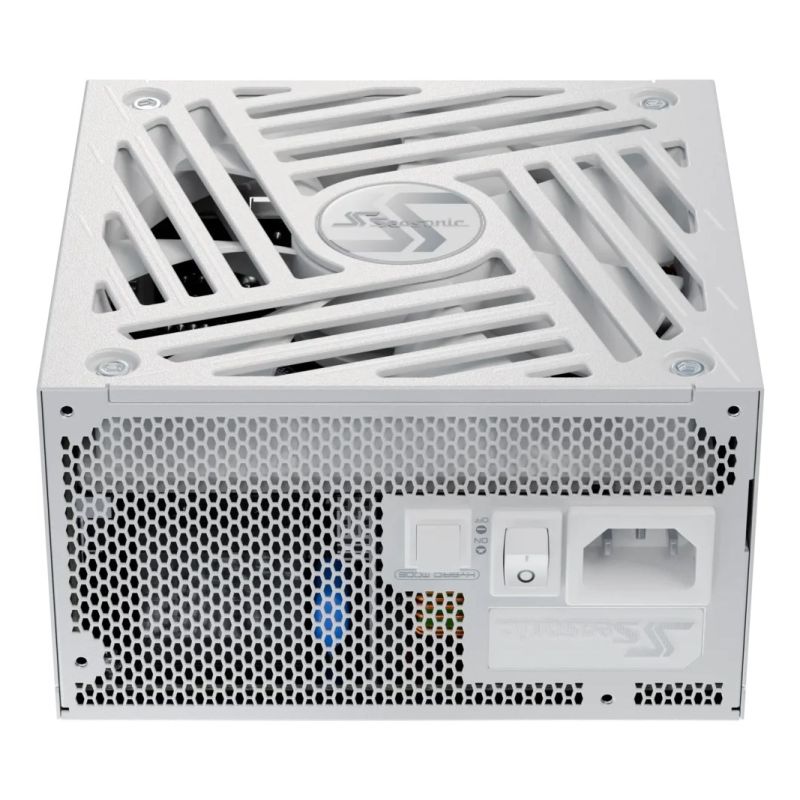

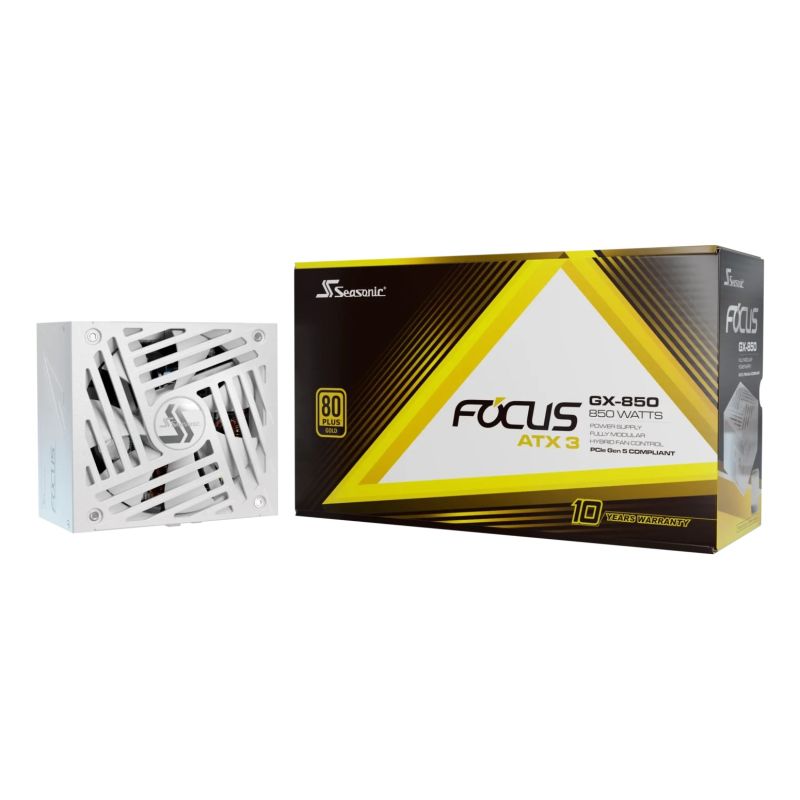

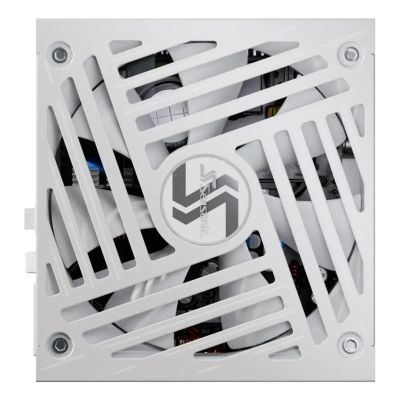

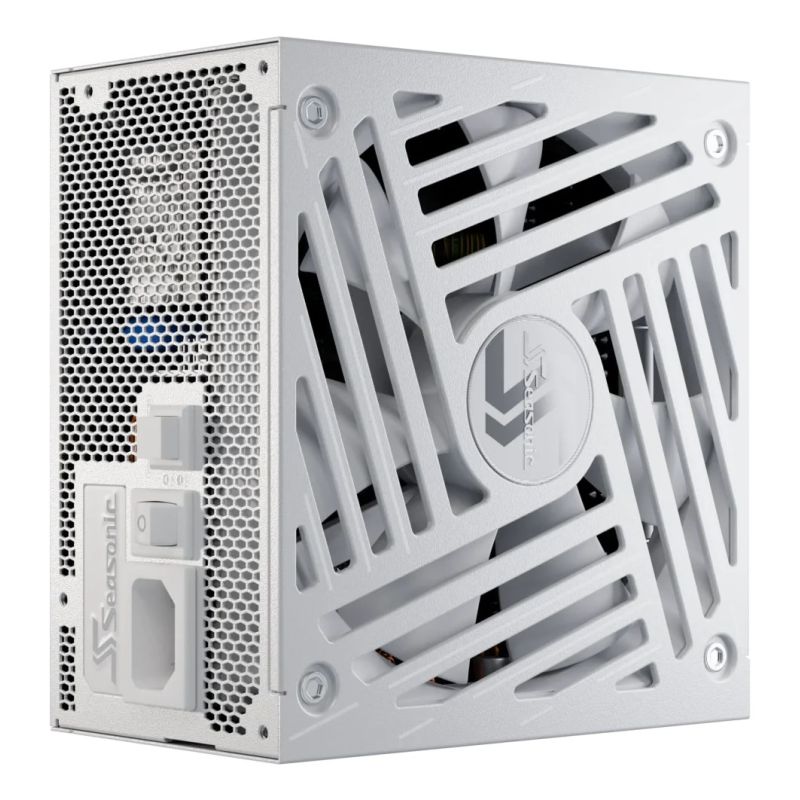

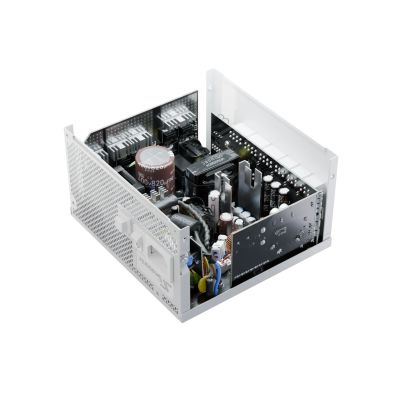

Seasonic Focus GX-850 Power Supply Module 1000W 20+4 pin ATX ATX White
Seasonic Focus GX-850 Power Supply Module 1000W 20+4 pin ATX ATX White
Seasonic Focus GX-850 Power Supply Module 1000W 20+4 pin ATX ATX White
PRICE:
219,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental certification (sustainability): ENERGY STAR
- Design
- Built-in switch: Yes
- Cooling type: Active
- Fan bowl diameter: 13.5 cm
- Number of fans: 1 fan
- Product color: White
- Power
- AC input voltage: 100 - 240 V
- Maximum output current (+3.3V): 20 A
- Power protection features
- Short circuit
- Overheating protection
- Protection against overvoltage
- Overcurrent
- Low voltage protection
- Overload protection
- Input current: 11 - 5.5 A
- Maximum input current (@ 220V): 5.5 A
- Total power (-12V): 3.6 W
- Total power: 850 W
- Total power (+5V): 100 W
- Maximum output current (+5 Vsb): 3 A
- Total power (+3.3V): 100 W
- Maximum output current (+12V): 70A
- Total power (+5 Vsb): 15 W
- Maximum output current (-12V): 0.3A
- Total power (+12V): 840 W
- Maximum input current (@ 110V): 11 A
- Maximum output current (+5V): 20A
- AC input frequency: 50/60 Hz
- Weight and dimensions
- Product depth: 140 mm
- Product height: 86 mm
- Product width: 150 mm
- Working conditions
- Temperature range (operation): 0 - 50 °C
- Efficiency
- Bearing Technology: FDB
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- Power supply type (PSU): ATX
- 80 PLUS Certificate: 80 PLUS Gold
- Packaging data
- Packaging type: Box
- Certificates
- Certificates of conformity
- WEEE
- CB
- RoHS
- REACH
- CE
- cTUVus
- EAC
- Certificates of conformity

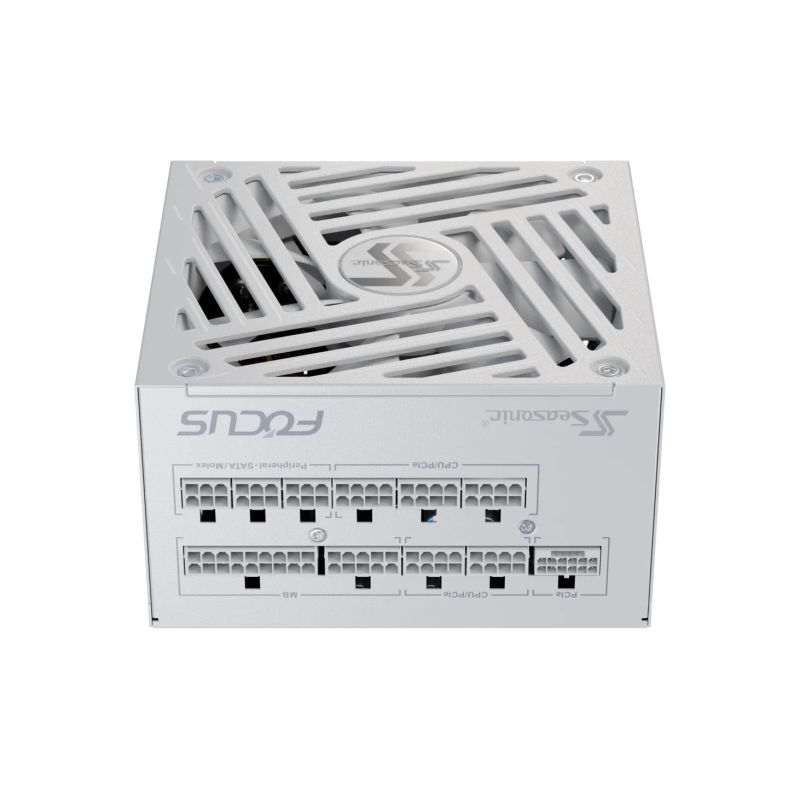

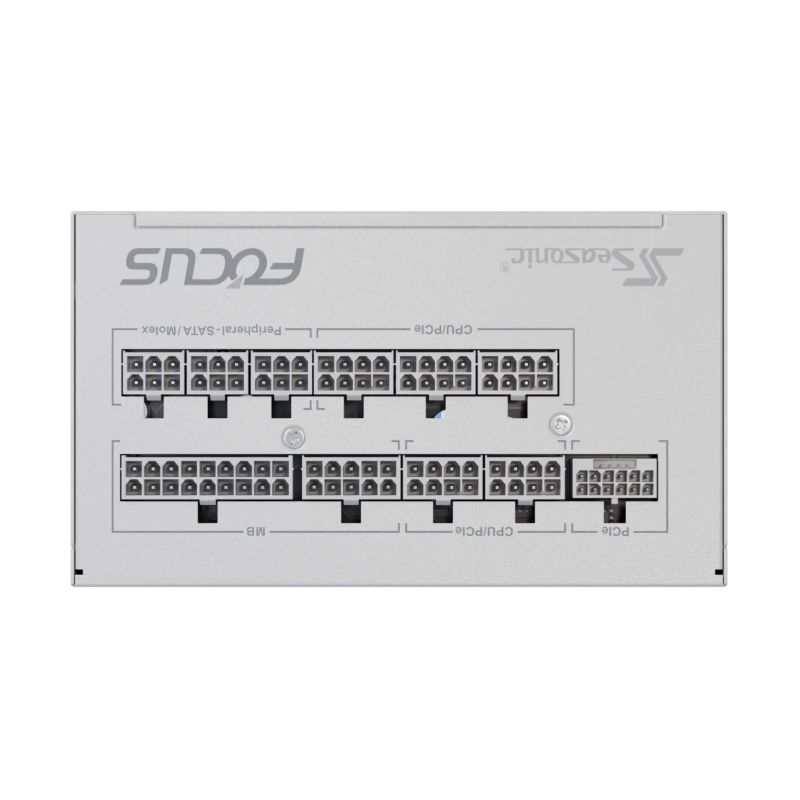

- Ports and interfaces
- PCI Express power connectors (12+4 pin): 1
- Number of SATA power connectors: 2
- CPU power supply connector (4+4 pin): Yes
- Peripheral (Molex) Power Connectors (4-pin): 3
- Peripheral (Molex) Power cable length: 690 mm
- SATA power cable length: 550
- Wiring Type: Fully Modular
- CPU power cable length: 70 cm
- PCI Express power connectors (6+2 pin): 3
- Motherboard power connector: 20+4 pin ATX
- Motherboard cable length: 61 cm
- Logistics data
- Warranty period: 10 years
- Safety regulations & standards
- Safety: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Seasonic |
| Colour | White |
| Department | Electronics |
