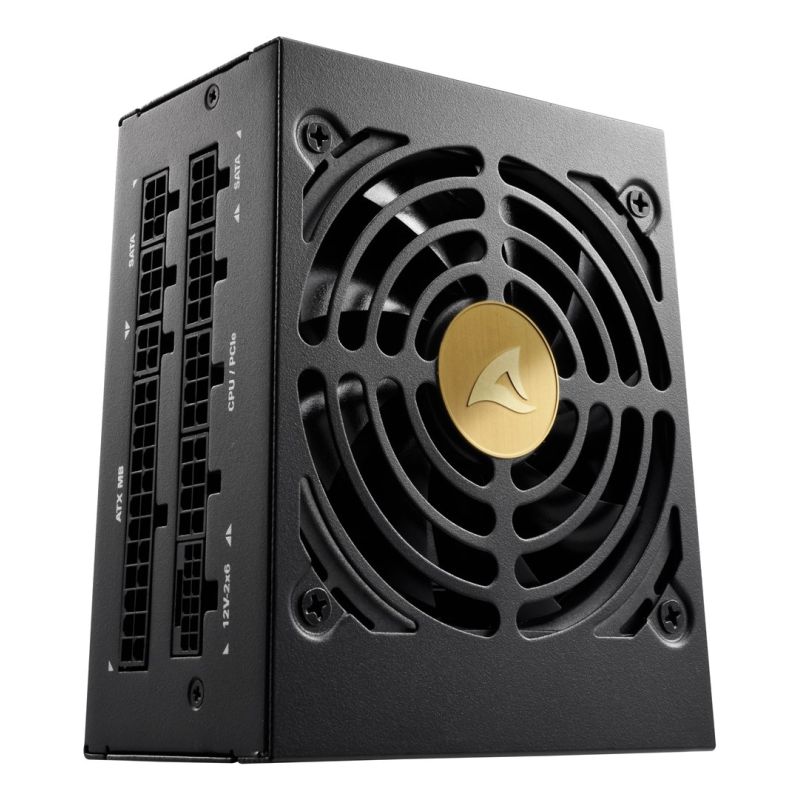

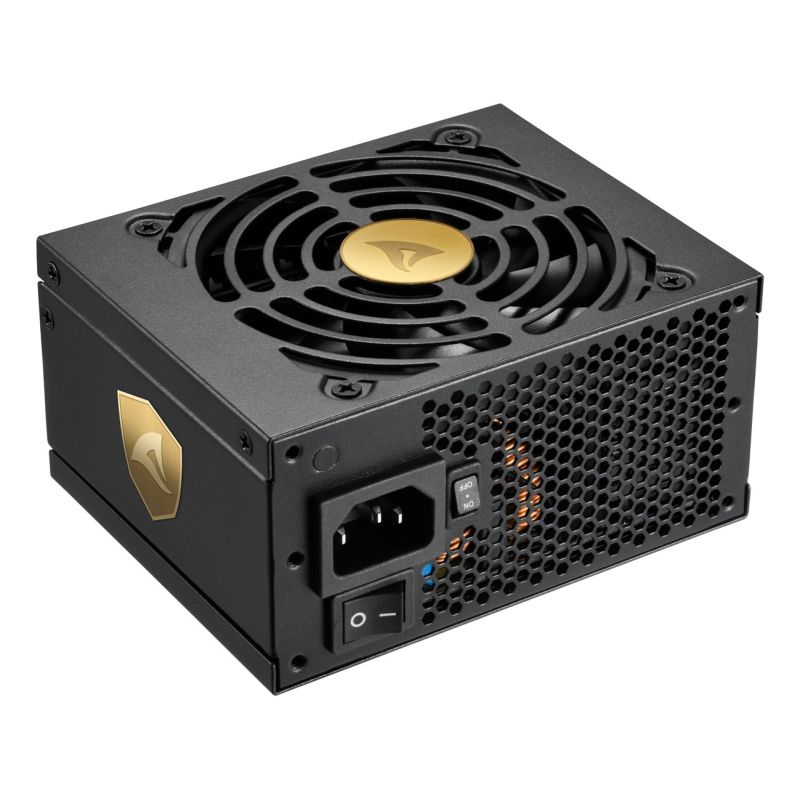

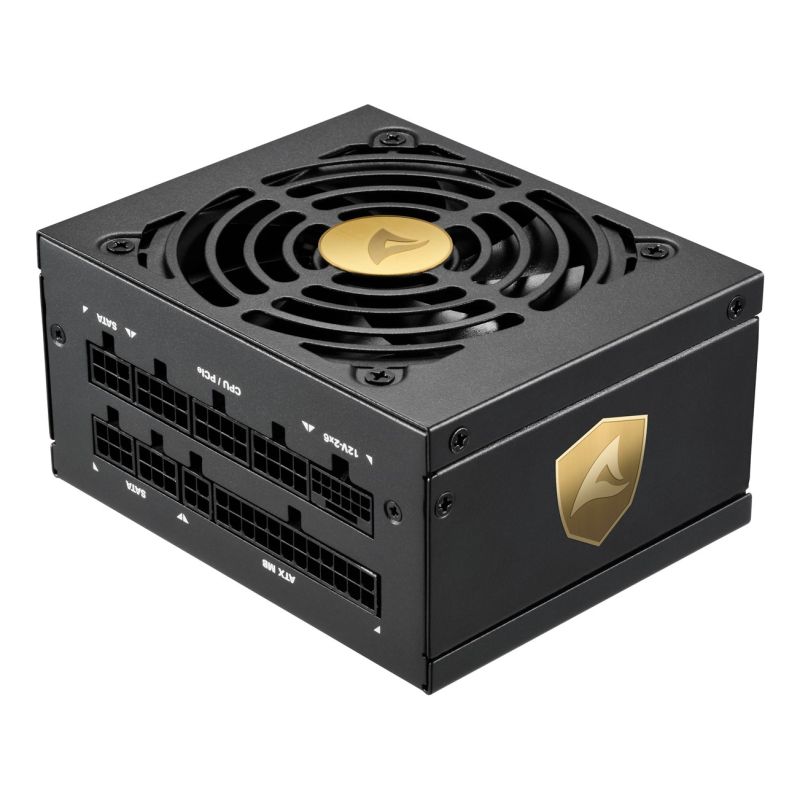

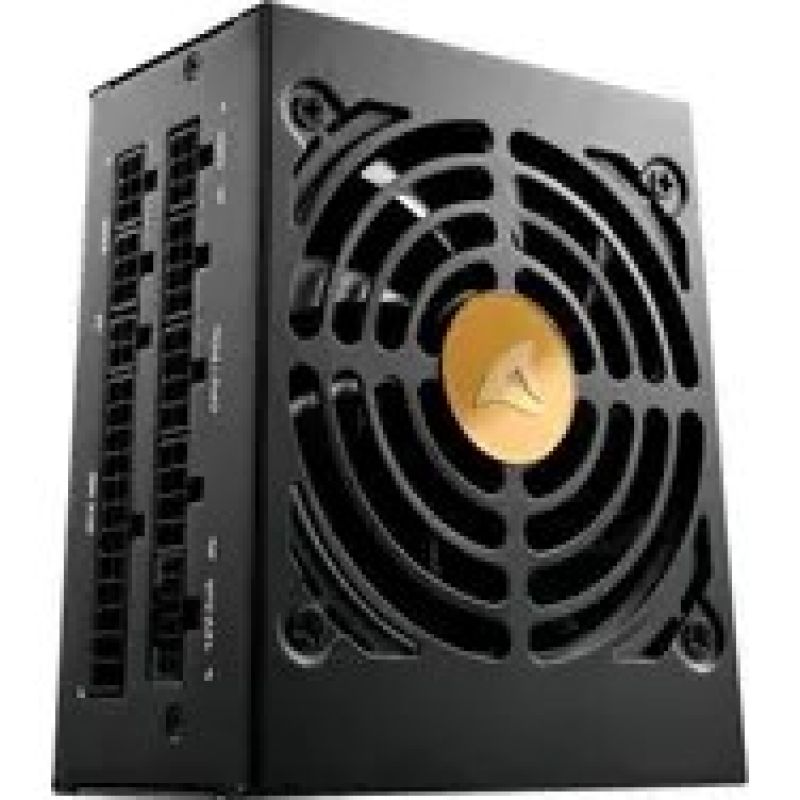

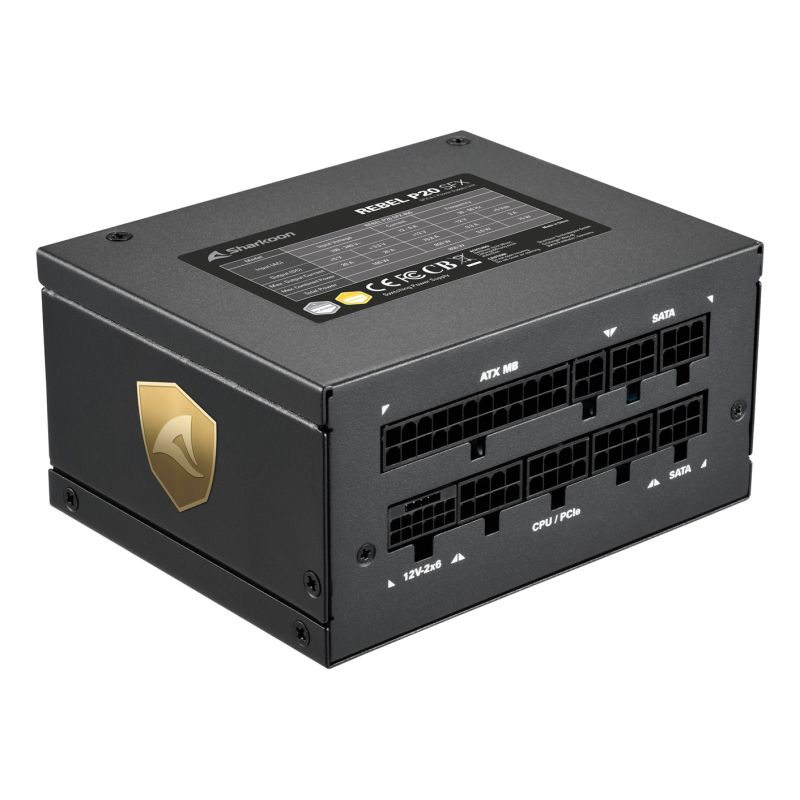

Sharkoon Rebel P20 SFX Power Supply Module 750W 24-pin ATX Black
Sharkoon Rebel P20 SFX Power Supply Module 750W 24-pin ATX Black
Sharkoon Rebel P20 SFX Power Supply Module 750W 24-pin ATX Black
PRICE:
271,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental (sustainability) certification: ErP
- Design
- Number of fans: 1 fan
- Fan Location: Top
- Fan bowl diameter: 9.2 cm

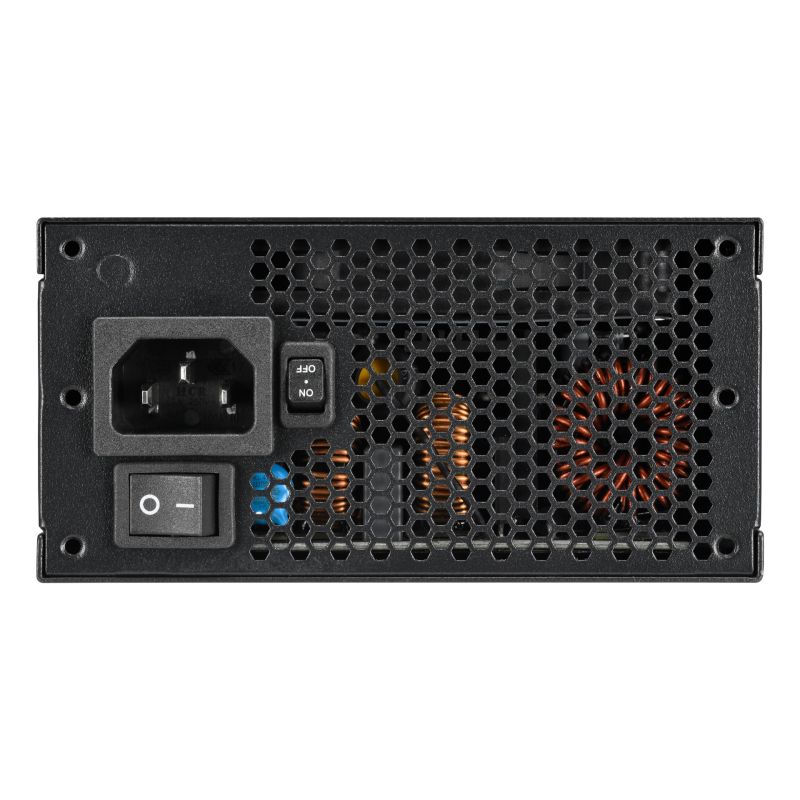

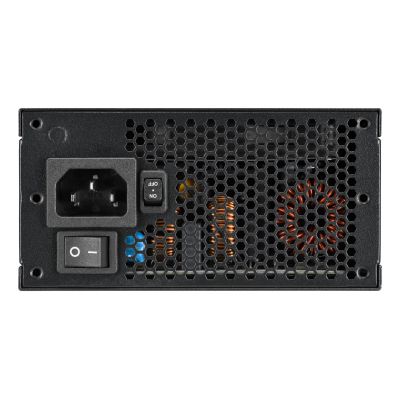

- Built-in switch: Yes
- Product color: Black
- Cooling type: Active
- Power
- Total power: 750 W
- Total power (+12V): 750 W
- Maximum output current (+5 Vsb): 3 A
- Total power (+5V): 100 W
- Maximum output current (-12V): 0.3A
- Maximum output current (+12 V1): 62.5 A
- Maximum output current (+5V): 20A
- Maximum output current (+3.3V): 20 A
- Power protection features
- Overload protection
- Low voltage protection
- Protection against overvoltage
- Overcurrent
- Short circuit
- Overheating protection
- Total power (+3.3V): 100 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 10 / 6 A
- Weight and dimensions
- Product depth: 100 mm
- Product height: 63.5 mm
- Product width: 125 mm
- Product weight: 1 kg
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- Bearing Technology: FDB
- 80 PLUS Certificate: No
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- Power supply unit (PSU) type: SFX
- Package contents

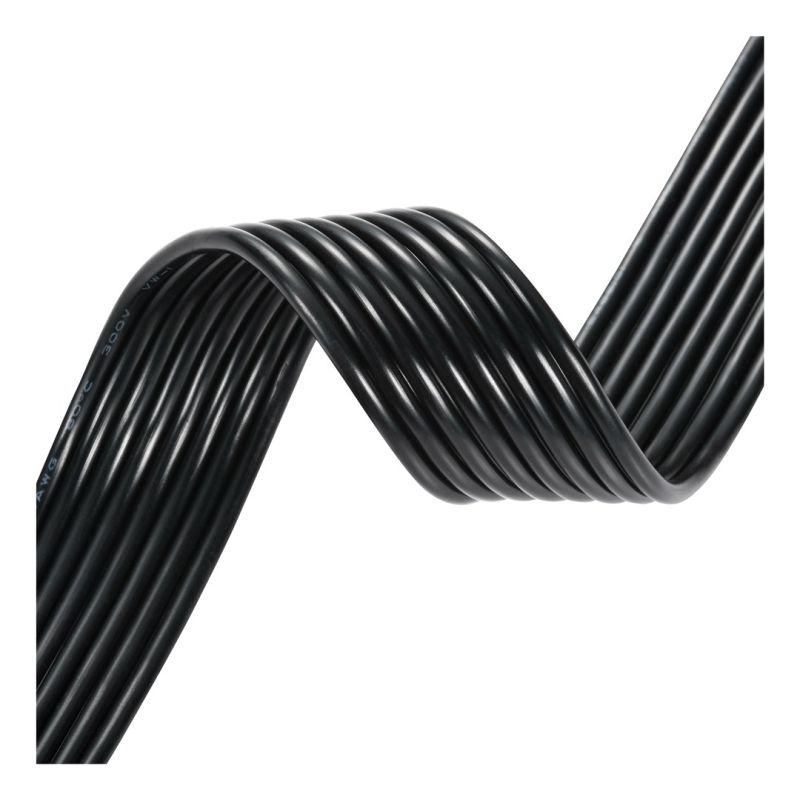

- Wires: Alternating Current
- Certificates
- Certificates of conformity
- CB
- Federal Communications Commission (FCC)
- CE
- Certificates of conformity

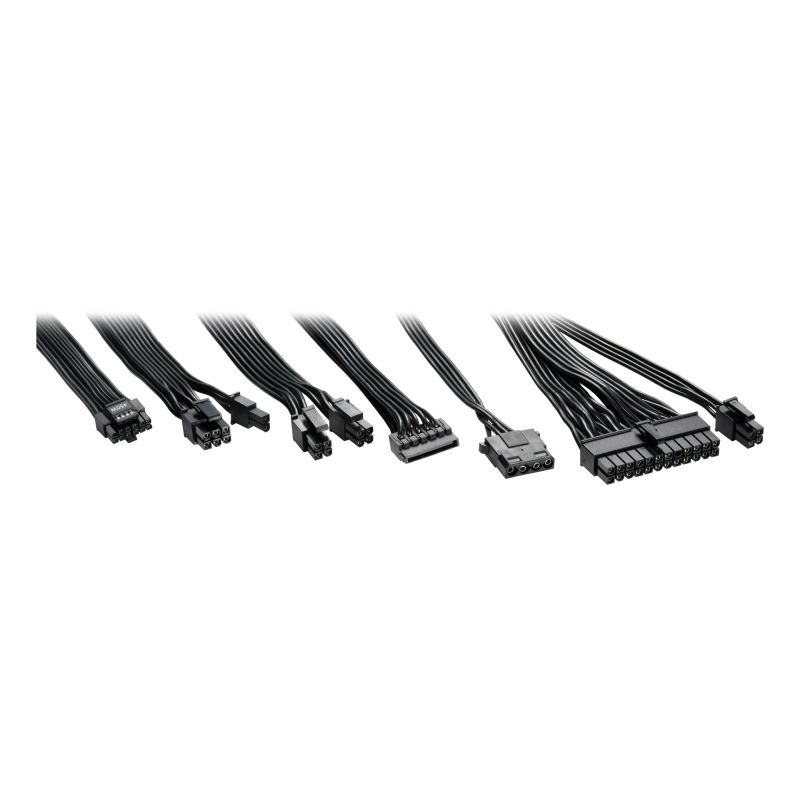

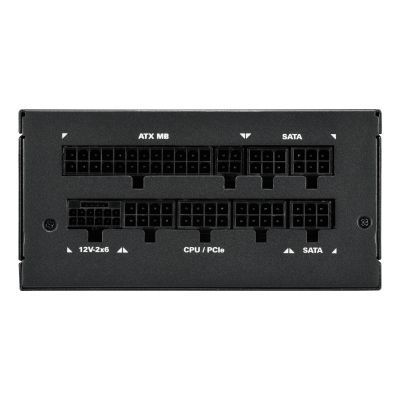

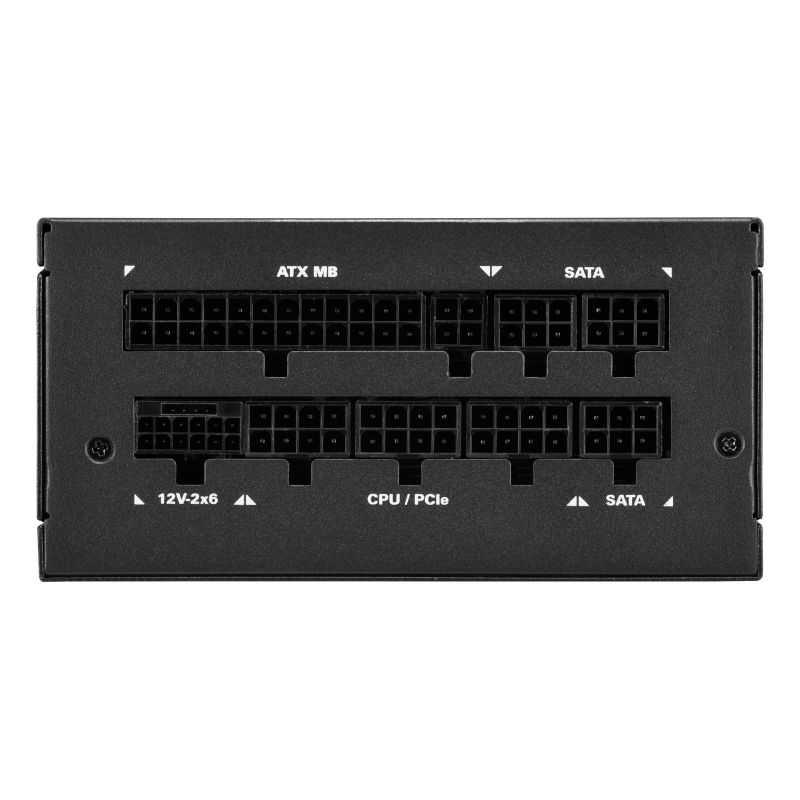

- Ports and interfaces
- Motherboard cable length: 30 cm
- CPU power supply connector (4+4 pin): Yes
- CPU power cable length: 42 cm
- Motherboard power connector: 24-pin ATX
- PCI Express power cable length: 57 cm
- Wiring Type: Fully Modular
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 2
- Number of SATA power connectors: 8
- PCI Express slot: Yes
- ATX power socket (24-pin): Yes
- EPS power supply connector (8-pin): Yes
- Peripheral (Molex) Power Connectors (4-pin): 1
| Name | Details |
|---|---|
| Producer | Rebel |
