High-class lighting for every occasion

The EOX® FL 170 HB sets new standards in e-bike lighting. With impressive high beams of 170 LUX and low beams of 120 LUX, you always have optimal illumination at close range and in the distance when mountain biking, off-roading, or gravel riding. In standard mode, the EOX® FL 170 HB illuminates up to 120 meters. In dark areas or when riding fast, the FL 170 HB's high beam function leaves nothing to be desired: it illuminates the road broadly and extremely brightly up to 160 meters, so you always have a perfect view of the route. When needed, the high beam is activated using the remote control included in the scope of delivery.

Optimal lighting

EOX® illuminates your path perfectly with a 120 LUX low beam. If you need full illumination, you can also switch to the 170 LUX high beam. The intelligent headlight also features automatic 20 LUX daytime running lights, controlled by an ambient light sensor, for greater safety and visibility even during the day.

Everything under control

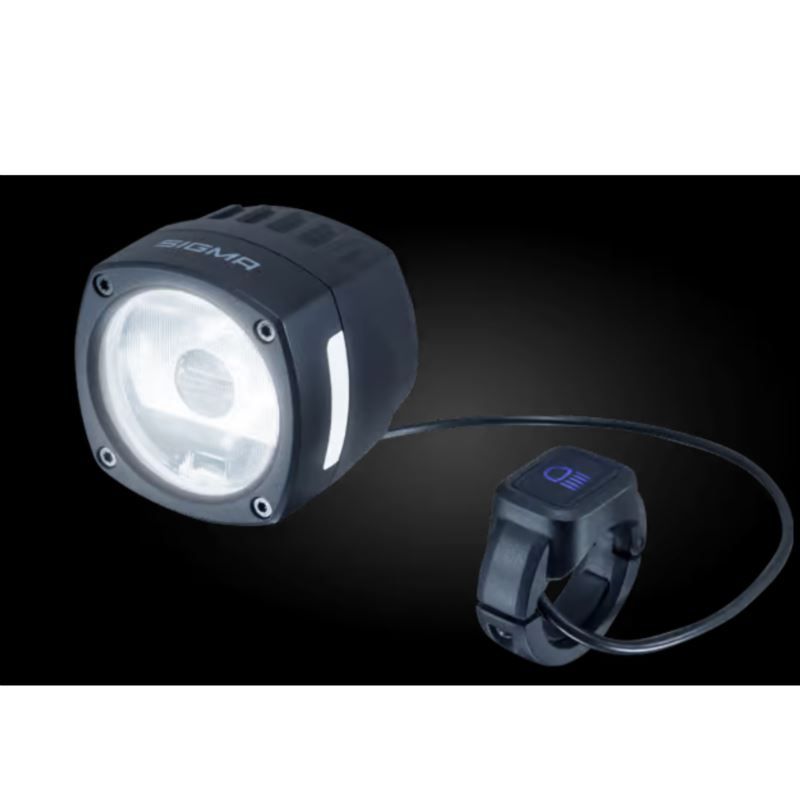

The EOX® FL 170 is easy to operate using the included remote control, meaning you can keep your hands safely on the wheel.

USB-C "To Go" charging port

You can charge smartphones and other devices via the e-bike's waterproof USB-C port. This high-quality lamp features a partially aluminum housing and is waterproof to IP67.

Easy assembly

You can attach the EOX® FL 170 HB to your bike's handlebars in just a few steps using a clamp. Alternatively, it can also be mounted on a so-called faceplate. To do this, simply attach the plate to the handlebar bracket using four screws. The plate includes an adapter for attaching a light.

Stylish and exquisite

The high-quality, all-aluminum housing is solid and durable.

Functions

Beam range 120 m

Maximum output: 850 lumens

Lighting Modes: High Beam (170 LUX), Low Beam (120 LUX), Day light (20 LUX)

Diode type: NICHIA

Side visibility: yes

Weight 99 g (without handle) / 124 g (with handle)

General information

Dimensions (W x L x H) 51 x 51 x 54 mm

Waterproof: IP67

Ambient light intensity sensor

Light temperature: 6500 K

Mount: Handlebar mount 35/31.5 mm

Optional mounting: Boom mounting

Voltage range: 12-16V

Nominal power: 12 W

USB-C Port 5V/2A
