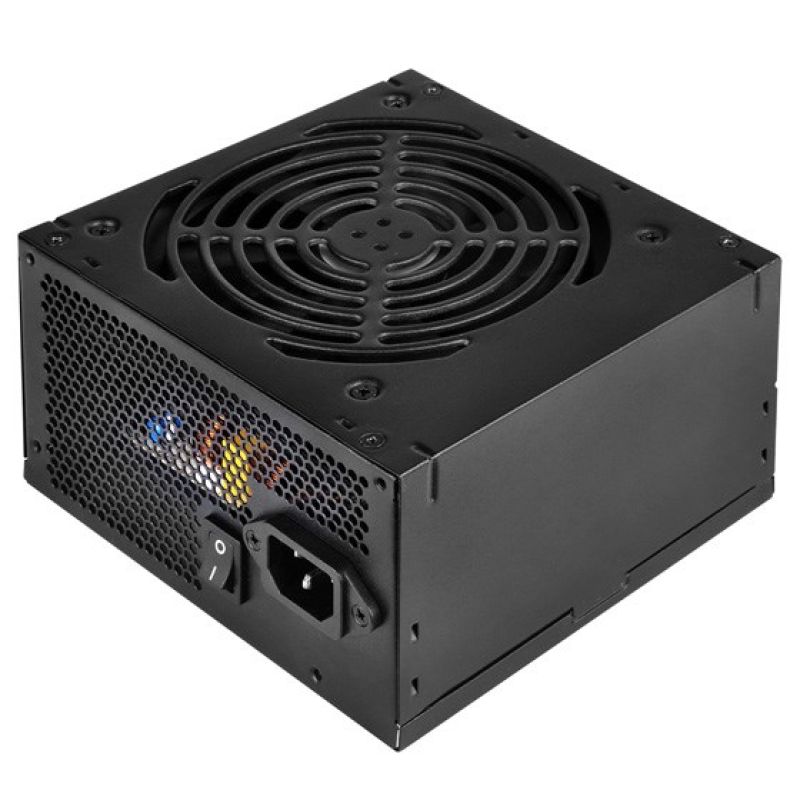

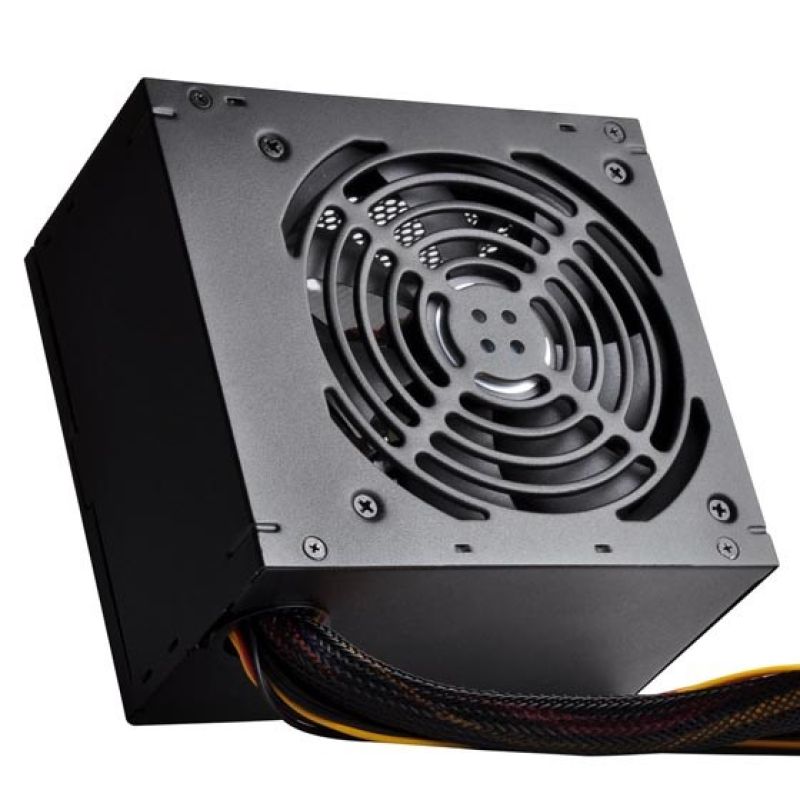

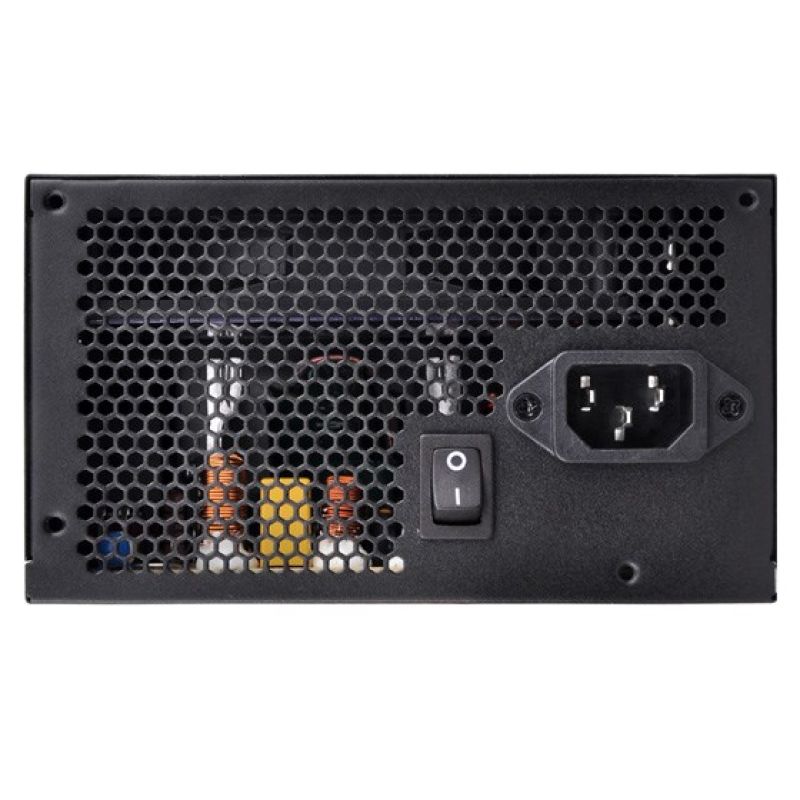

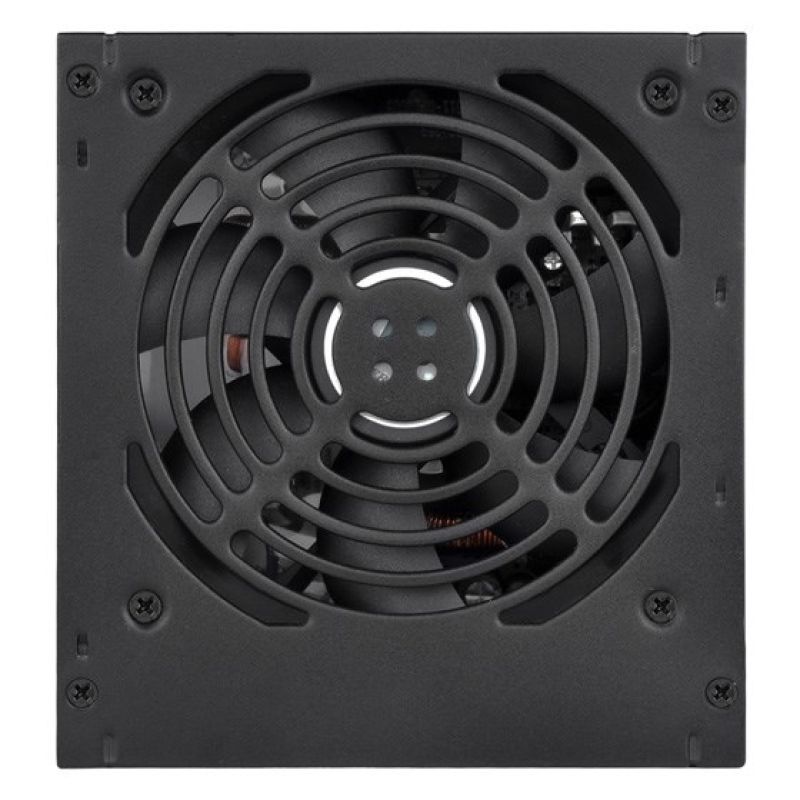

Silverstone ST40F-ES230 Power Supply Module 400W 20-pin ATX Black
Silverstone ST40F-ES230 Power Supply Module 400W 20-pin ATX Black
Silverstone ST40F-ES230 Power Supply Module 400W 20-pin ATX Black
PRICE:
61,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Built-in switch: Yes
- Number of fans: 1 fan
- Product color: Black
- Fan bowl diameter: 12 cm
- Power
- Total power (+5V): 100 W
- AC input frequency: 47 - 63 Hz
- Input current: 3 A
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 30A
- AC input voltage: 180 - 264 V
- Maximum output current (+3.3V): 17 A
- Total power (+12V): 360 W
- Maximum output current (+5 Vsb): 2.5 A
- Efficiency: 85%
- Maximum output current (+5V): 16A
- Power protection features
- Overload protection
- Short circuit
- Protection against overvoltage
- Total power (+3.3V): 100 W
- Total power: 400 W
- Maximum output current (-12V): 0.3A
- Weight and dimensions
- Product weight: 1.26 kg
- Product width: 150 mm
- Product height: 86 mm
- Product depth: 140 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- Noise level: 18 dB
- Power supply type (PSU): ATX
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- 80 PLUS Certificate: 80 PLUS
- Certificates
- Certificates of conformity: RoHS
- Ports and interfaces
- EPS power supply connector (8-pin): Yes
- PCI Express slot: Yes
- Motherboard cable length: 50 cm
- Wiring Type: Non-Modular
- Floppy disk drive slot: Yes
- Motherboard power connector: 20-pin ATX
- PCI Express Power (6-pin): 2
- Floppy drive connector: 1
- Peripheral (Molex) Power Connectors (4-pin): 3
- Number of SATA power connectors: 4
- Logistics data
- Harmonized System (HS) code: 84733020
| Name | Details |
|---|---|
| Producer | SilverStone |
