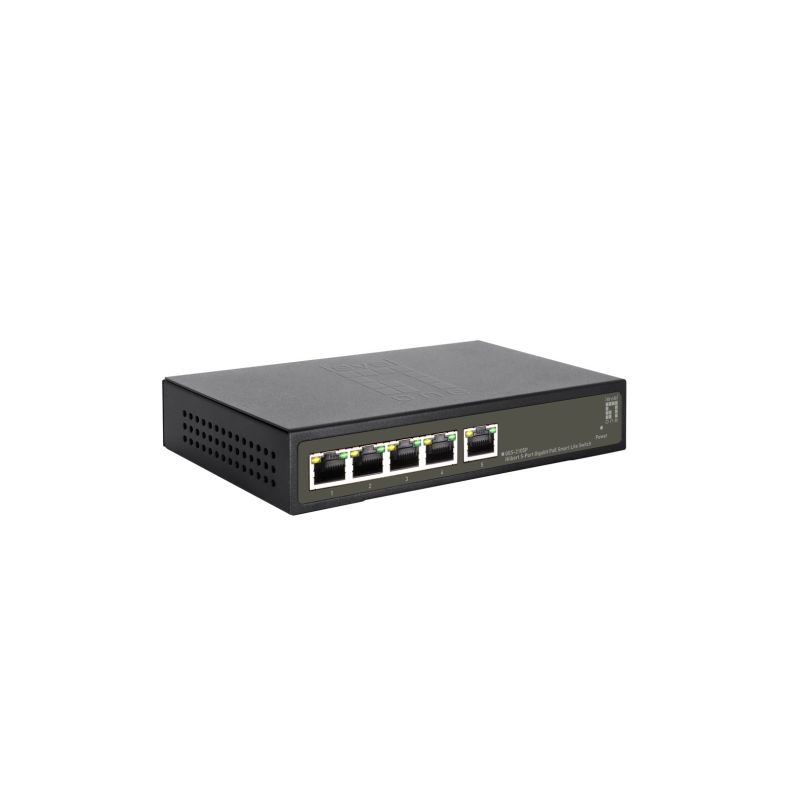

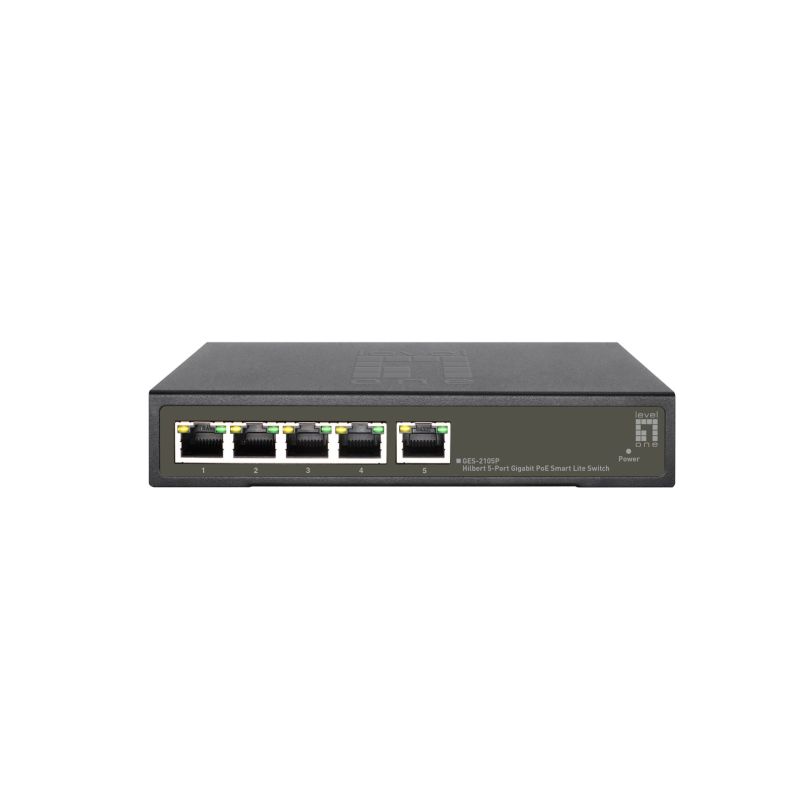

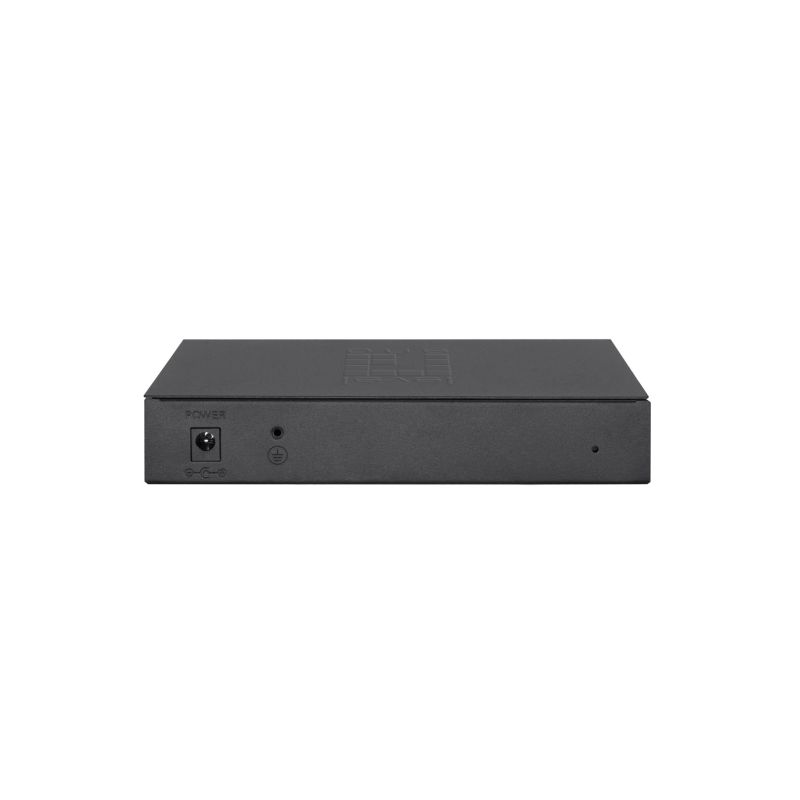

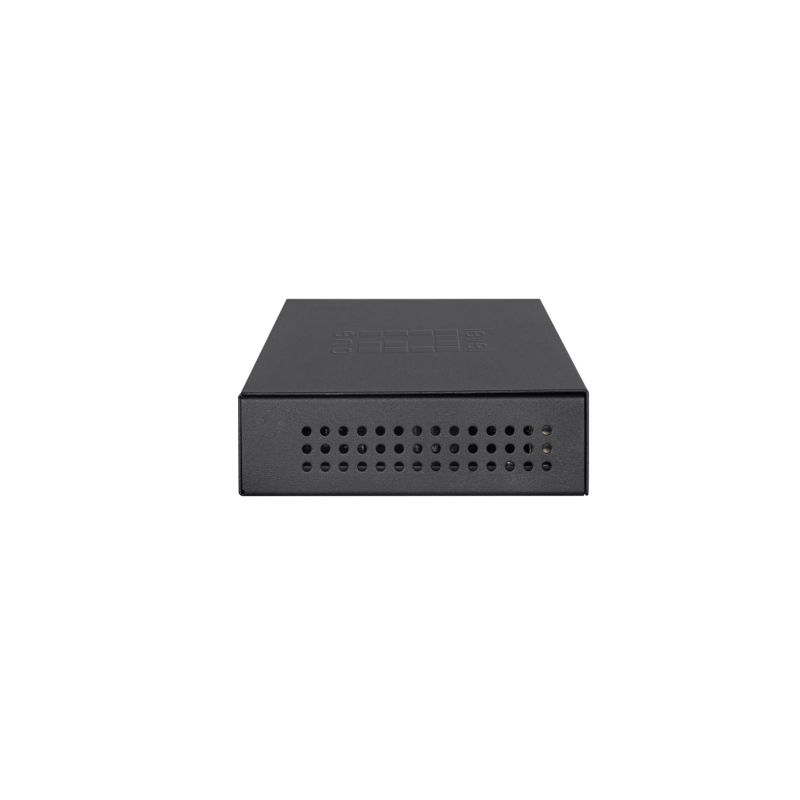

Smart Lite 5-Port Gigabit PoE Switch - 802.3at/af PoE - 4 PoE Outputs - 60W PoE Power Budget (GES-2105P)
Smart Lite 5-Port Gigabit PoE Switch - 802.3at/af PoE - 4 PoE Outputs - 60W PoE Power Budget (GES-2105P)
Smart Lite 5-Port Gigabit PoE Switch - 802.3at/af PoE - 4 PoE Outputs - 60W PoE Power Budget (GES-2105P)
PRICE:
140,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Gross pallet width: 120 cm
- Gross pallet length: 80 cm
- Pallet height (air): 158.4 cm
- Collective boxes (external) per pallet (air): 18 pcs.
- Design
- Product color: Black
- LEDs: Yes
- Power
- Voltage: 54 V
- Input current: 1.2 A
- Power consumption (max): 65 W
- Power source: DC/PoE
- Protection against sudden voltage increases
- Yes
- 8 kV
- Power supply included: Yes
- Weight and dimensions
- Product height: 29 mm
- Product weight: 400 g
- Product width: 160 mm
- Product depth: 95 mm
- Security
- IGMP snooping: Yes
- Management features
- Switch type: Managed
- Switch Layer: L2
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Working conditions
- Temperature range (operation): 0 - 45 °C
- Heat emission: 23.88 BTU/h
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 10 - 90%
- Permissible relative humidity: 5 - 95%
- Network
- Communication standards
- IEEE 802.3u
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3
- Half-duplex: Yes
- Full duplex: Yes
- Flow Control Support: Yes
- Copper Ethernet cabling technology
- 10BASE-T
- 1000BASE-T
- 100BASE-TX
- 10G Support: No
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Number of VLANs: 32
- Port Mirroring: Yes
- MAC address auto-learning supported: Yes
- Traffic Growth Control: Yes
- Auto-Negotiation: Yes
- Virtual LAN Features: Tagged VLAN
- MAC address auto-aging supported: Yes
- Connection Aggregator: Yes
- Frequency Limit: Yes
- Communication standards
- Efficiency
- MTBF (Mean Time Between Failures): 43800 h
- Noise level: 0 dB
- Flash memory size: 2 MB
- Packaging data
- AC adapter: Yes
- Package height: 65 mm
- Packaging type: Box
- Packaging depth: 230 mm
- Weight with packaging: 920 g
- Package width: 310 mm
- Package contents
- Quick Start Guide: Yes
- Wires: Alternating Current
- Certificates
- Certificates of conformity
- CE
- RoHS
- Certificates of conformity
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 5
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Main (outer) case length: 330 mm
- Main (outer) housing gross weight: 9.8 kg
- Height of the standard (outer) box: 480 mm
- Products in the main (outer) box: 10 pcs.
- Country of origin: China
- Width of the collection box (external): 350 mm
- Net weight in bulk packaging: 600 g
- Data transfer
- Packet buffer memory: 1.5 MB
- Address table size: 2000 entries
- Jumbo Frame Compatible: Yes
- Routing/switching capacity: 10 Gbit/s
- Number of rounds: 4
- Jumbo Frames Expansion: 9000
- Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port: 30 W
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 60 W
- Power over Ethernet Plus (PoE +) ports: 4
- Multicast functions
- Multicast Support: Yes
- Sustainable development
- Sustainability: Yes
