Solar Controller AZO MPPT-30D PRO (LCD)
Solar Controller AZO MPPT-30D PRO (LCD)
Solar Controller AZO MPPT-30D PRO (LCD)
PRICE:
241,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- MPPT function: Yes
- Supported battery type: AGM / Gel / LiFePO
- Product color
- Black
- Red
- Current type: DC
- Charging method: CC-CV-FL
- Power protection features
- Battery discharge protection
- Surge protection
- Protection against overvoltage
- Low voltage protection
- Short circuit protection
- Overcharge protection
- Overheating protection
- IP protection class: IP21
- Design
- Fuse: Yes
- Display type: LCD
- RS485 port: Yes
- Cooling type: Active
- Wire cross-section (max): 20 mm²
- Built-in display: Yes
- Power
- Output current: 40 A
- Total power
- 24V - 780W
- 48V - 1560W
- 12V - 390W
- 36V - 1170W
- Maximum charging current: 30 A
- Voltage: 12V / 24V / 36V / 48V - autodetection
- Charging voltage: 12V: 9V-15V / 24V: 18V-30V / 36V: 32V-40V / 48V: 42V-60V
- Supply voltage: 12 - 150 VDC
- Weight and dimensions
- Product weight: 1.8 kg
- Product depth: 250 mm
- Product width: 170 mm
- Product height: 66 mm
- Efficiency
- Temperature range (operation): -20 - 55 °C
- Temperature compensation: -3mV/°/2V
- Noise level: 40 dB

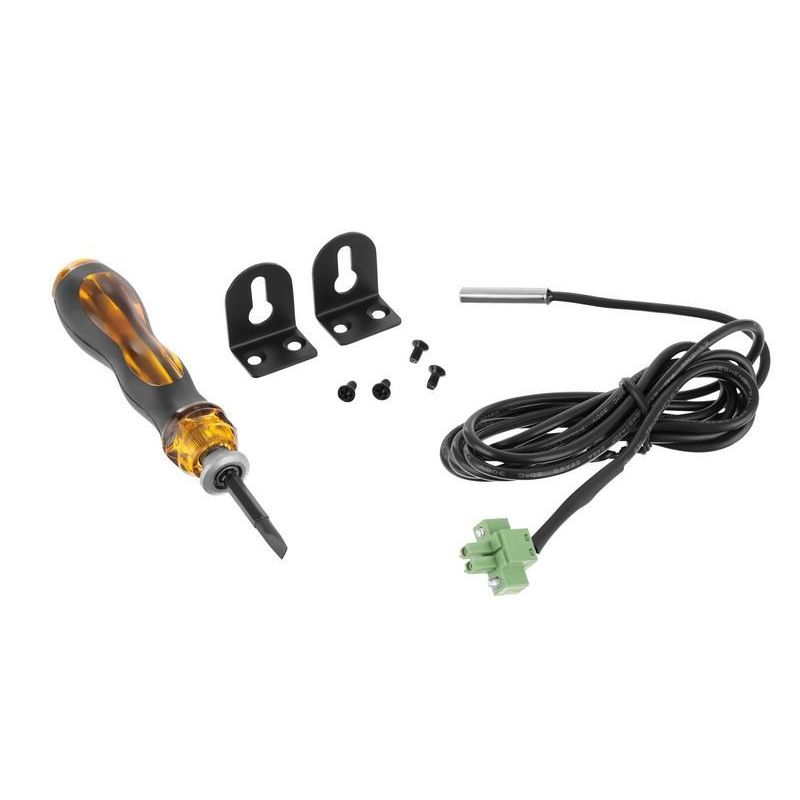

- Package contents
- Cables: USB cable

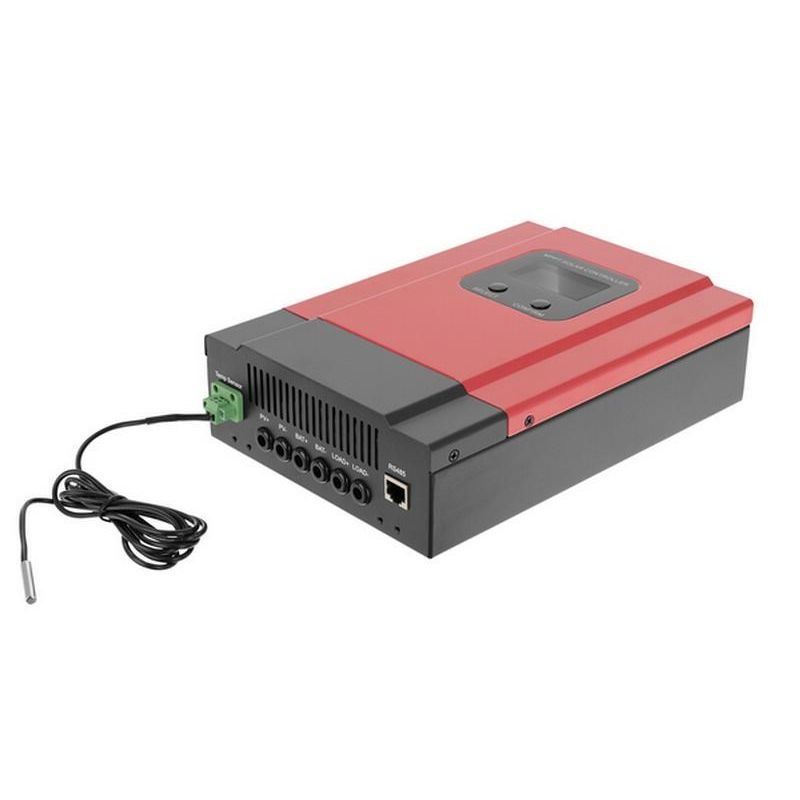

- Temperature sensor: Yes
- Mounting Brackets Included: Yes
- Screwdriver included: Yes
