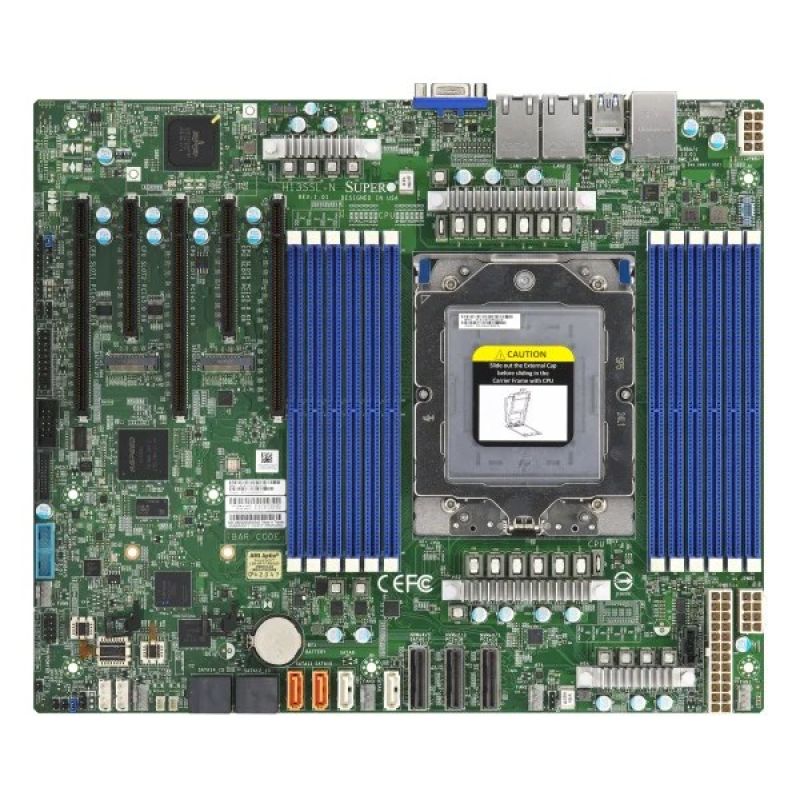

Supermicro MBD-H13SSL-NO Server Board
Supermicro MBD-H13SSL-NO Server Board
Supermicro MBD-H13SSL-NO Server Board
PRICE:
1120,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: Socket SP5
- Processor manufacturer: AMD
- Processor socket: Socket SP5
- Processor: AMD EPYC 9004
- Memory
- Supported memory clock speed (max): 4800 MHz
- Memory slot type: DIMM
- Number of memory slots: 12
- Memory voltage: 1.1 V
- Supported memory types: DDR5-SDRAM
- Maximum memory capacity: 3 TB
- Supported memory module capacities
- 64GB
- 16GB
- 128GB
- 32GB
- 24GB
- 48GB
- ECC Compatibility: ECC
- Characteristics
- Chipset Board Family: AMD
- Purpose: Server
- Motherboard format: ATX
- Weight and dimensions
- Product depth: 256.5 mm
- Product width: 304.8 mm
- Working conditions
- Temperature range (operation): 10 - 35 °C
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 8 - 90%
- Permissible relative humidity: 5 - 95%
- Internal I/O
- TPM Connector: Yes
- Number of case fan connectors: 6
- Number of SATA III connectors: 8
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- LAN controller: Broadcom BCM5720
- BIOS
- System BIOS (SMBIOS) Version: 3.5
- BIOS Type: AMI
- BIOS memory size: 32 Mbit
- ACPI version: 6.4
- Memory drivers
- Number of supported HDDs: 8
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: SATA III, M.2
- Rear Panel I/O Ports
- Number of COM ports: 1
- Number of VGA (D-Sub) ports: 1
- IPMI LAN Port (RJ-45): Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 6
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- PCI Express x8 slots: 2
- PCI Express x16 (Gen 5.x) slots: 3
- Safety warning
- Warnings
- The motherboard may contain electronic components hazardous to health – avoid direct contact.
- Use only in a dry and well-ventilated place.
- Do not open or disassemble the motherboard.
- Warnings
| Name | Details |
|---|---|
| Producer | Supermicro |
