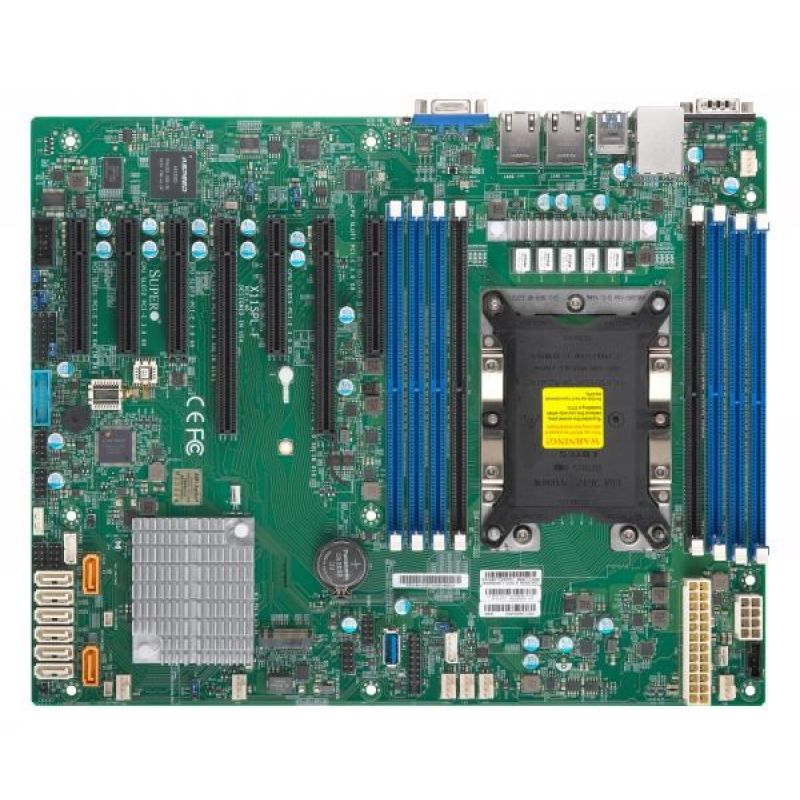

Supermicro MBD-X11SPL-FB
Supermicro MBD-X11SPL-FB
Supermicro MBD-X11SPL-FB
PRICE:
799,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor Thermal Power (max): 165 W
- Supported number of processor cores: 28
- Processor manufacturer: Intel
- Graphics
- Built-in graphics card model: Aspeed AST2500
- Memory
- Supported memory types: DDR4-SDRAM
- Maximum RDIMM memory capacity: 256 GB
- Supported memory clock speeds
- 2133 MHz
- 1866 MHz
- 1600 MHz
- 2400 MHz
- 2666 MHz
- Maximum memory capacity: 2 TB
- Memory voltage: 1.2 V
- Characteristics
- Motherboard Chipset: Intel® C621
- Motherboard format: ATX
- Purpose: Server
- Weight and dimensions
- Product depth: 243.8 mm
- Product width: 304.8 mm
- Working conditions
- Relative humidity range: 8 - 90%
- Permissible relative humidity: 5 - 95%
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): 0 - 50 °C
- Internal I/O
- Number of COM sockets: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 3
- Number of USB 2.0 ports: 6
- Network
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- ACPI version: 6.0
- Memory drivers
- Supported hard drive interfaces: SATA III
- RAID levels
- 5
- 1
- 0
- 10
- RAID Service: Yes
- Rear Panel I/O Ports
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of USB 2.0 ports: 2
- Number of Ethernet LAN ports (RJ-45): 2
- Number of VGA (D-Sub) ports: 1
- Number of COM ports: 1
- Expansion slots
- PCI Express x8 (Gen 3.x) slots: 6
- Other functions
- Number of supported processors: 1
- Number of DIMM slots: 8
- Maximum LRDIMM memory: 512 GB
- PCI Express x4 slots (Gen 3.x): 1
- Logistics data
- Harmonized System (HS) code: 84733020
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Supermicro |
| Department | Electronics |
