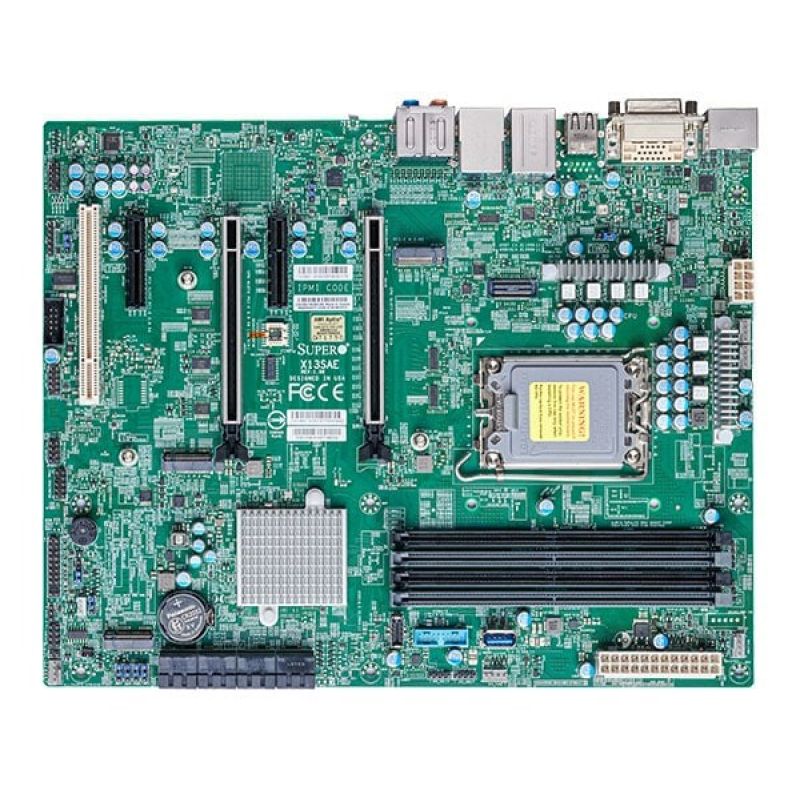

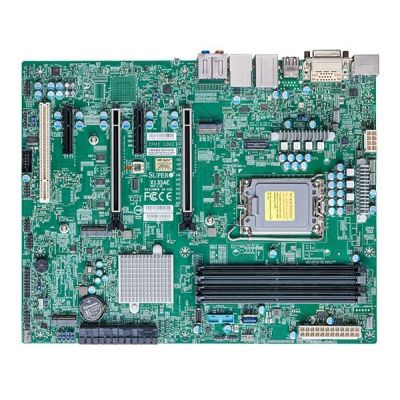

Supermicro MBD-X13SAE Intel W680 LGA 1700 ATX
Supermicro MBD-X13SAE Intel W680 LGA 1700 ATX
Supermicro MBD-X13SAE Intel W680 LGA 1700 ATX
PRICE:
962,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Number of processor cores: 24
- Processor
- Intel® Core™ i7
- Intel® Core™ i5
- Intel® Core™ i9
- Intel® Core™ i3
- Processor socket: LGA 1700
- Processor manufacturer: Intel
- Memory
- Supported memory clock speeds
- 4400 MHz
- 3600 MHz
- 4000 MHz
- Supported memory types: DDR5-SDRAM
- Unbuffered memory: Yes
- Maximum memory capacity: 192 GB
- Memory voltage: 1.1 V
- ECC Compatibility: ECC or Non-ECC
- Number of memory slots: 4
- Supported memory module capacities
- 16GB
- 8GB
- 48GB
- 32GB
- 24GB
- Memory slot type: DIMM
- Supported memory clock speeds
- Characteristics
- Chipset Board Family: Intel
- Motherboard format: ATX
- Audio chip: Realtek ALC888S
- Purpose: Server
- Motherboard Layout: Intel W680
- Weight and dimensions
- Product width: 304.8 mm
- Product depth: 243.8 mm
- Working conditions
- Temperature range (storage): -20 - 60 °C
- Temperature range (operation): 0 - 50 °C
- Internal I/O
- TPM Connector: Yes
- Serial port connector: 1
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- LAN Controller: Intel® I219-LM
- BIOS
- ACPI version: 6.0
- System BIOS (SMBIOS) version: 3.0
- BIOS memory size: 32 Mbit
- BIOS Type: AMI
- Memory drivers
- RAID levels
- 0
- 1
- 5
- 10
- Supported hard drive interfaces: M.2, PCI Express 3.0, PCI Express 5.0
- RAID Service: Yes
- RAID levels
- Rear Panel I/O Ports
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 4
- Number of DVI-D ports: 1
- Number of Ethernet LAN ports (RJ-45): 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 3
- HDMI version: 2.0b
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of USB 3.2 Gen 2x2 Type-C ports: 2
- DisplayPort Quantity: 1
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Supermicro |
| Department | Electronics |
