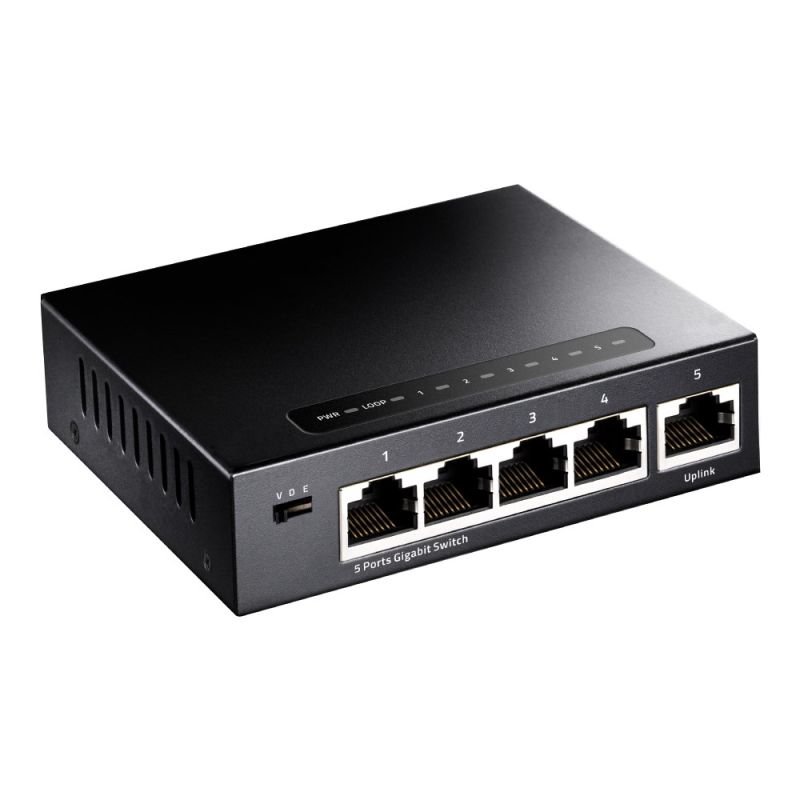

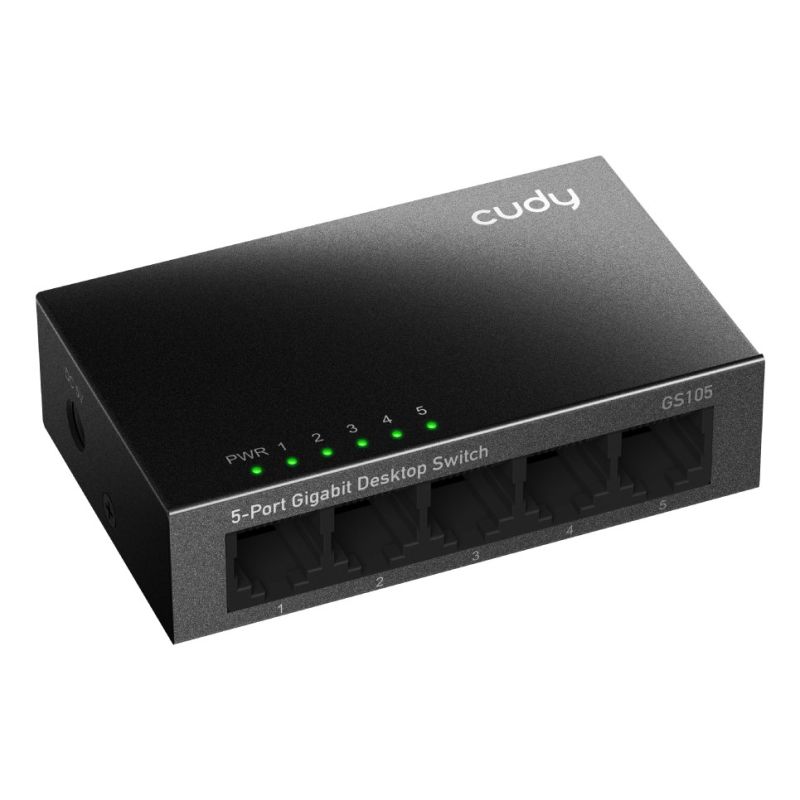

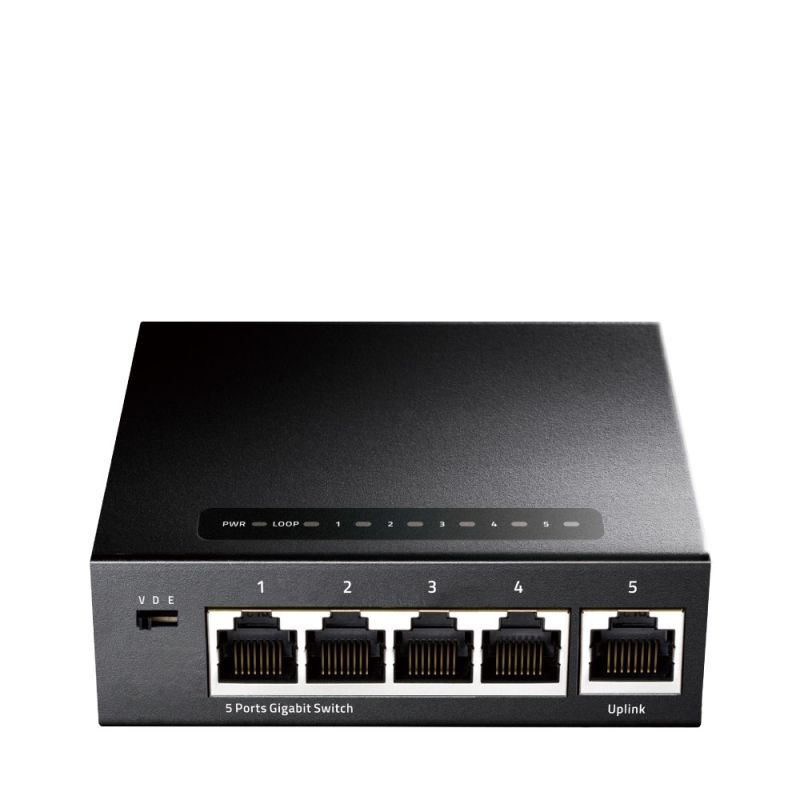

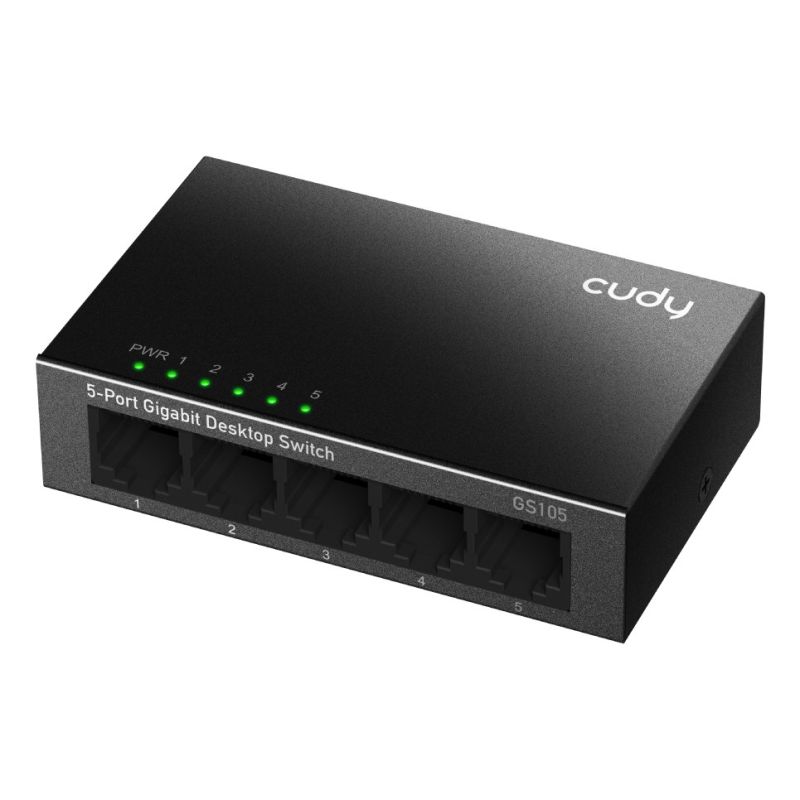

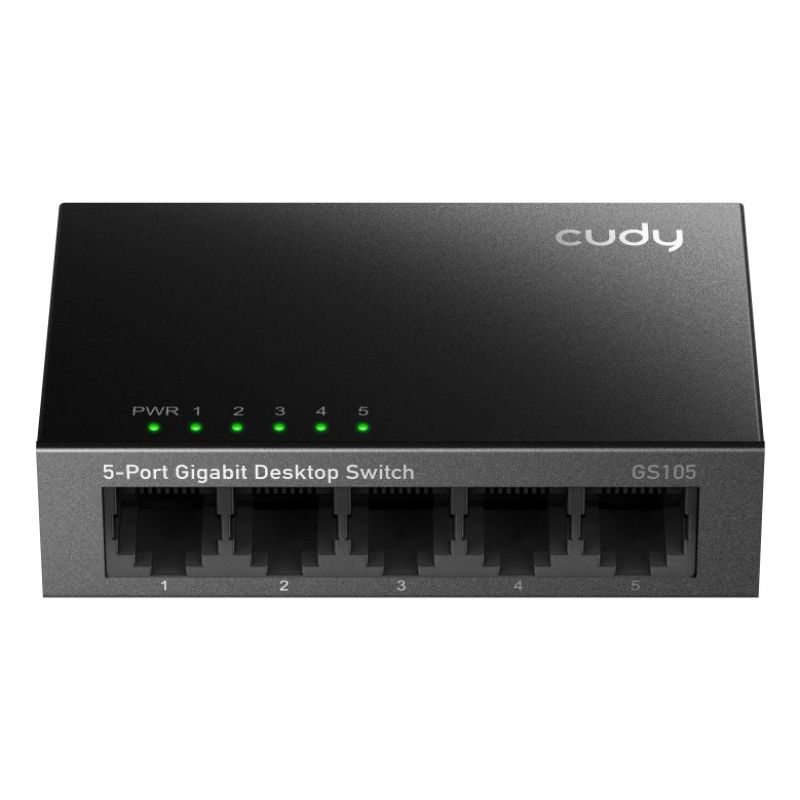

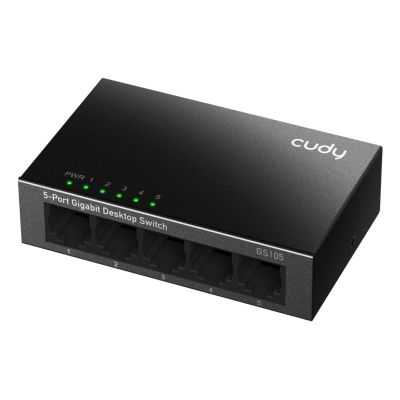

Switch CUDY GS105
Switch CUDY GS105
Switch CUDY GS105
PRICE:
17,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting options: No
- LED diodes
- Loop
- Power supply
- Link
- Product color: Black
- Power
- AC input voltage: 100 - 240 V
- Power source: AC/DC
- Power supply included: Yes

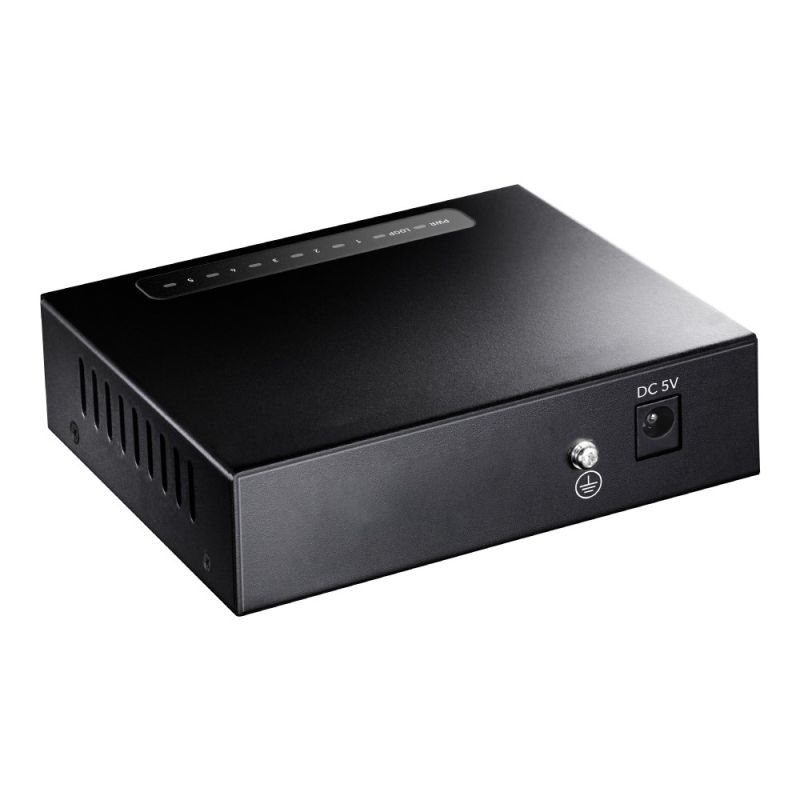

- DC input voltage: 5V
- Weight and dimensions
- Product weight: 200 g
- Product depth: 70 mm
- Product height: 26 mm
- Product width: 100 mm
- Working conditions
- Temperature range (operation): -10 - 50 °C
- Permissible operating altitude (above sea level): 0 - 3048 m
- Permissible relative humidity: 5 - 90%
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 10 - 90%
- Network
- Communication standards
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3
- Copper Ethernet cabling technology
- 1000BASE-TX
- 100BASE-TX
- 10BASE-T
- Auto-Negotiation: Yes
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Flow Control Support: Yes
- VLAN support: Yes
- MAC address auto-learning supported: Yes
- Supported cable types
- Cat6a
- Cat8
- Cat6e
- Cat7e
- Cat5
- Cat6
- Cat3
- Cat8.1
- Cat6+
- Cat7
- Cat5e
- Cat4
- MAC address auto-aging supported: Yes
- Half-duplex: Yes
- Communication standards
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- Packaging data
- Packaging type: Box
- Package depth: 120 mm
- Weight with packaging: 400 g
- Package height: 63 mm
- Package width: 175 mm

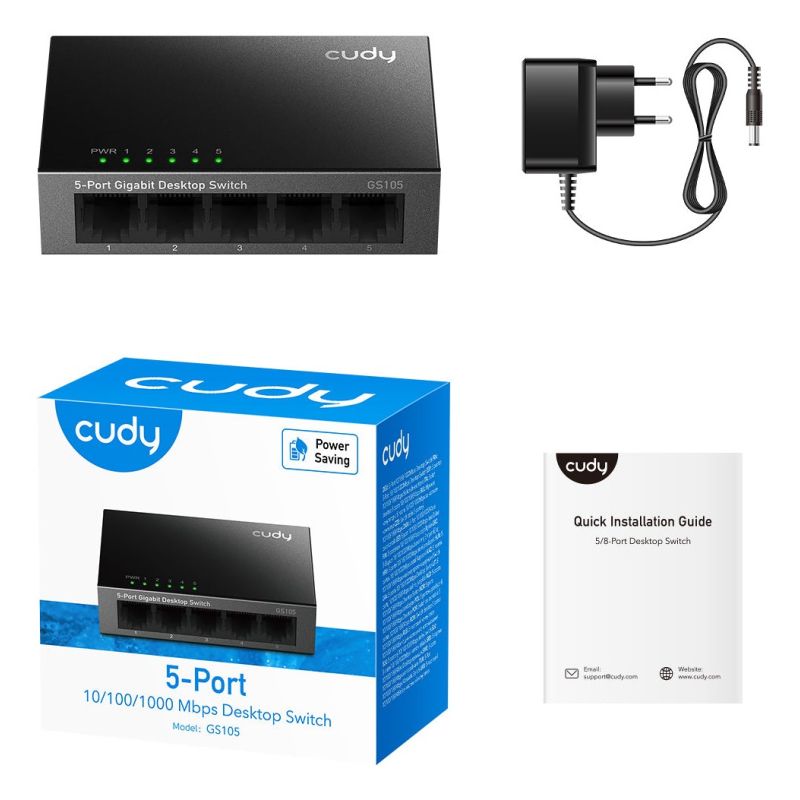

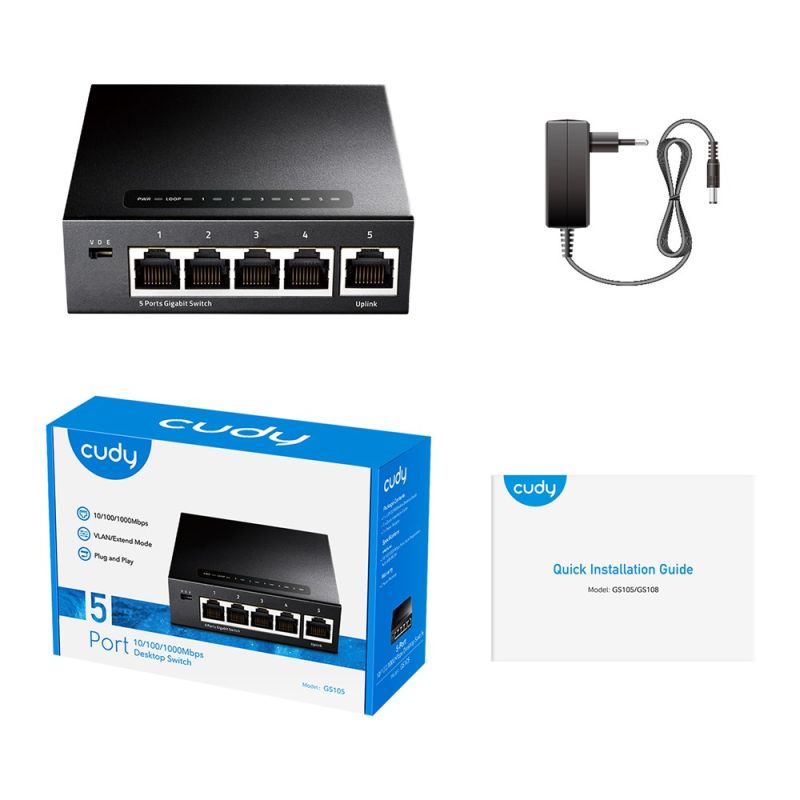

- Package contents
- Wires: DC
- User Manual: Yes
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 5
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Main (outer) case length: 320 mm
- Width of the collection box (external): 505 mm
- Height of the standard (outer) box: 400 mm
- Products in the main (outer) box: 40 pcs.
- Gross weight of the main (outer) housing: 17 kg
- Data transfer
- Jumbo Frame Compatible: Yes
- Store-and-forward: Yes
- Throughput: 7.44 Mpps
- Routing/switching capacity: 10 Gbit/s
- Packet buffer memory: 1 MB
- Address table size: 1000 entries
- Jumbo Frames Expansion: 2000
- Power over Ethernet (PoE)
- PoE Support: No
- Safety warning
- Warnings
- Ensure the device is adequately ventilated during operation.
- Do not open the casing or attempt to repair it yourself.
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Warnings
| Name | Details |
|---|---|
| Producer | CUDY |
