Switch CUDY GS108
Switch CUDY GS108
Switch CUDY GS108
PRICE:
24,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- LED diodes
- Loop
- Power supply
- Link
- Product color: Black
- Rack mounting options: No
- LED diodes
- Power
- DC input voltage: 5V
- AC input voltage: 100 - 240 V
- Power source: AC/DC
- Power supply included: Yes
- Weight and dimensions
- Product height: 25 mm
- Product weight: 300 g
- Product width: 137 mm
- Product depth: 77 mm
- Working conditions
- Temperature range (storage): -40 - 70 °C
- Permissible operating altitude (above sea level): 0 - 3048 m
- Permissible relative humidity: 5 - 90%
- Temperature range (operation): -10 - 50 °C
- Relative humidity range: 10 - 90%
- Network
- Copper Ethernet cabling technology
- 100BASE-TX
- 10BASE-T
- 1000BASE-TX
- Communication standards
- IEEE 802.3u
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3x
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- MAC address auto-learning supported: Yes
- Half-duplex: Yes
- MAC address auto-aging supported: Yes
- Supported cable types
- Cat6a
- Cat8
- Cat6+
- Cat8.1
- Cat4
- Cat6e
- Cat7e
- Cat5
- Cat6
- Cat3
- Cat7
- Cat5e
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Auto-Negotiation: Yes
- Flow Control Support: Yes
- VLAN support: Yes
- Copper Ethernet cabling technology
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- Packaging data
- Weight with packaging: 500 g
- Package height: 63 mm
- Packaging type: Box
- Package depth: 120 mm
- Package width: 175 mm

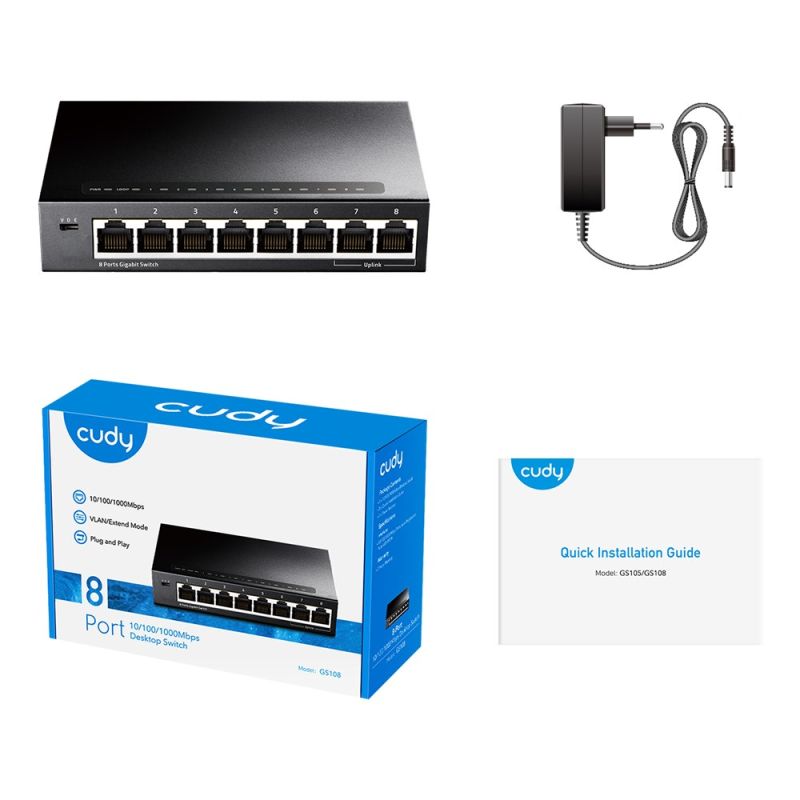

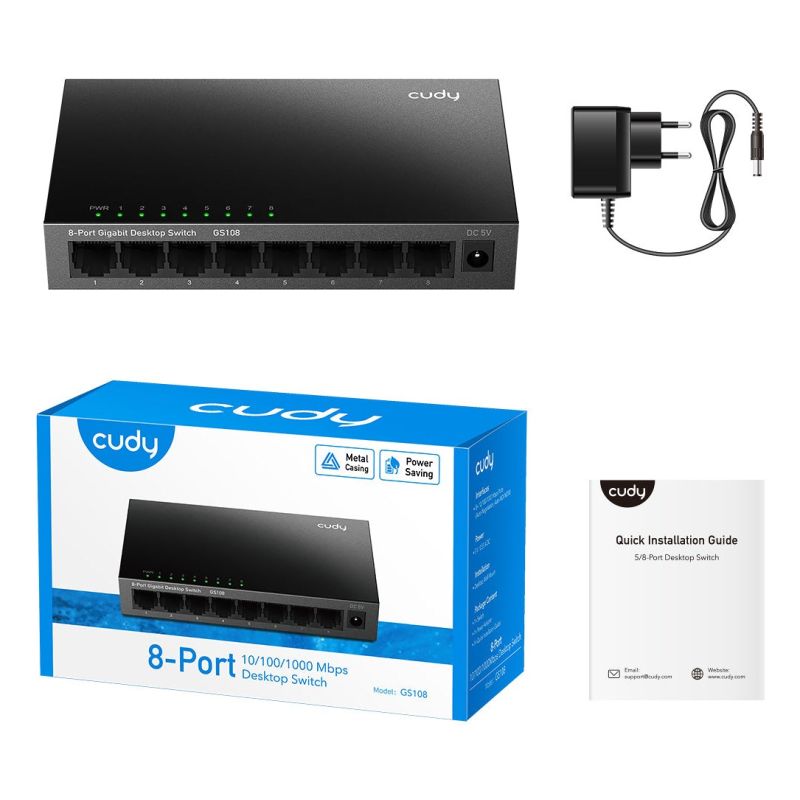

- Package contents
- Wires: DC
- Quick Start Guide: Yes
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Width of the collection box (external): 505 mm
- Products in the main (outer) box: 40 pcs.
- Main (outer) case length: 320 mm
- Gross weight of the main (outer) housing: 21 kg
- Height of the standard (outer) box: 400 mm
- Data transfer
- Packet buffer memory: 2.5 MB
- Store-and-forward: Yes
- Throughput: 11.9 Mpps
- Jumbo Frame Compatible: Yes
- Address table size: 1000 entries
- Routing/switching capacity: 16 Gbit/s
- Jumbo Frames Expansion: 2000
- Power over Ethernet (PoE)
- PoE Support: No
- Safety warning
- Warnings
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Do not open the casing or attempt to repair it yourself.
- Ensure the device is adequately ventilated during operation.
- Warnings
| Name | Details |
|---|---|
| Producer | CUDY |
