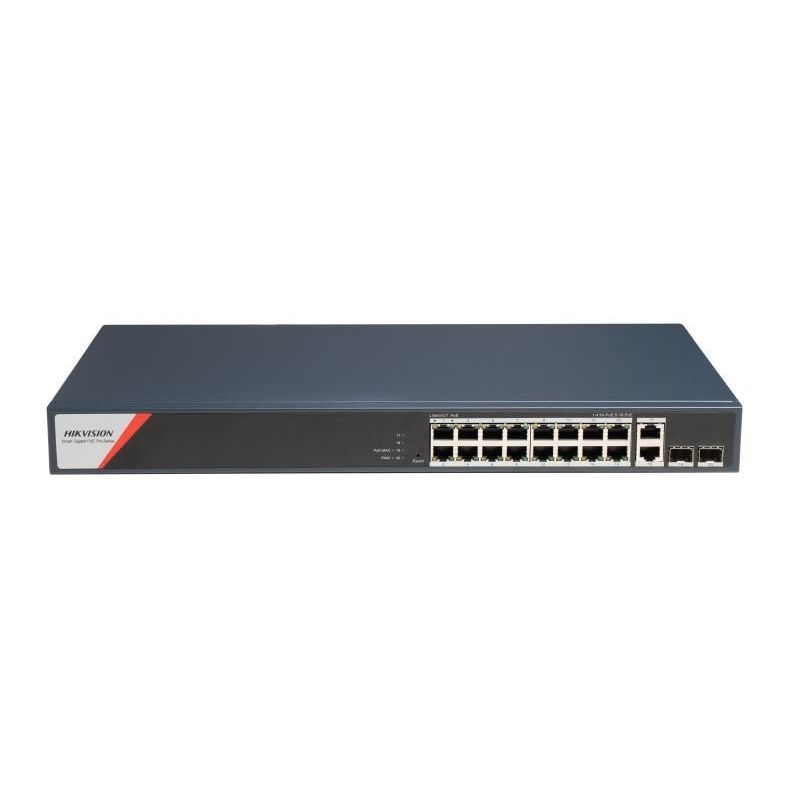

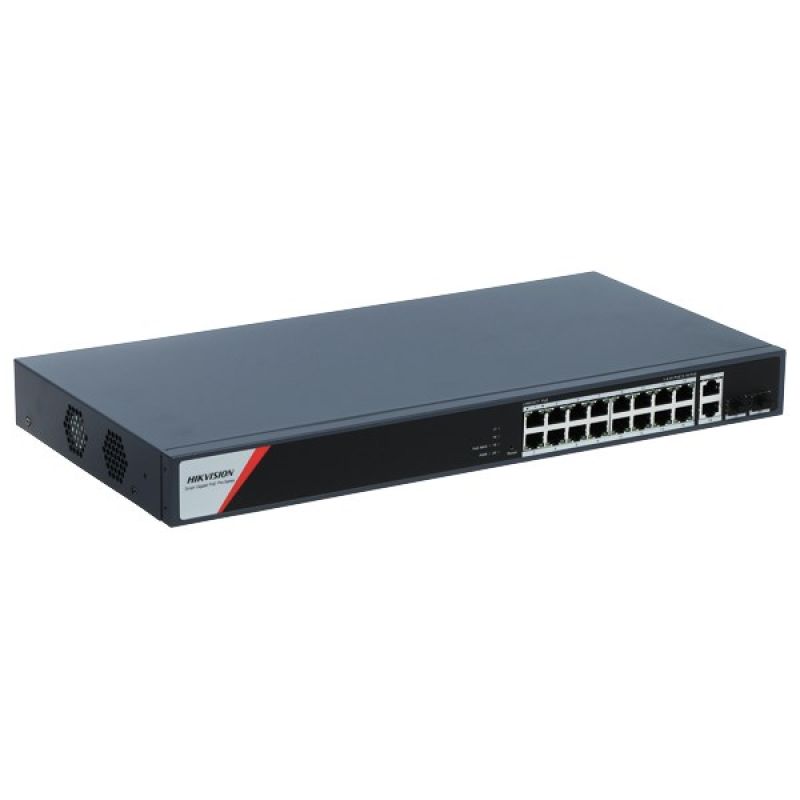

Switch DS-3E1520HP-SI-16P2T2F
Switch DS-3E1520HP-SI-16P2T2F
Switch DS-3E1520HP-SI-16P2T2F
PRICE:
528,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Housing material: Metal
- Rack mounting options: Yes
- Power
- AC input voltage: 100 - 240 V
- Power source: AC/PoE
- Power consumption (max): 250 W
- Protection against sudden voltage increases
- 6 kV
- Yes
- Weight and dimensions
- Product depth: 220.8 mm
- Product width: 440 mm
- Product weight: 2.73 kg
- Product height: 44 mm
- Security
- Queue planning algorithms
- SP
- Weighted Round Robin (WRR)
- Access Control List (ACL): Yes
- Loop protection: Yes
- Access Control List (ACL) Rules: 128
- DHCP functions
- DHCP client
- DHCP snooping
- Queue planning algorithms
- Management features
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Switch type: Managed
- Working conditions
- Temperature range (operation): 0 - 45 °C
- Relative humidity range: 5 - 95%
- Permissible relative humidity: 5 - 95%
- Temperature range (storage): -40 - 85 °C
- Network
- Communication standards
- IEEE 802.1w
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3bt
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.1Q
- Frequency Limit: Yes
- Spanning Tree Protocol: Yes
- Connection Aggregator: Yes
- Traffic Growth Control: Yes
- Number of VLANs: 4094
- 10G Support: No
- Cable length measurement: Yes
- VLAN support: Yes
- Communication standards
- Packaging data
- Weight with packaging: 3.31 kg
- Certificates
- Certificates of conformity
- Low Voltage Directive (LVD)
- Electromagnetic compatibility (EMC)
- REACH
- RoHS
- WEEE
- RCM
- CE
- CB
- Certificates of conformity
- Protocols
- IP Source Protection (IPSG): Yes
- Ports and interfaces
- Number of Gigabit Ethernet ports: 18
- Number of ports: 2
- Fiber optic connector: SFP
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Basic RJ-45 Switching Number of Ethernet Ports: 18
- Power Connector: AC Input Socket
- Data transfer
- Forwarding speed: 29.76 Mpps
- Address table size: 8000 entries
- Packet buffer memory: 4.1 MB
- Routing/switching capacity: 56 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 230 W
- Number of Fast Ethernet (PoE) ports: 16
| Name | Details |
|---|---|
| Producer | Hikvision |
