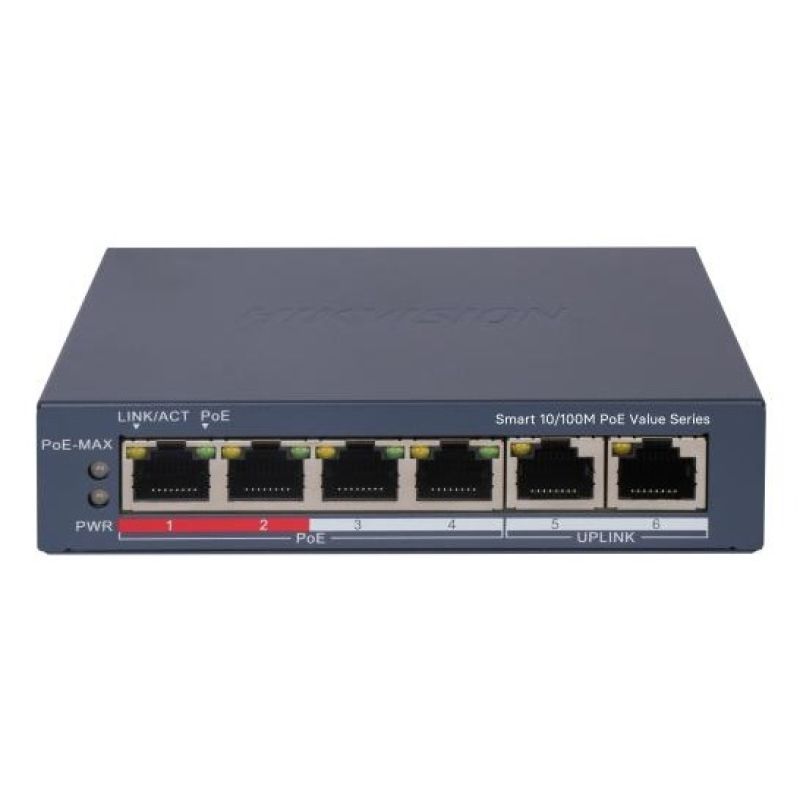

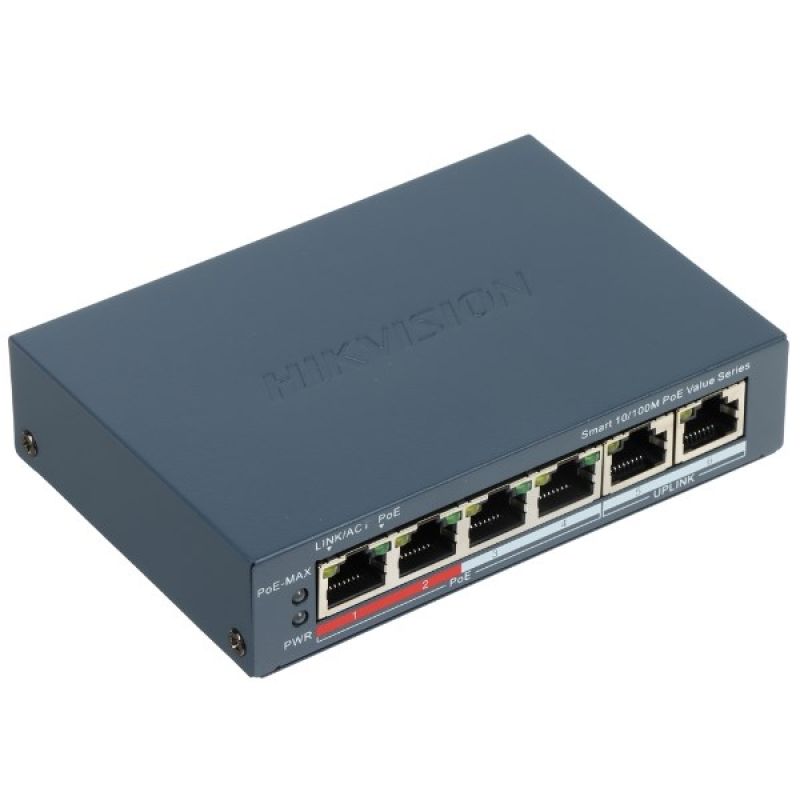

Switch model DS-3E1106P-EI/M
Switch model DS-3E1106P-EI/M
Switch model DS-3E1106P-EI/M
PRICE:
61,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Stackable: No
- Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014 (Second Edition), CE-LVD (EN 62368-1:2014+A11:2017)
- Housing material: Metal
- Wall mountable: Yes
- Rack mounting options: No
- Reset button: Yes
- Product color: Gray
- Power
- Power consumption (max): 50 W
- Protection against sudden voltage increases
- 6 kV
- Yes
- Power Protection Features: Surge Protection
- Power consumption: 1.8 W
- DC input voltage: 54 V
- Power source: DC
- Input current: 0.92 A
- Weight and dimensions
- Product height: 27.6 mm
- Product width: 121.1 mm
- Product depth: 83.1 mm
- Product weight: 270 g
- Security
- Loop protection: Yes
- DHCP functions: DHCP client
- Encryption/Security
- SNMPv2
- SNMP
- Management features
- Switch type: Managed
- Website management: Yes
- Working conditions
- Temperature range (storage): -40 - 85 °C
- Relative humidity range: 5 - 95%
- Temperature range (operation): 0 - 40 °C
- Permissible relative humidity: 5 - 95%
- Network
- Number of VLANs: 32
- Connection Aggregator: Yes
- 10G Support: No
- VLAN support: Yes
- Virtual LAN Features: VLAN Identifier (VLAN ID)
- Cable length measurement: Yes
- Port Mirroring: Yes
- Communication standards
- IEEE 802.1ab
- IEEE 802.3at
- IEEE 802.1Q
- IEEE 802.3af
- Packaging data
- Weight with packaging: 770 g
- Package contents
- Quick Start Guide: Yes
- Certificates
- Certificates of conformity
- Low Voltage Directive (LVD)
- REACH
- RoHS
- CB
- Electromagnetic compatibility (EMC)
- WEEE
- Certificates of conformity
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 6
- Number of Gigabit Ethernet ports: 2
- Number of Fast Ethernet ports (copper): 4
- Power connector: DC-in jack
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of connection ports: 2
- Data transfer
- Routing/switching capacity: 14 Gbit/s
- Address table size: 2000 entries
- Transfer speed: 10.42 Mpps
- Packet buffer memory: 1 MB
- Power over Ethernet (PoE)
- PoE Support: Yes
- Power over Ethernet (PoE) power per port: 30 W
- Number of Fast Ethernet (PoE) ports: 4
- Total Power over Ethernet (PoE) budget: 45 W
- Sustainable development
- Sustainability: Yes
| Name | Details |
|---|---|
| Producer | Hikvision |
