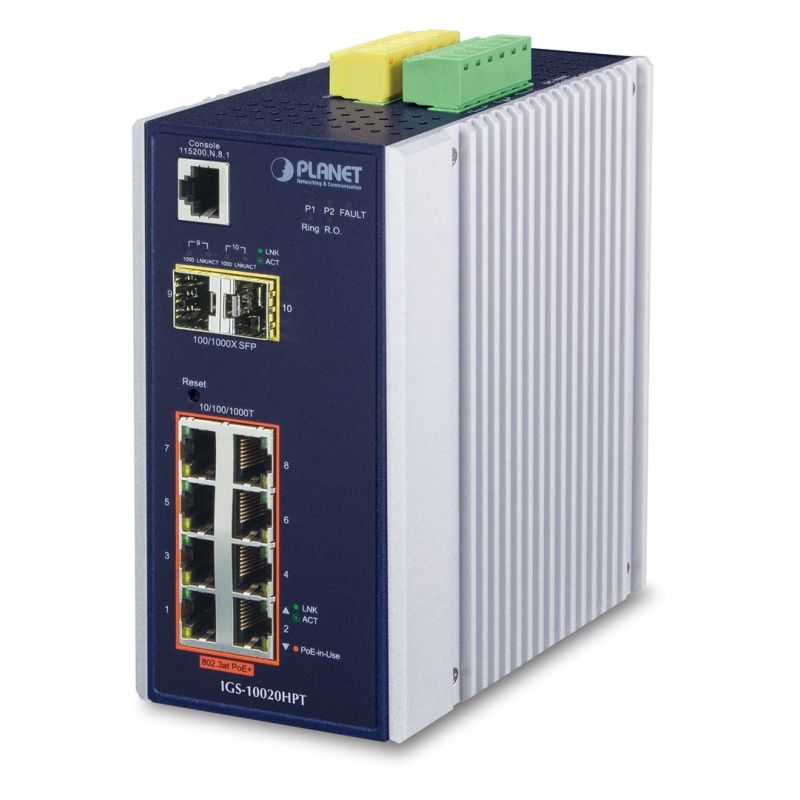

Switch Planet IGS-10020HPT (8x 10/100/1000Mbps)
Switch Planet IGS-10020HPT (8x 10/100/1000Mbps)
Switch Planet IGS-10020HPT (8x 10/100/1000Mbps)
PRICE:
829,99
€
IN A WAREHOUSE
8 pcs
Goods available on request - delivery time to 5 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color
- Black
- White
- Wall mountable: Yes
- DIN rail mounting: Yes
- Rack mounting options: No
- LEDs: Yes
- IP protection class: IP30
- Reset button: Yes
- Housing material: Aluminum
- Product color
- Power
- Backup Power Supply (RPS) Support: Yes
- Power consumption: 31.9 W
- Voltage: 48V
- Weight and dimensions
- Product weight: 1.68 kg
- Product width: 152 mm
- Product depth: 107 mm
- Product height: 72 mm
- Security
- Encryption/Security
- SNMP
- SSH
- SSL/TLS
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- BPDU Filtering/Protection: Yes
- Loop protection: Yes
- Authentication: MAC-based authentication, Port-based authentication
- Encryption/Security
- Management features
- Switch type: Managed
- Traffic Classification: Yes
- Quality of Service (QoS) Support: Yes
- System Event Report: Yes
- Switch Layer: L2+
- ARP Inspection: Yes
- Website management: Yes
- Working conditions
- Temperature range (operation): -40 - 75 °C
- Temperature range (storage): -40 - 85 °C
- Relative humidity range: 5 - 95%
- Network
- Virtual LAN Features
- Protocol-based VLAN
- Tagged VLAN
- Stacked VLAN
- Private VLAN
- Full duplex: Yes
- 10G Support: No
- Traffic Growth Control: Yes
- Communication standards
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3z
- IEEE 802.3
- IEEE 802.1ab
- IEEE 802.3ab
- IEEE 802.1x
- IEEE 802.1s
- MAC address auto-learning supported: Yes
- Auto MDI/MDI-X: Yes
- Spanning Tree Protocol: Yes
- Connection Aggregator: Yes
- Auto-Negotiation: Yes
- Flow Control Support: Yes
- MAC address auto-aging supported: Yes
- Port Mirroring: Yes
- VLAN support: Yes
- Number of VLANs: 4094
- Virtual LAN Features
- Efficiency
- Device software updates: Yes
- Protocols
- Supported network protocols: IPv4 / IPv6
- Management protocols: Telnet, SNMP v1/v2c
- Ports and interfaces
- Console port: RJ-45
- Fiber optic connector: MiniGBIC
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Number of SFP Module slots: 2
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Number of rounds: 8
- Jumbo Frame Compatible: Yes
- Store-and-forward: Yes
- Address table size: 8000 entries
- Throughput: 14.8 Mpps
- Number of IP interfaces: 8
- Jumbo Frames Expansion: 9000
- Routing/switching capacity: 26 Gbit/s
- Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port: 36 W
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 270 W
- Power over Ethernet Plus (PoE +) ports: 8
- Multicast functions
- Multicast Support: Yes
- Fiber optic
- Fiber Ethernet cabling technology
- 1000BASE‑BX
- 100BASE-FX
- 1000BASE‑LX
- 1000BASE‑SX
- Fiber Ethernet cabling technology
