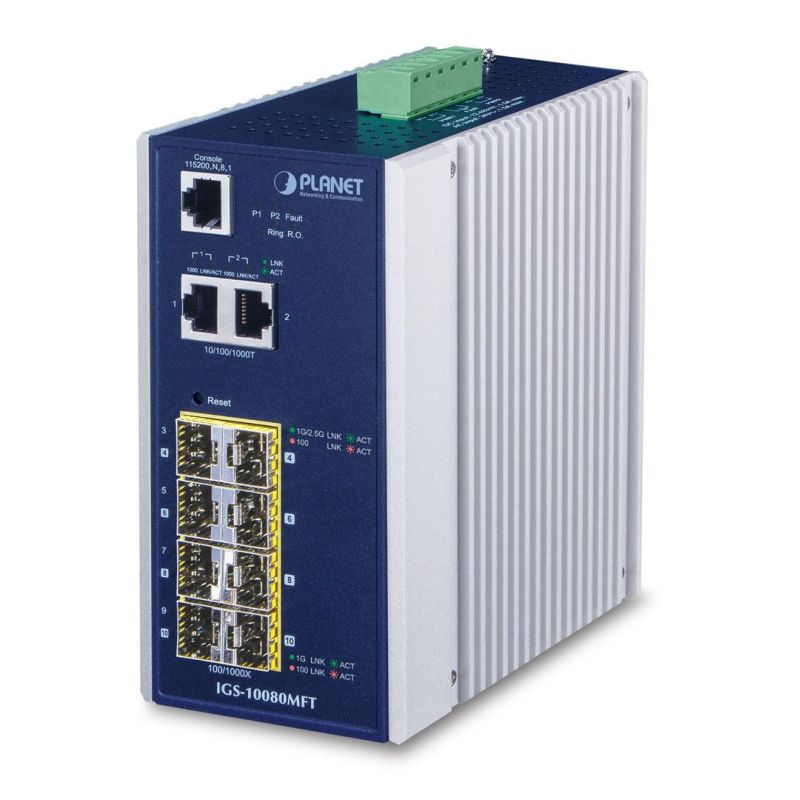

Switch Planet IGS-10080MFT (8x 10/100/1000Mbps)
Switch Planet IGS-10080MFT (8x 10/100/1000Mbps)
Switch Planet IGS-10080MFT (8x 10/100/1000Mbps)
PRICE:
661,99
€
IN A WAREHOUSE
above 10 pcs
Goods available on request - delivery time to 5 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- DIN rail mounting: Yes
- Housing material: Aluminum
- LEDs: Yes
- Wall mountable: Yes
- IP protection class: IP30
- Reset button: Yes
- Product color
- White
- Blue
- Rack mounting options: No
- Power
- Power consumption (max): 13.92 W
- DC input voltage: 12 - 48 V
- Backup Power Supply (RPS) Support: Yes
- Weight and dimensions
- Product height: 152 mm
- Product width: 76.8 mm
- Product depth: 107.3 mm
- Product weight: 1.04 kg
- Security
- Encryption/Security
- SSH
- SSL/TLS
- 802.1x RADIUS
- Access Control List (ACL): Yes
- BPDU Filtering/Protection: Yes
- IGMP snooping: Yes
- Authentication: Port-based authentication
- Supports SSH/SSL: Yes
- Loop protection: Yes
- Encryption/Security
- Management features
- Traffic Classification: Yes
- Website management: Yes
- ARP Inspection: Yes
- Switch type: Managed
- Quality of Service (QoS) Support: Yes
- System Event Report: Yes
- Working conditions
- Relative humidity range: 5 - 95%
- Temperature range (storage): -40 - 75 °C
- Temperature range (operation): -40 - 75 °C
- Permissible relative humidity: 5 - 95%
- Heat emission: 47.76 BTU/h
- Network
- Communication standards
- IEEE 802.1x
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.1s
- IEEE 1588v2
- IEEE 802.3
- IEEE 802.3bz
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3ab
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.3z
- IEEE 802.1w
- IEEE 802.3ad
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-TX
- 1000BASE-T
- Number of VLANs: 4095
- VLAN support: Yes
- 10G Support: No
- Spanning Tree Protocol: Yes
- Flow Control Support: Yes
- Frequency Limit: Yes
- Half-duplex: Yes
- Auto-Negotiation: Yes
- Virtual LAN Features
- Protocol-based VLAN
- Tagged VLAN
- Private VLAN
- MAC address auto-aging supported: Yes
- Port Mirroring: Yes
- MAC address auto-learning supported: Yes
- Full duplex: Yes
- Connection Aggregator: Yes
- Communication standards
- Protocols
- Supported network protocols: IPv4 / IPv6
- Management protocols: web, telnet, SNMP
- Ports and interfaces
- Number of SFP Module slots: 8
- Number of Gigabit Ethernet ports: 2
- Basic RJ-45 Switching Number of Ethernet Ports: 2
- Fiber optic connector: MiniGBIC
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Routing/switching capacity: 26 Gbit/s
- Store-and-forward: Yes
- Jumbo Frames Expansion: 9000
- Jumbo Frame Compatible: Yes
- Number of rounds: 8
- Address table size: 8000 entries
- Throughput: 19.3 Mpps
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Safety warning
- Warnings
- Ensure the device is adequately ventilated during operation.
- Do not open the casing or attempt to repair it yourself.
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Warnings
- Fiber optic
- Fiber Ethernet cabling technology
- 100BASE-FX
- 1000BASE‑LX
- 1000BASE‑SX
- Fiber Ethernet cabling technology
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Planet |
