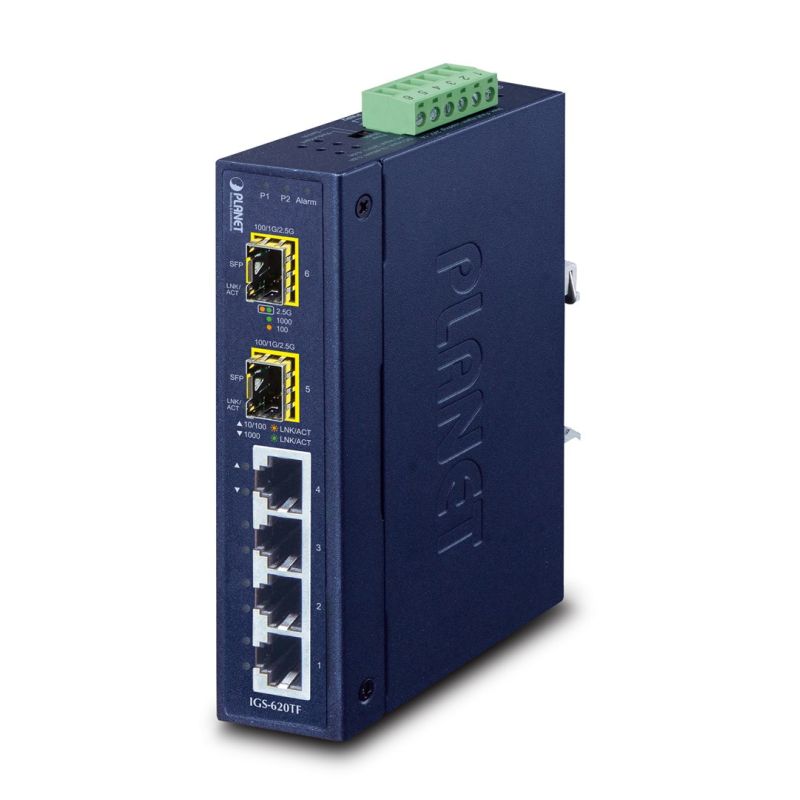

Switch Planet IGS-620TF (4x 10/100/1000Mbps)
Switch Planet IGS-620TF (4x 10/100/1000Mbps)
Switch Planet IGS-620TF (4x 10/100/1000Mbps)
PRICE:
269,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- DIN rail mounting: Yes
- Wall mountable: Yes
- Rack mounting options: No
- LEDs: Yes
- IP protection class: IP30
- Product color: Blue
- Stackable: No
- Housing material: Metal
- Power
- Power consumption: 7.5 W
- DC input voltage: 12 - 48 V
- Power Supply Included: No
- Weight and dimensions
- Product width: 32 mm
- Product height: 135 mm
- Product weight: 425 g
- Product depth: 87 mm
- Management features
- Switch Type: Unmanaged
- Working conditions
- Temperature range (operation): -40 - 75 °C
- Temperature range (storage): -40 - 75 °C
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 5 - 95%
- Network
- Supported cable types
- Cat5
- Cat6
- Cat5e
- Communication standards
- IEEE 802.3z
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3
- IEEE 802.1p
- Copper Ethernet cabling technology
- 10BASE-T
- 1000BASE-T
- 100BASE-T
- Auto-Negotiation: Yes
- Auto MDI/MDI-X: Yes
- Flow Control Support: Yes
- Full duplex: Yes
- 10G Support: No
- Half-duplex: Yes
- Supported cable types
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 4
- Fiber optic connector: SFP
- Number of SFP Module slots: 2
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Jumbo Frames Expansion: 9216
- Throughput: 13.39 Mpps
- Address table size: 4000 entries
- Store-and-forward: Yes
- Jumbo Frame Compatible: Yes
- Routing/switching capacity: 18 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
- Fiber optic
- Fiber optic type: Multifunctional
- Transmission distance (maximum): 60 km
- Fiber Ethernet cabling technology
- 100BASE-FX
- 1000BASE‑LX
- 1000BASE‑SX
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Planet |
