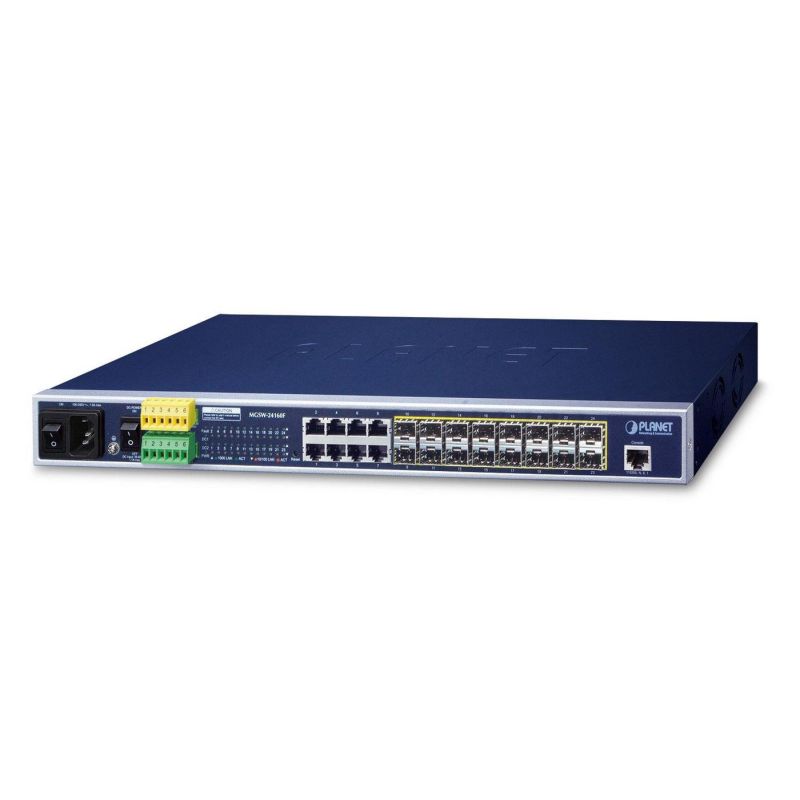

Switch PLANET MGSW-24160F 16x SFP + 8x RJ45
Switch PLANET MGSW-24160F 16x SFP + 8x RJ45
Switch PLANET MGSW-24160F 16x SFP + 8x RJ45
PRICE:
908,99
€
IN A WAREHOUSE
above 10 pcs
Goods available on request - delivery time to 5 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Built-in switch: Yes
- Number of fans: 2 fans
- Rack mounting options: Yes
- LEDs: Yes
- Layout: 1U
- Stackable: Yes
- Product color: Blue
- Reset button: Yes
- Power
- Power consumption (max): 38 W
- Power Supply Included: No
- AC input frequency: 50 - 60 Hz
- AC input voltage: 100 - 240 V
- Weight and dimensions
- Product width: 440 mm
- Product height: 44.5 mm
- Product depth: 200 mm
- Product weight: 3 kg
- Security
- Auto Edge Port: Yes
- DHCP functions
- DHCP server
- DHCP client
- Loop protection: Yes
- Encryption/Security
- SNMP
- SSH
- SSL/TLS
- IGMP snooping: Yes
- BPDU Filtering/Protection: Yes
- Access Control List (ACL): Yes
- Amin Edge Port (Manual Edge Port Setting): Yes
- Supports SSH/SSL: Yes
- IP-MAC-Port Binding: Yes
- MAC address filtering: Yes
- Management features
- Quality of Service (QoS) Support: Yes
- Switch Layer: L2+
- Switch type: Managed
- Traffic shaping: Yes
- Traffic Classification: Yes
- ARP Inspection: Yes
- System Event Report: Yes
- Website management: Yes
- Working conditions
- Relative humidity range: 5 - 95%
- Temperature range (operation): 0 - 60 °C
- Temperature range (storage): -10 - 70 °C
- Permissible relative humidity: 5 - 95%
- Network
- Port Mirroring: Yes
- Flow Control Support: Yes
- 10G Support: No
- Auto MDI/MDI-X: Yes
- Auto-Negotiation: Yes
- MAC address auto-learning supported: Yes
- Copper Ethernet cabling technology
- 1000BASE-T
- 100BASE-TX
- 10BASE-T
- 100BASE-FX
- 100BASE-T
- 1000BASE-TX
- VLAN support: Yes
- Virtual LAN Features
- Private VLAN
- Protocol-based VLAN
- Port-based VLAN
- Full duplex: Yes
- MAC address auto-aging supported: Yes
- Spanning Tree Protocol: Yes
- IP forwarding: Yes
- Connection Aggregator: Yes
- Communication standards
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3
- IEEE 802.1x
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3ab
- IEEE 802.1Q
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.1s
- IEEE 802.3ad
- Packaging data
- Cables: RS-232
- AC adapter: Yes
- Rubber feet: Yes
- Quick Start Guide: Yes
- Strip included: Yes
- Hook mounting kit: Yes
- Ports and interfaces
- Console port: RS-232
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Supported memory cards: Not supported
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of SFP Module slots: 16
- Other functions
- Terminal Port Blocking: Yes
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Address table size: 16000 entries
- Jumbo Frame Compatible: Yes
- Number of rounds: 8
- Routing/switching capacity: 48 Gbit/s
- Throughput: 35.6 Mpps
- Jumbo Frames Expansion: 10000
- Store-and-forward: Yes
- Number of lines: 24
- Power over Ethernet (PoE)
- Number of Fast Ethernet (PoE) ports: 8
- PoE Support: Yes
- Power over Ethernet Plus (PoE +) ports: 8
- Multicast functions
- Number of multicast groups filtered: 255
- Multicast Support: Yes
- Safety warning
- Warnings
- Do not open the casing or attempt to repair it yourself.
- Ensure the device is adequately ventilated during operation.
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Warnings
- Fiber optic
- Fiber Ethernet cabling technology: 1000BASE-X
- Transmission distance (maximum): 120 km
- Fiber optic type: Multifunctional
| Name | Details |
|---|---|
| Producer | Hikvision |
